Transmission Range Control Module (TRCM): Installation

WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

1.

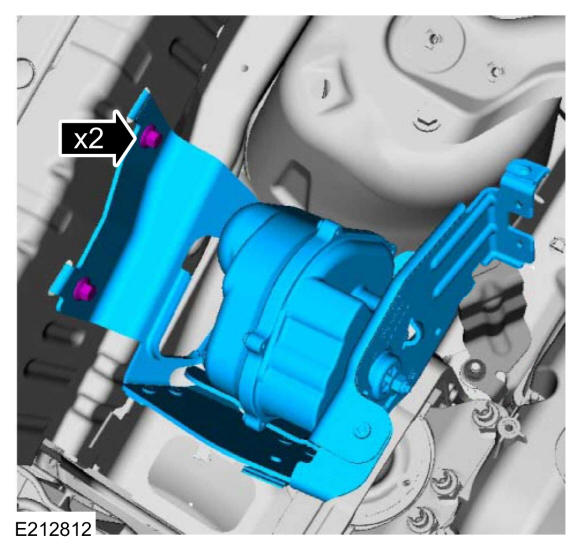

Position the TRCM and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Install the TRCM nut.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

3.

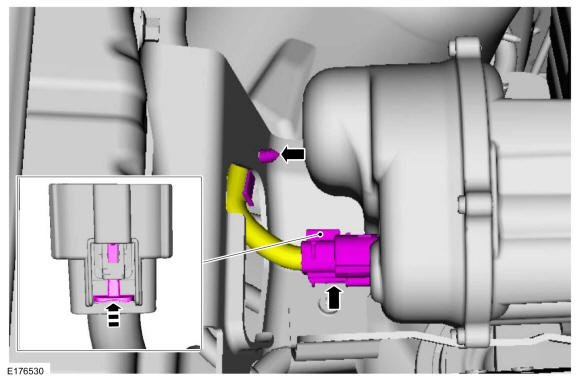

Connect the electrical connector and the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

4.

Position the selector lever cable, install the clip and the bolt, and connect the selector lever cable to the TRCM.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Position the degas bottle and the degas bottle hose and attach the retainers.

Courtesy of FORD MOTOR COMPANY

6.

Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
