Fuel Pump Driver Module (FPDM): Installation

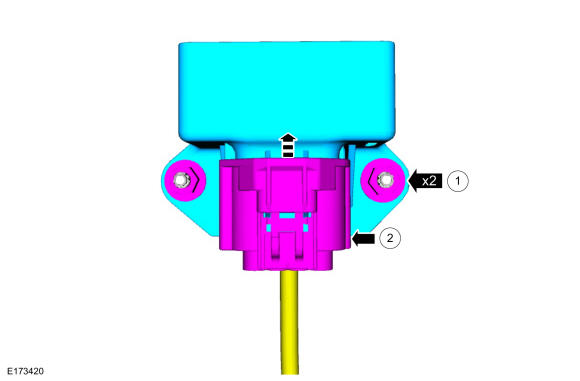

    1. Torque: 44 lb.in (5 Nm)
    GFD165797Courtesy of FORD MOTOR COMPANY

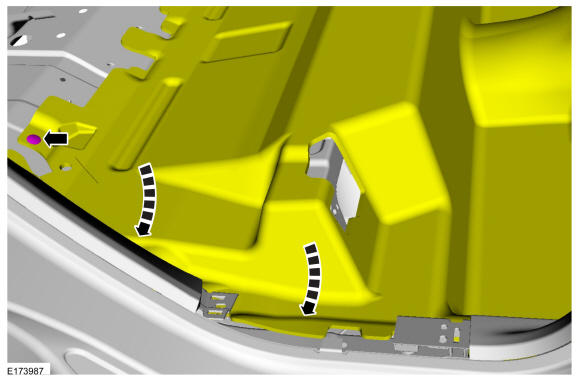

  2. GFD165798Courtesy of FORD MOTOR COMPANY

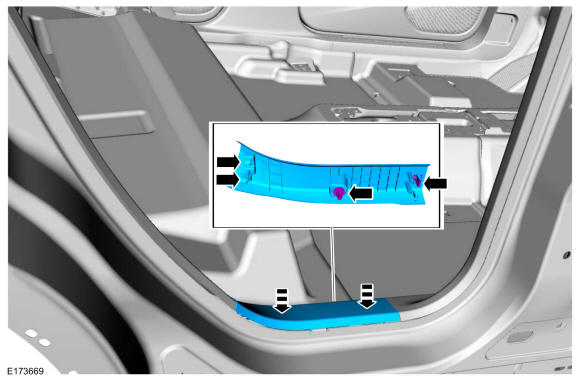

  3. NOTE:
    GFD165799Courtesy of FORD MOTOR COMPANY

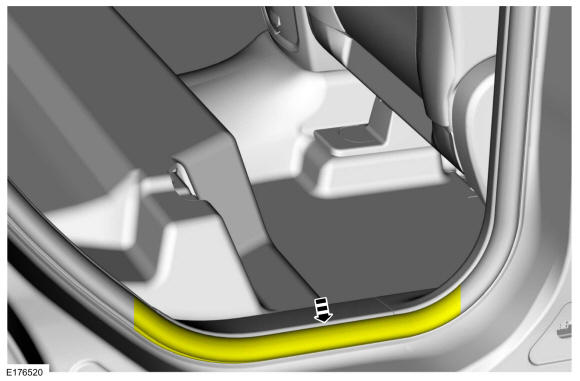

  4. GFD165800Courtesy of FORD MOTOR COMPANY

  5. Install the rear seat cushion. Refer to: Rear Seat Cushion
