Fuel Rail Pressure (FRP) Sensor: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

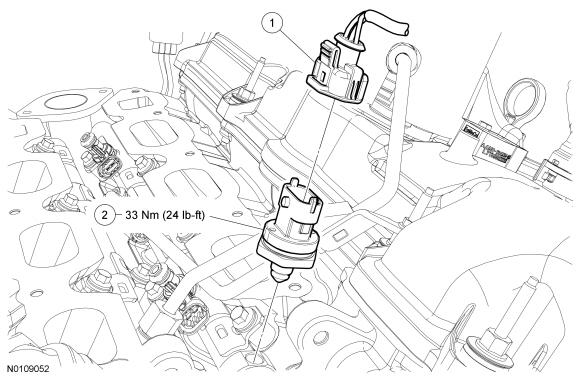

Fig 1: Fuel Rail Pressure Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	14A464	Fuel Rail Pressure (FRP) sensor electrical connector
2	9G756	FRP sensor
