Component Location Views

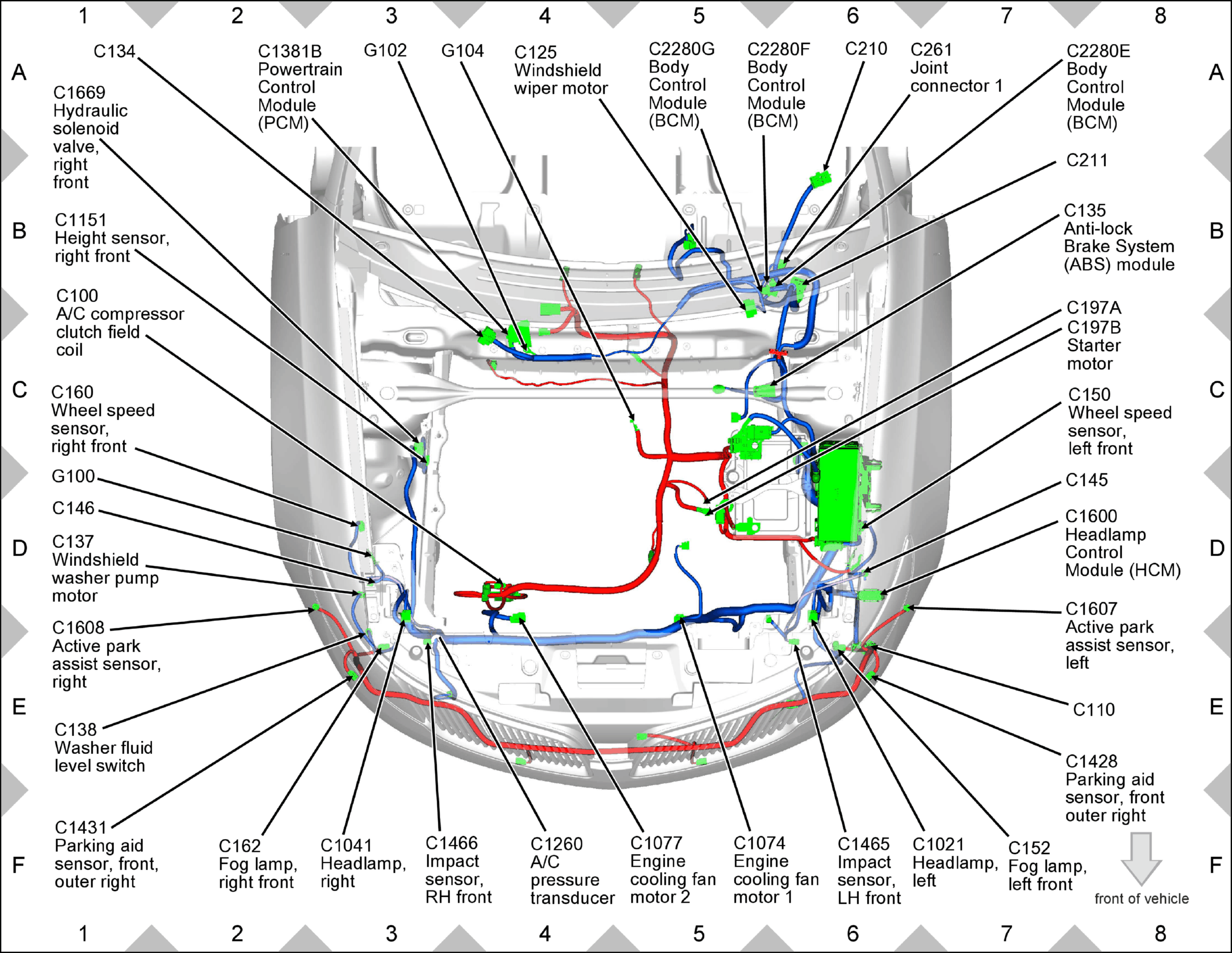

GFDW33579Courtesy of FORD MOTOR COMPANY

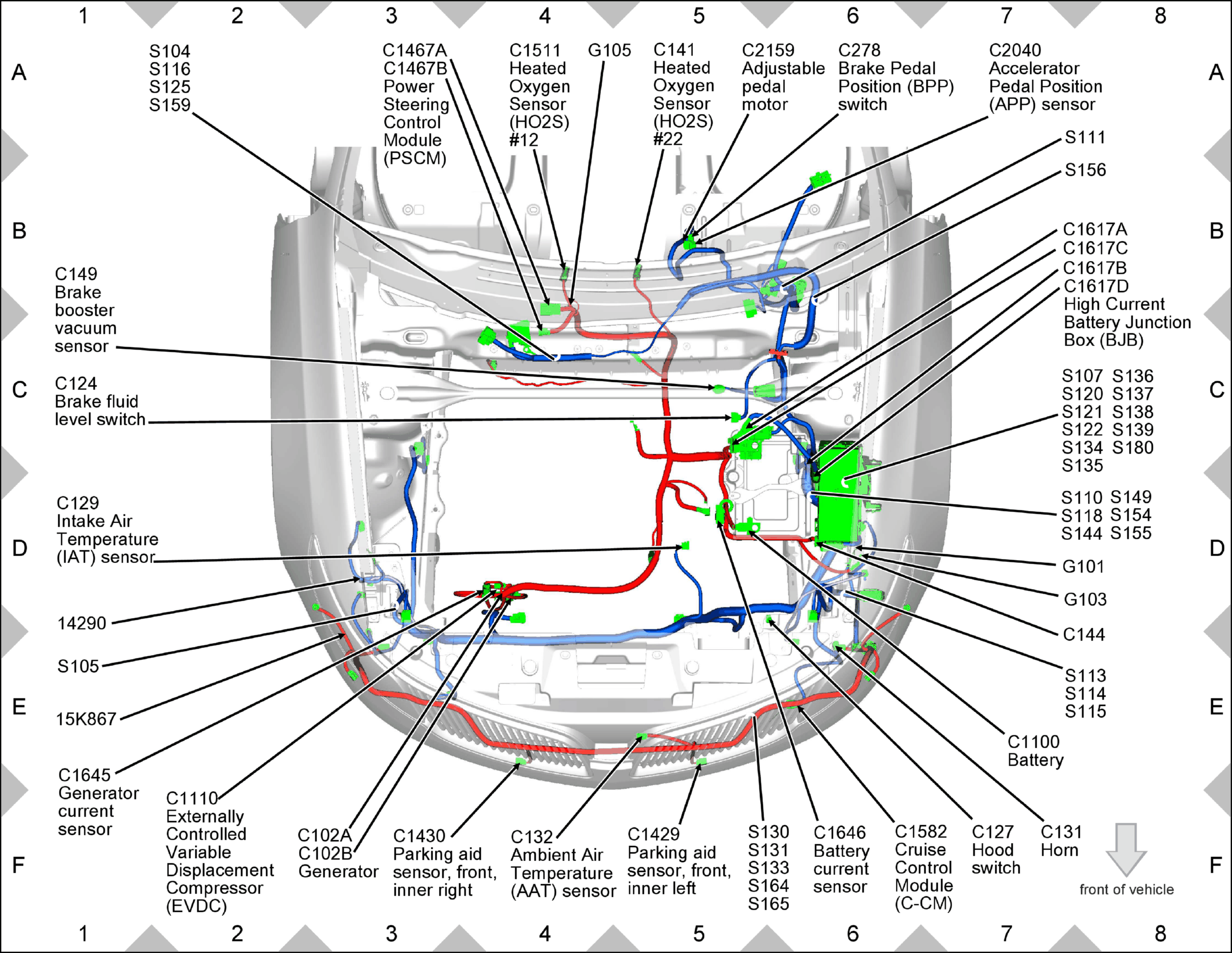

GFDW33580Courtesy of FORD MOTOR COMPANY

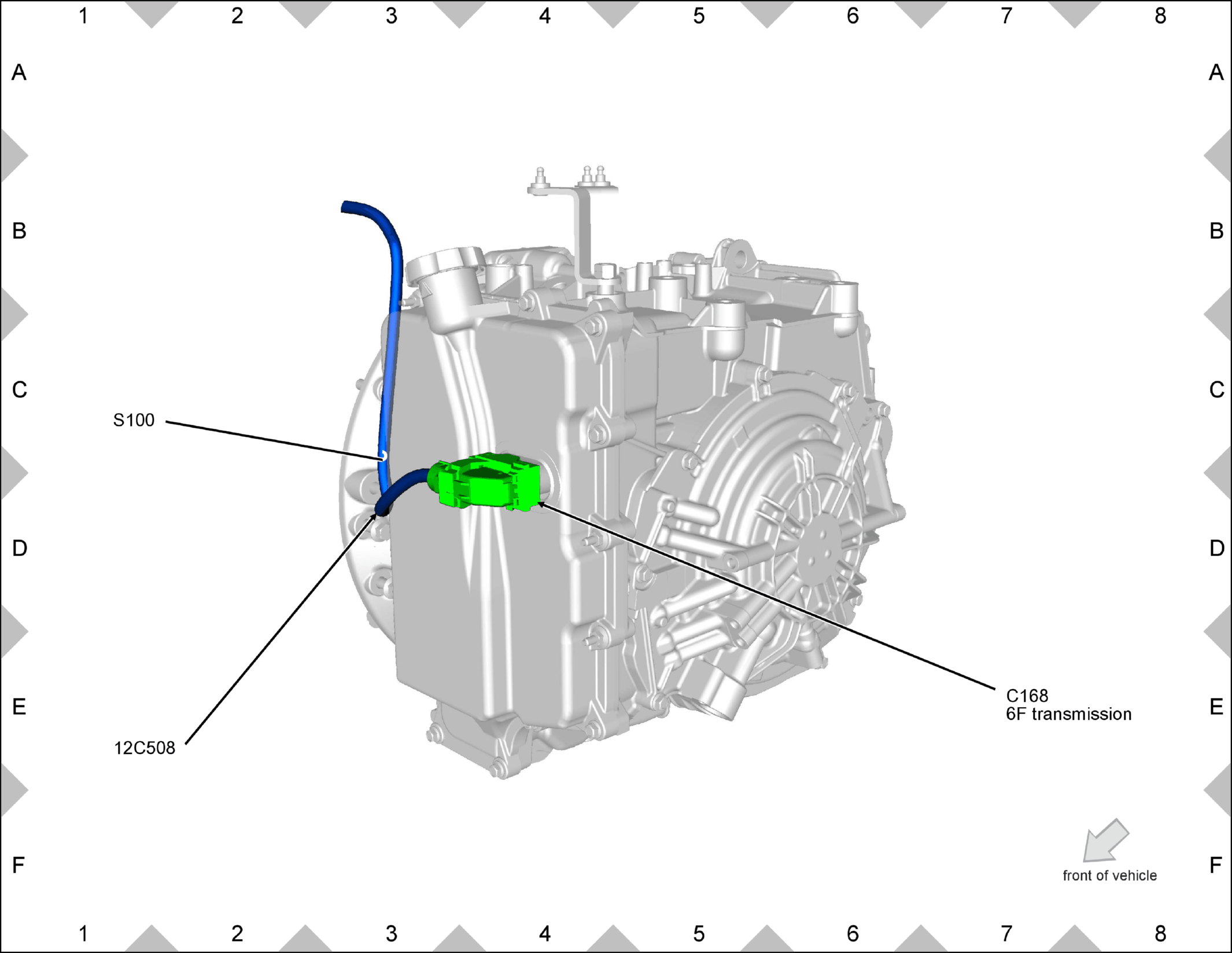

GFDW33581Courtesy of FORD MOTOR COMPANY

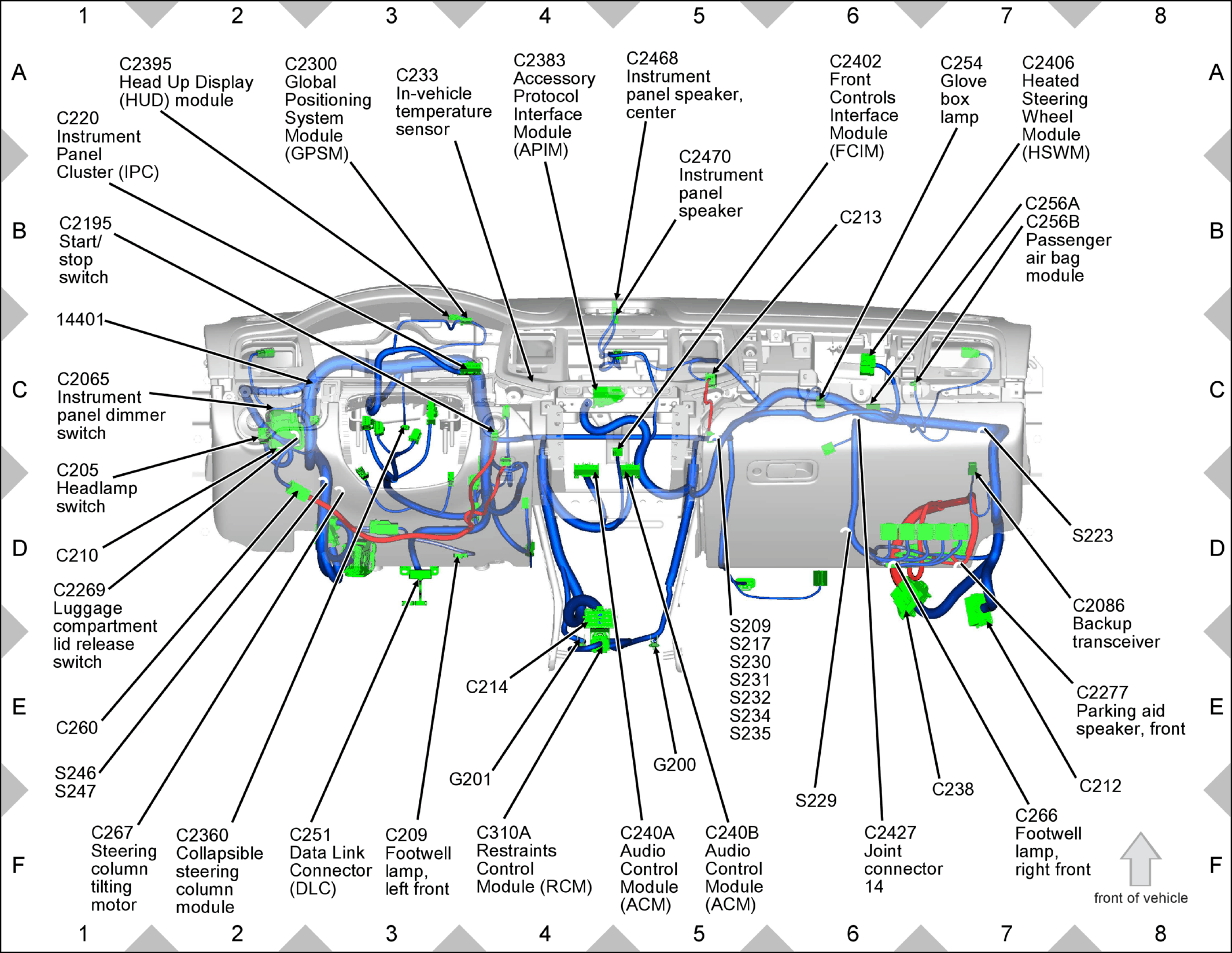

GFDW33582Courtesy of FORD MOTOR COMPANY

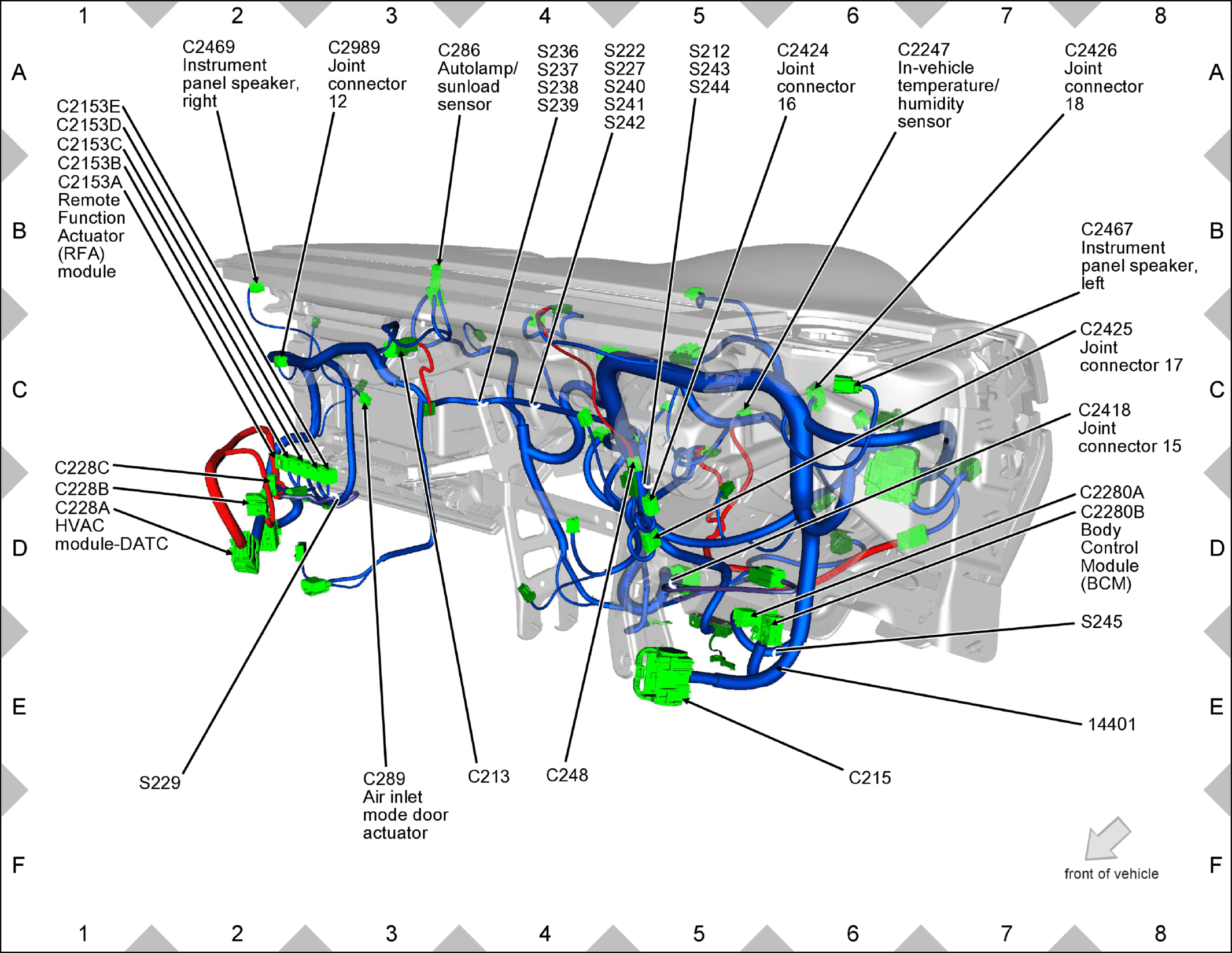

GFDW33583Courtesy of FORD MOTOR COMPANY

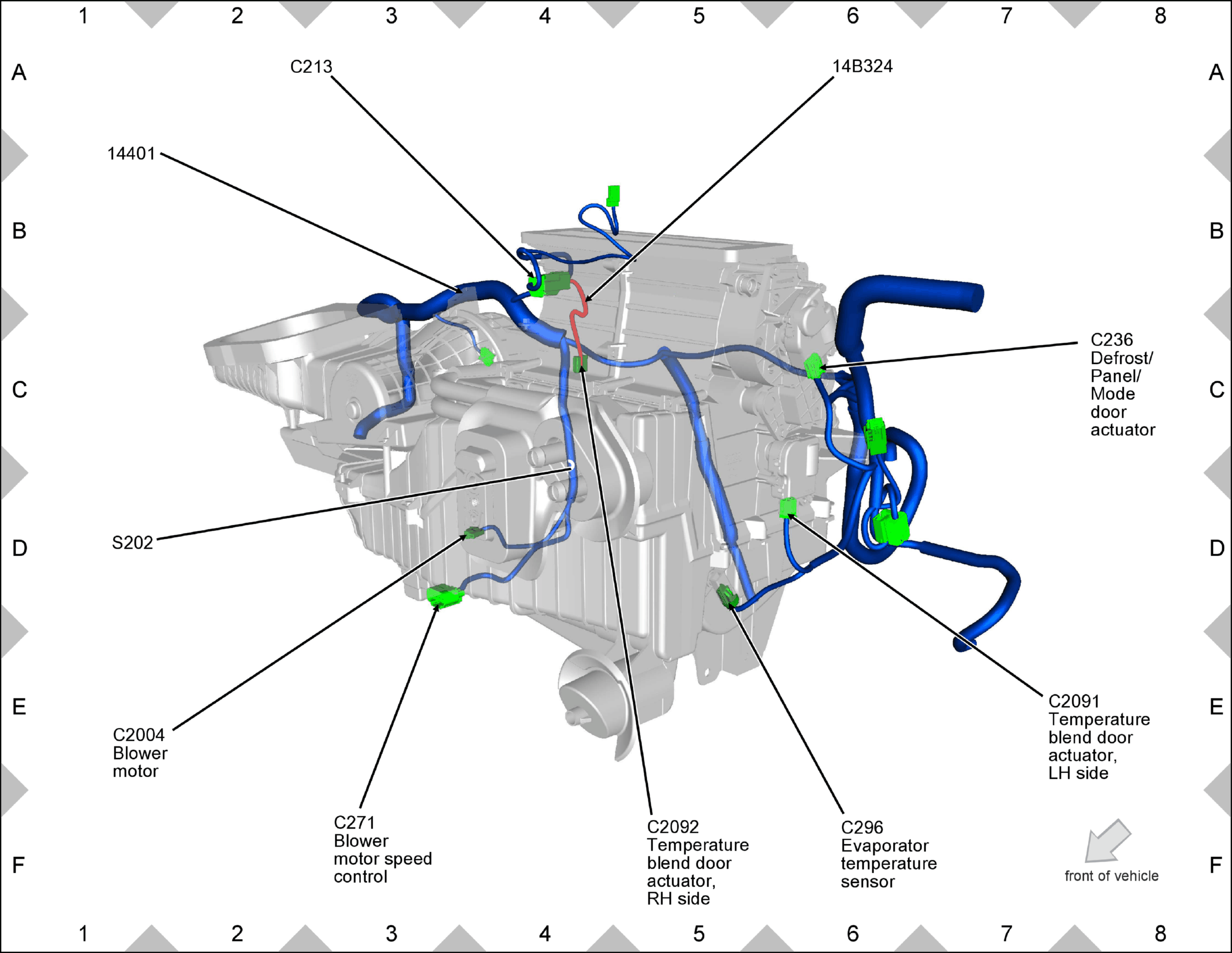

GFDW33584Courtesy of FORD MOTOR COMPANY

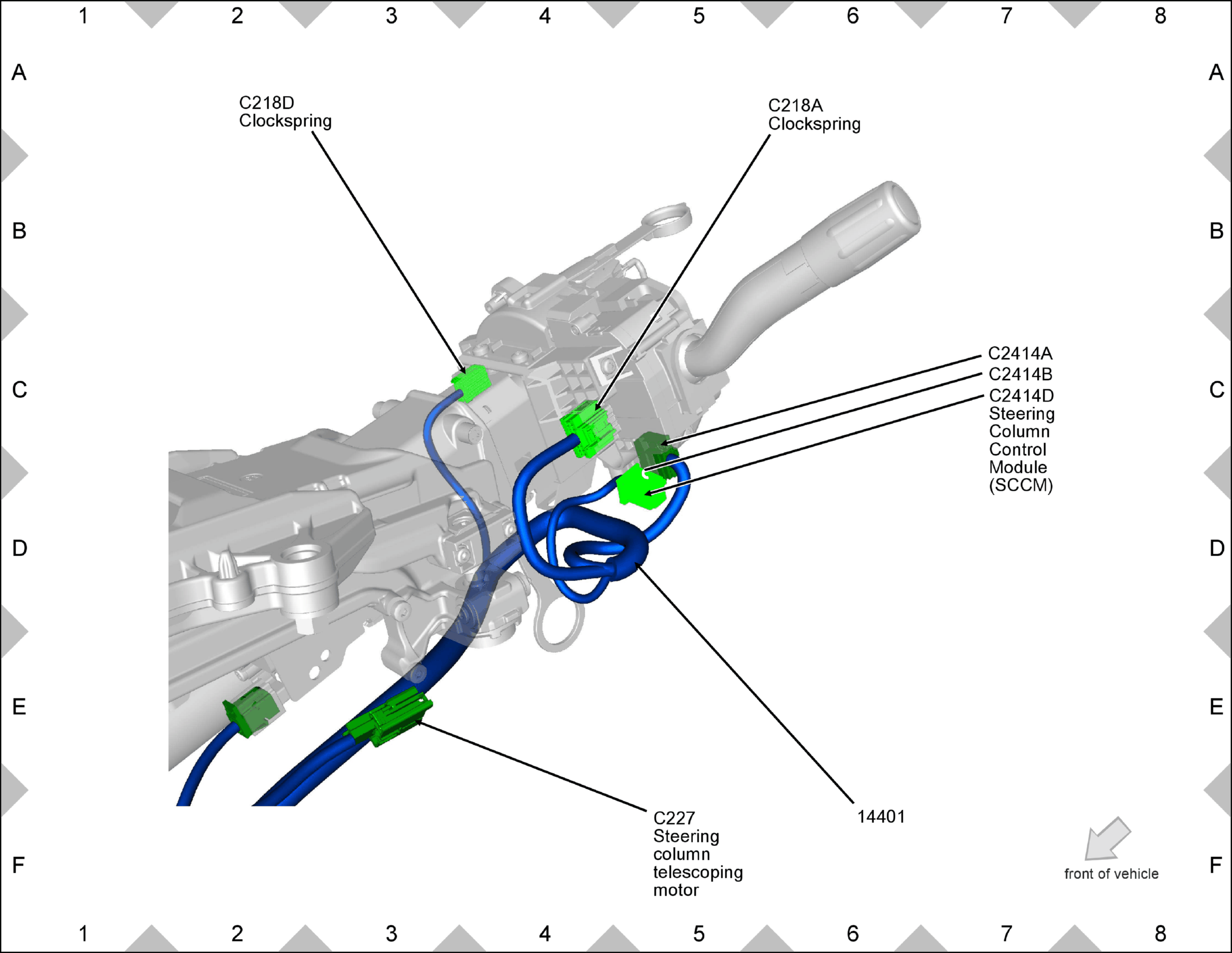

GFDW33585Courtesy of FORD MOTOR COMPANY

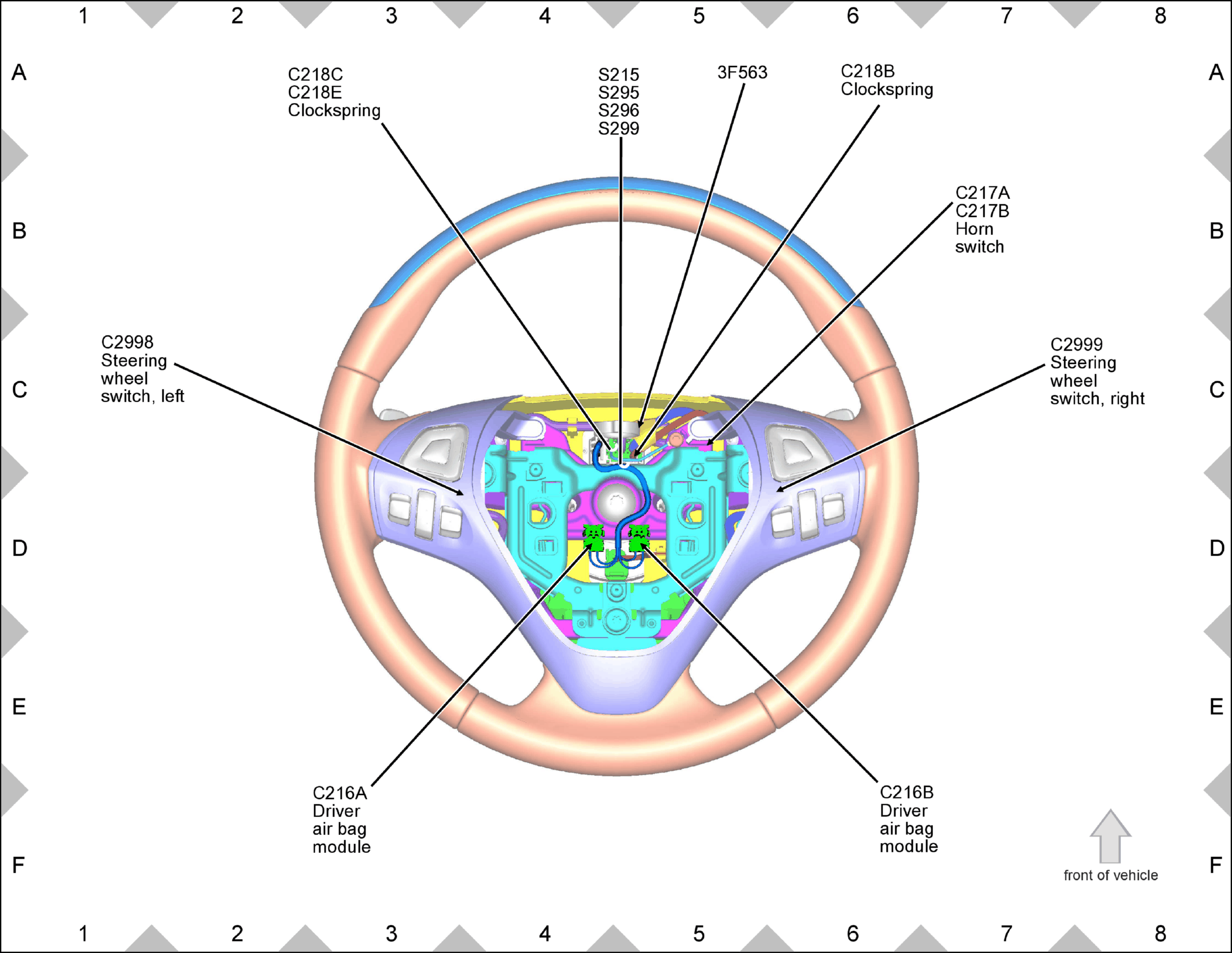

GFDW33586Courtesy of FORD MOTOR COMPANY

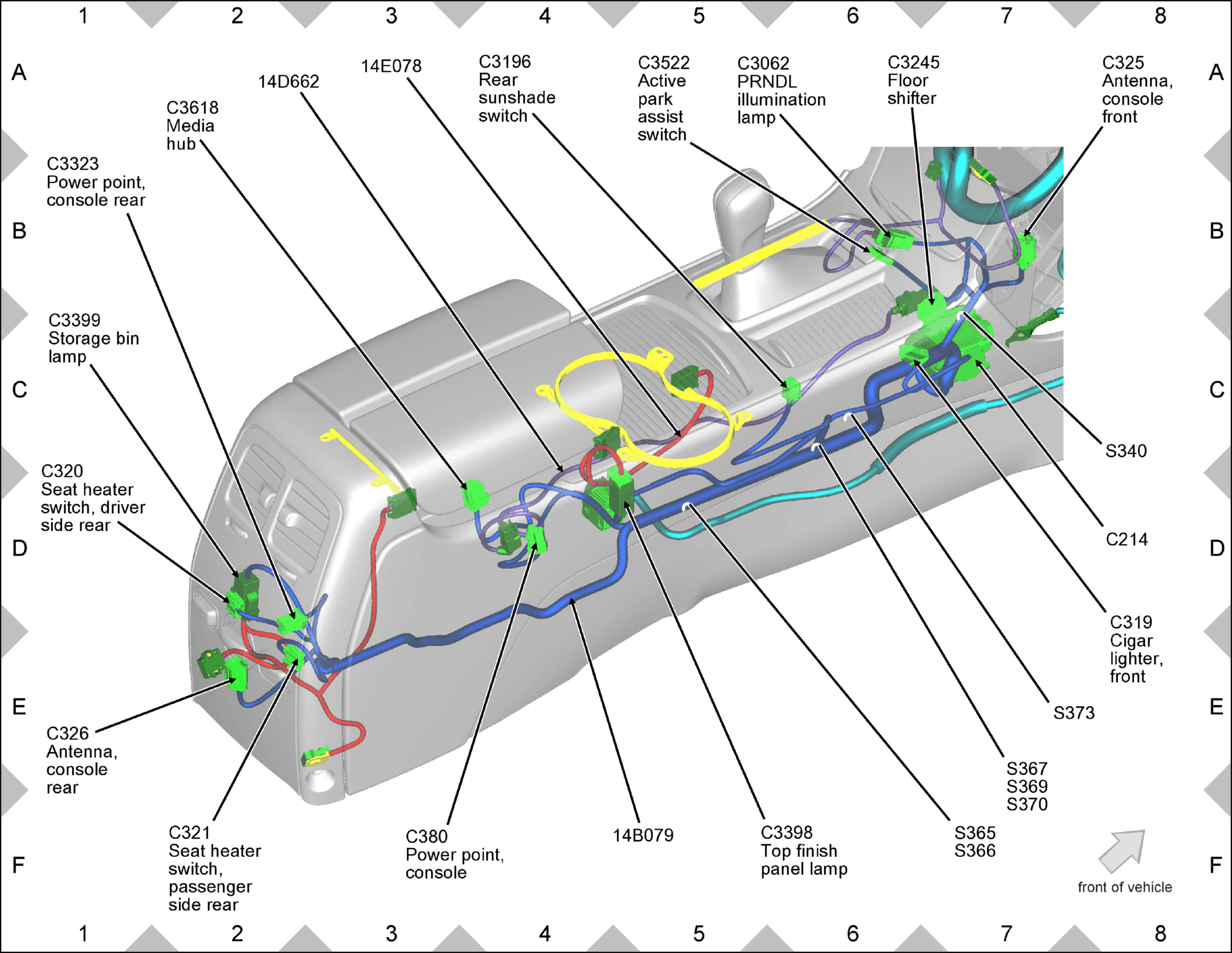

GFDW33587Courtesy of FORD MOTOR COMPANY

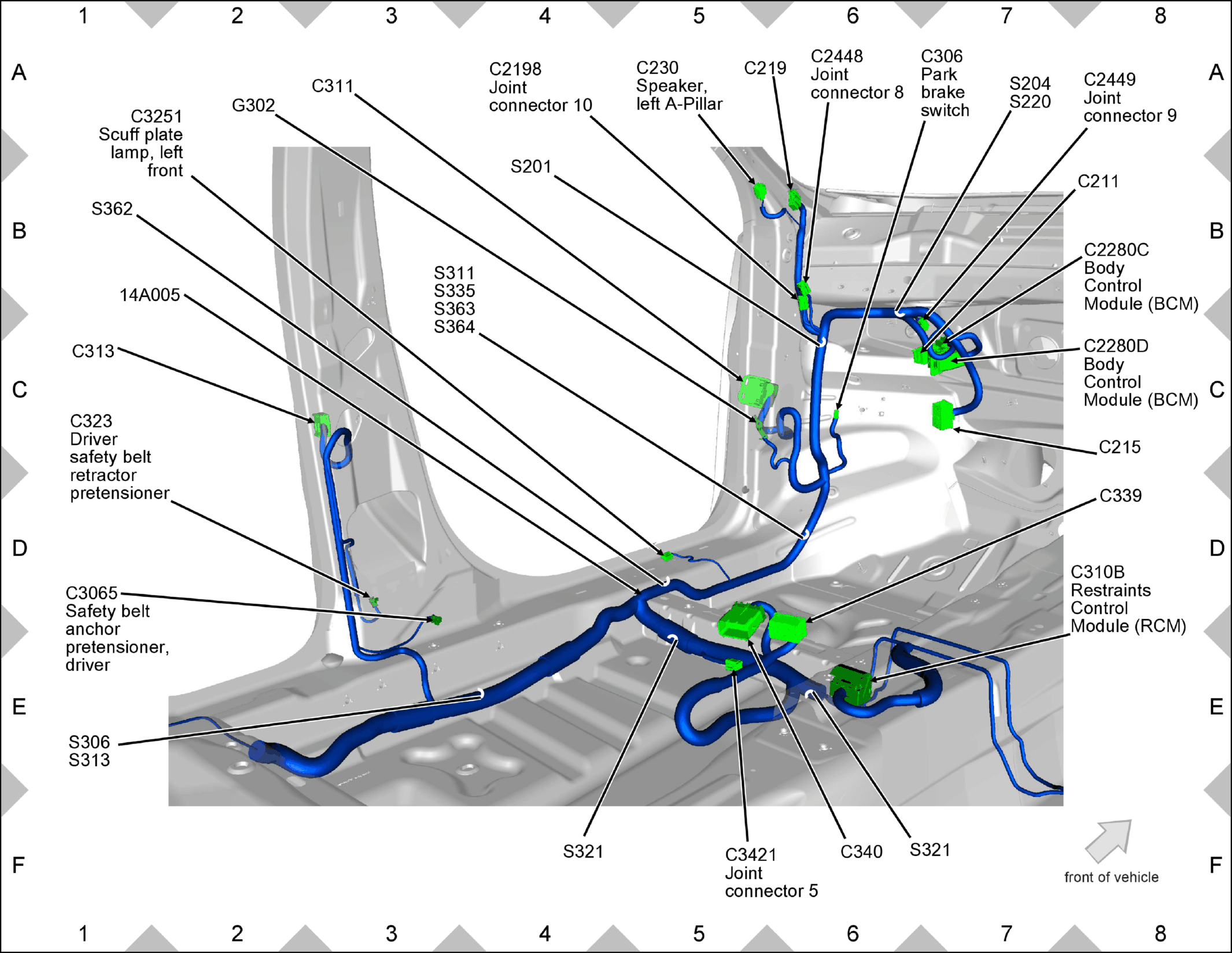

GFDW33588Courtesy of FORD MOTOR COMPANY

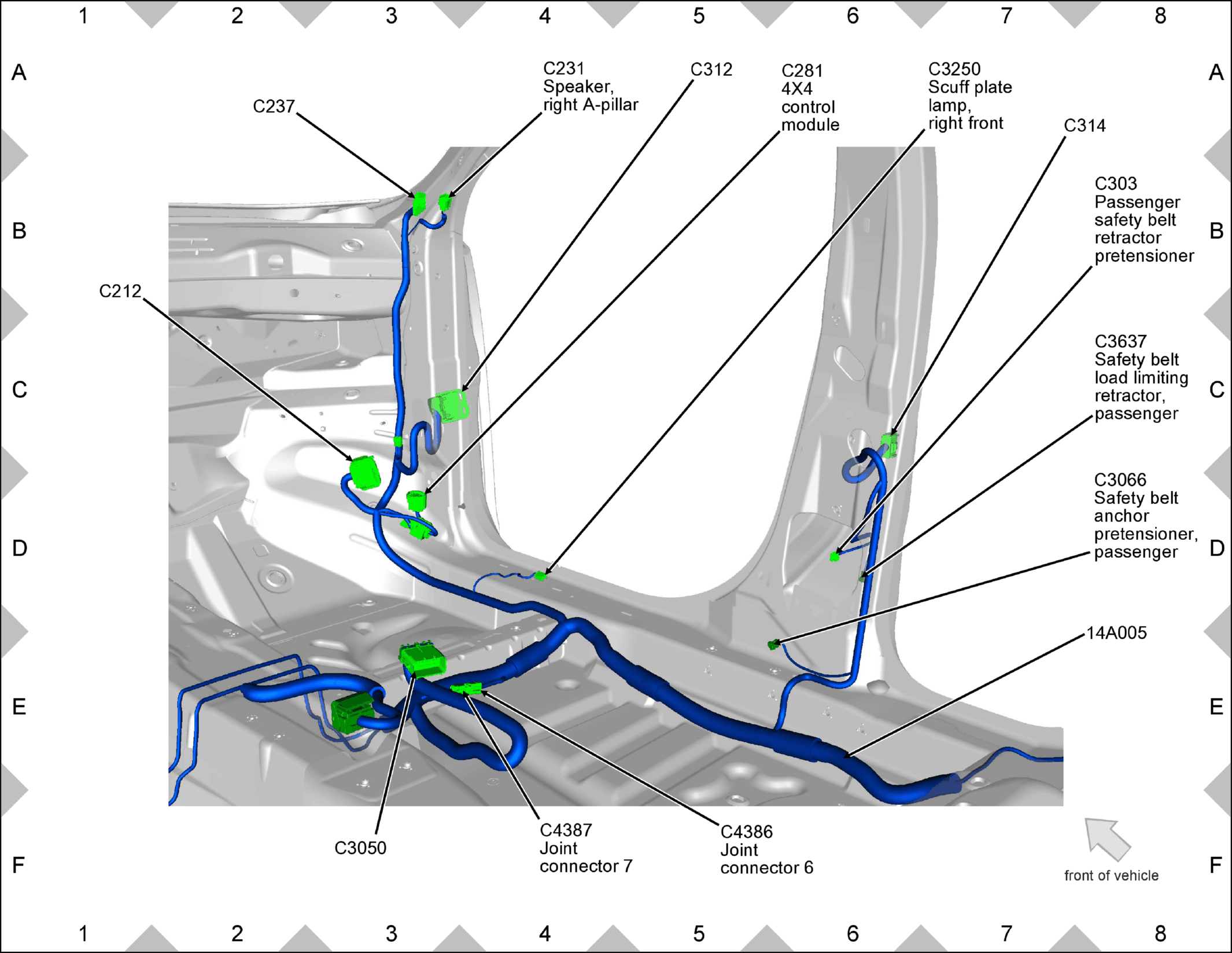

GFDW33589Courtesy of FORD MOTOR COMPANY

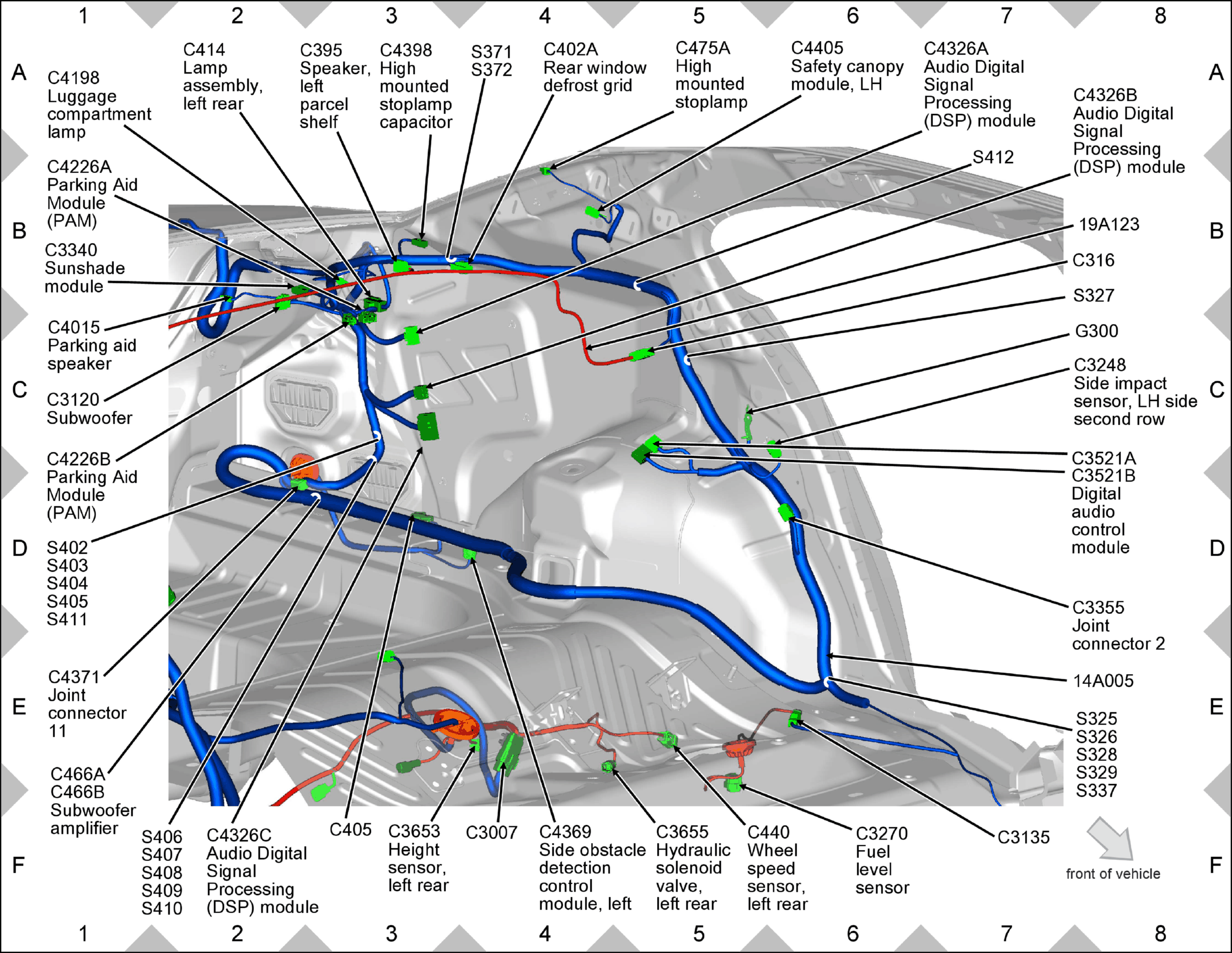

GFDW33590Courtesy of FORD MOTOR COMPANY

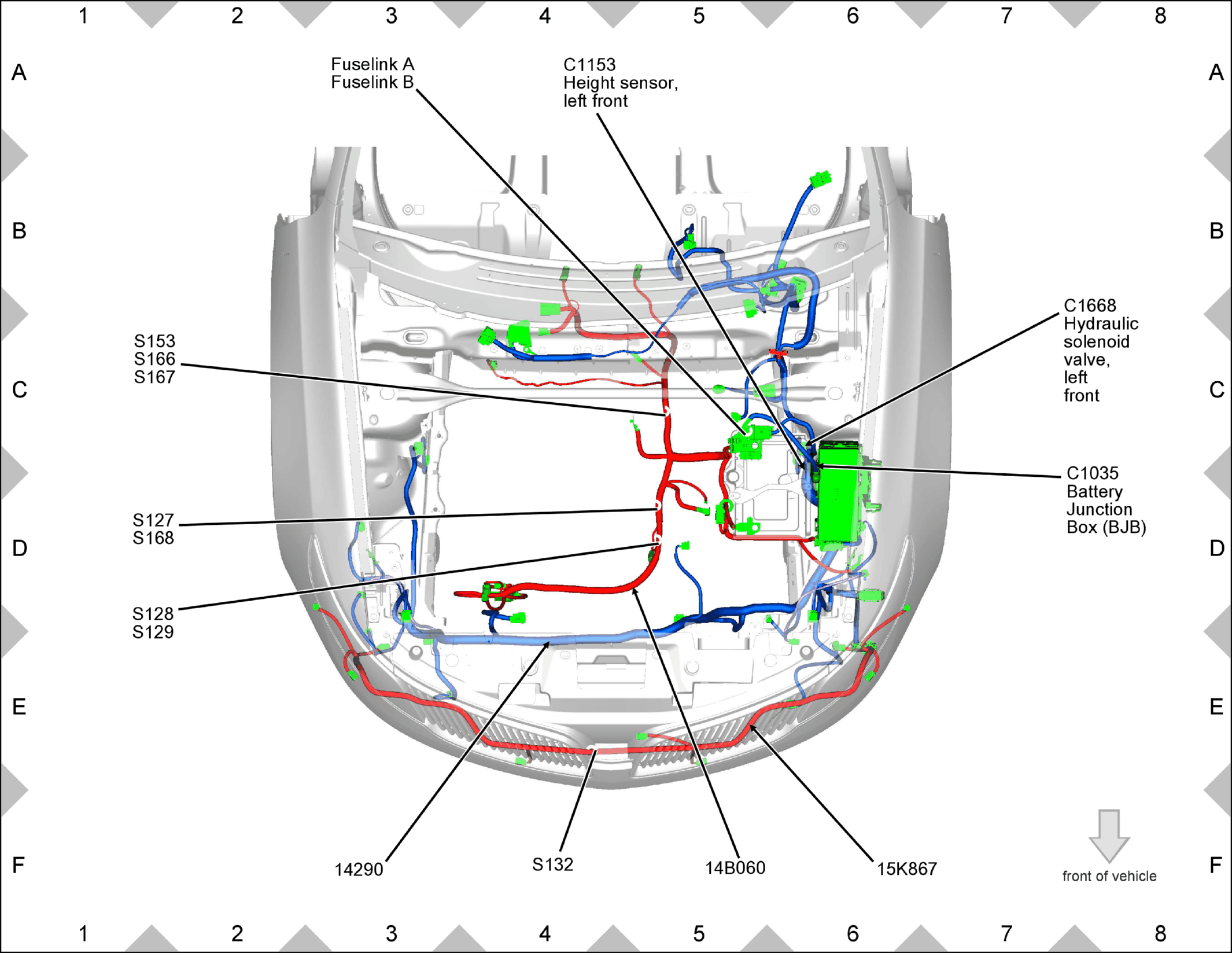

GFDW33591Courtesy of FORD MOTOR COMPANY

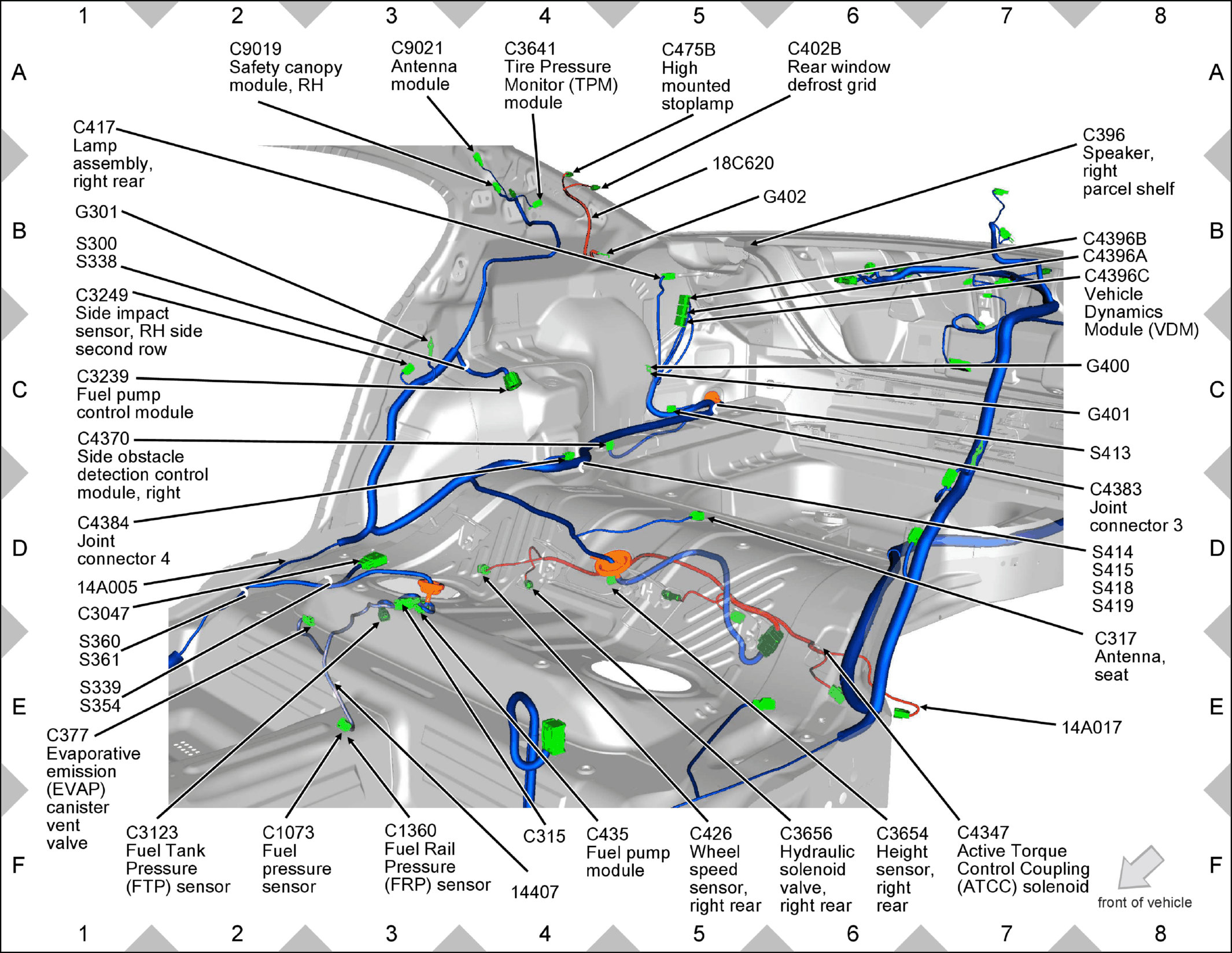

GFDW33592Courtesy of FORD MOTOR COMPANY

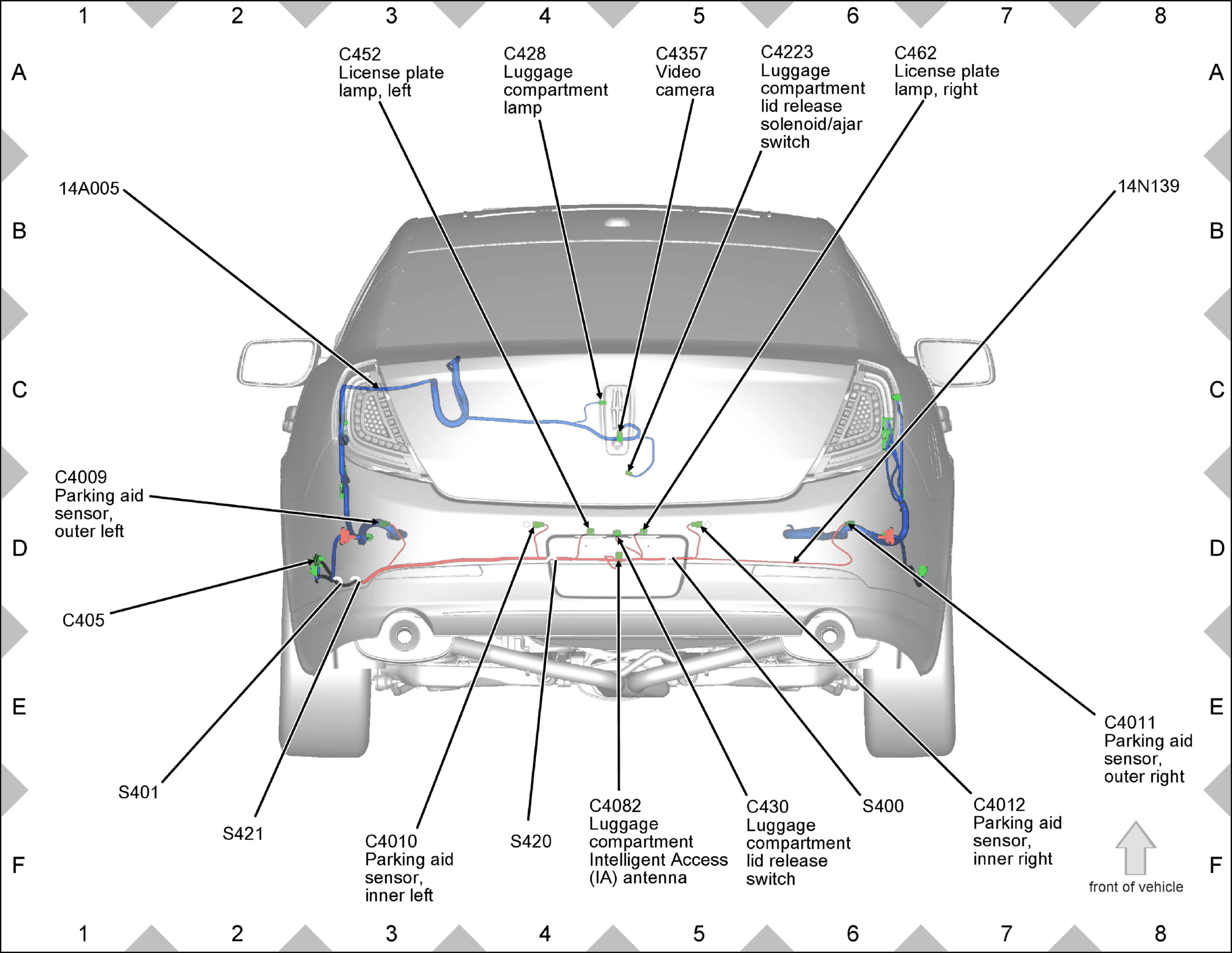

GFDW33593Courtesy of FORD MOTOR COMPANY

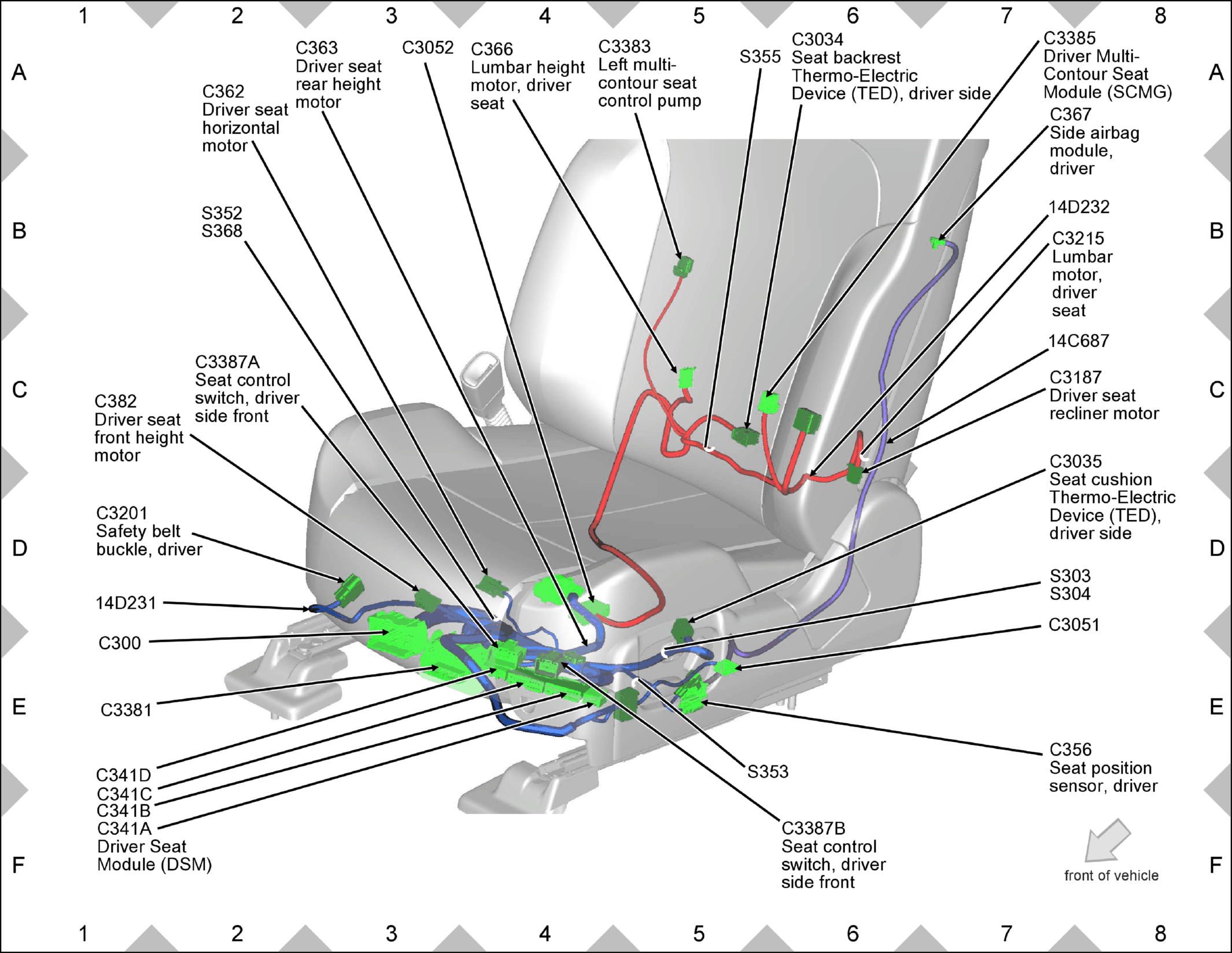

GFDW33594Courtesy of FORD MOTOR COMPANY

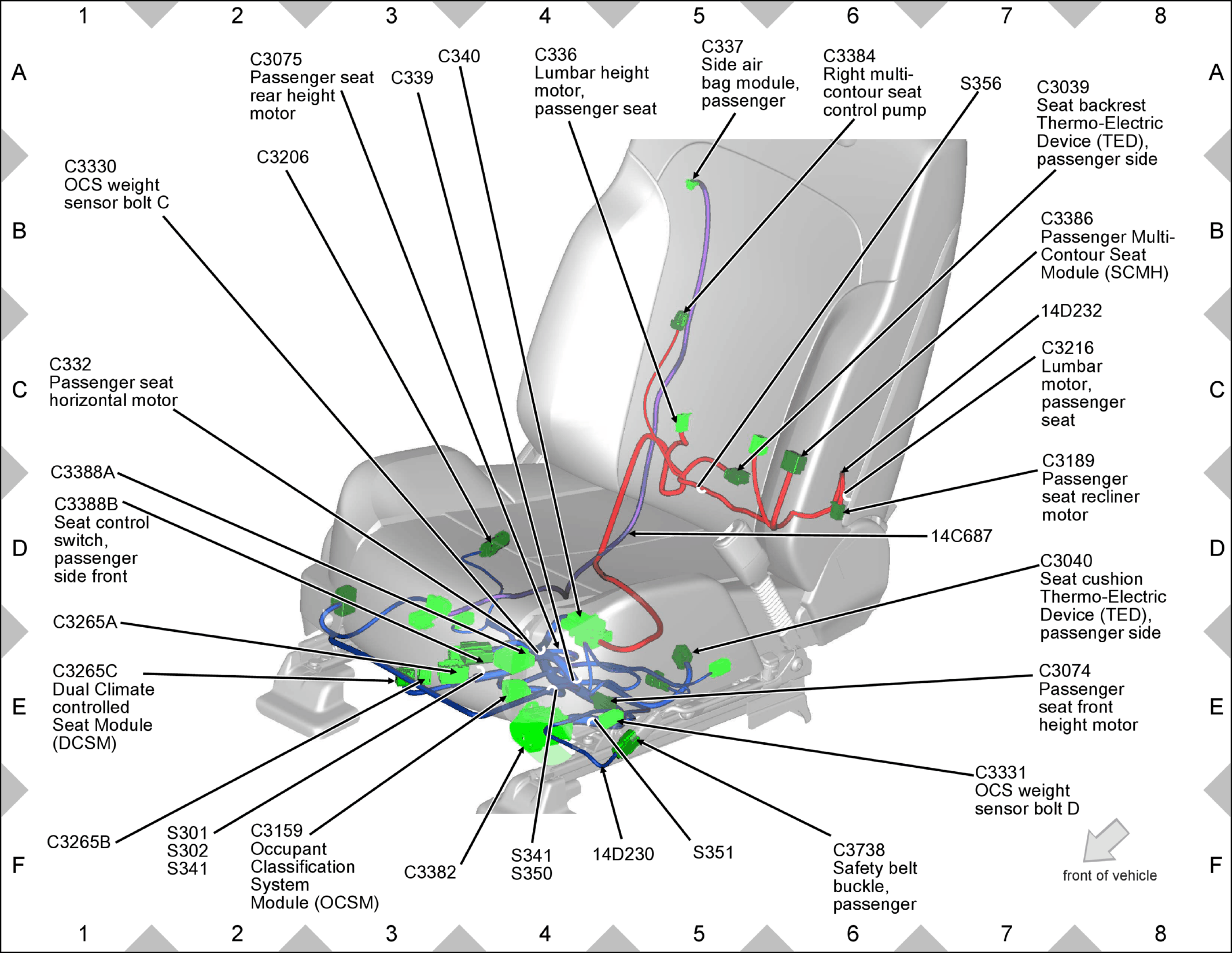

GFDW33595Courtesy of FORD MOTOR COMPANY

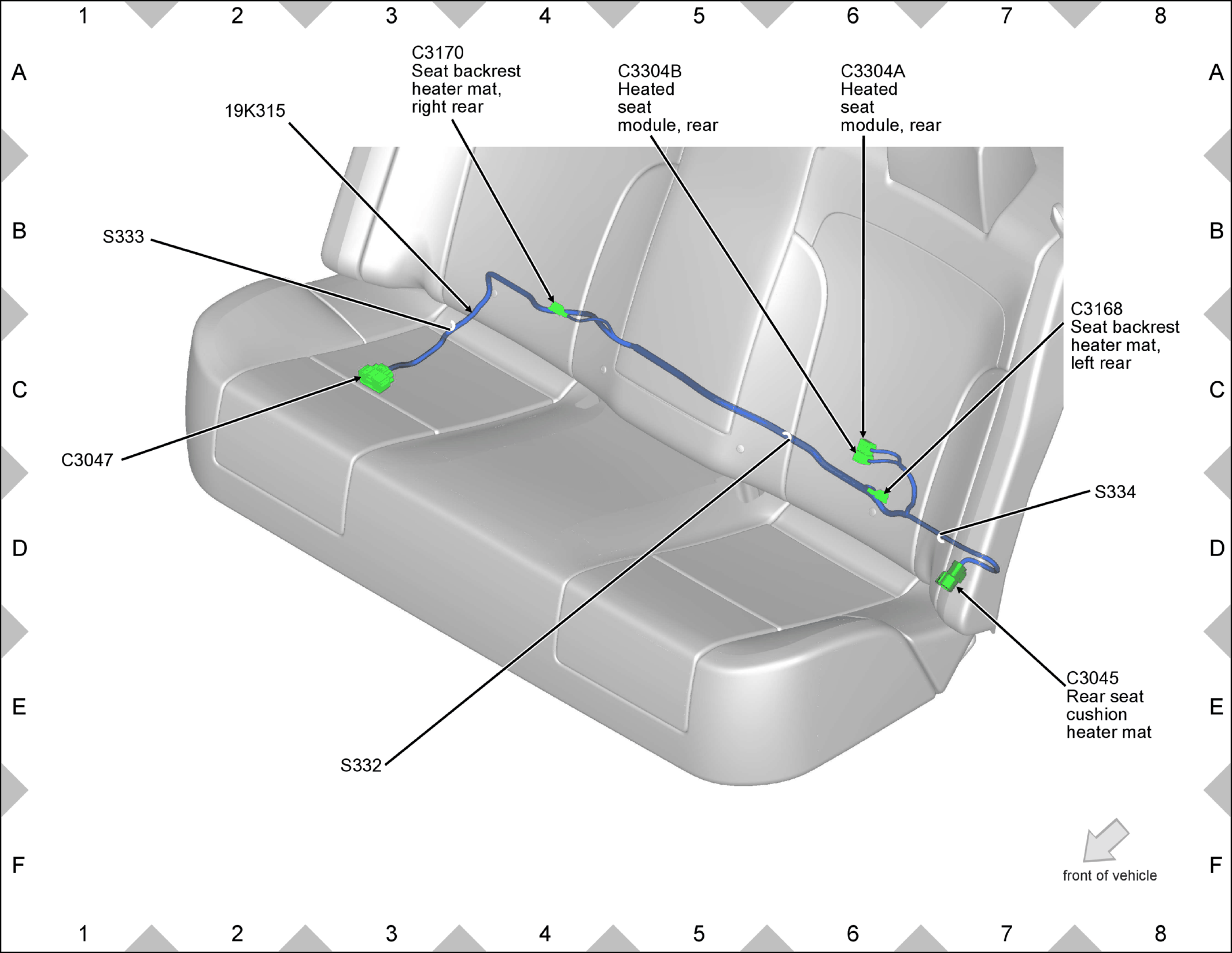

GFDW33596Courtesy of FORD MOTOR COMPANY

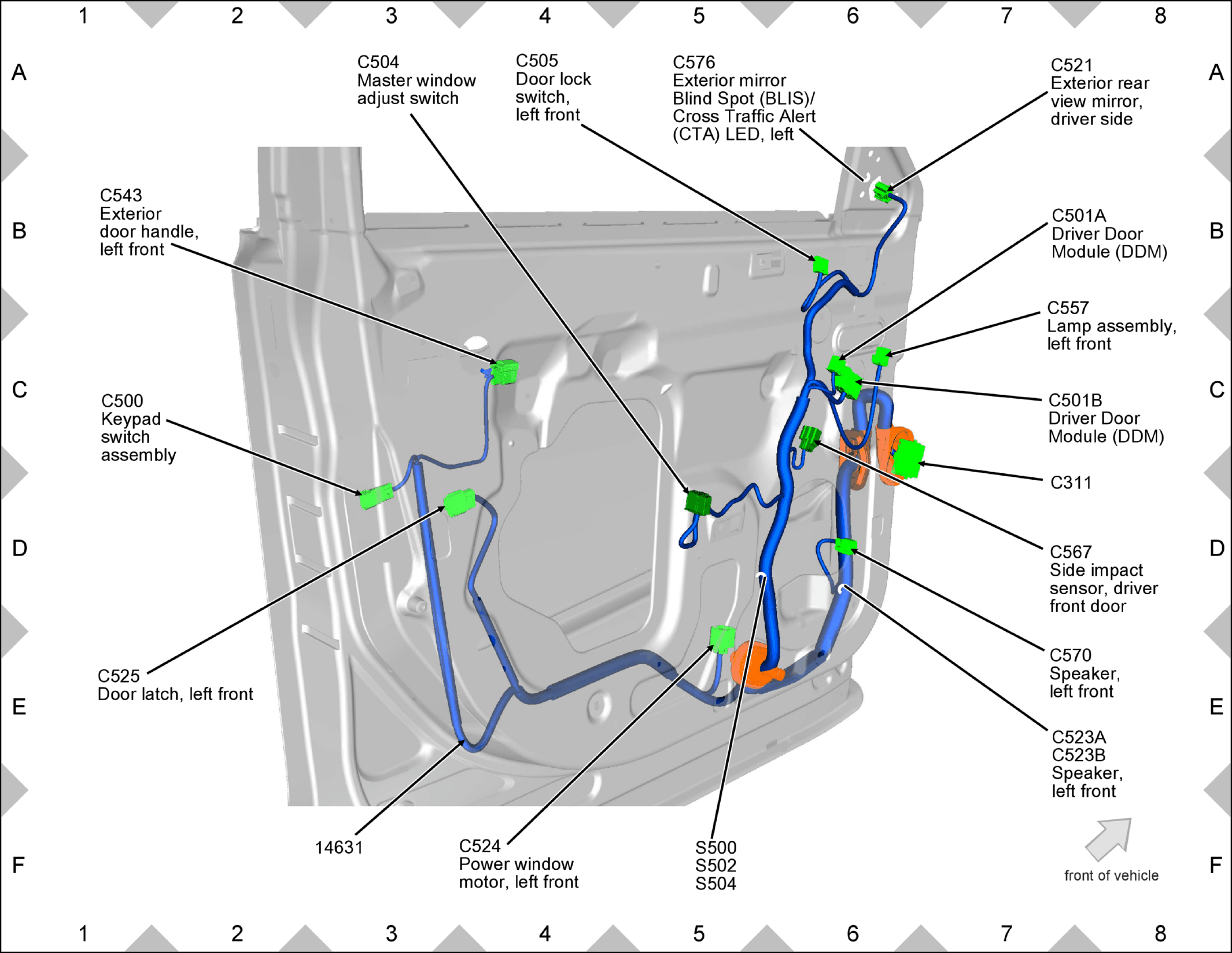

GFDW33597Courtesy of FORD MOTOR COMPANY

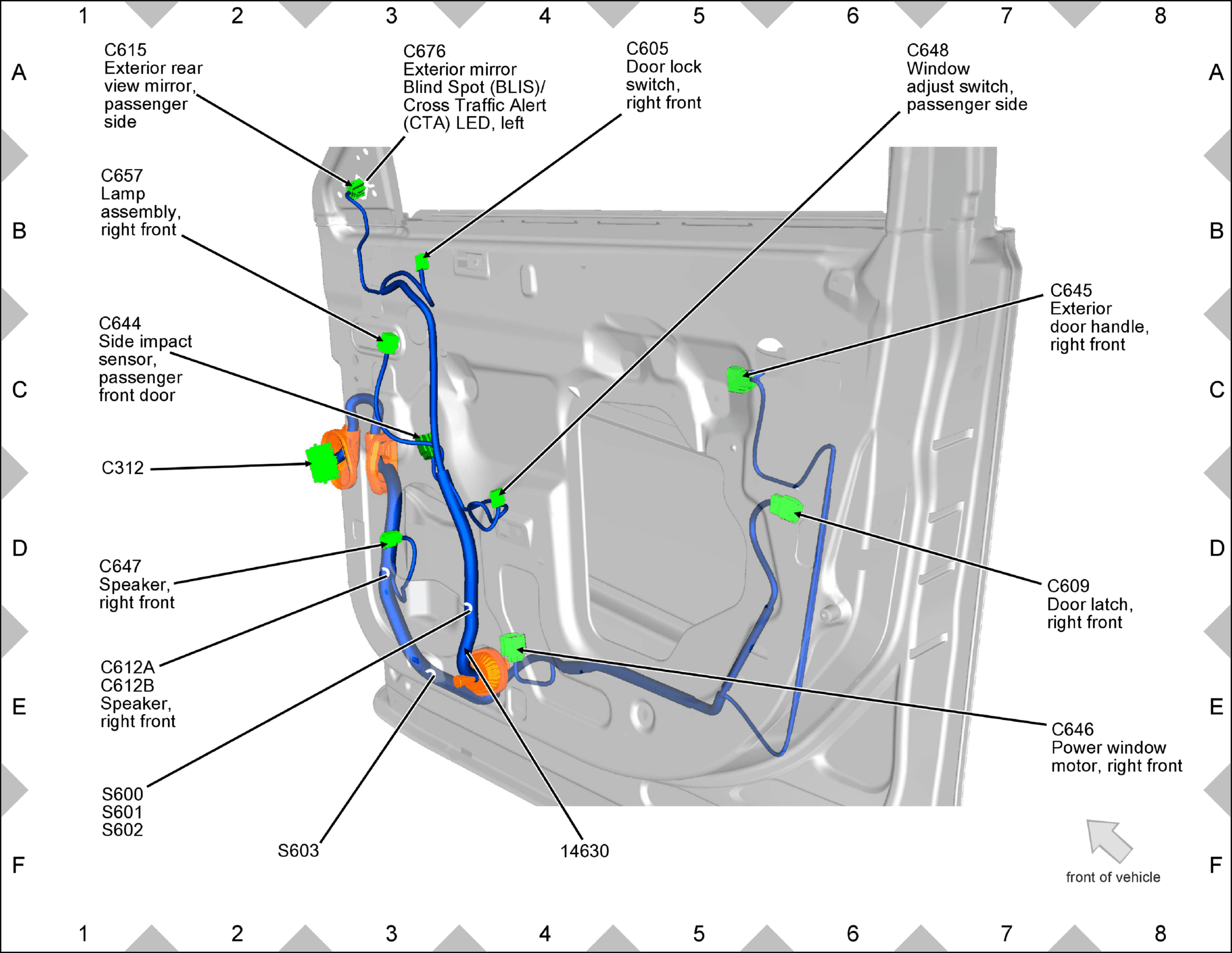

GFDW33598Courtesy of FORD MOTOR COMPANY

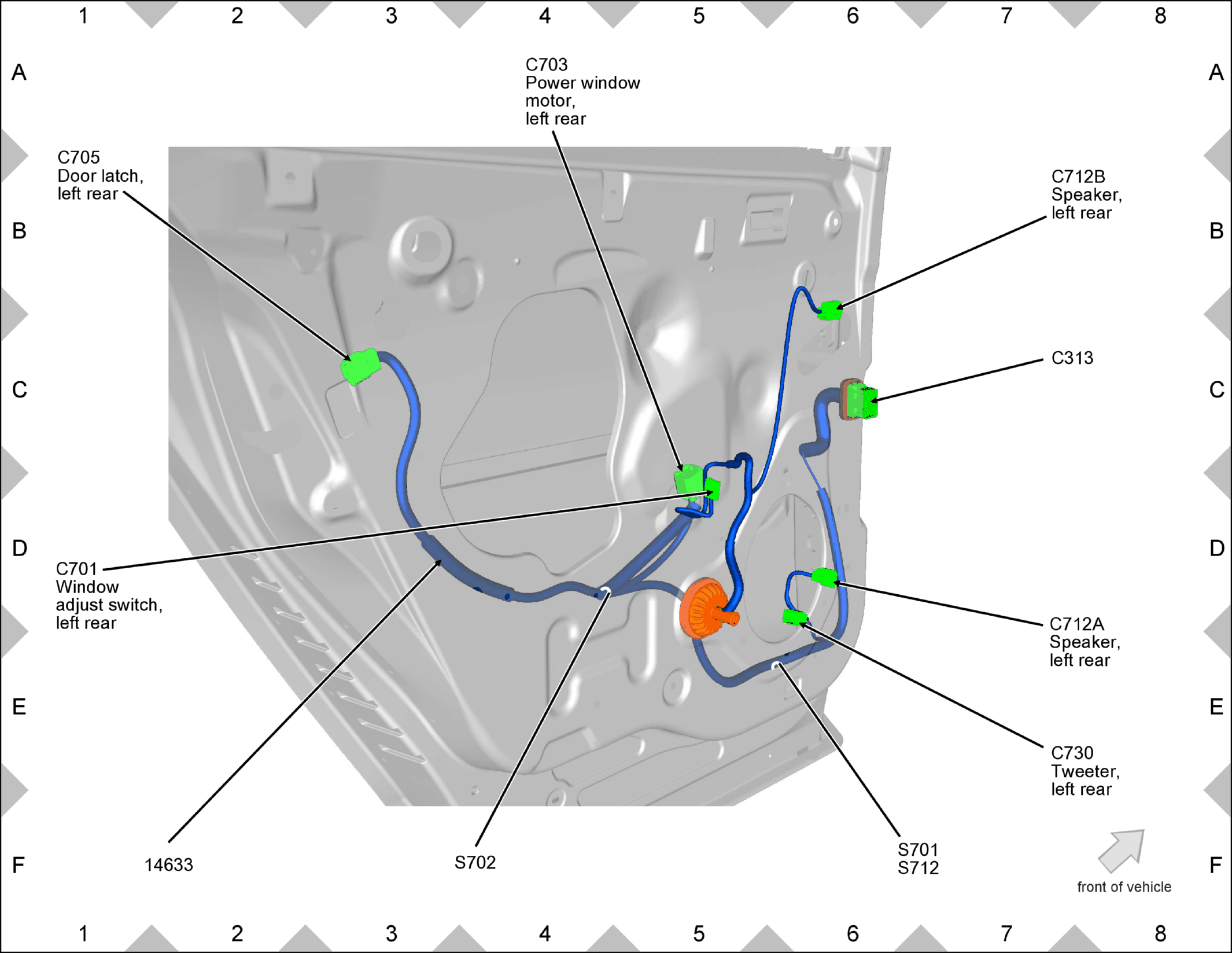

GFDW33599Courtesy of FORD MOTOR COMPANY

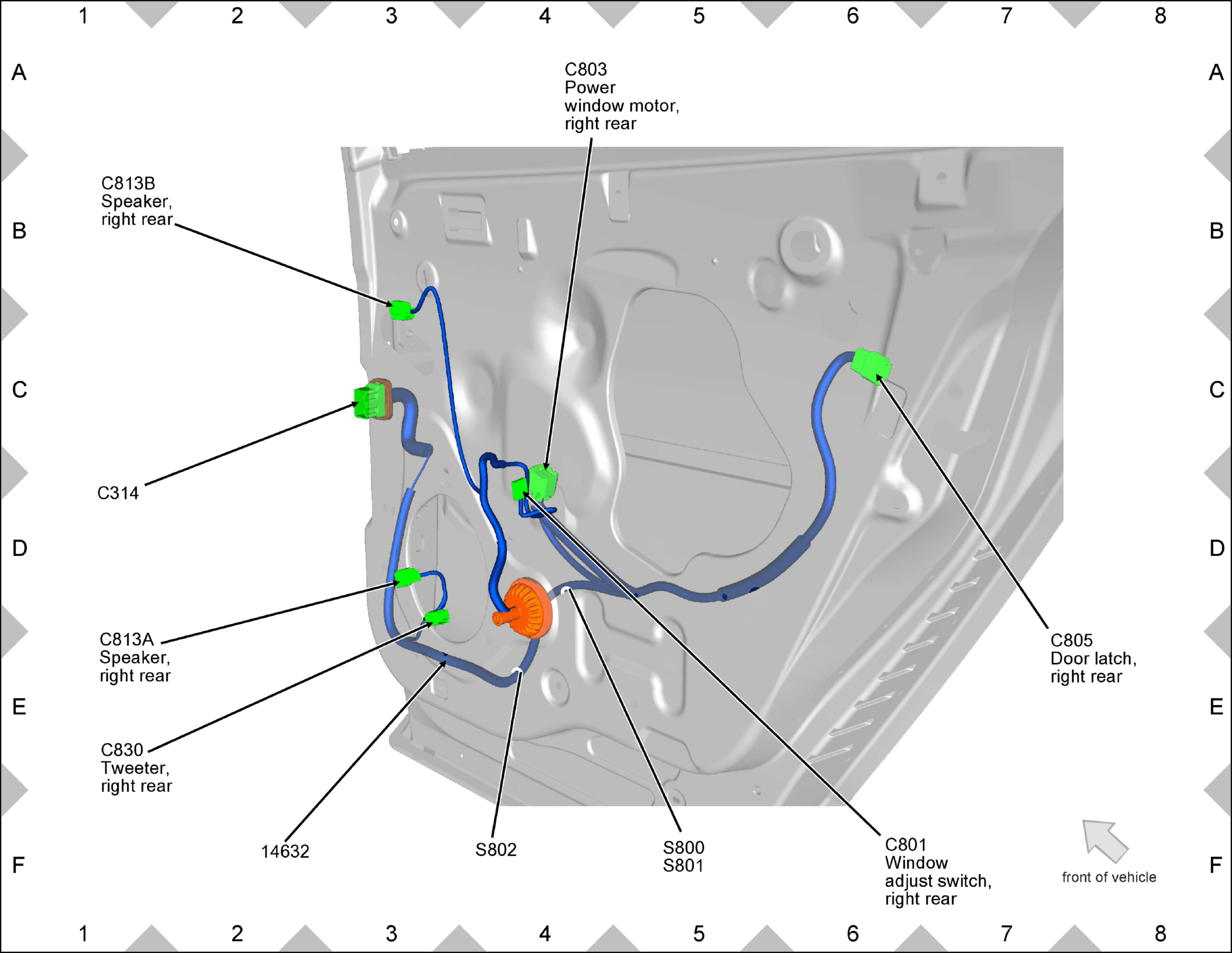

GFDW33600Courtesy of FORD MOTOR COMPANY

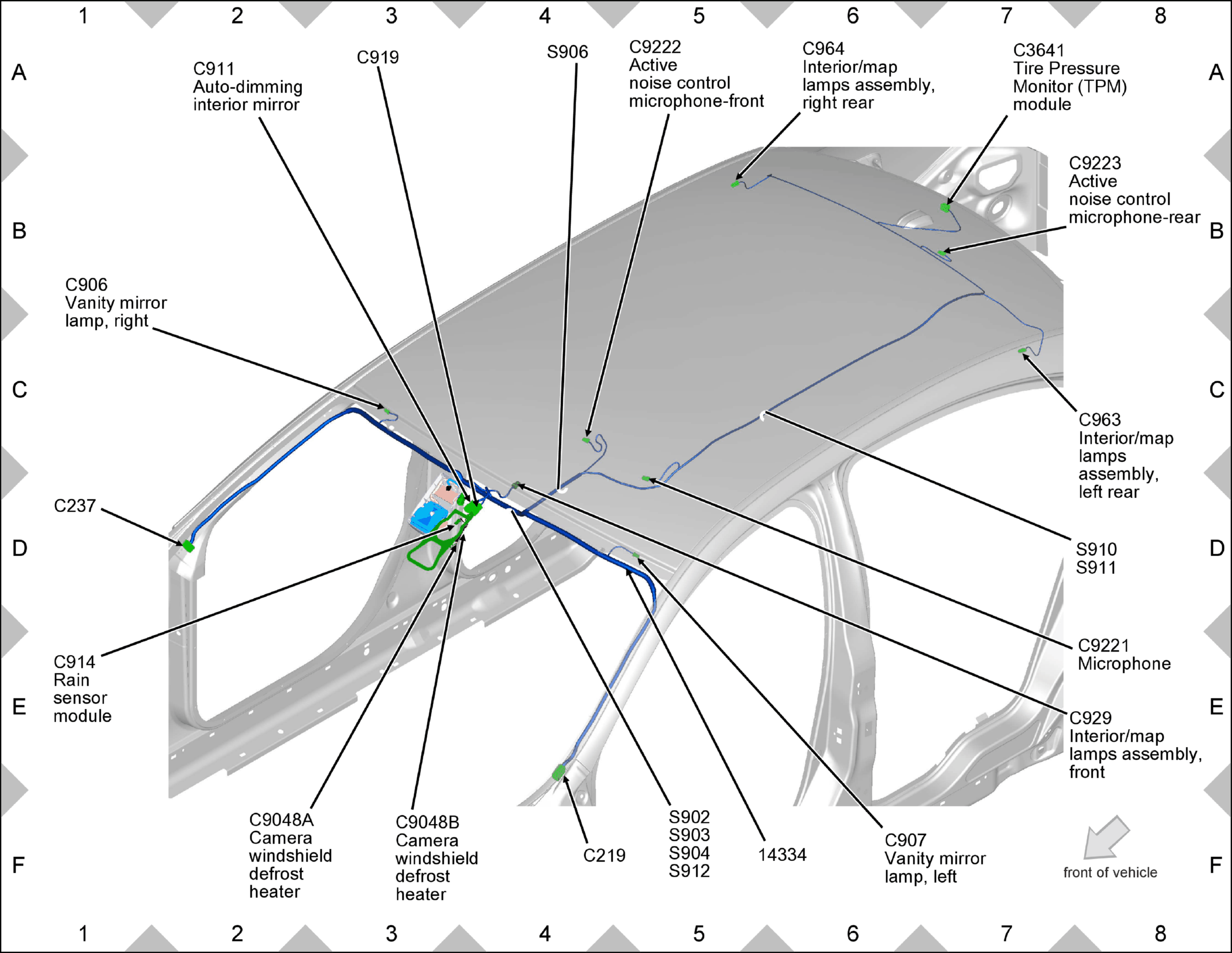

GFDW33601Courtesy of FORD MOTOR COMPANY

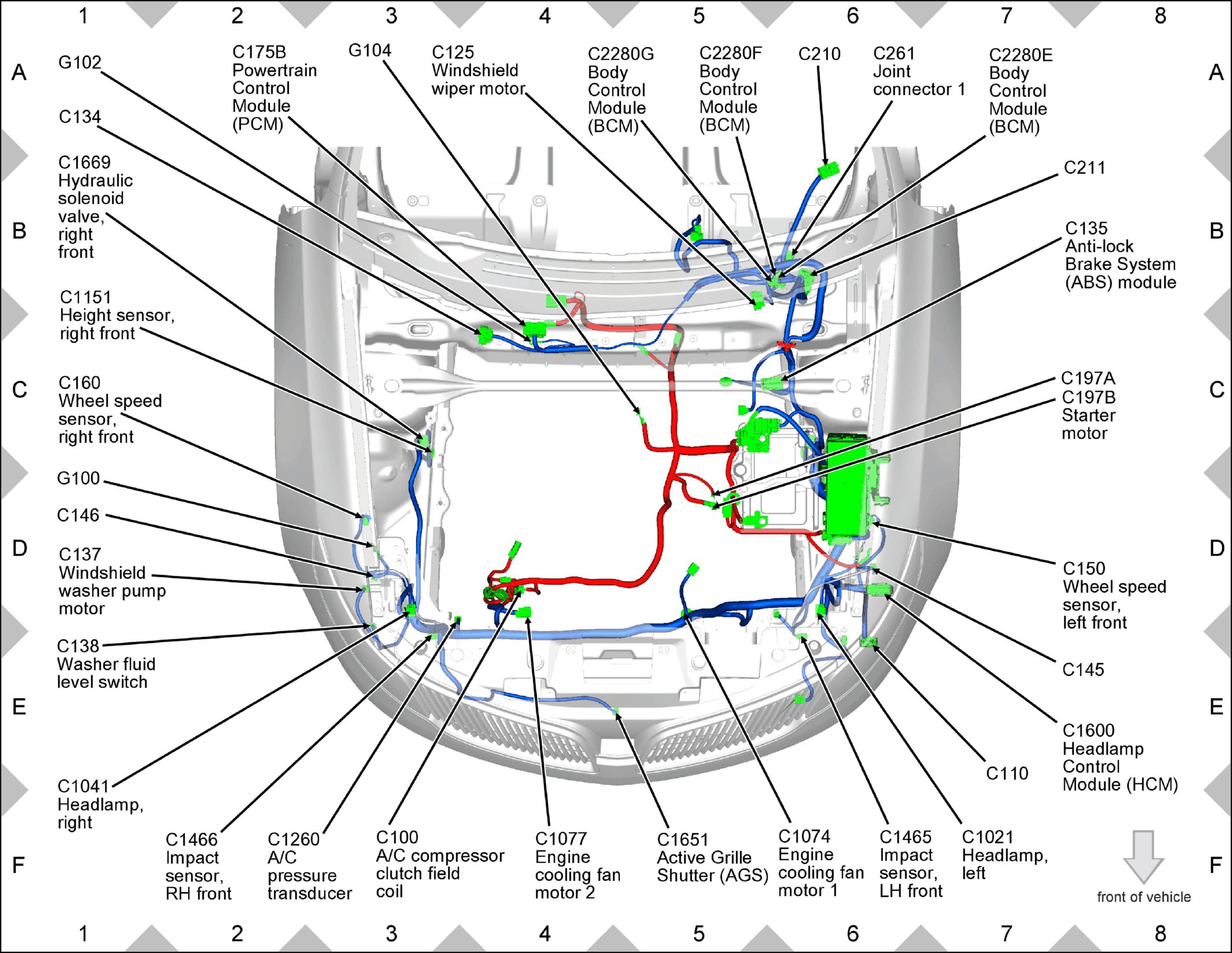

GFDW33602Courtesy of FORD MOTOR COMPANY

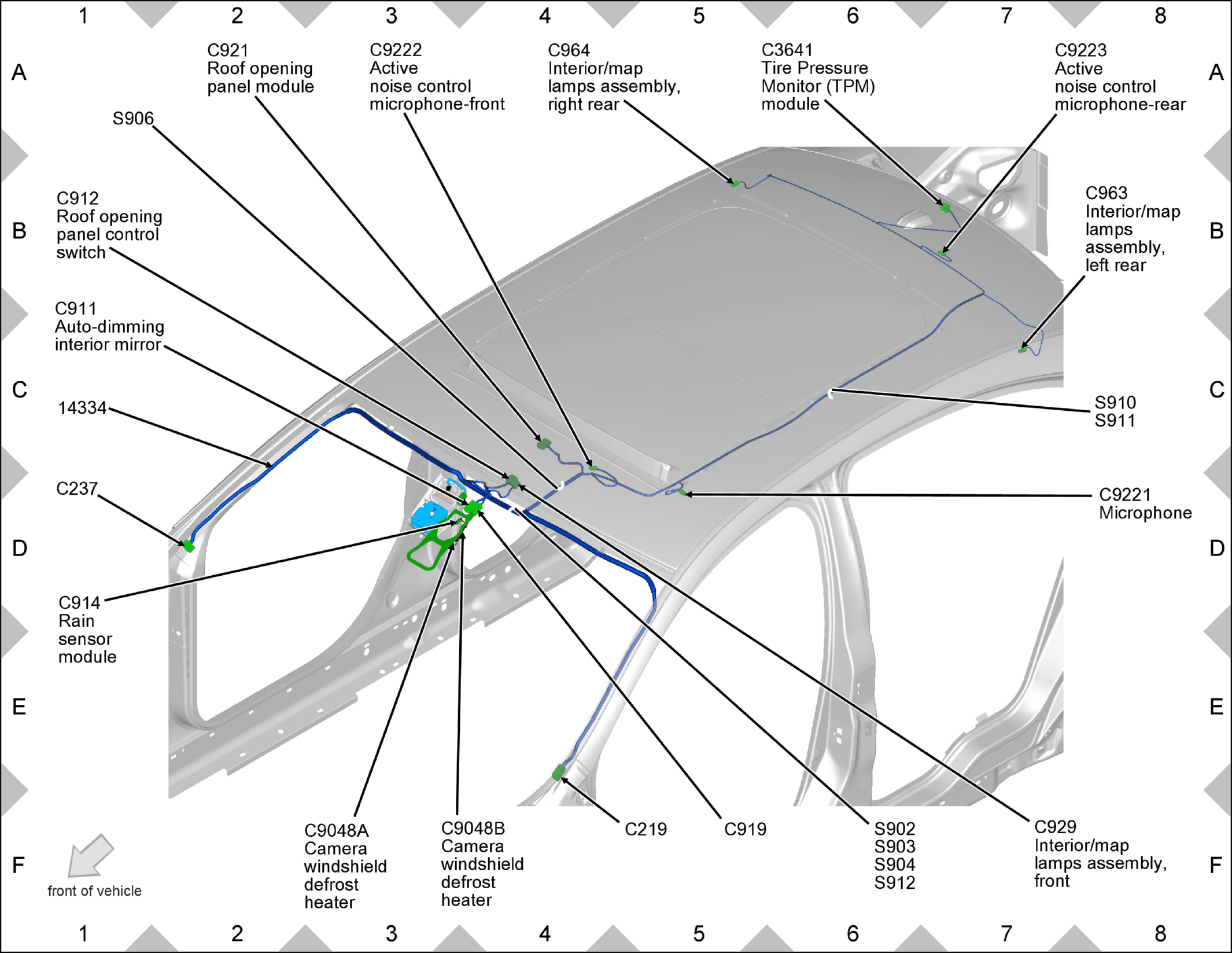

GFDW33603Courtesy of FORD MOTOR COMPANY

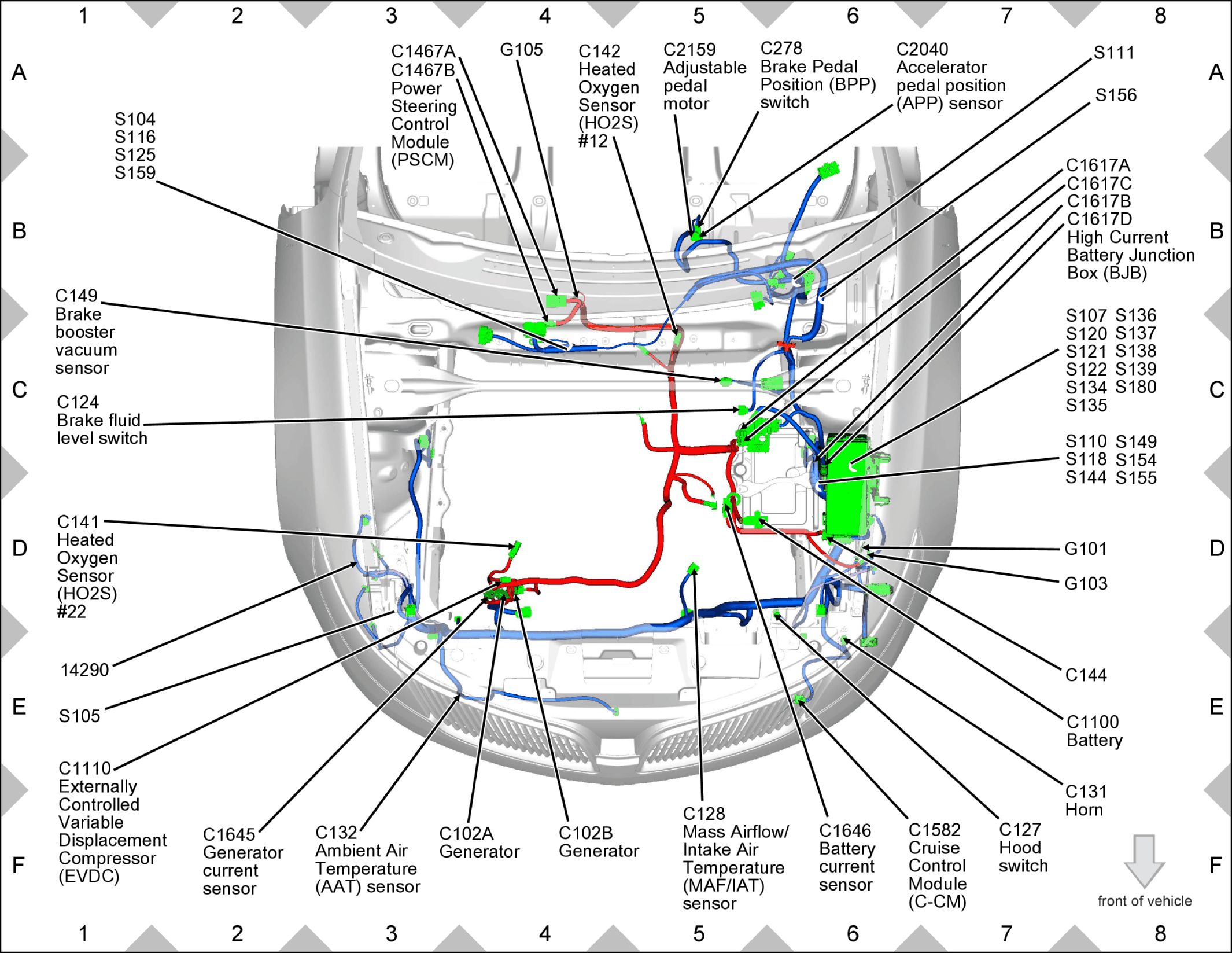

GFDW33604Courtesy of FORD MOTOR COMPANY

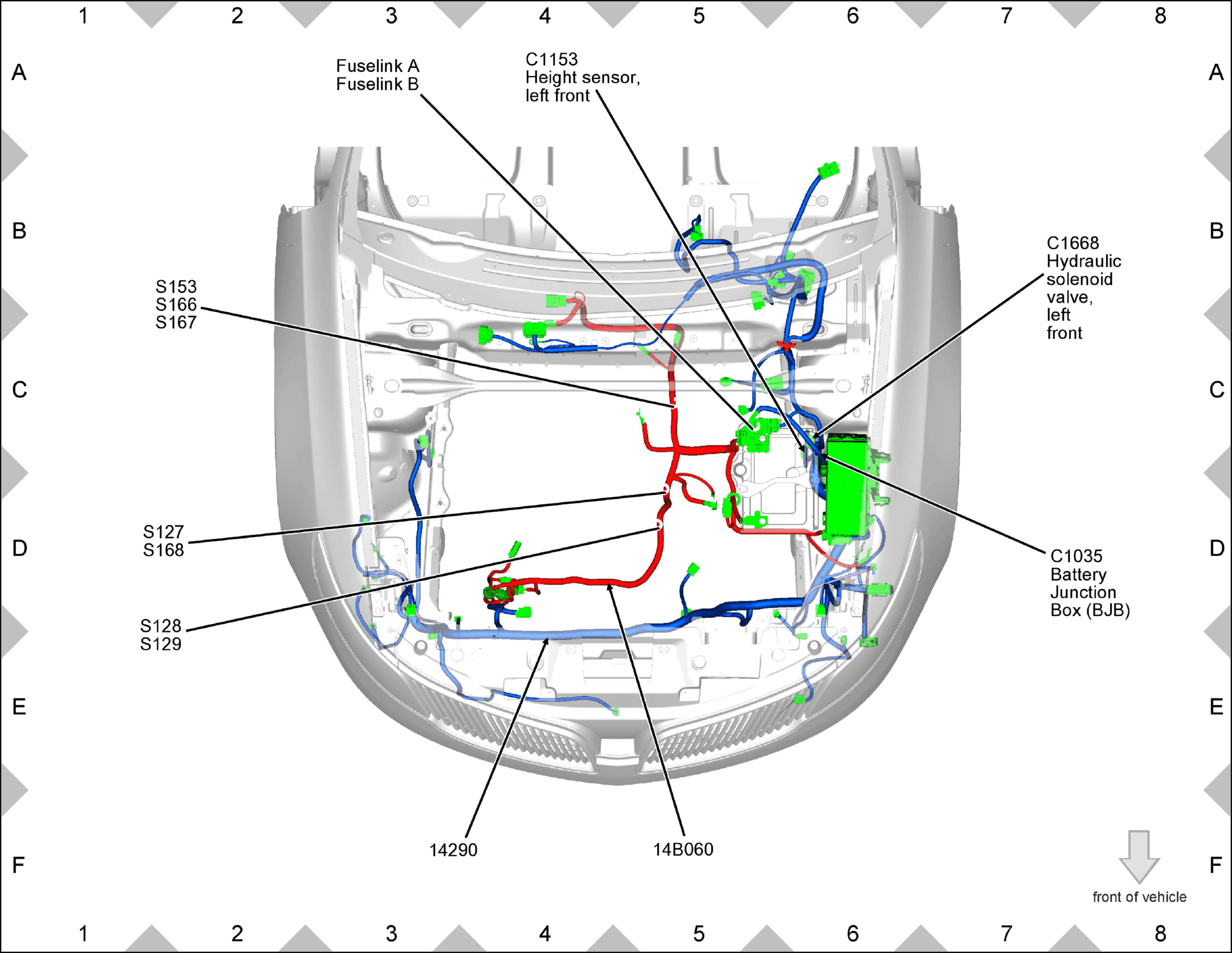

GFDW33605Courtesy of FORD MOTOR COMPANY

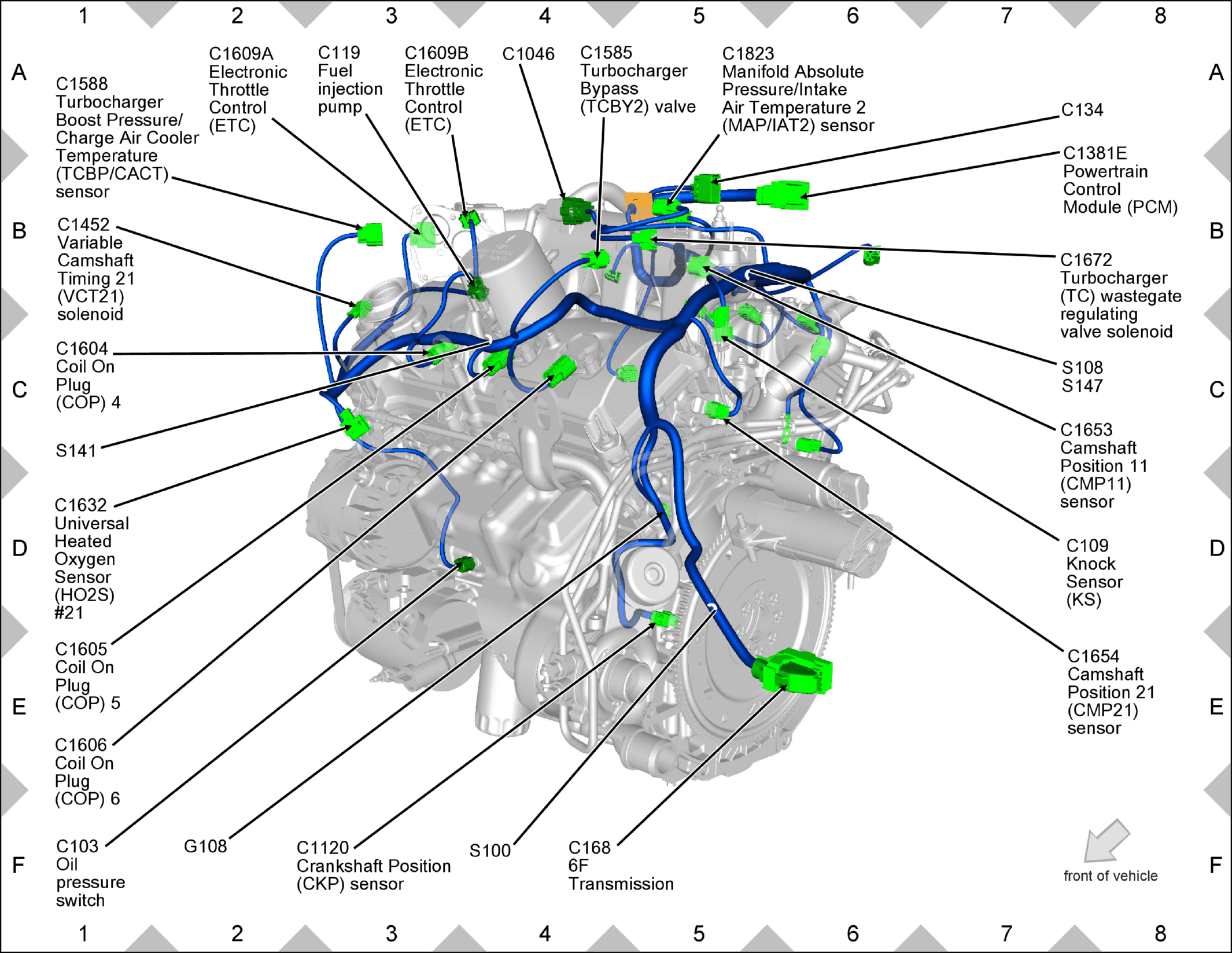

GFDW33606Courtesy of FORD MOTOR COMPANY

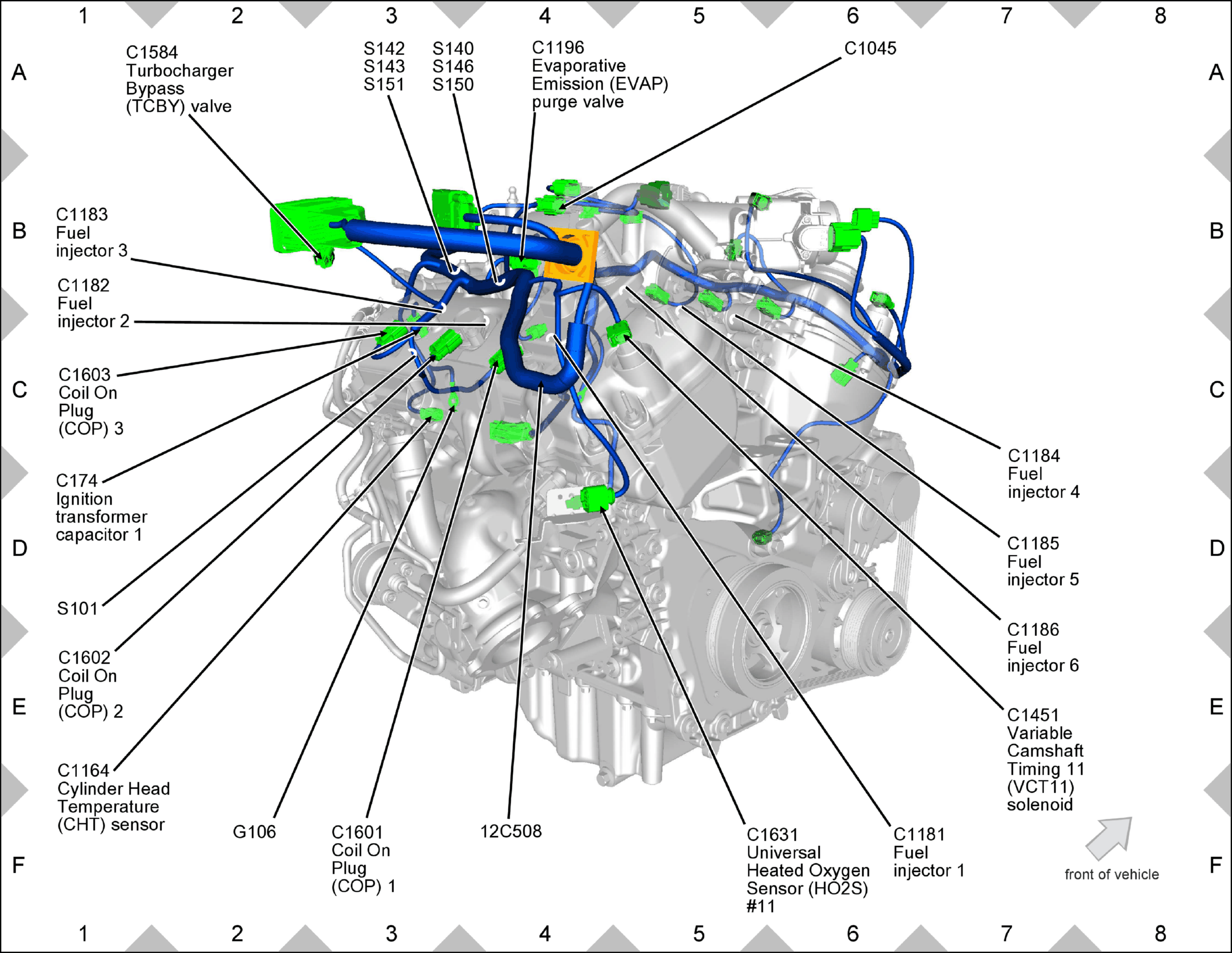

GFDW33607Courtesy of FORD MOTOR COMPANY

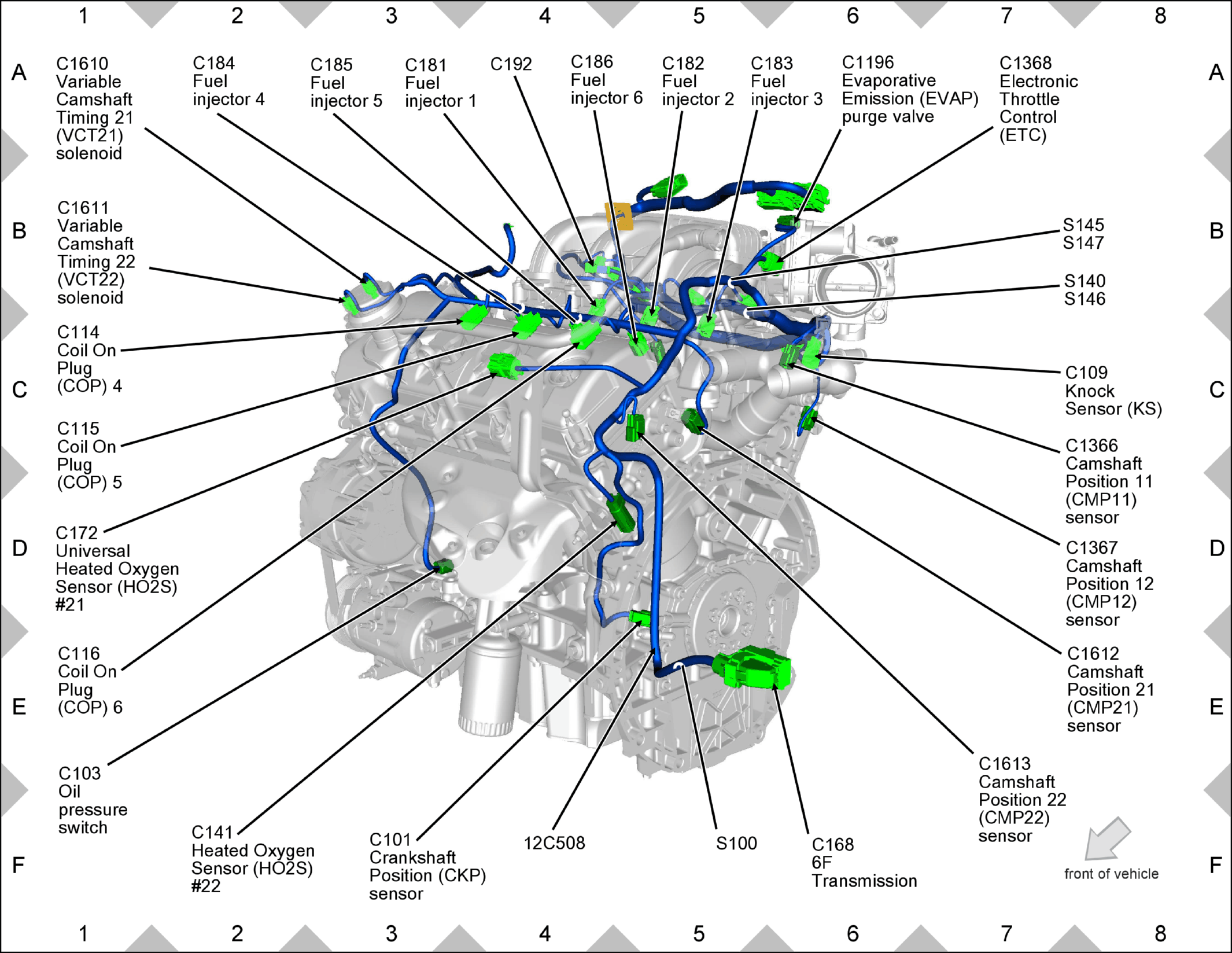

GFDW33608Courtesy of FORD MOTOR COMPANY

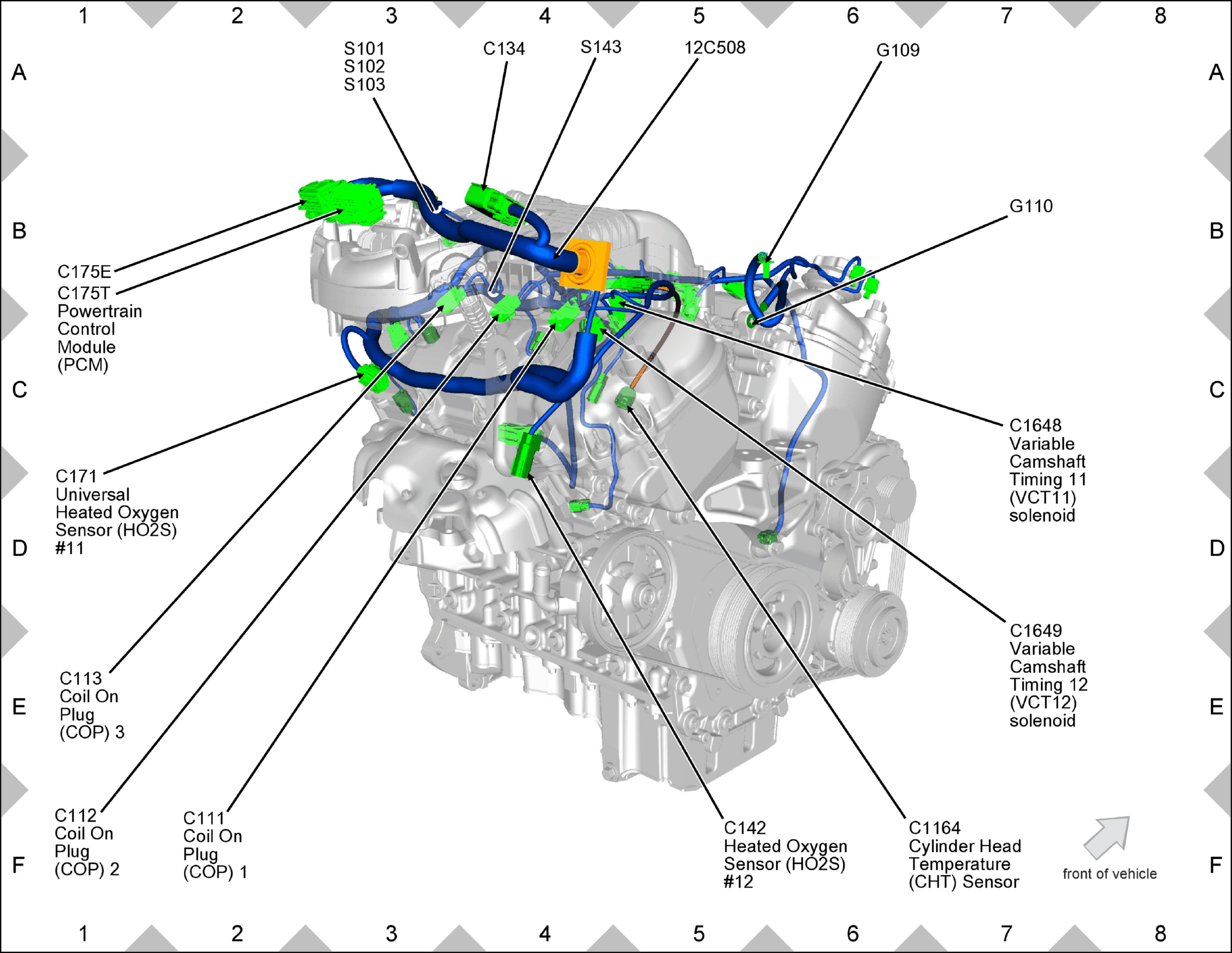

GFDW33609Courtesy of FORD MOTOR COMPANY
