OEM Ground Distribution: Grounds

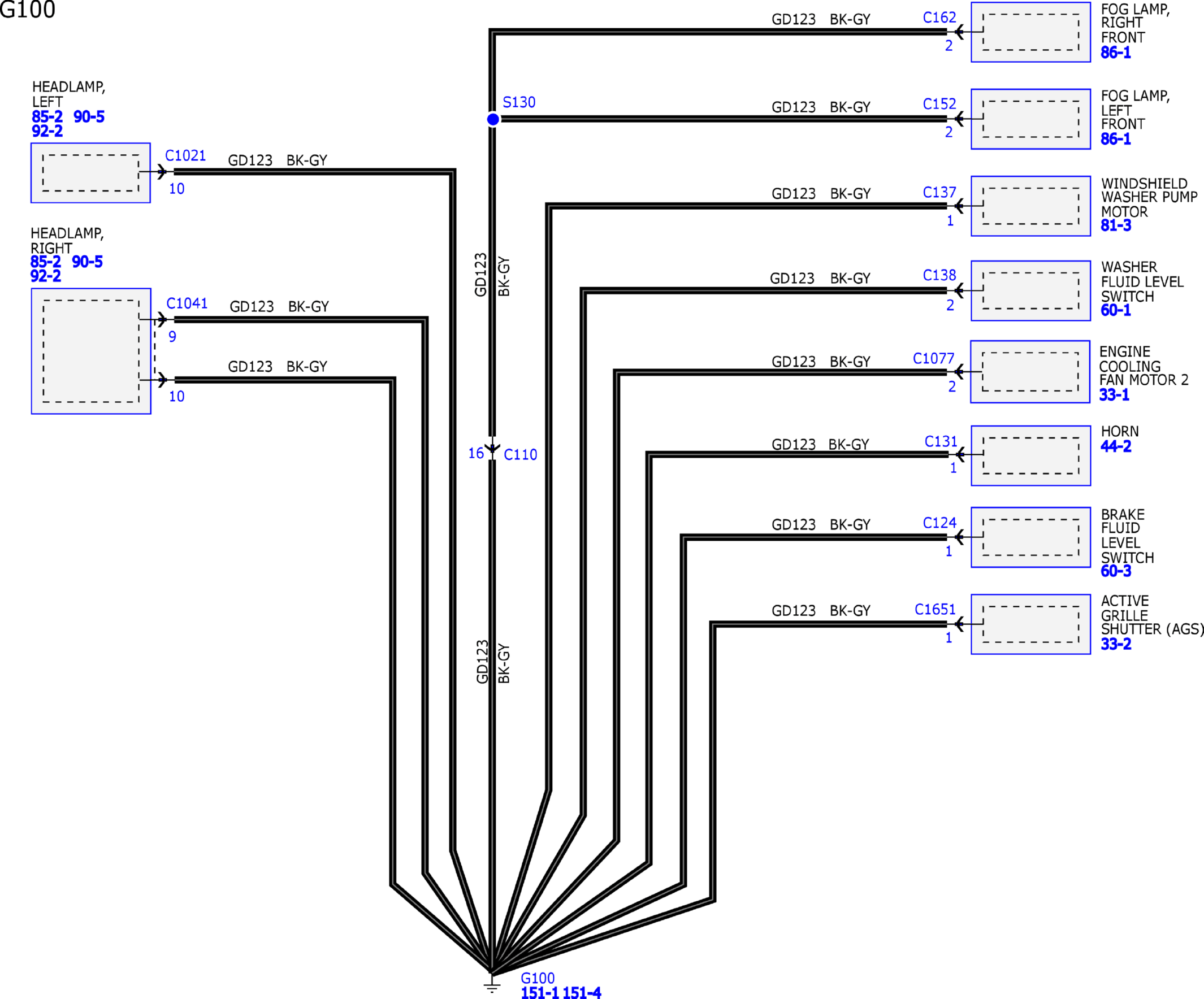

GFDW33629Courtesy of FORD MOTOR COMPANY

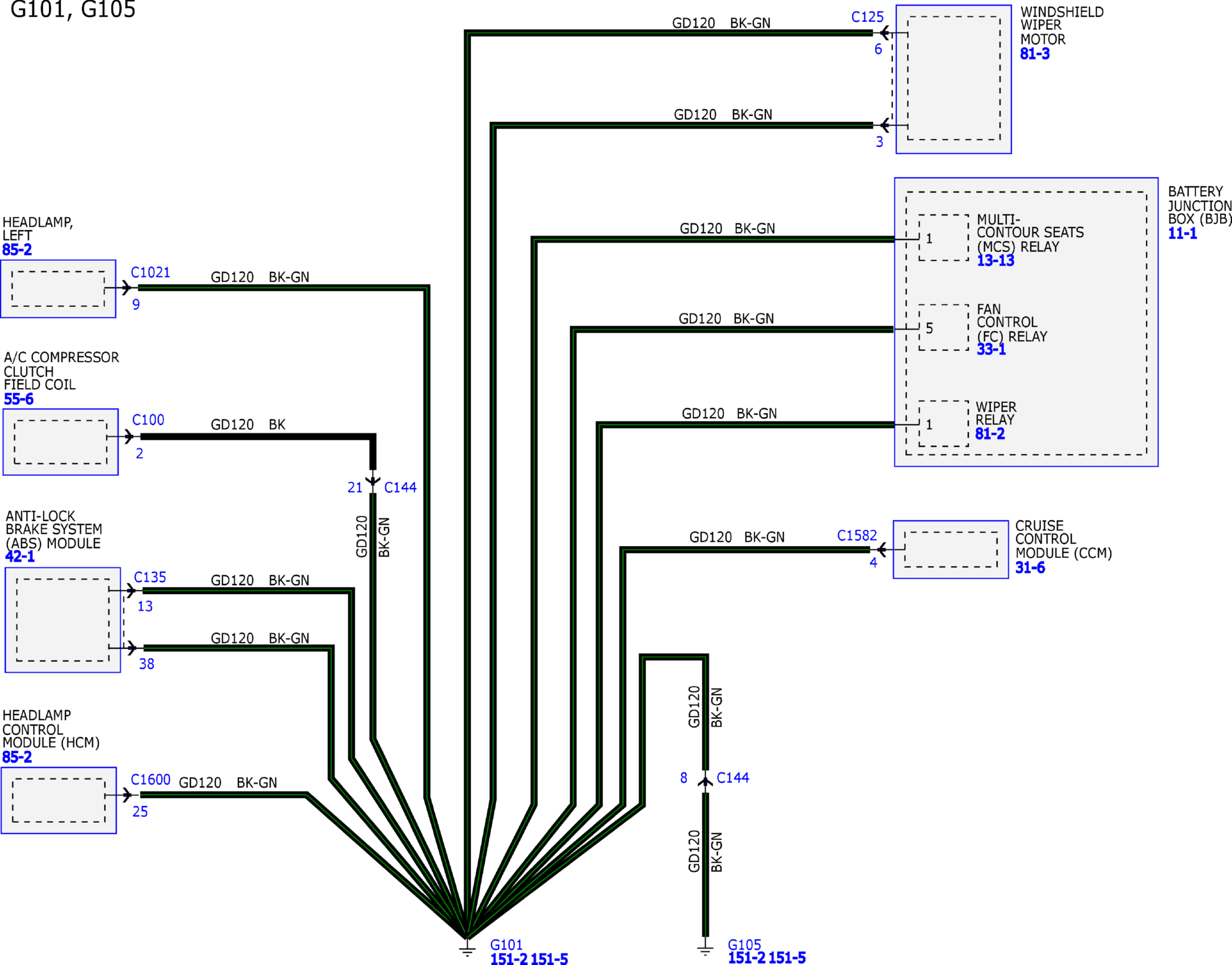

GFDW33630Courtesy of FORD MOTOR COMPANY

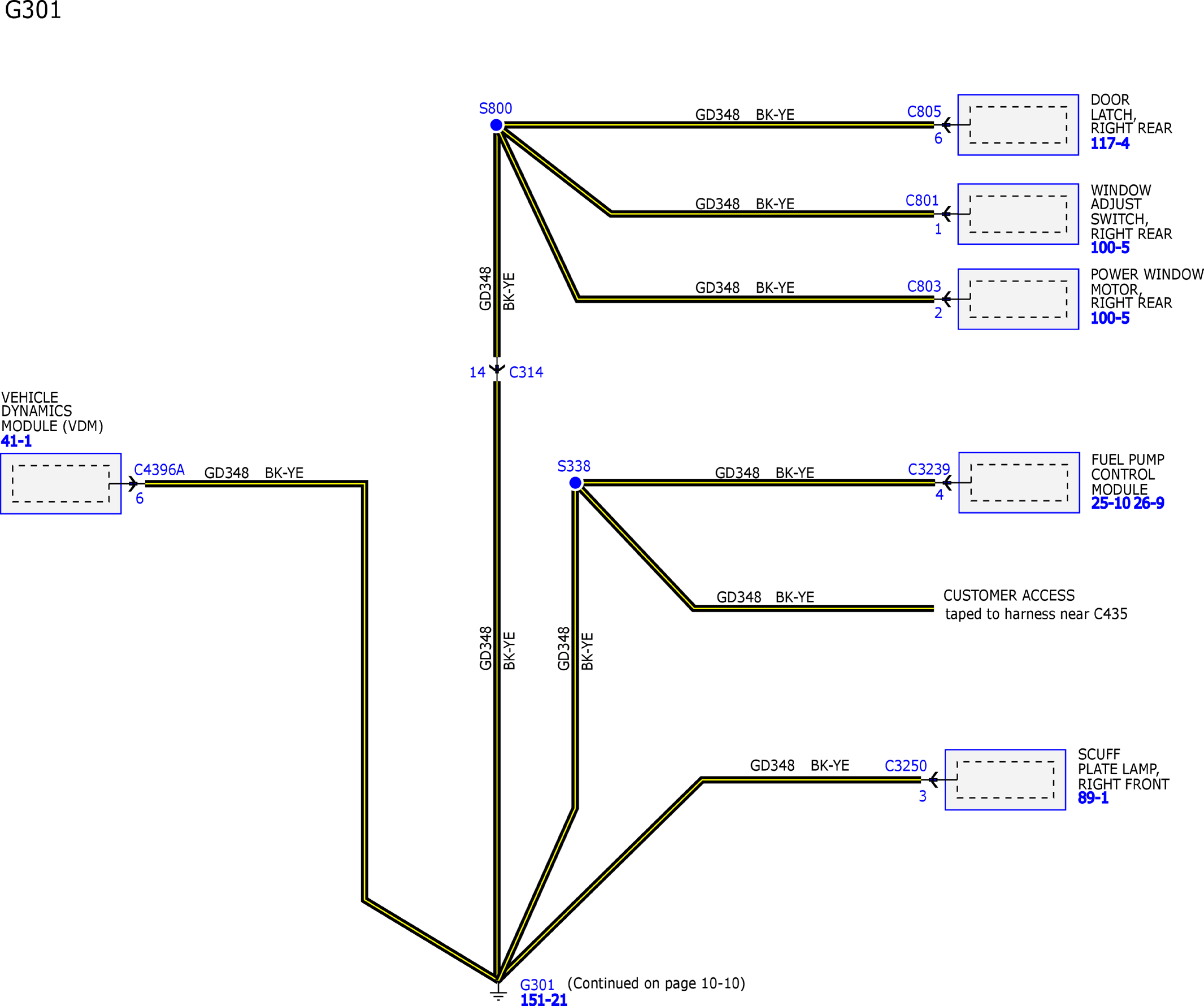

GFDW33631Courtesy of FORD MOTOR COMPANY

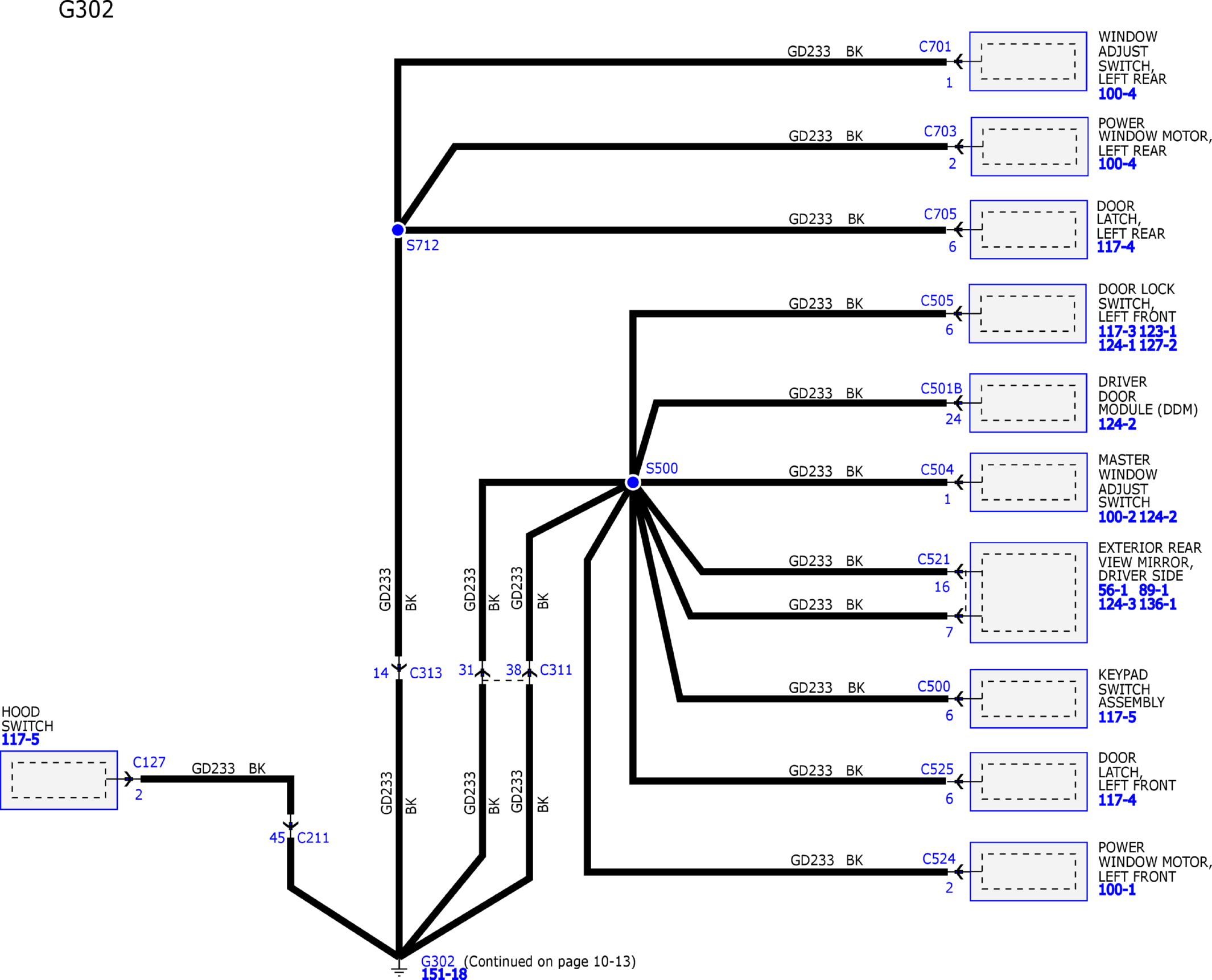

GFDW33632Courtesy of FORD MOTOR COMPANY

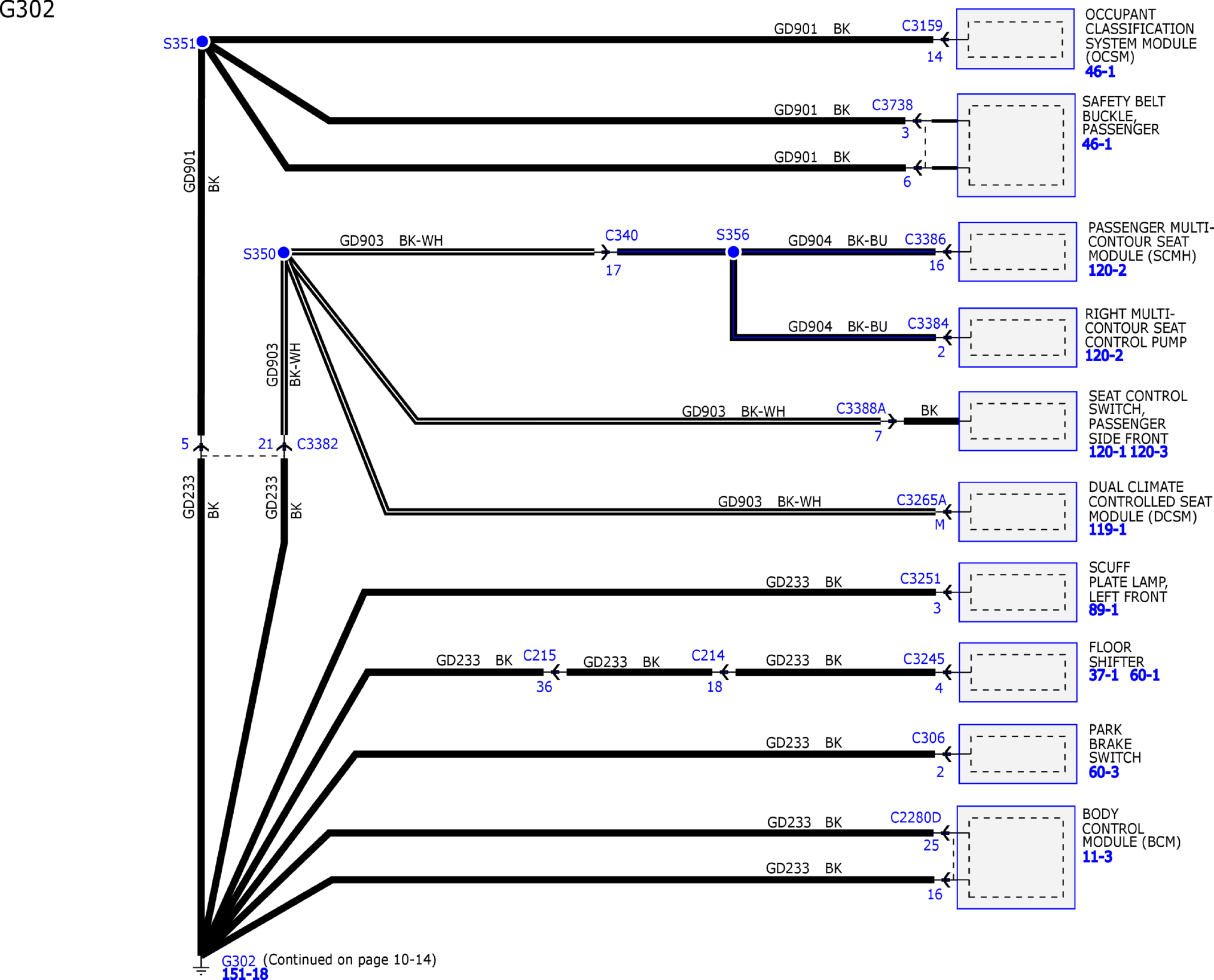

GFDW33633Courtesy of FORD MOTOR COMPANY

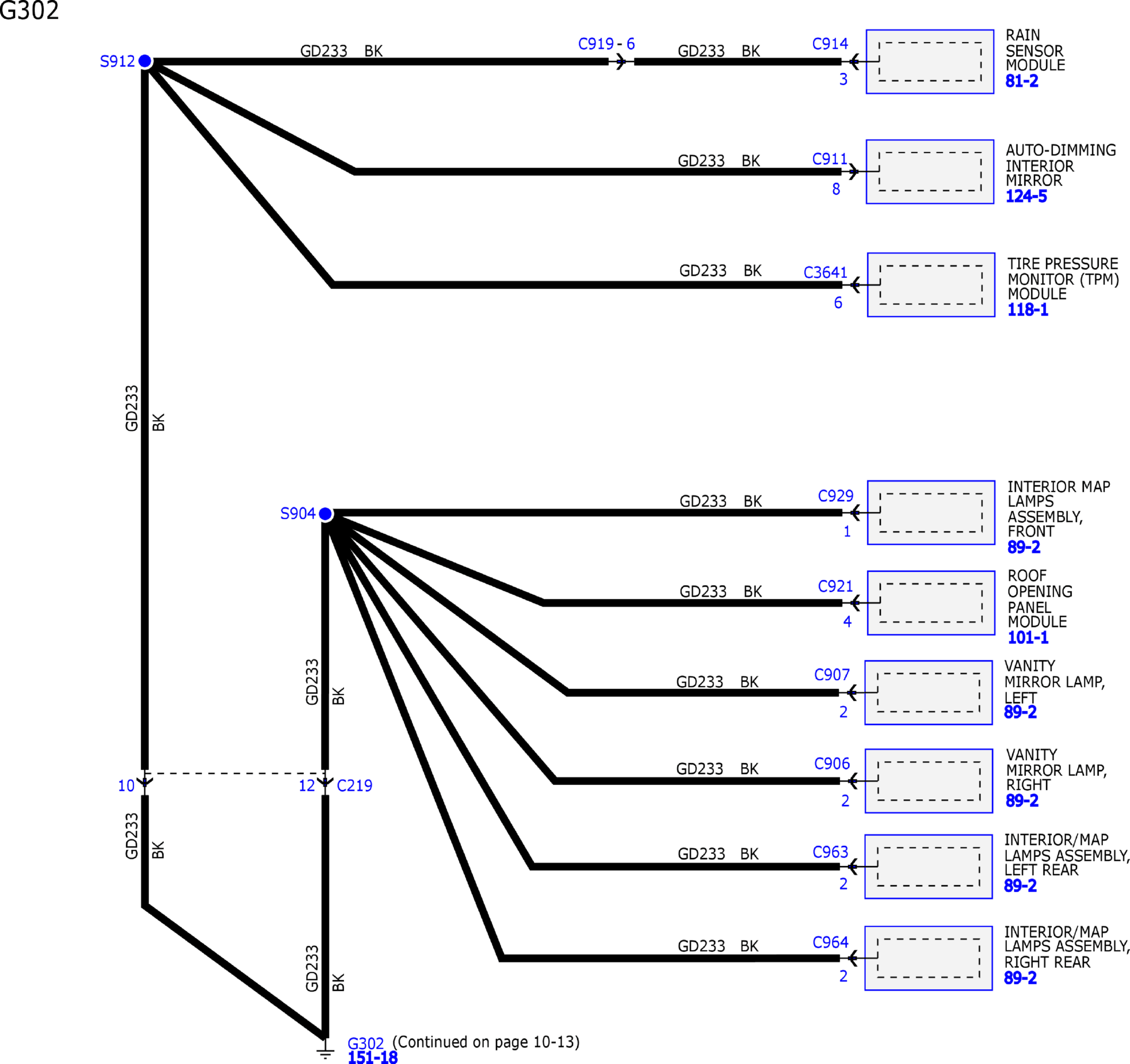

GFDW33634Courtesy of FORD MOTOR COMPANY

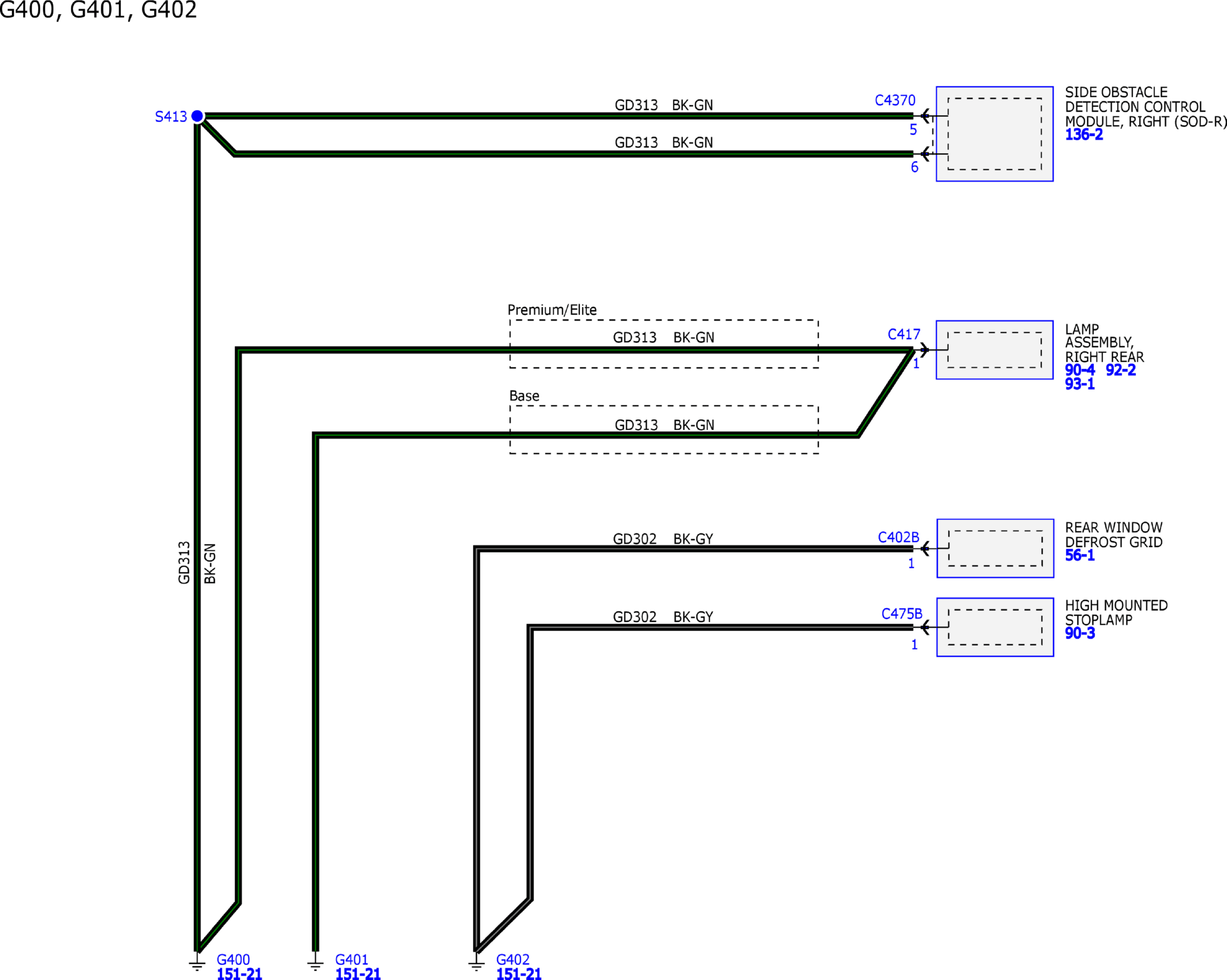

GFDW33635Courtesy of FORD MOTOR COMPANY

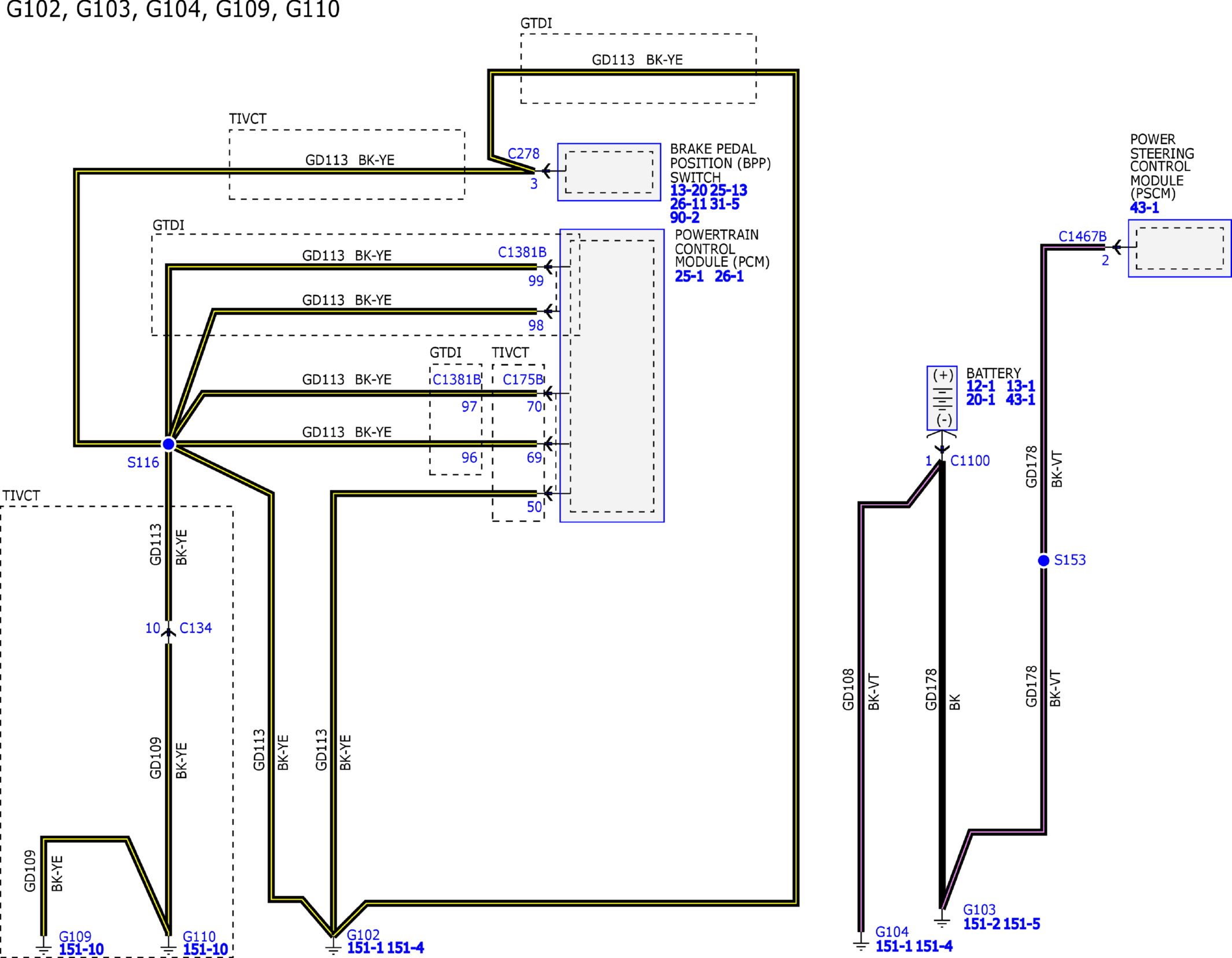

GFDW33636Courtesy of FORD MOTOR COMPANY

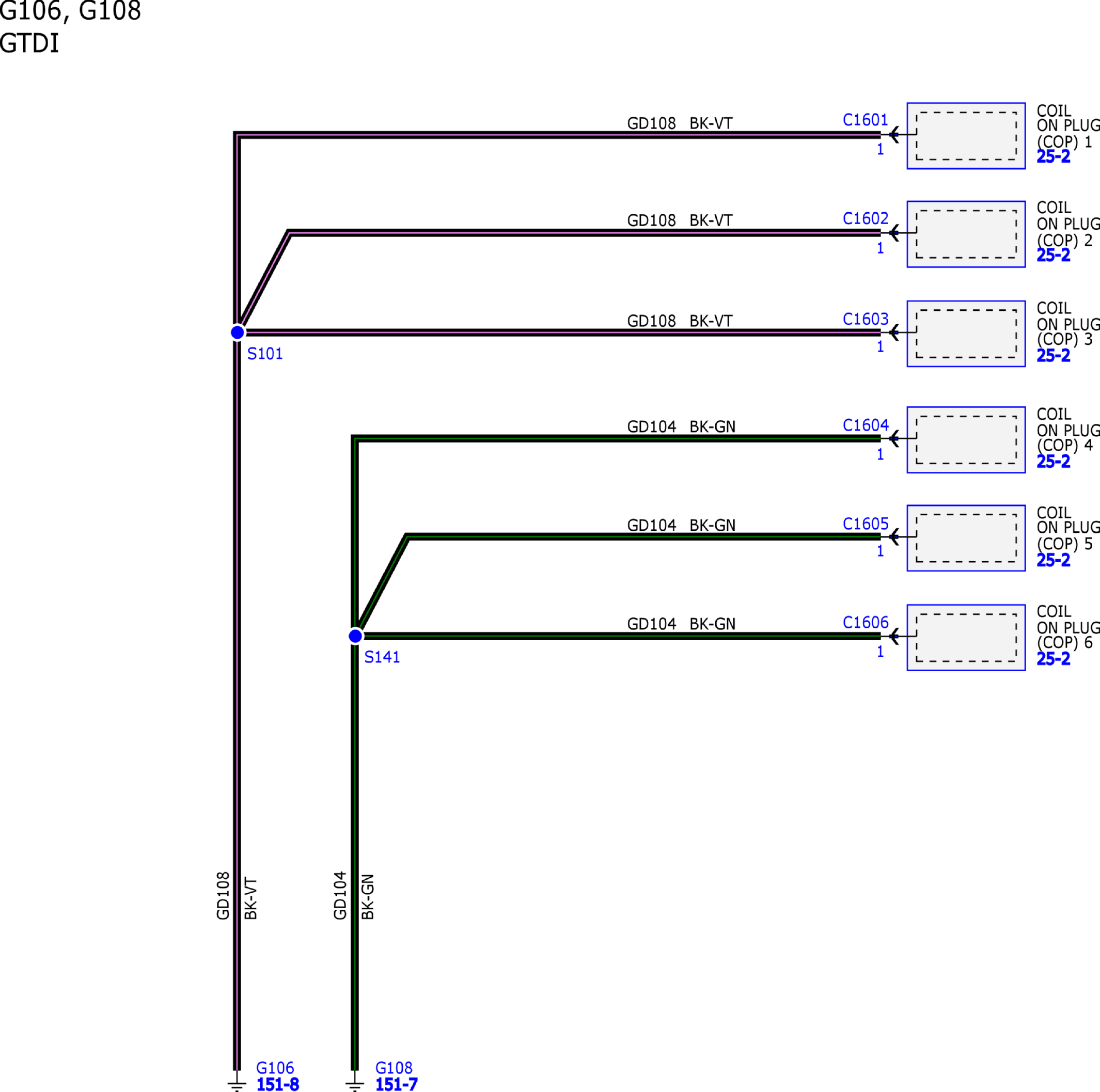

GFDW33637Courtesy of FORD MOTOR COMPANY

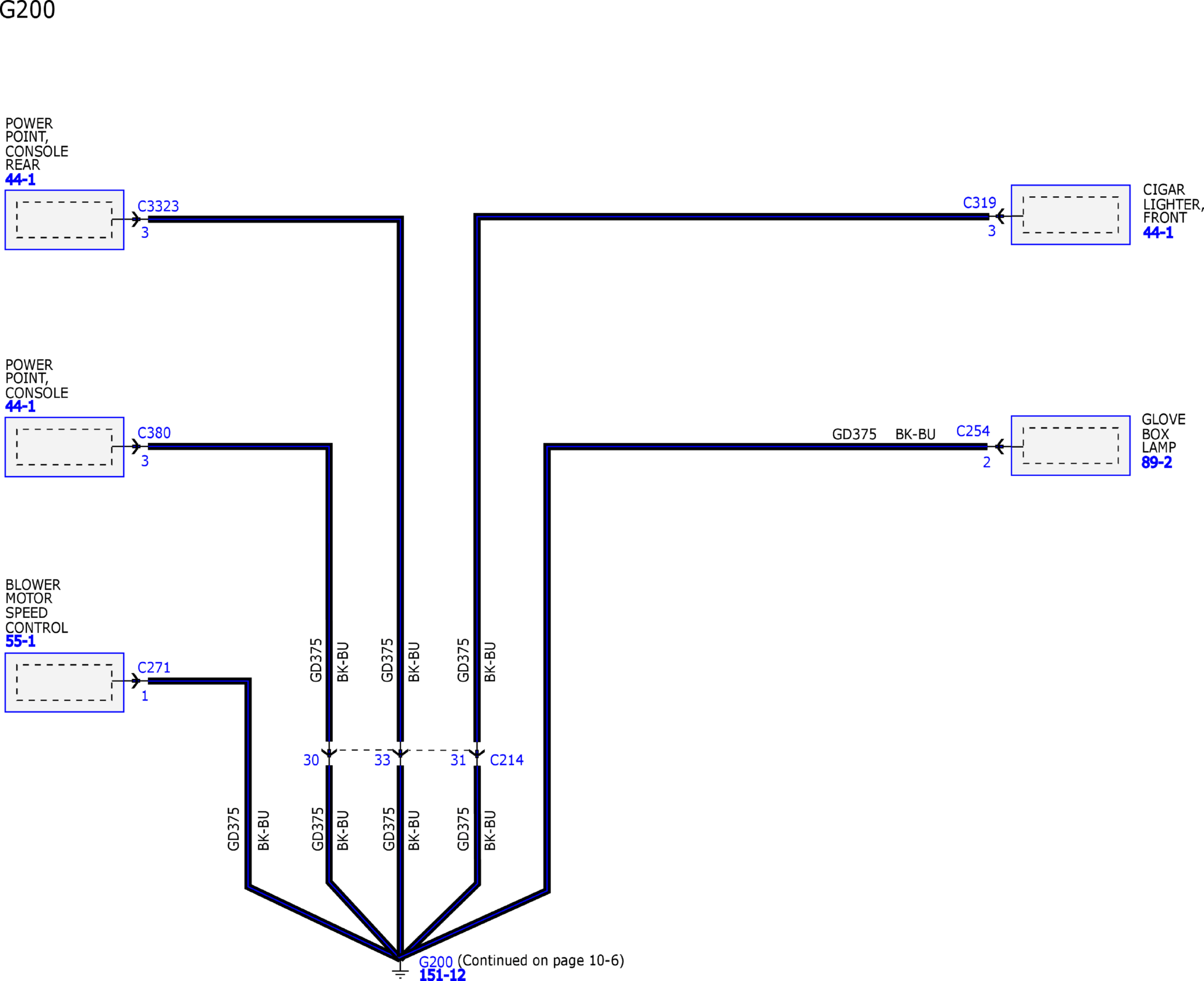

GFDW33638Courtesy of FORD MOTOR COMPANY

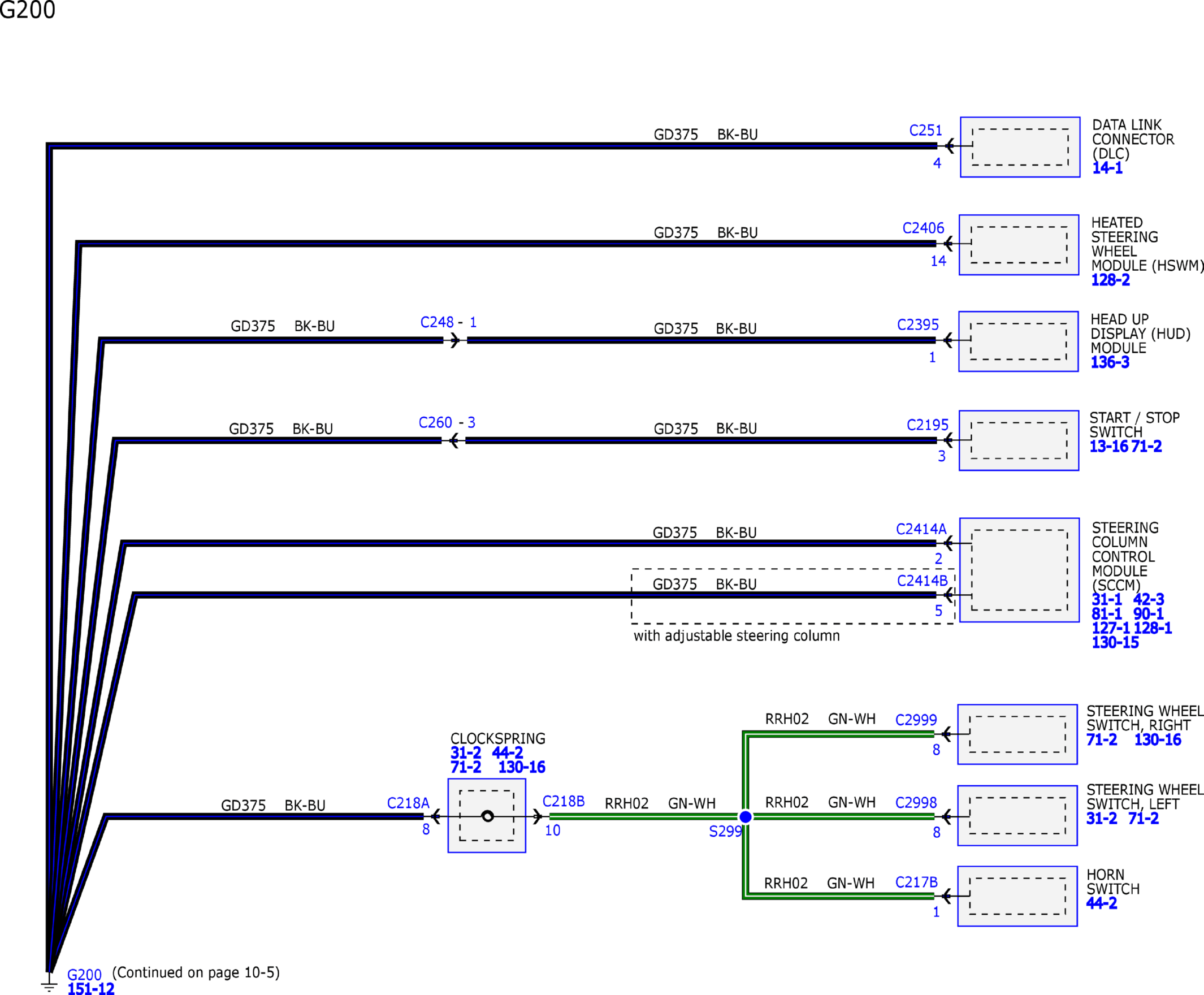

GFDW33639Courtesy of FORD MOTOR COMPANY

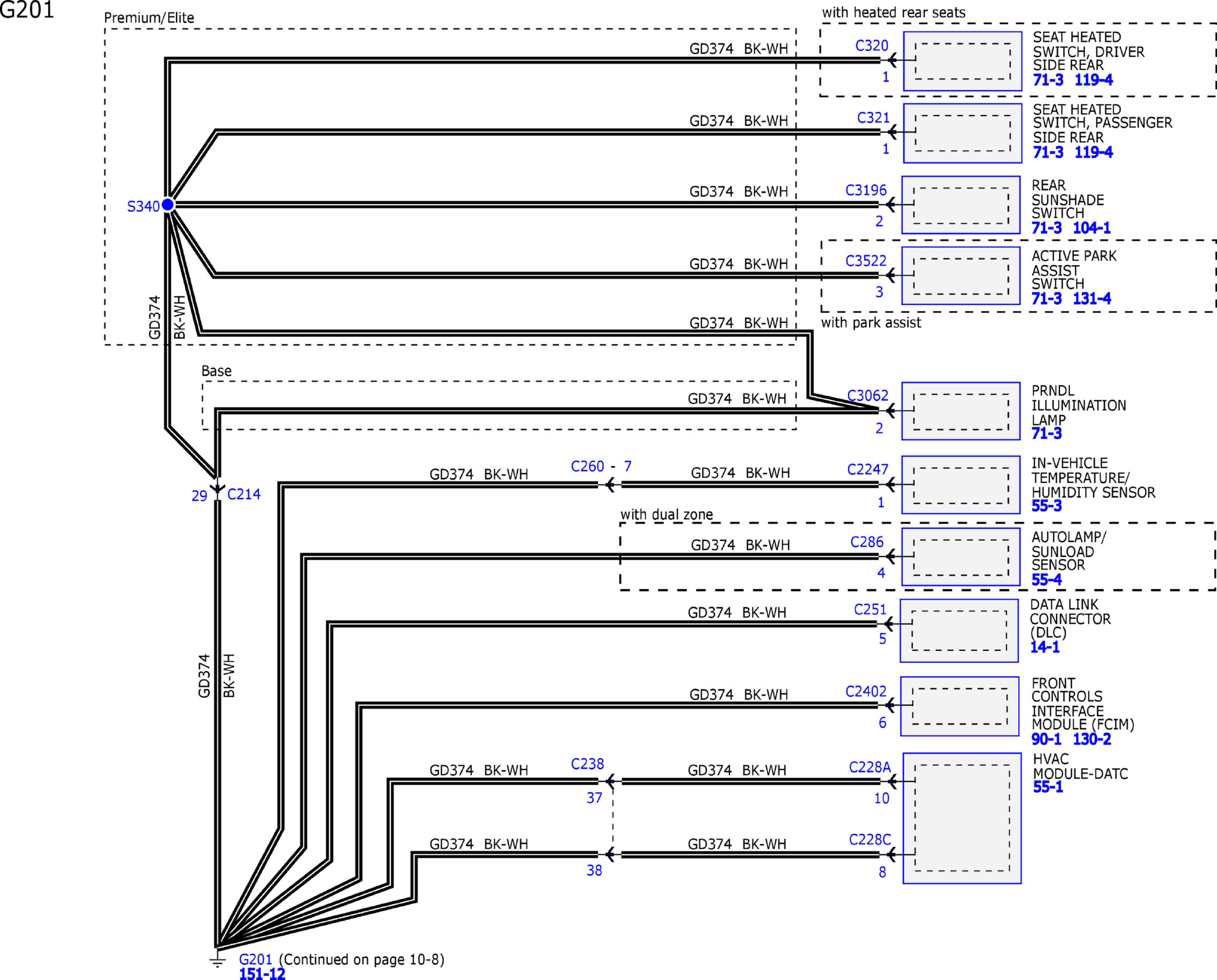

GFDW33640Courtesy of FORD MOTOR COMPANY

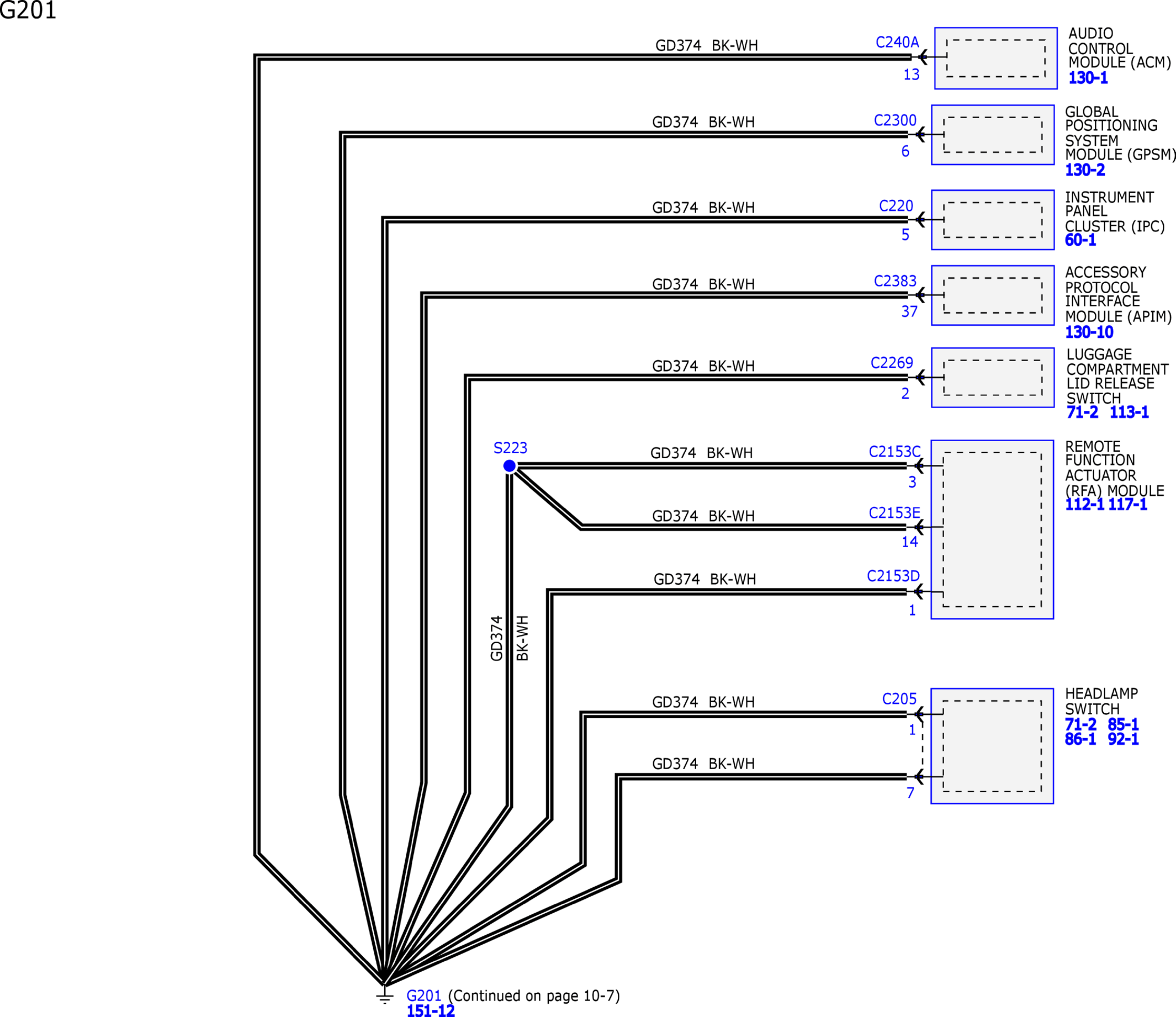

GFDW33641Courtesy of FORD MOTOR COMPANY

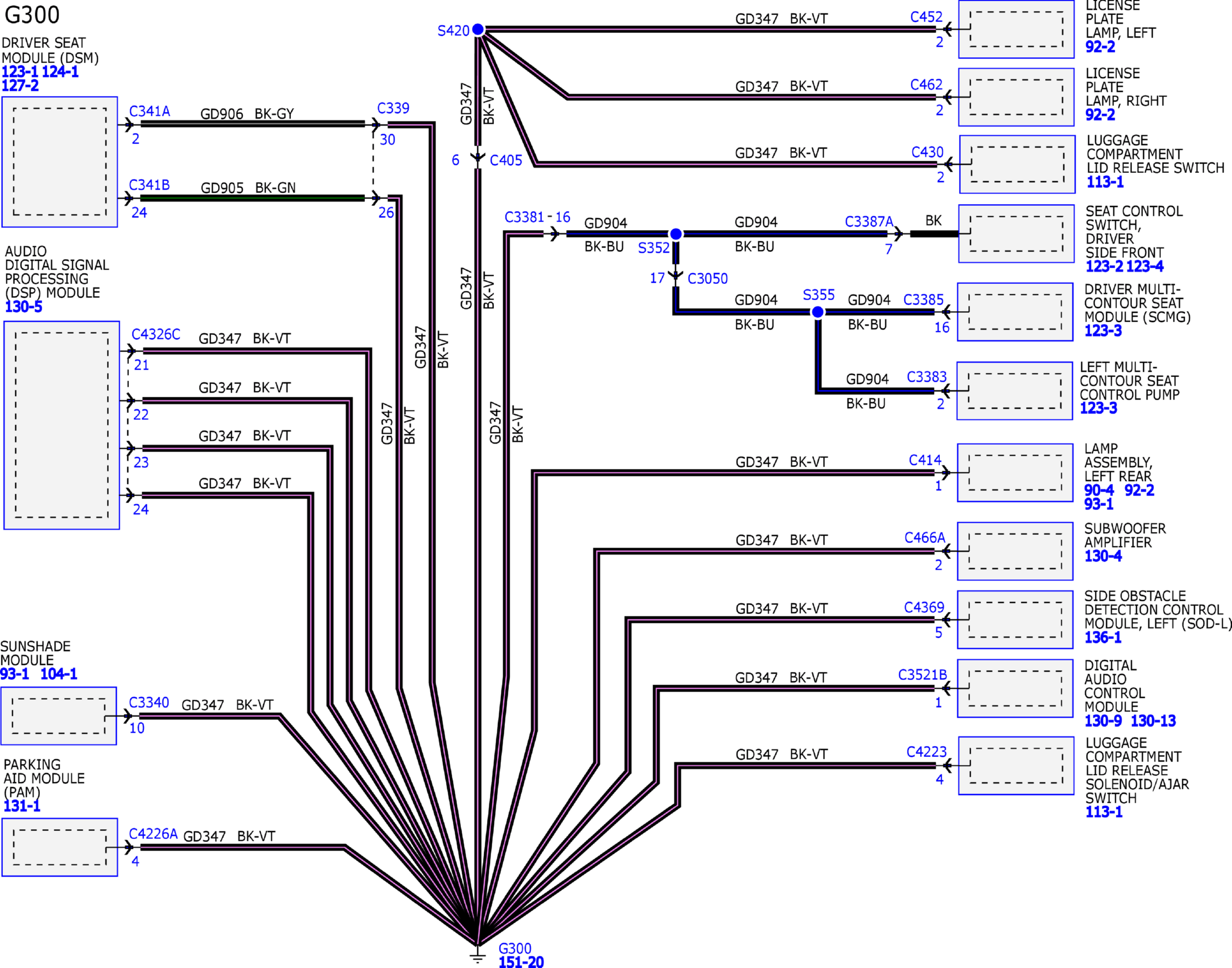

GFDW33642Courtesy of FORD MOTOR COMPANY

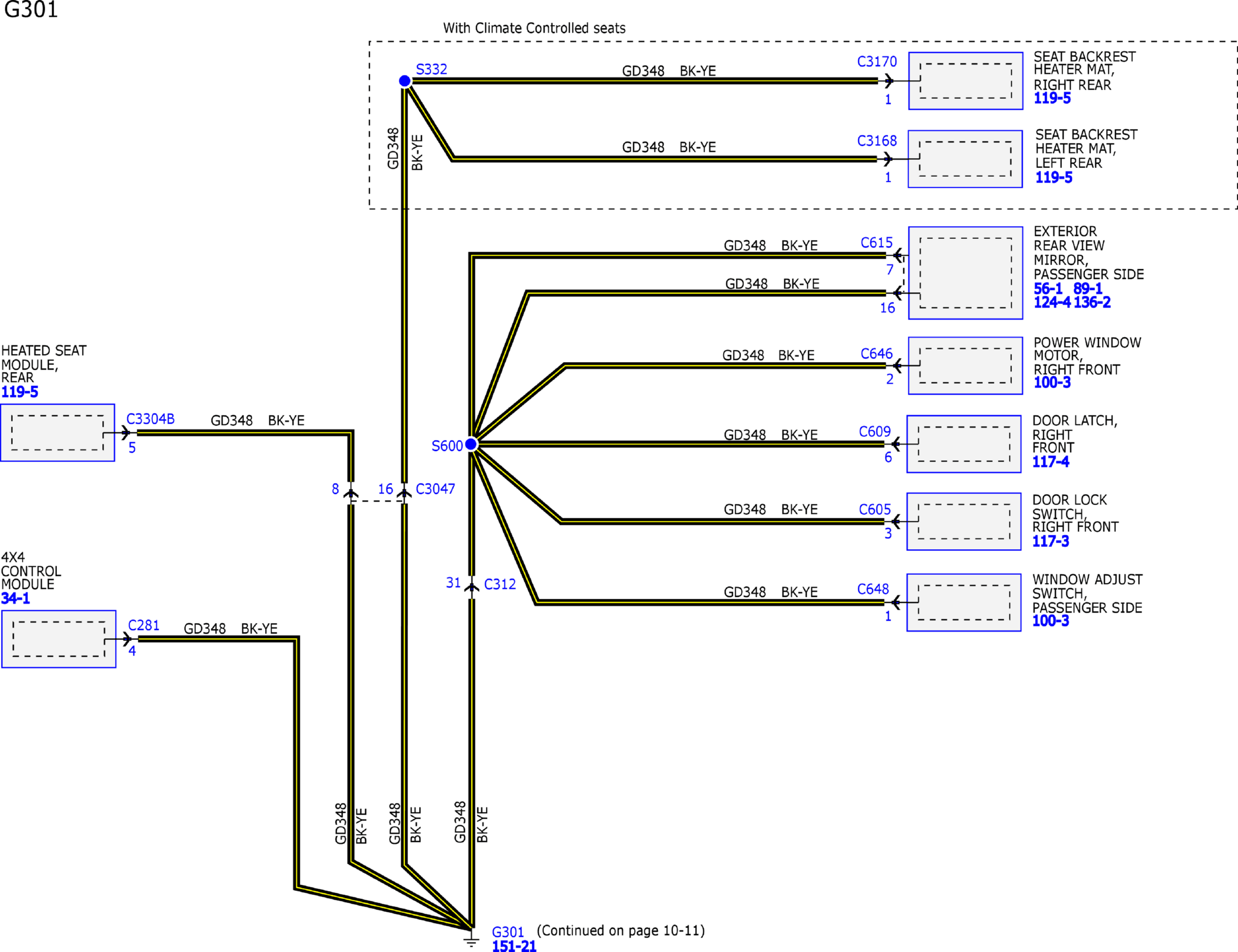

GFDW33643Courtesy of FORD MOTOR COMPANY
