Steering Column Shaft - Intermediate: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

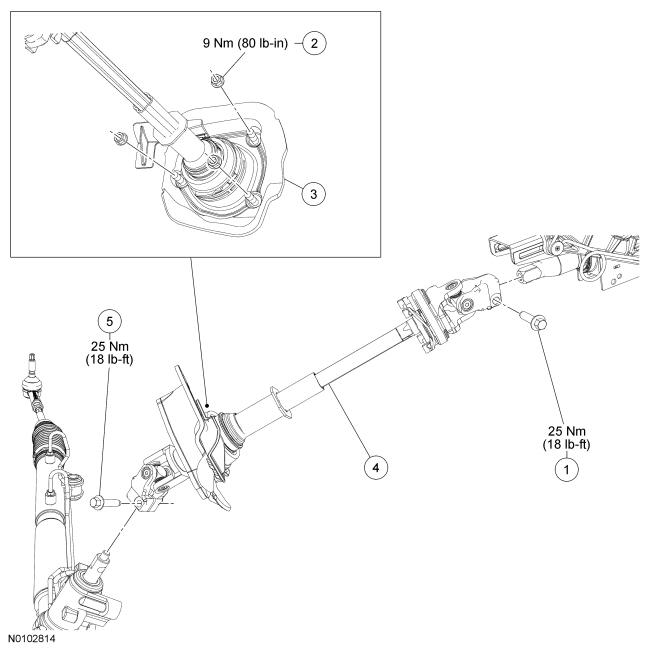

Fig 1: Steering Column Shaft Replacement Components With Torque Specifications - Intermediate

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W712961	Steering column shaft-to-steering column bolt
2	W705460	Steering column shaft boot nut
3	3C611	Steering column shaft boot
4	3B676	Steering column shaft
5	W712961	Steering column shaft-to-steering gear bolt
