Exterior Mirrors - Exploded View

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: RH shown in illustration, LH similar.

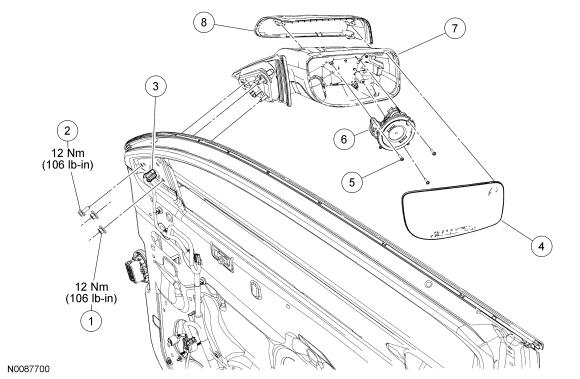

Fig 1: Exploded View Of Exterior Mirror With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W714313	Exterior mirror nut (2 required)
2	W705968	Exterior mirror bolt
3	14630 RH/ 14631 LH RH/ 14631 LH	Exterior mirror electrical connector
4	17K707 RH/ 17T675 LH RH/ 17T675 LH	Exterior mirror glass
5	-	Exterior mirror screw (3 required) (part of 17D696)
6	17D696	Exterior mirror motor
7	17682 RH/ 17683 LH RH/ 17683 LH	Exterior mirror
8	17D742 RH/ 17D743 LH RH/ 17D743 LH	Exterior mirror cover

1. 1.

   For additional information, refer to the appropriate procedures in this article.
