Component Location Views

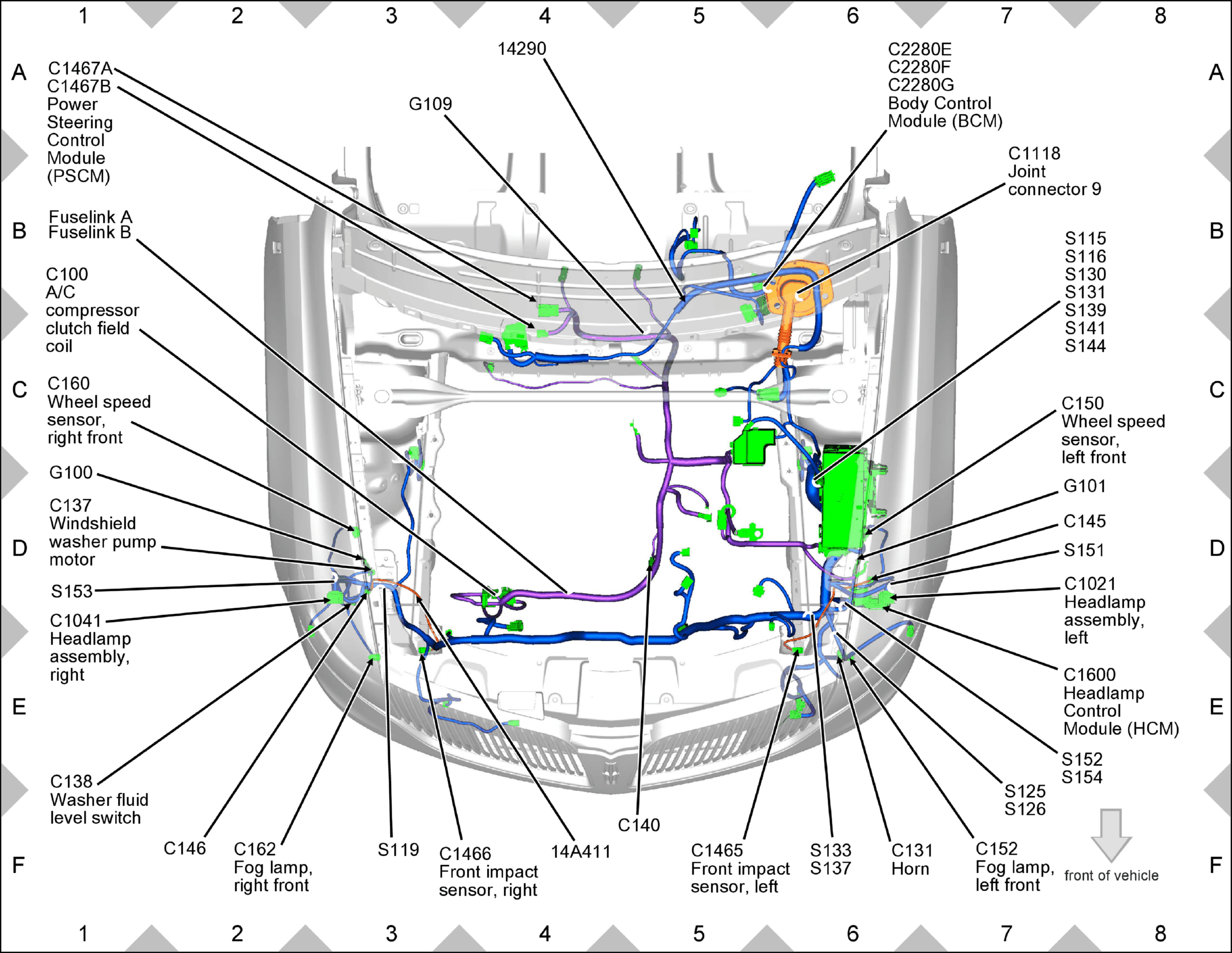

GFDW35030Courtesy of FORD MOTOR COMPANY

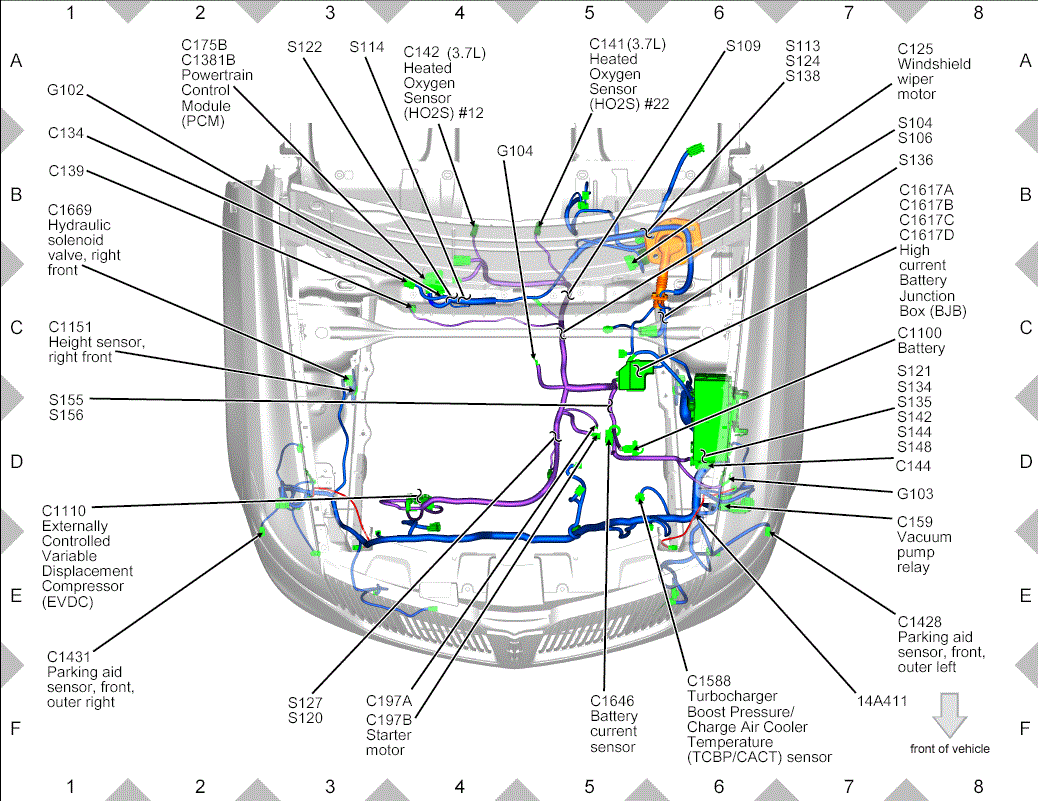

G00566190Courtesy of FORD MOTOR CO.

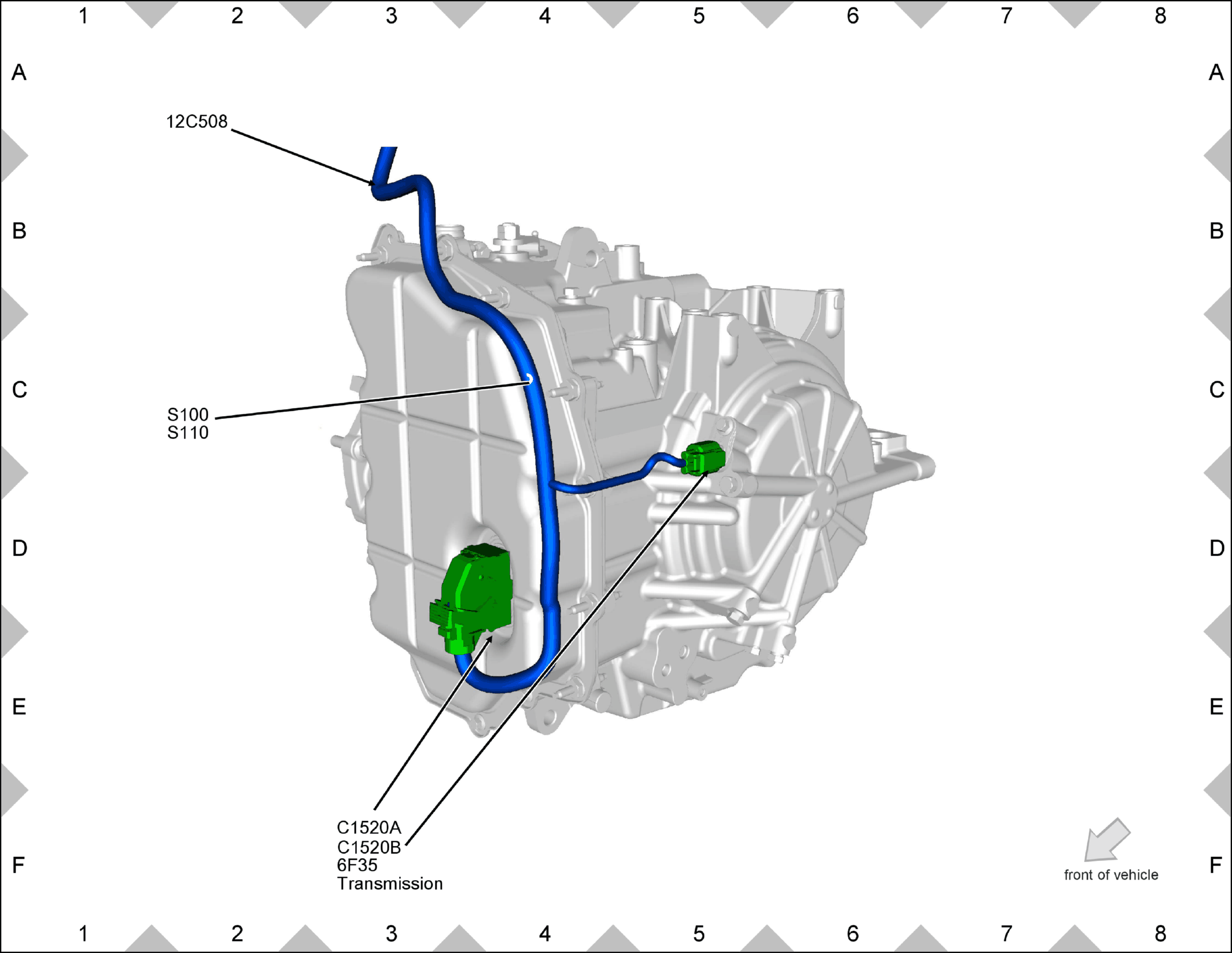

GFDW35032Courtesy of FORD MOTOR COMPANY

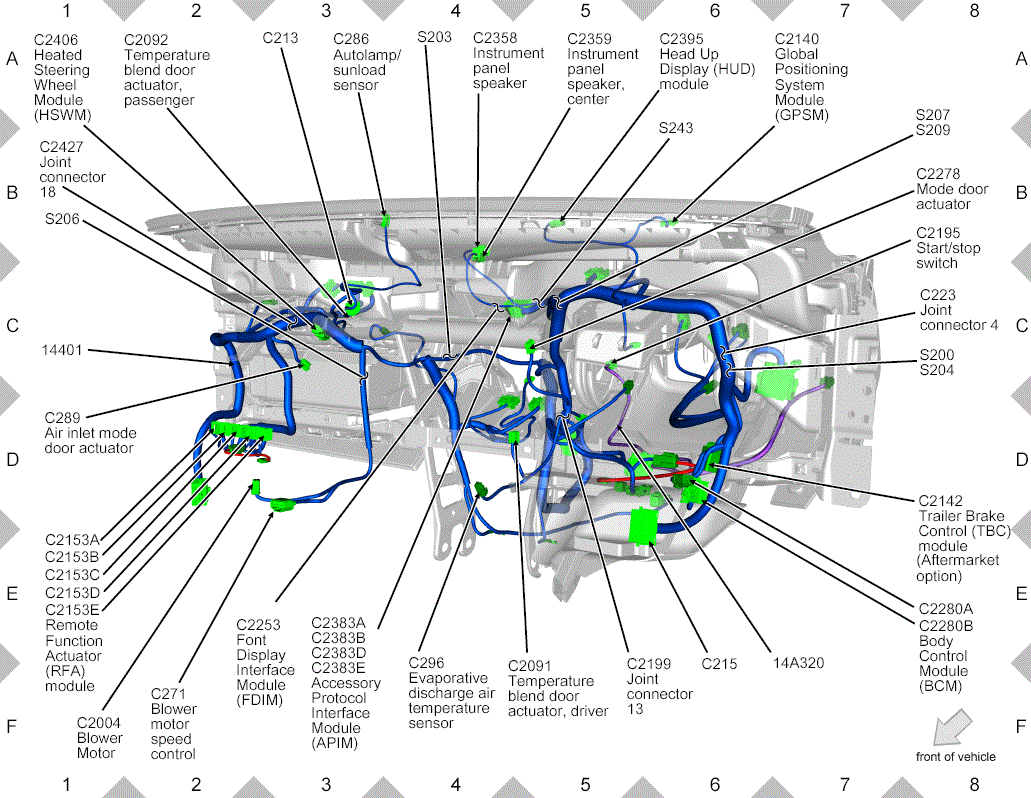

G00566233Courtesy of FORD MOTOR CO.

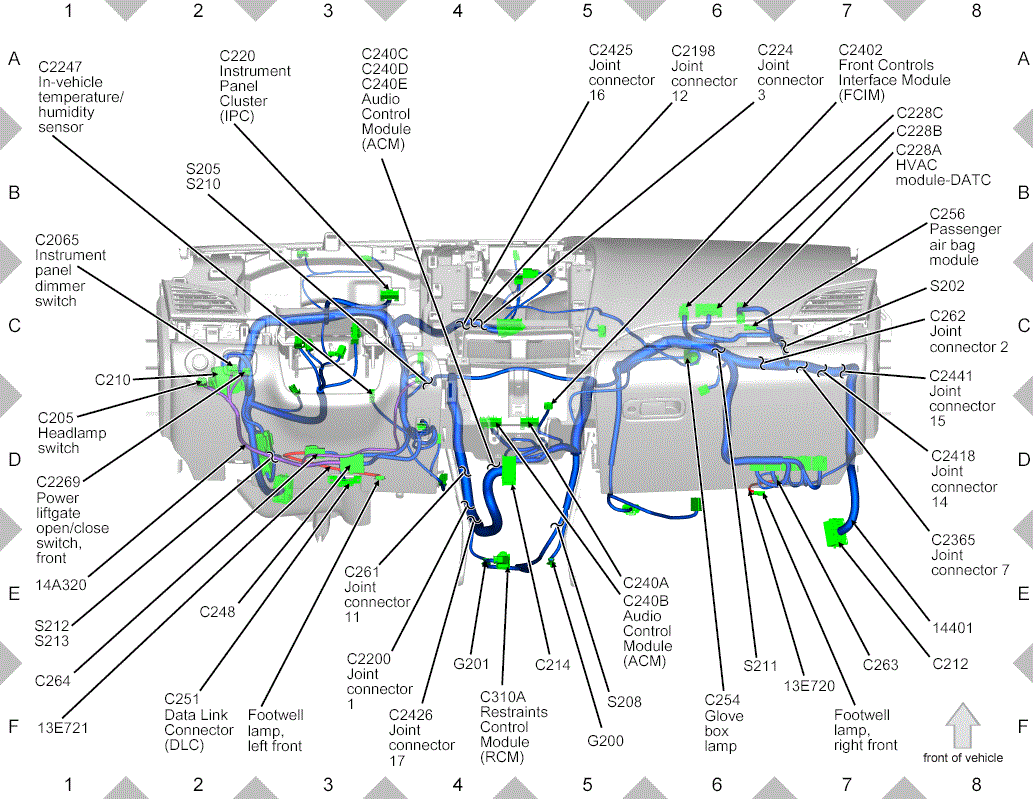

G00566234Courtesy of FORD MOTOR CO.

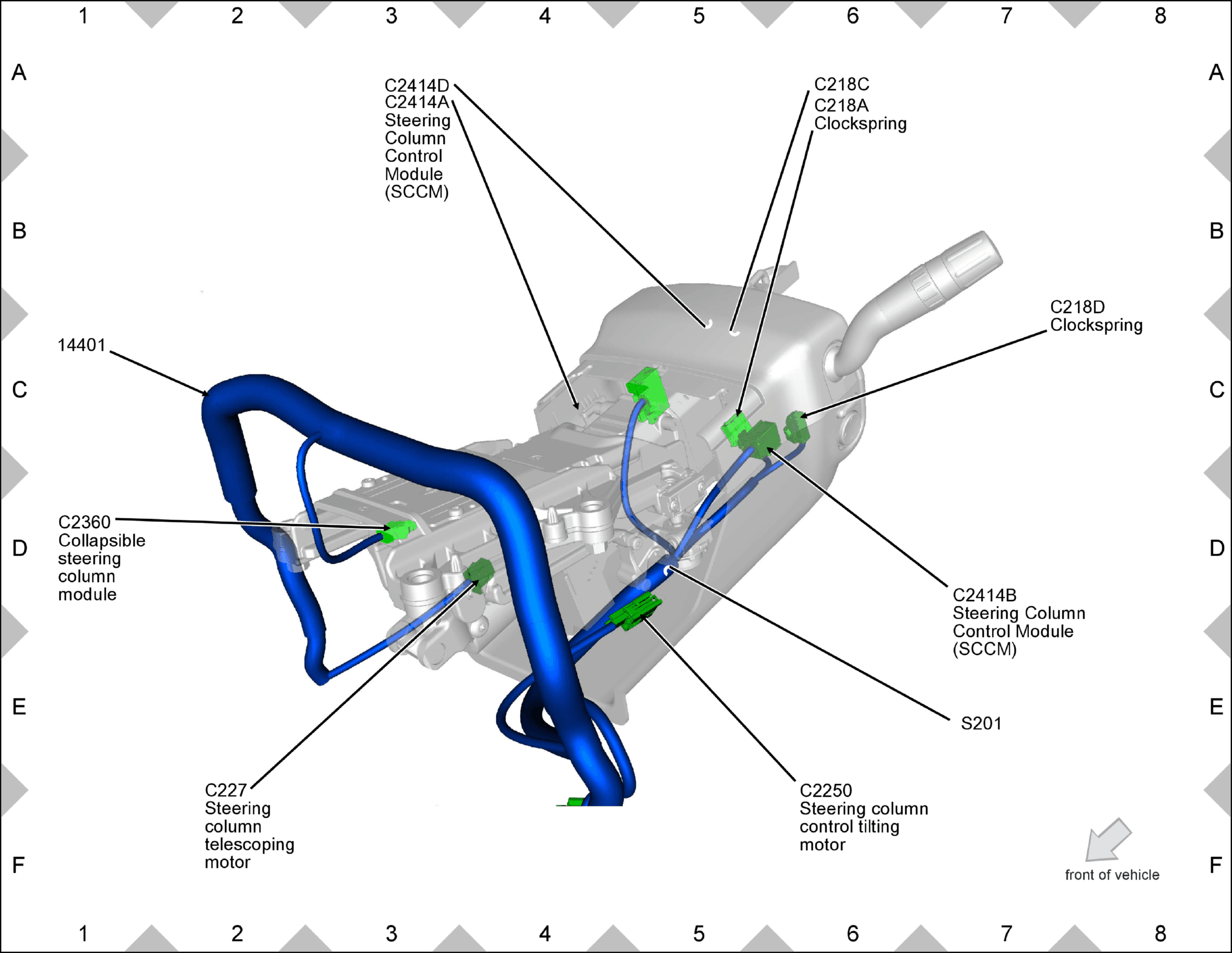

GFDW35035Courtesy of FORD MOTOR COMPANY

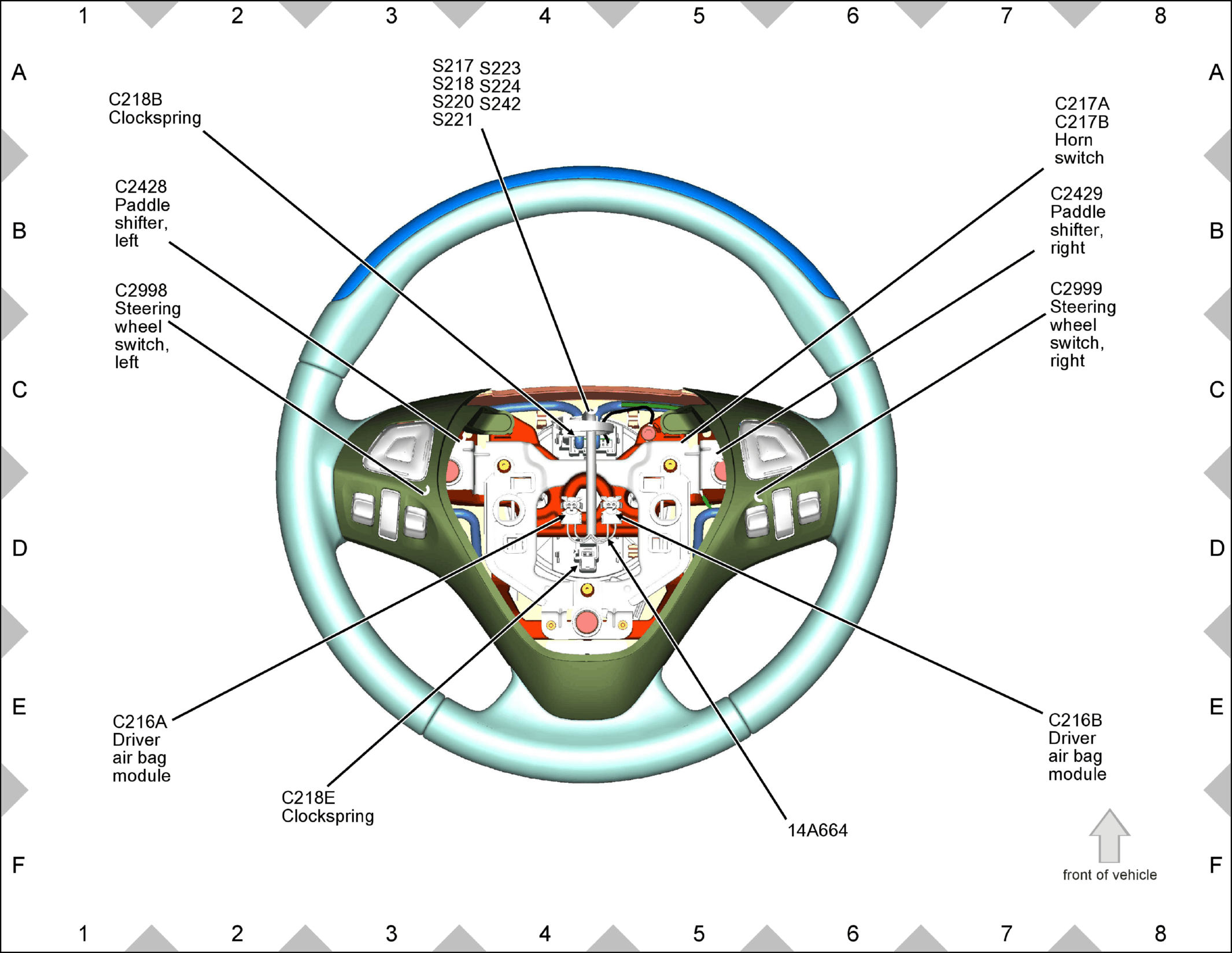

GFDW35036Courtesy of FORD MOTOR COMPANY

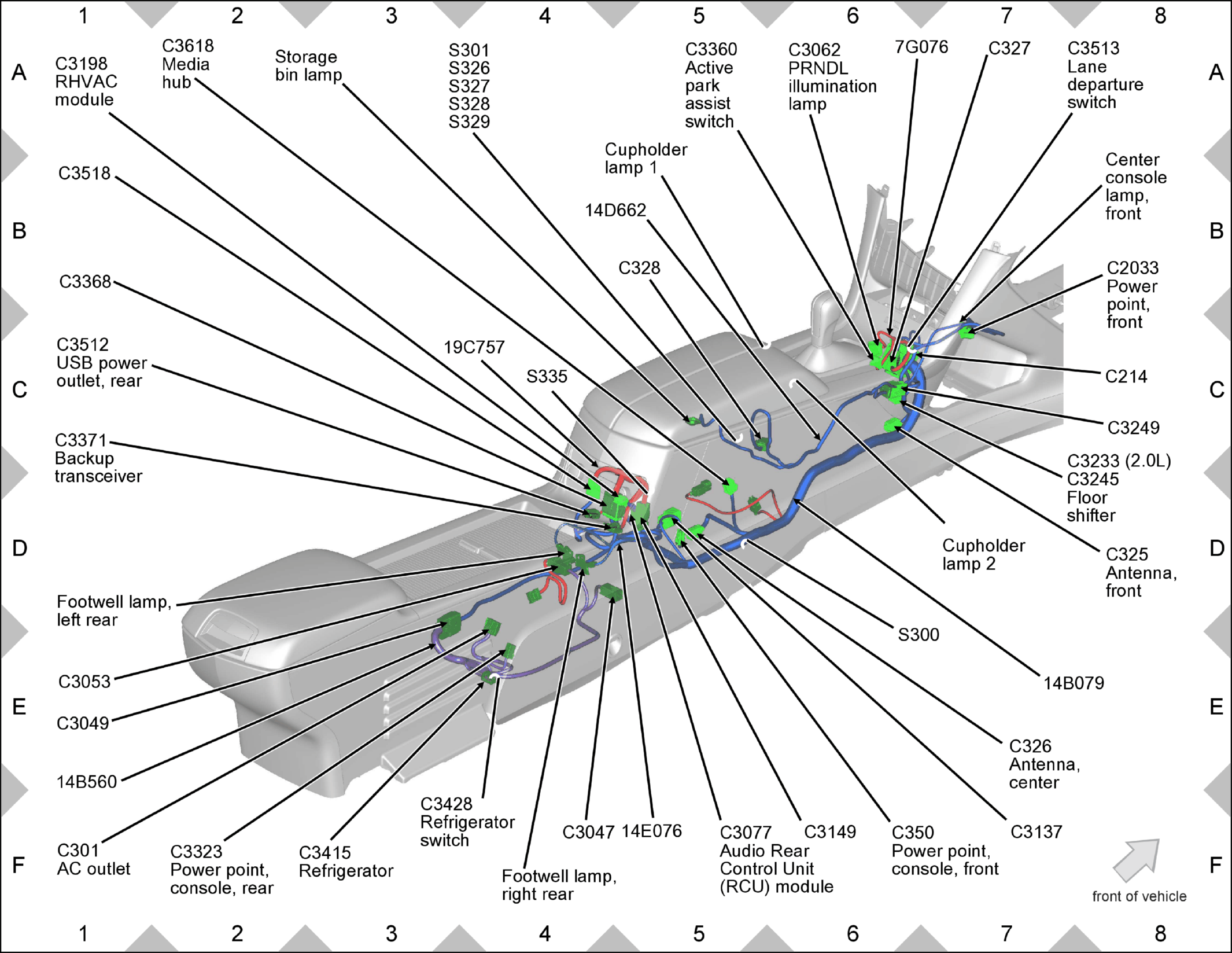

GFDW35037Courtesy of FORD MOTOR COMPANY

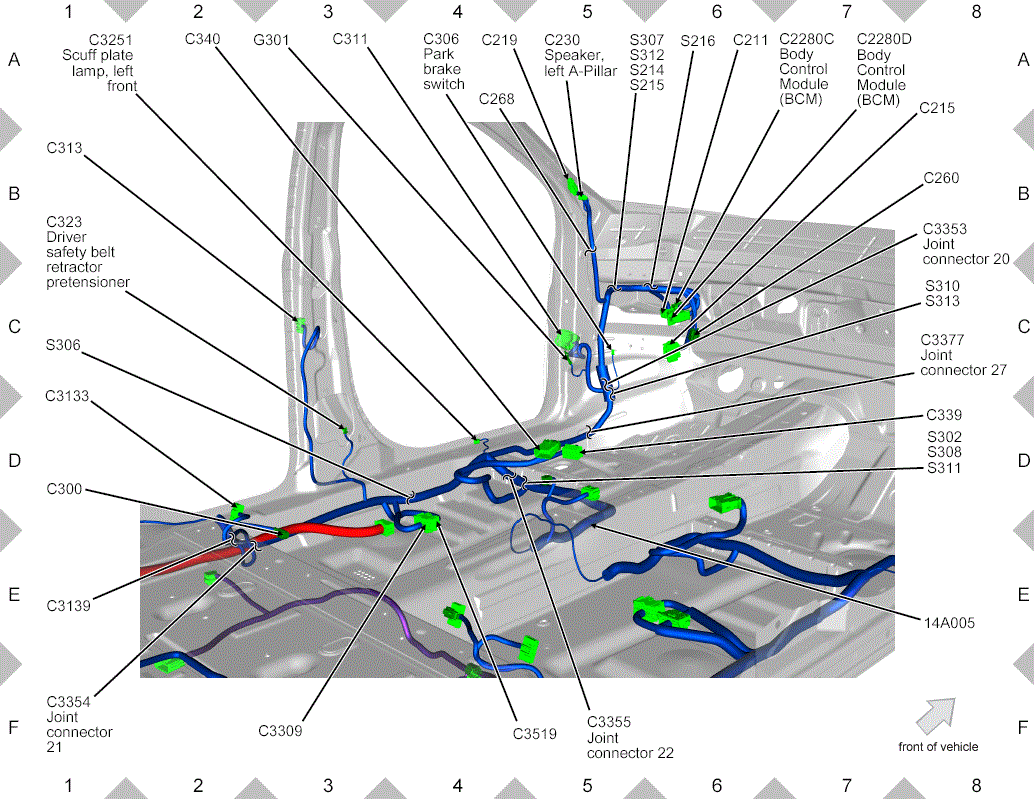

G00566235Courtesy of FORD MOTOR CO.

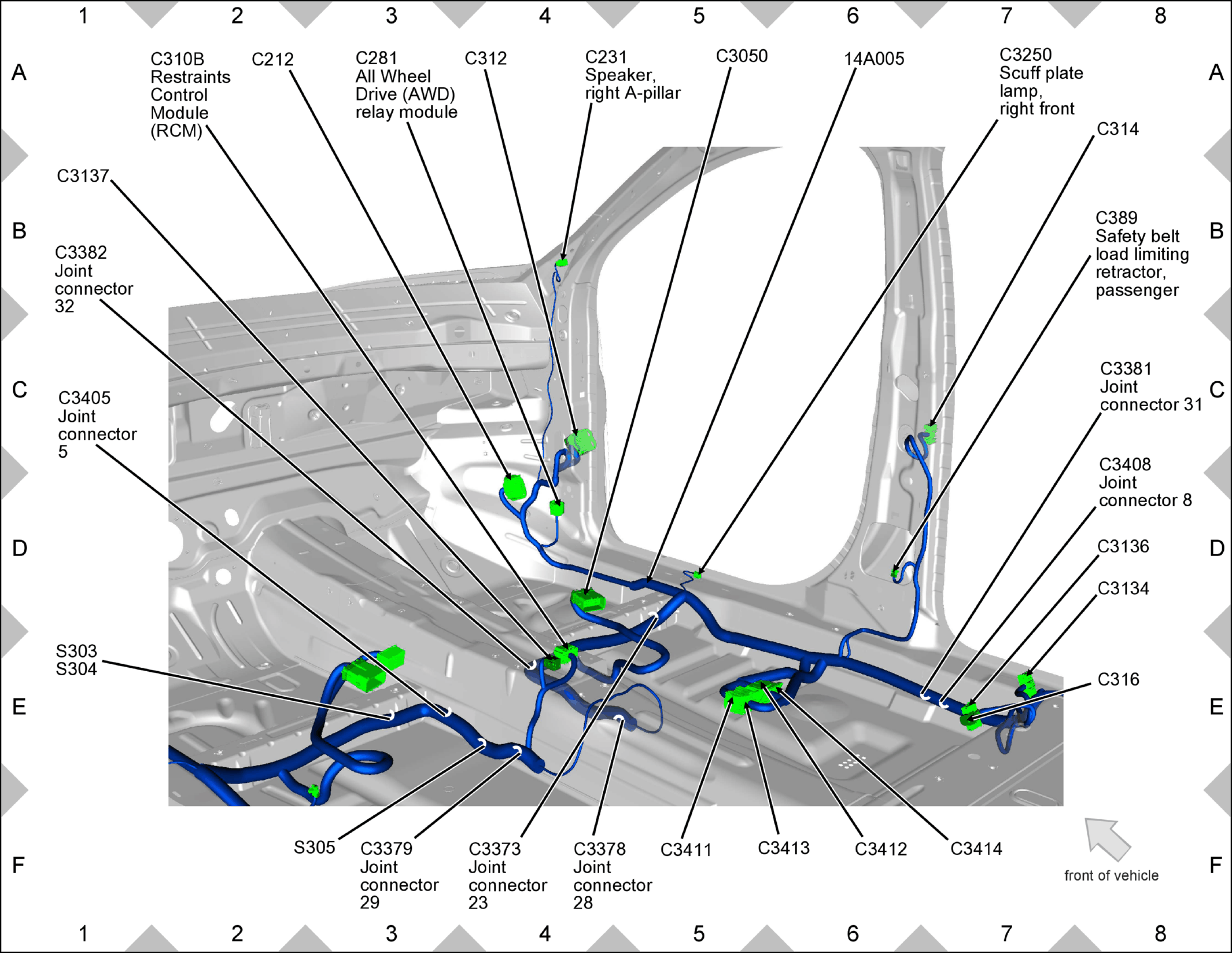

GFDW35039Courtesy of FORD MOTOR COMPANY

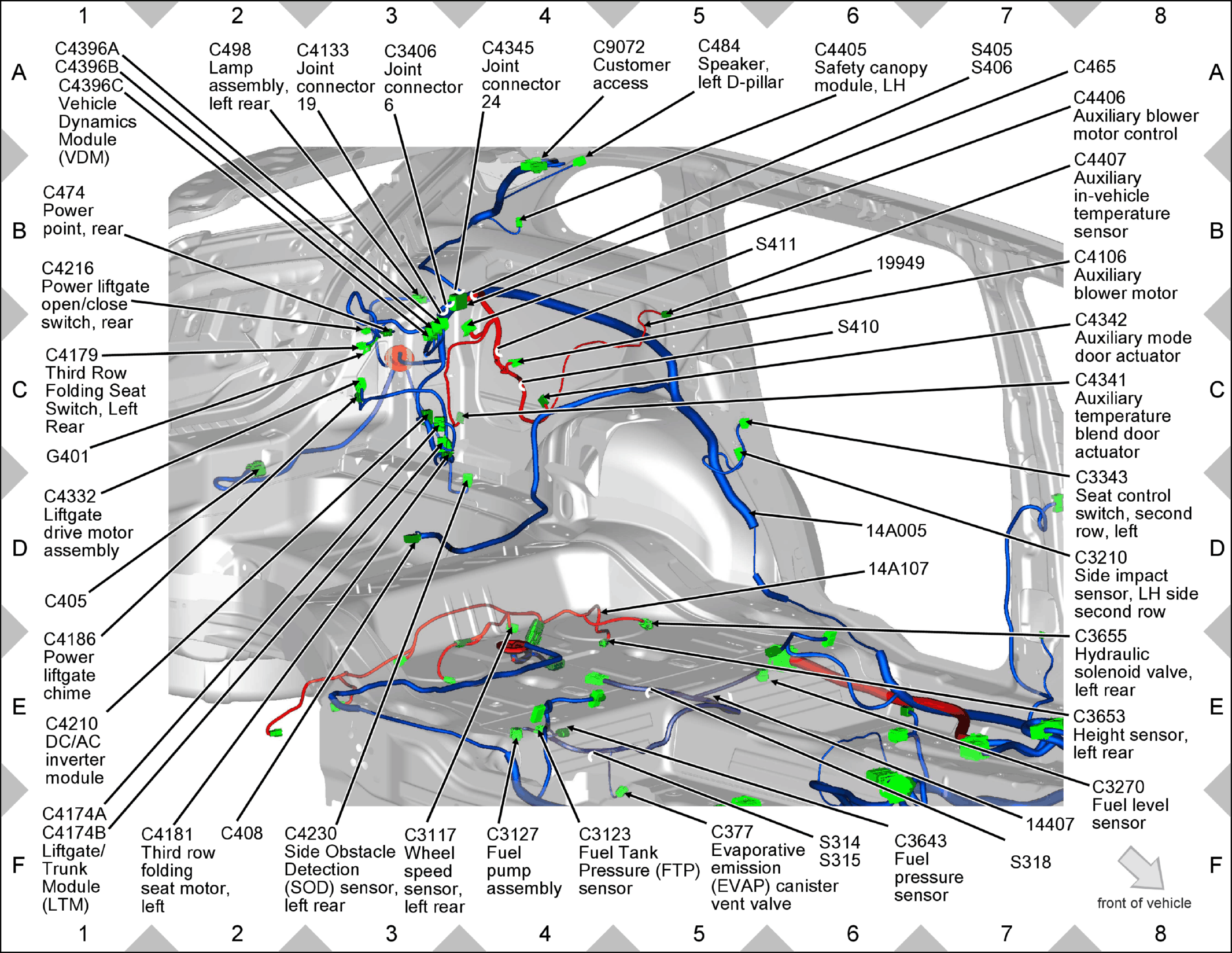

GFDW35040Courtesy of FORD MOTOR COMPANY

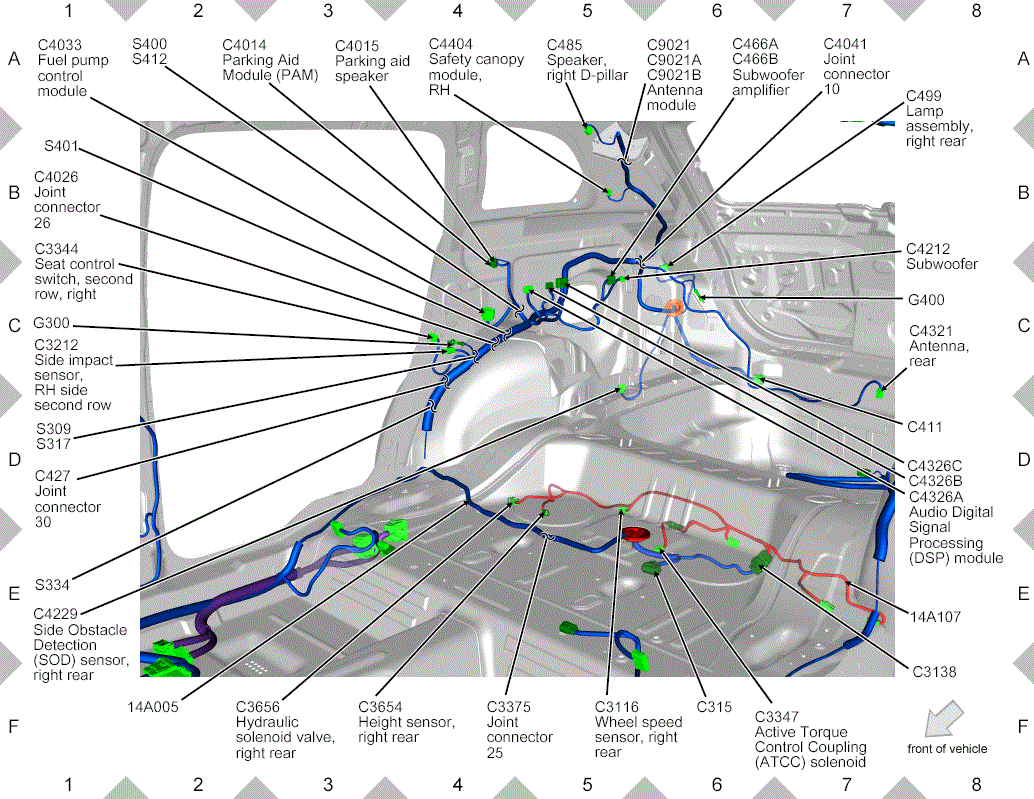

G00566236Courtesy of FORD MOTOR CO.

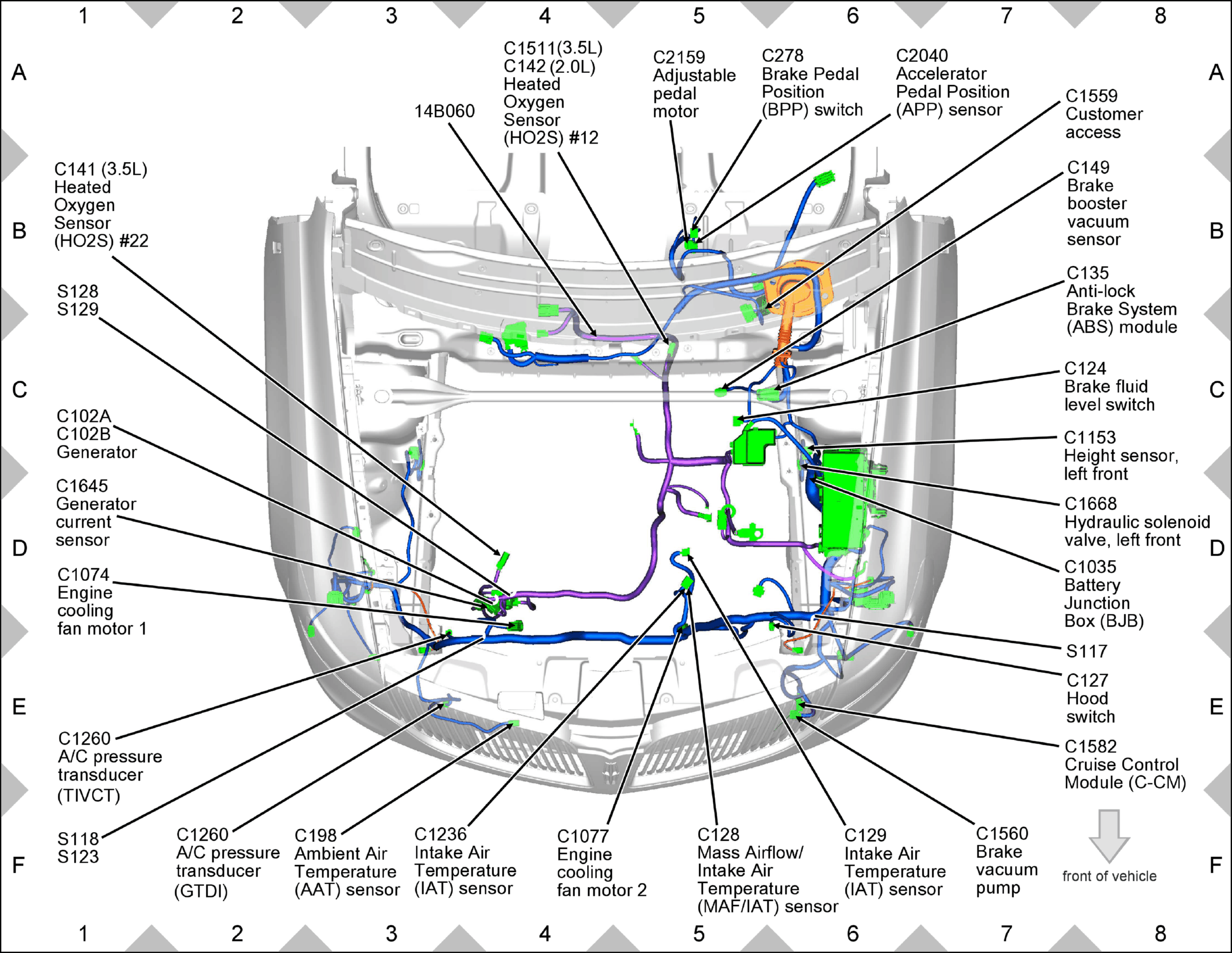

GFDW35042Courtesy of FORD MOTOR COMPANY

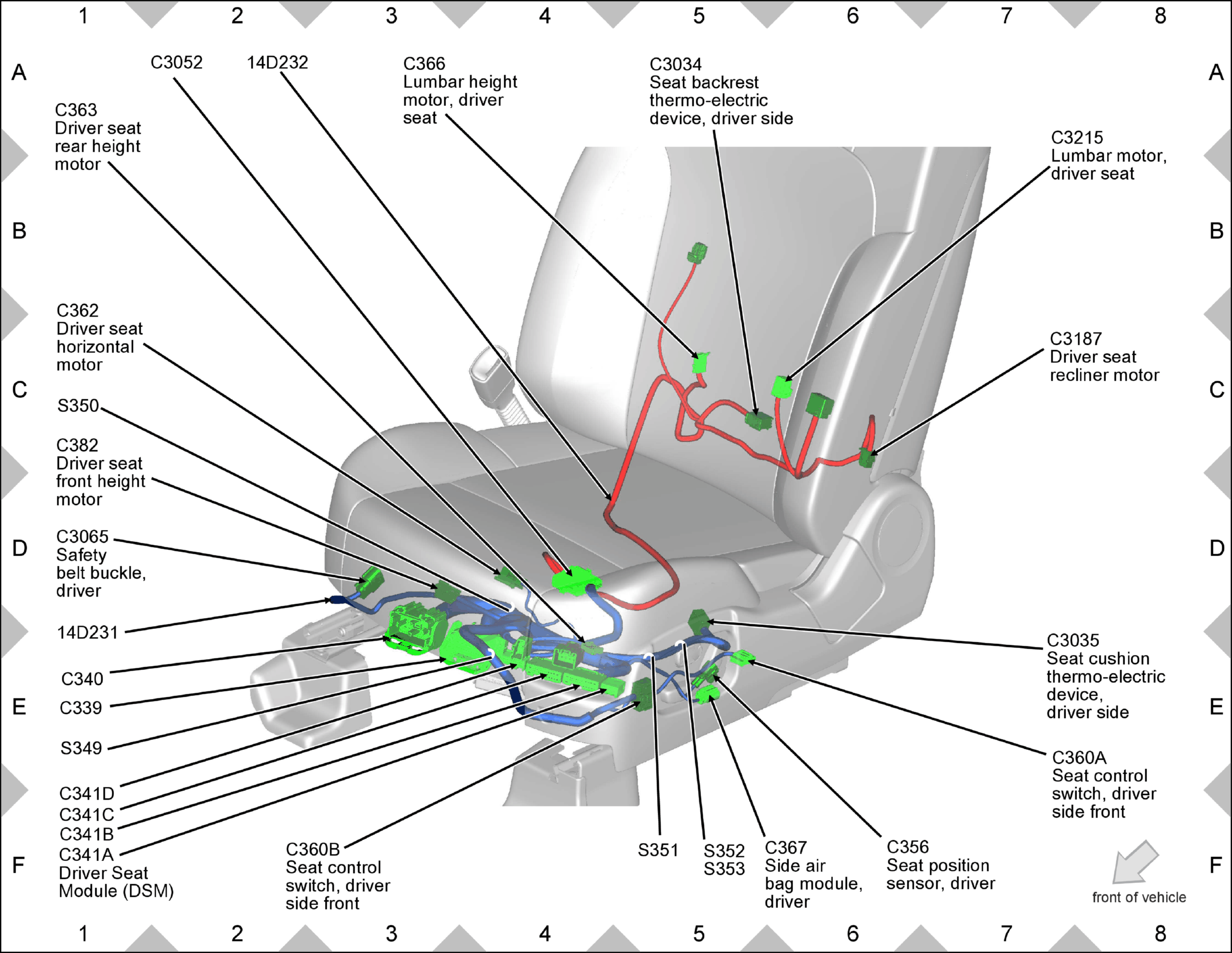

GFDW35043Courtesy of FORD MOTOR COMPANY

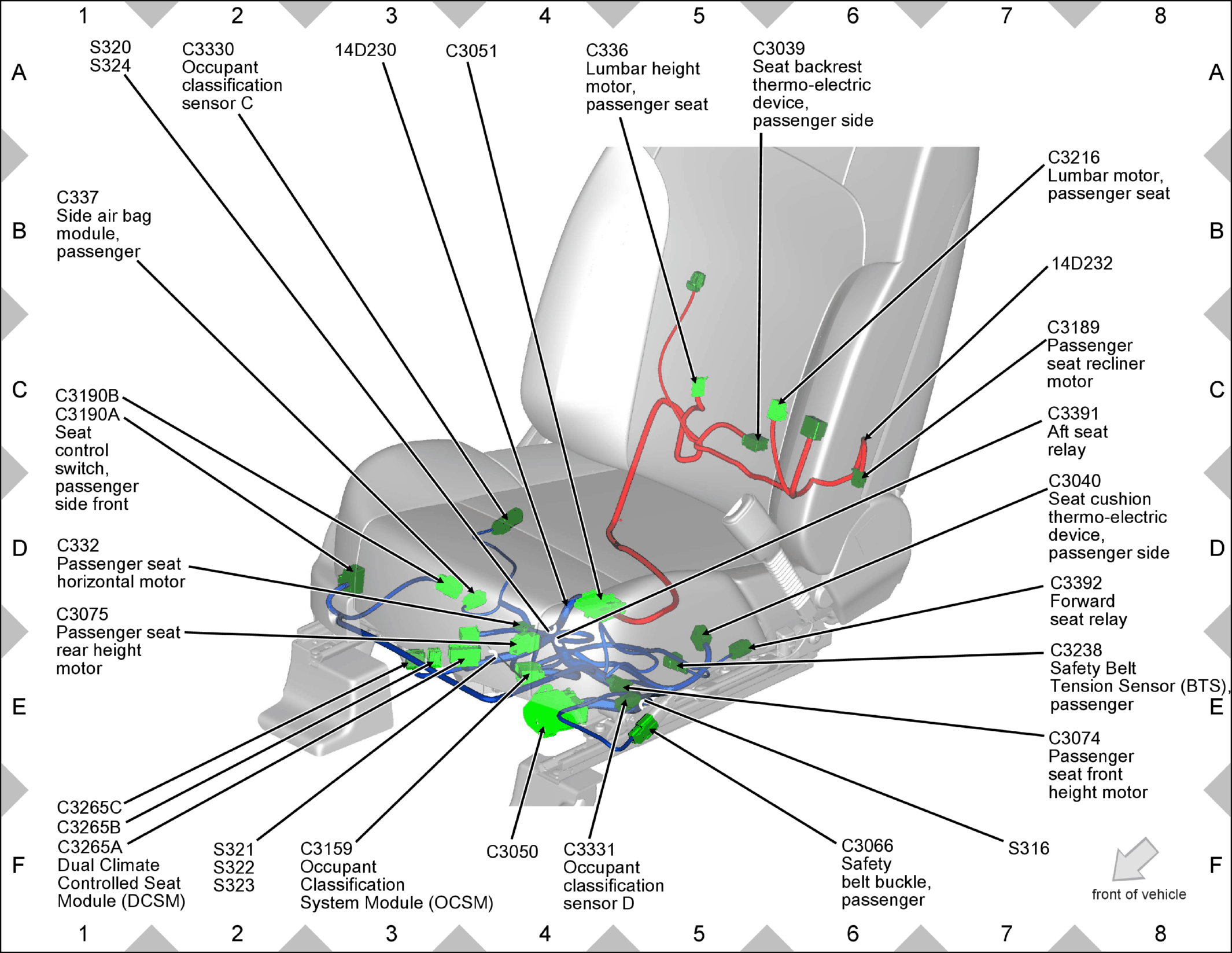

GFDW35044Courtesy of FORD MOTOR COMPANY

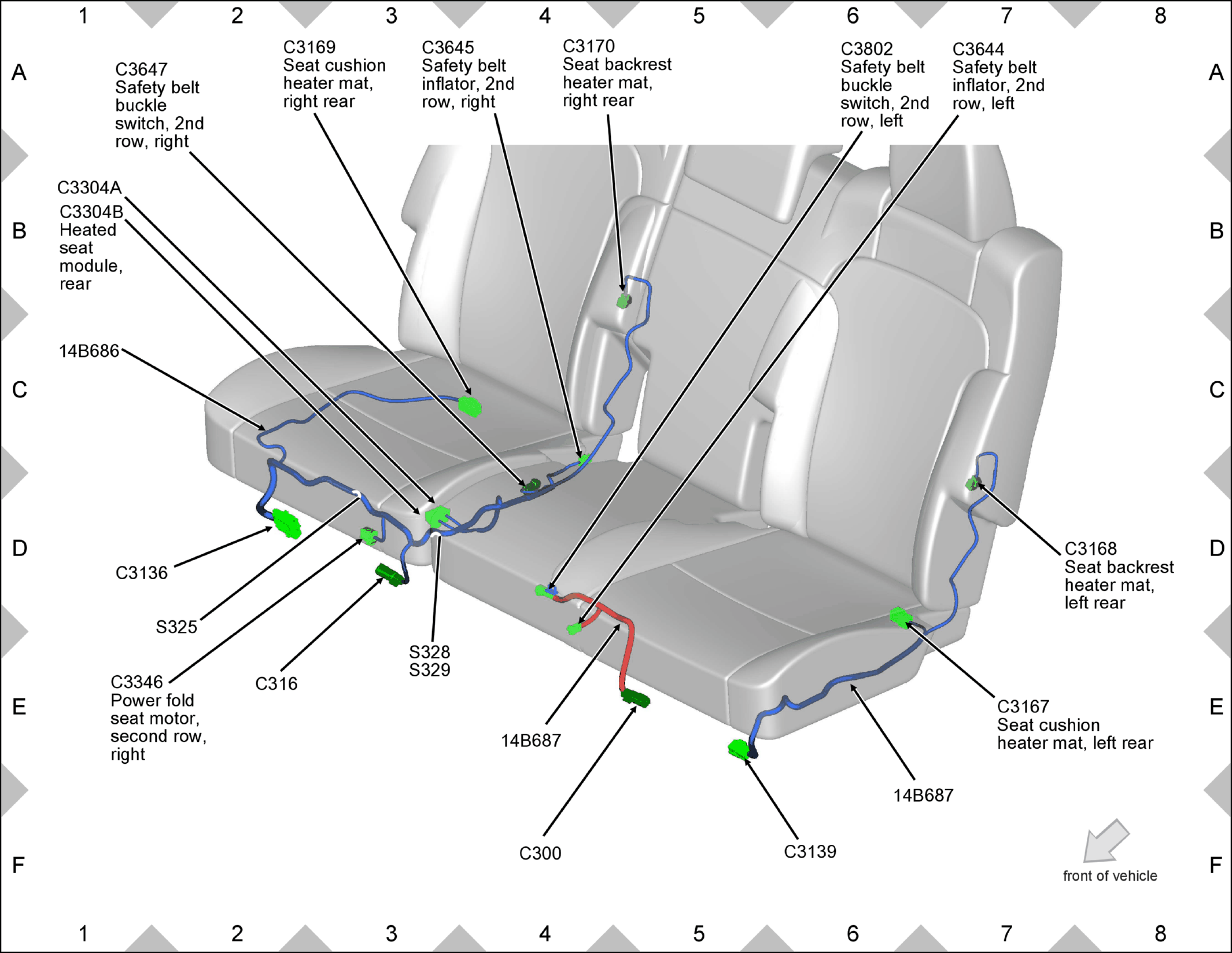

GFDW35045Courtesy of FORD MOTOR COMPANY

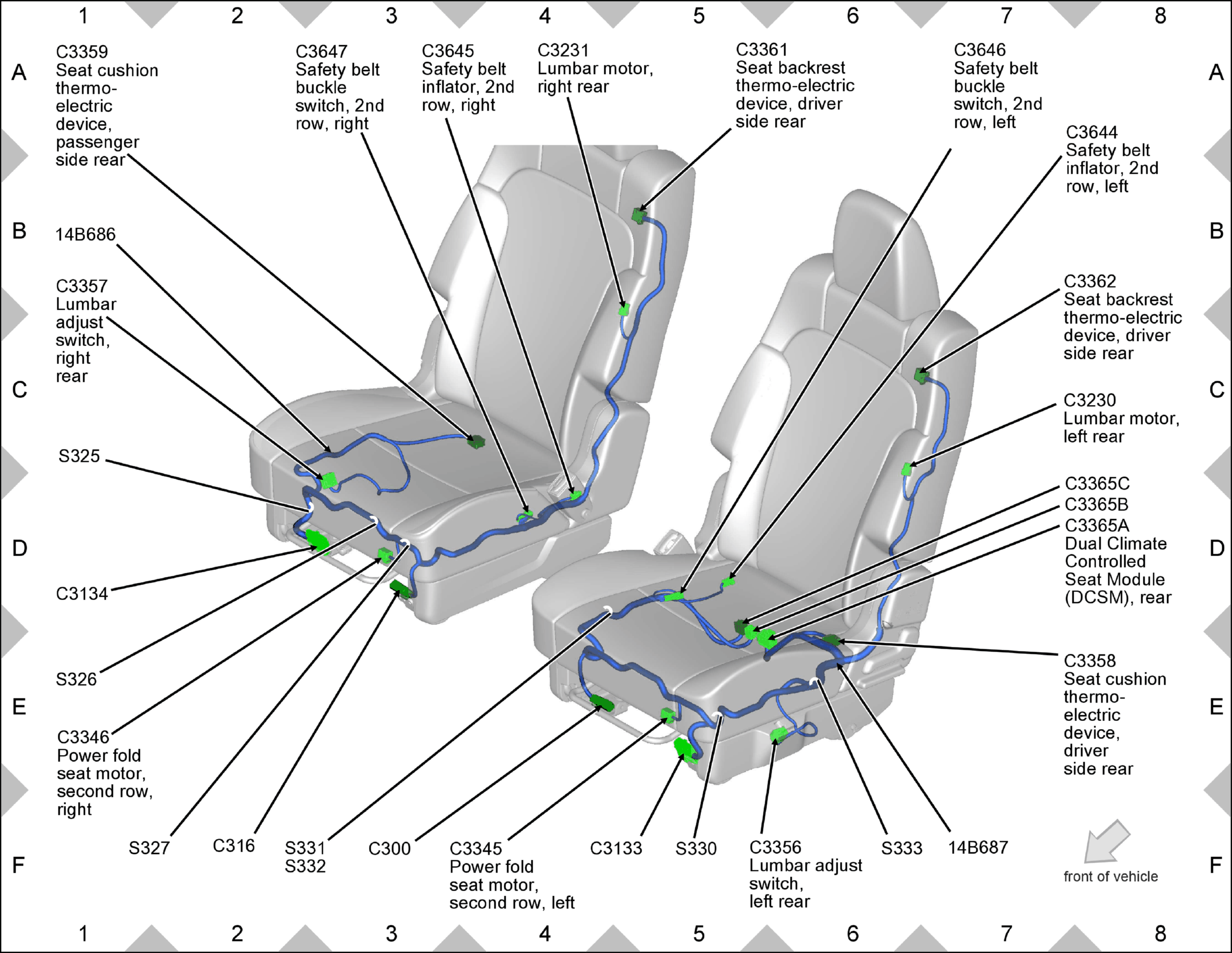

GFDW35046Courtesy of FORD MOTOR COMPANY

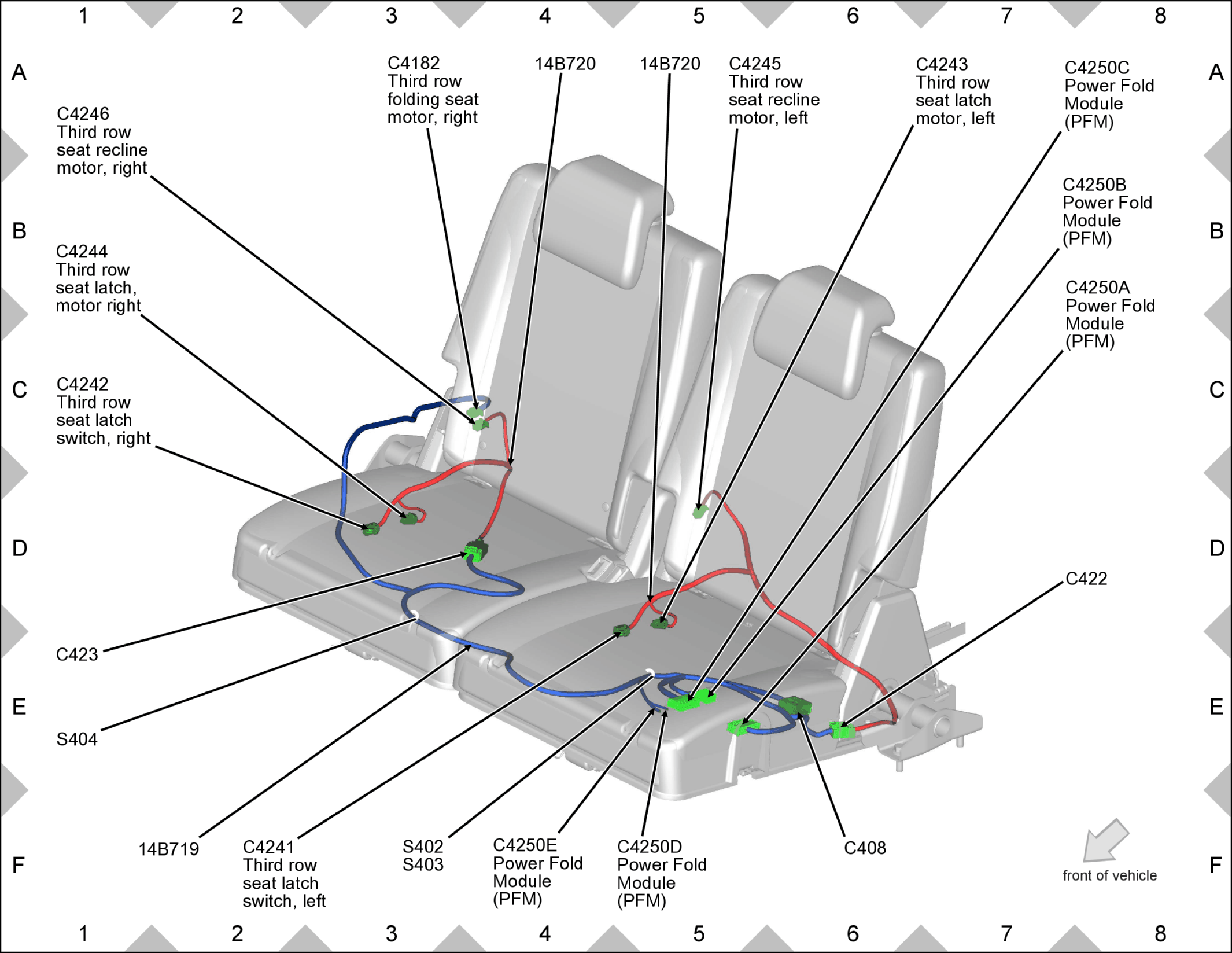

GFDW35047Courtesy of FORD MOTOR COMPANY

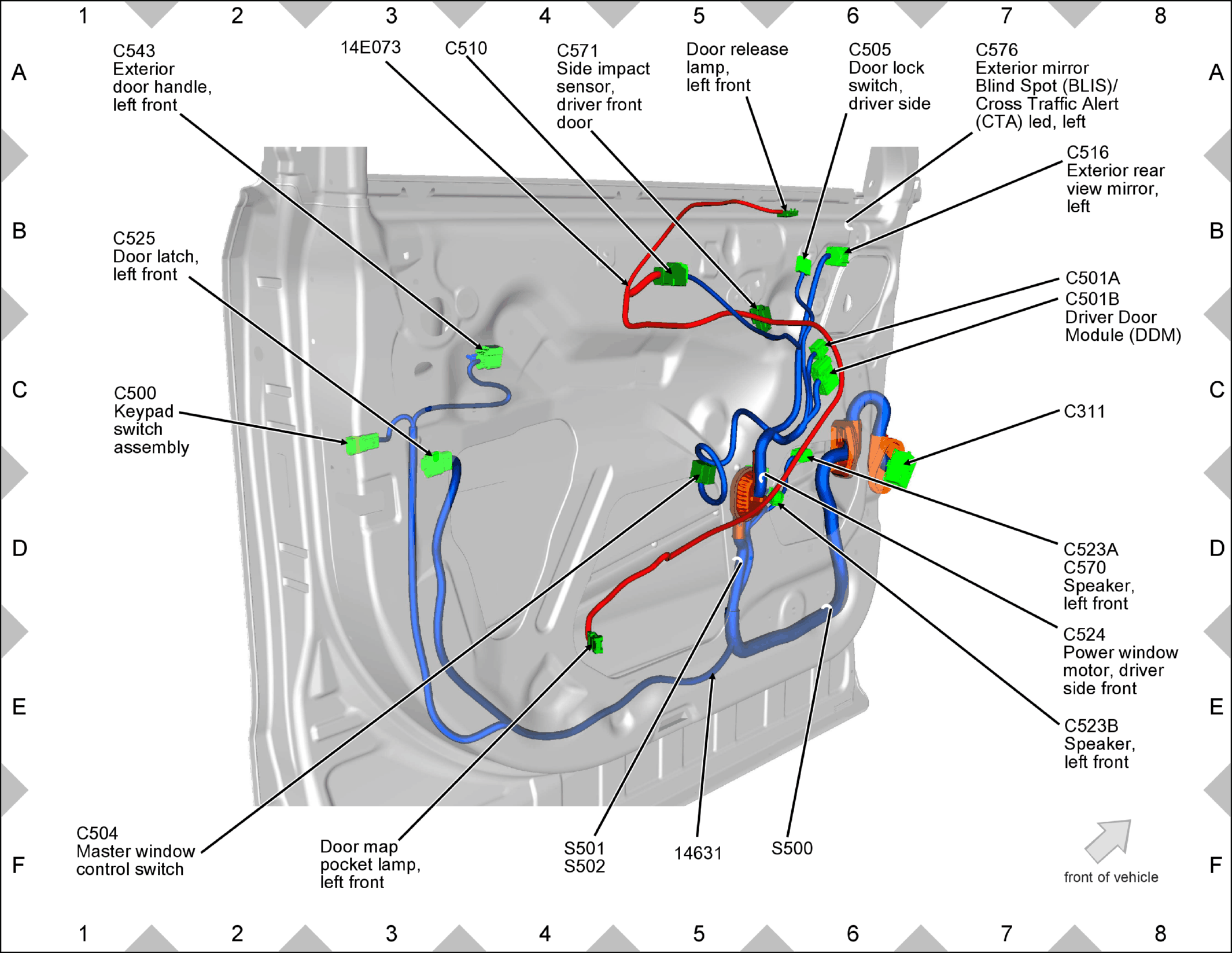

GFDW35048Courtesy of FORD MOTOR COMPANY

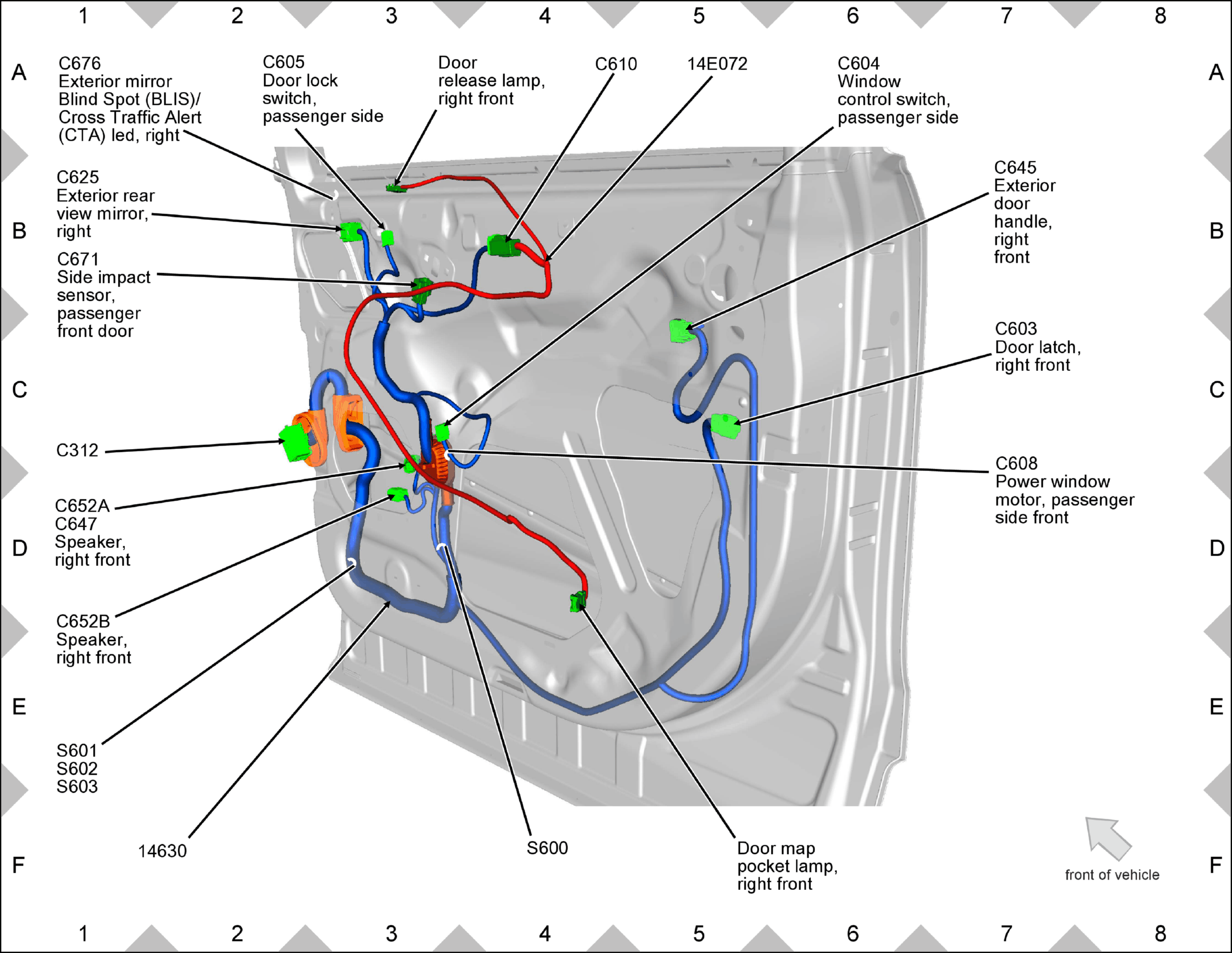

GFDW35049Courtesy of FORD MOTOR COMPANY

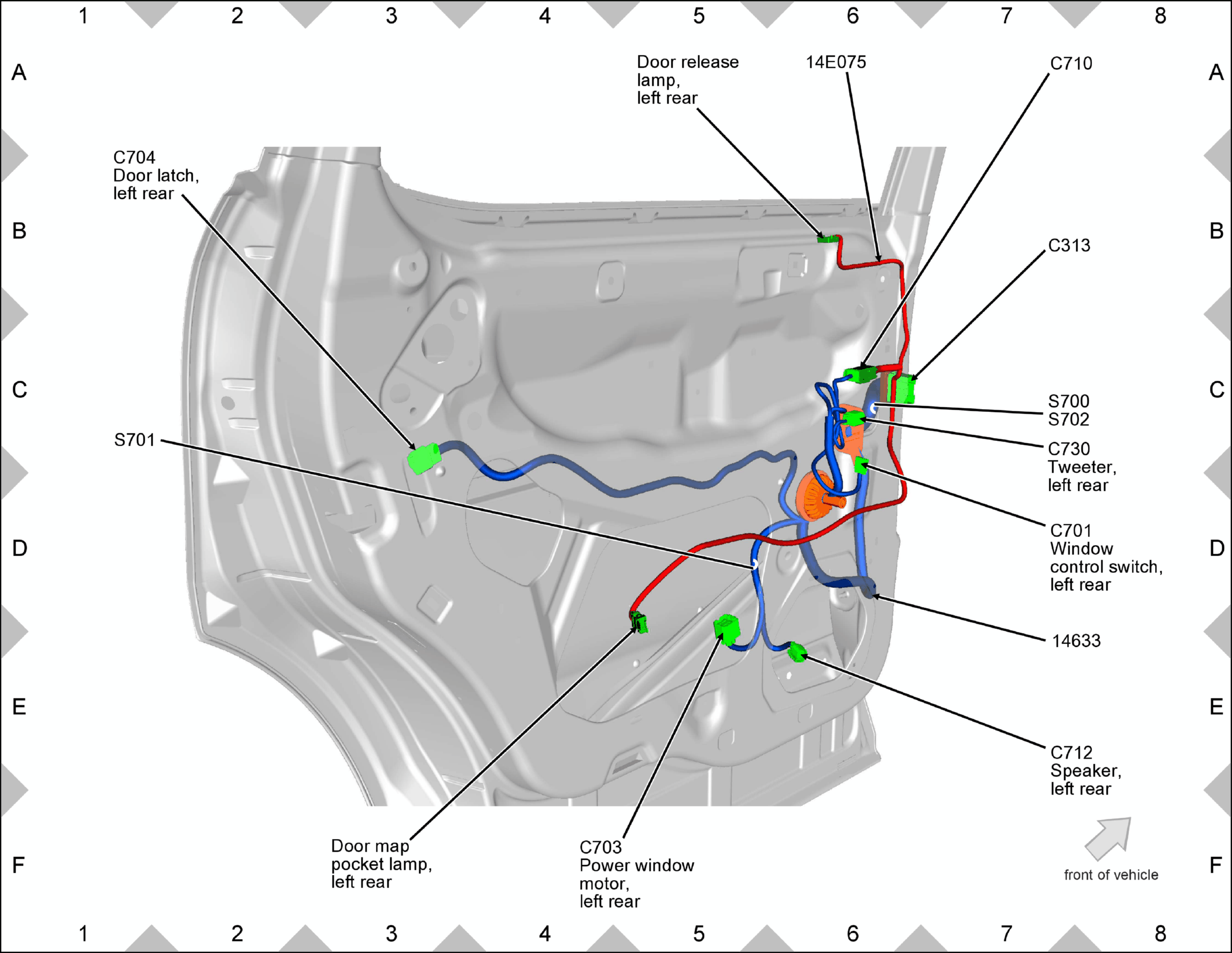

GFDW35050Courtesy of FORD MOTOR COMPANY

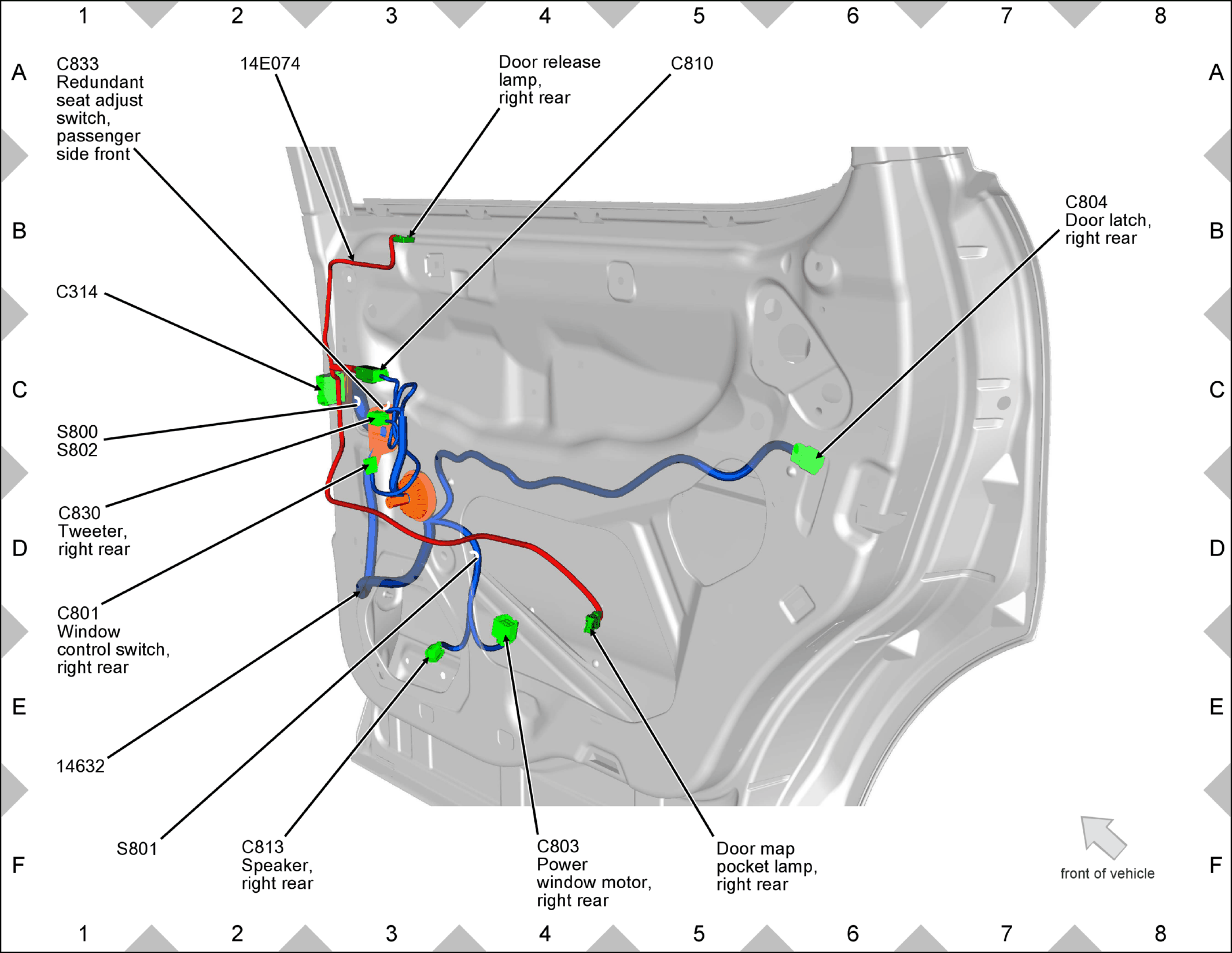

GFDW35051Courtesy of FORD MOTOR COMPANY

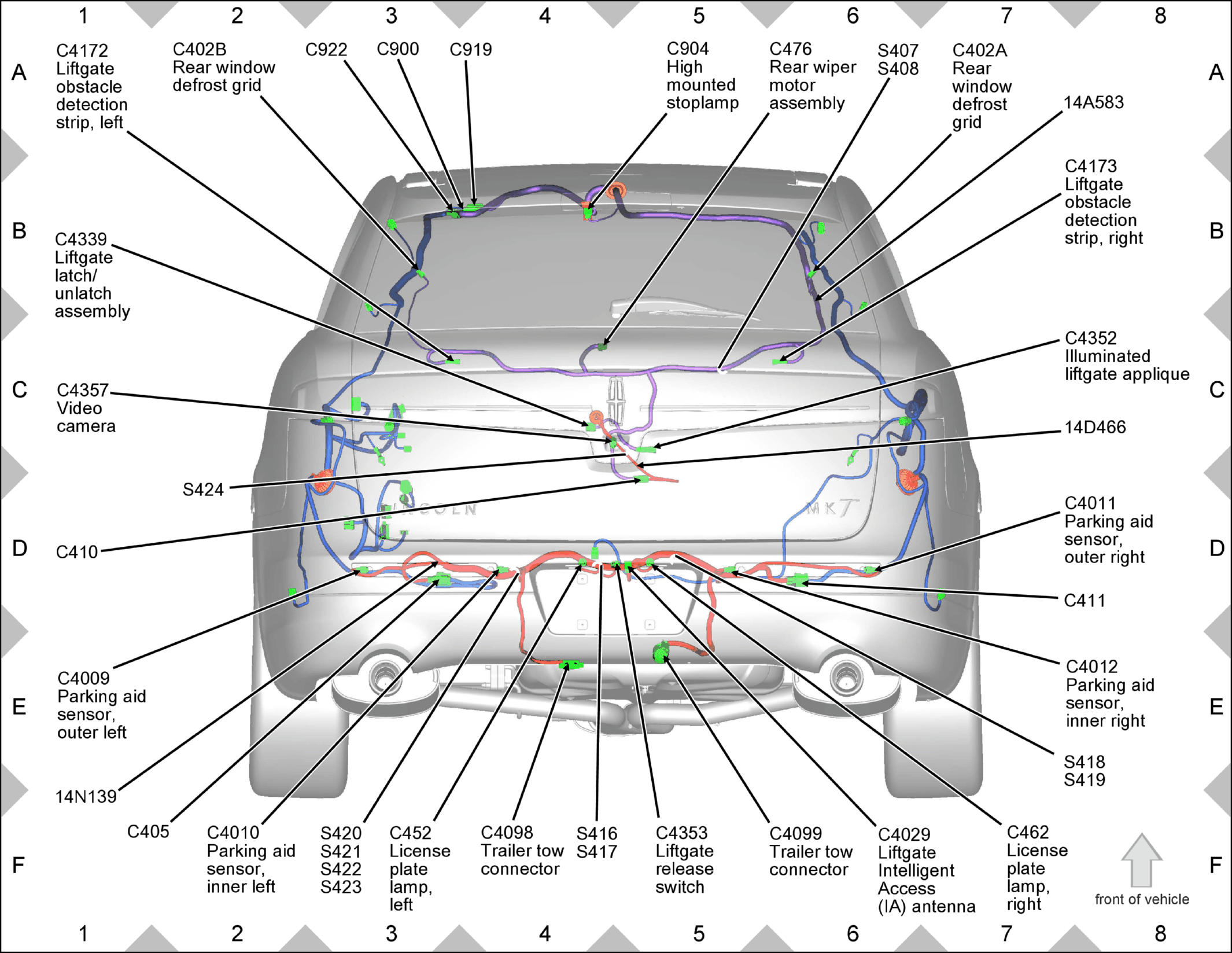

GFDW35052Courtesy of FORD MOTOR COMPANY

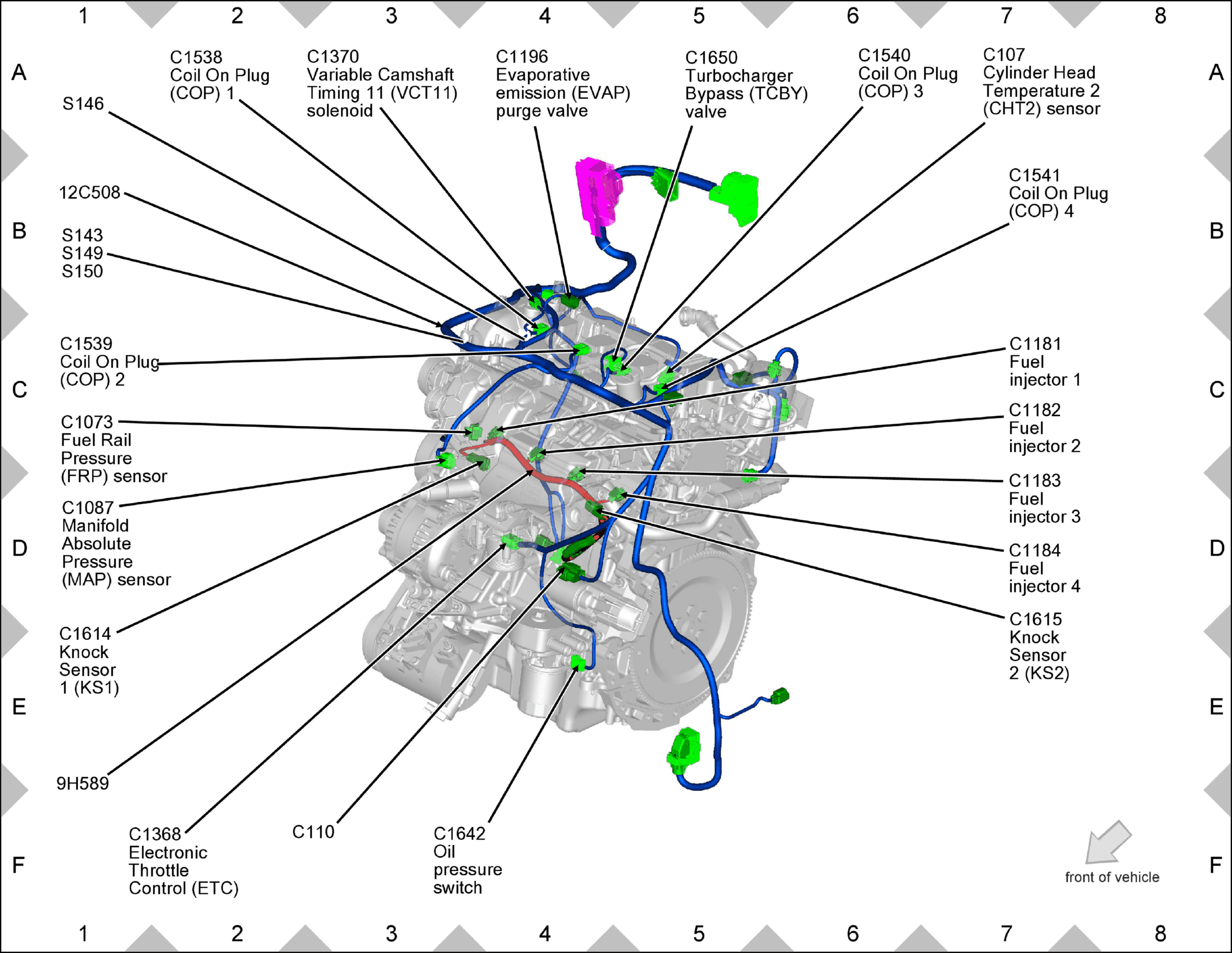

GFDW35053Courtesy of FORD MOTOR COMPANY

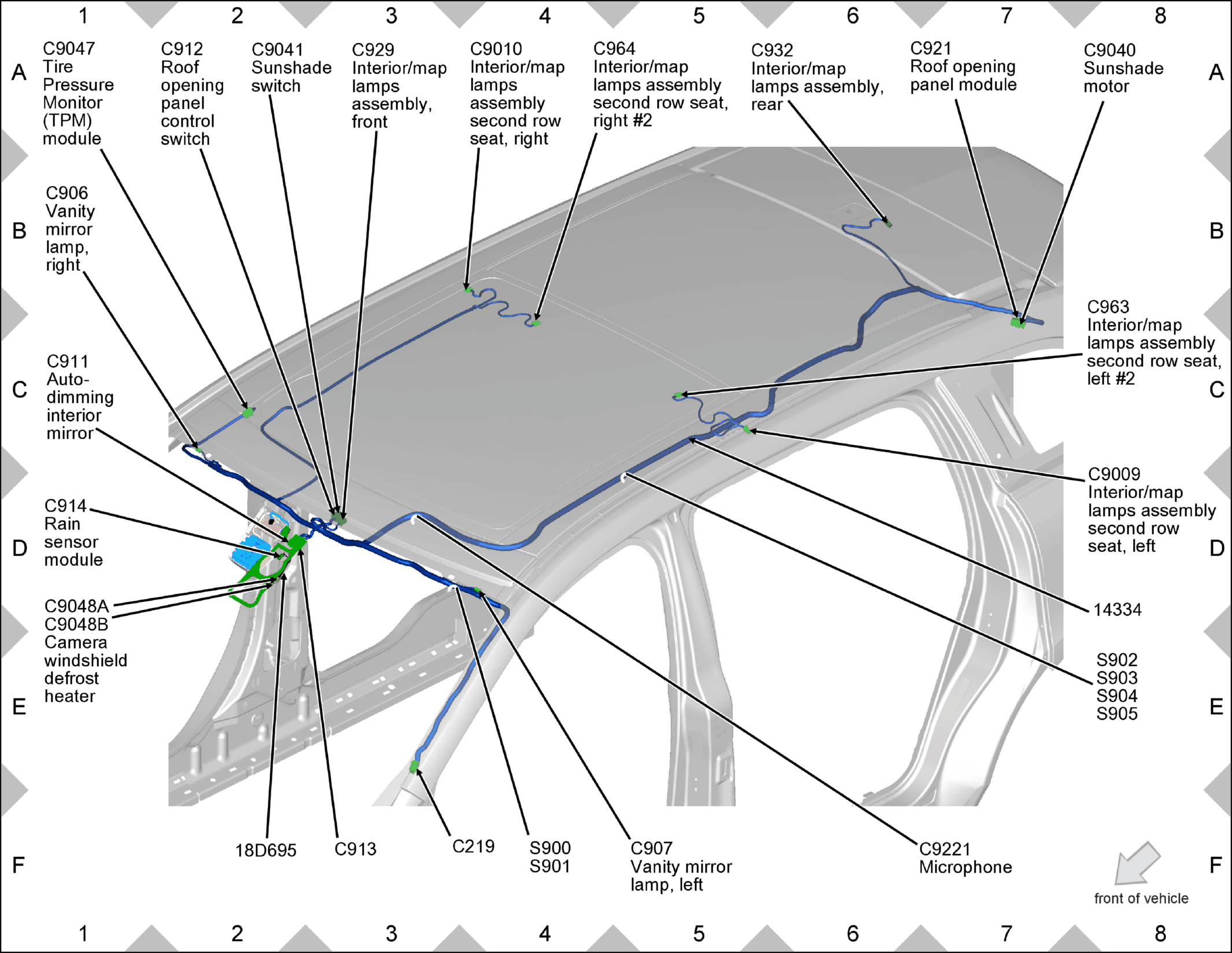

GFDW35054Courtesy of FORD MOTOR COMPANY

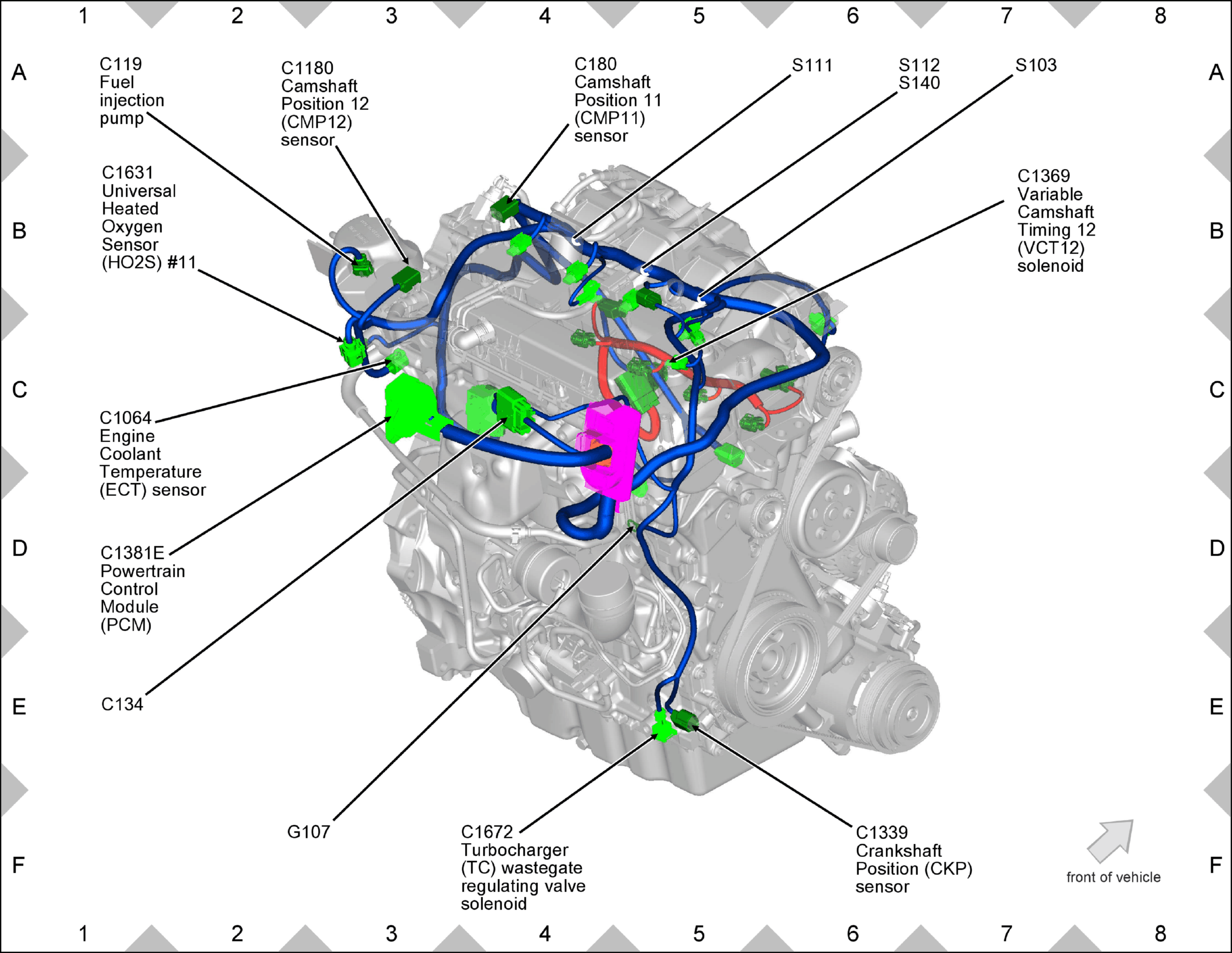

GFDW35055Courtesy of FORD MOTOR COMPANY

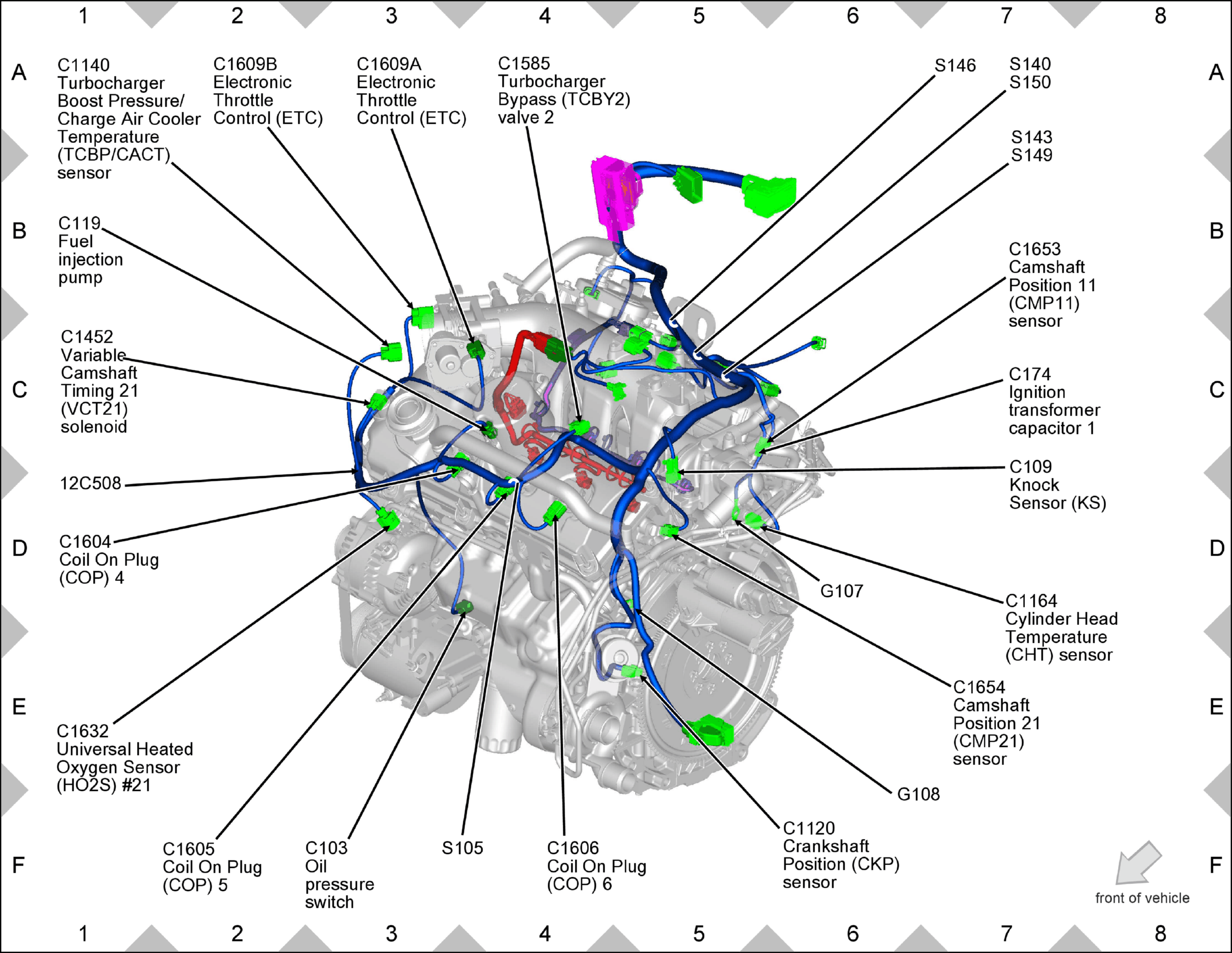

GFDW35056Courtesy of FORD MOTOR COMPANY

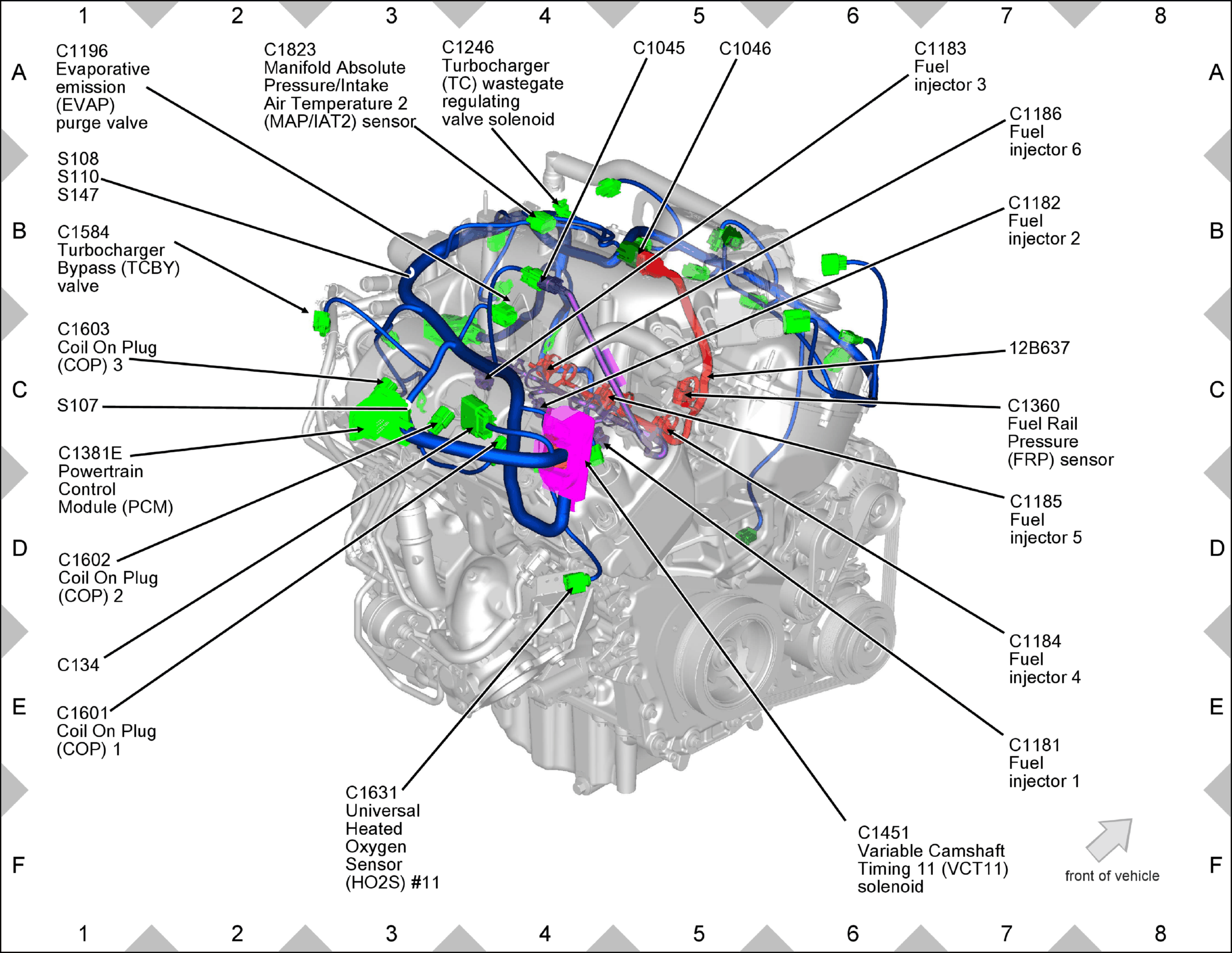

GFDW35057Courtesy of FORD MOTOR COMPANY

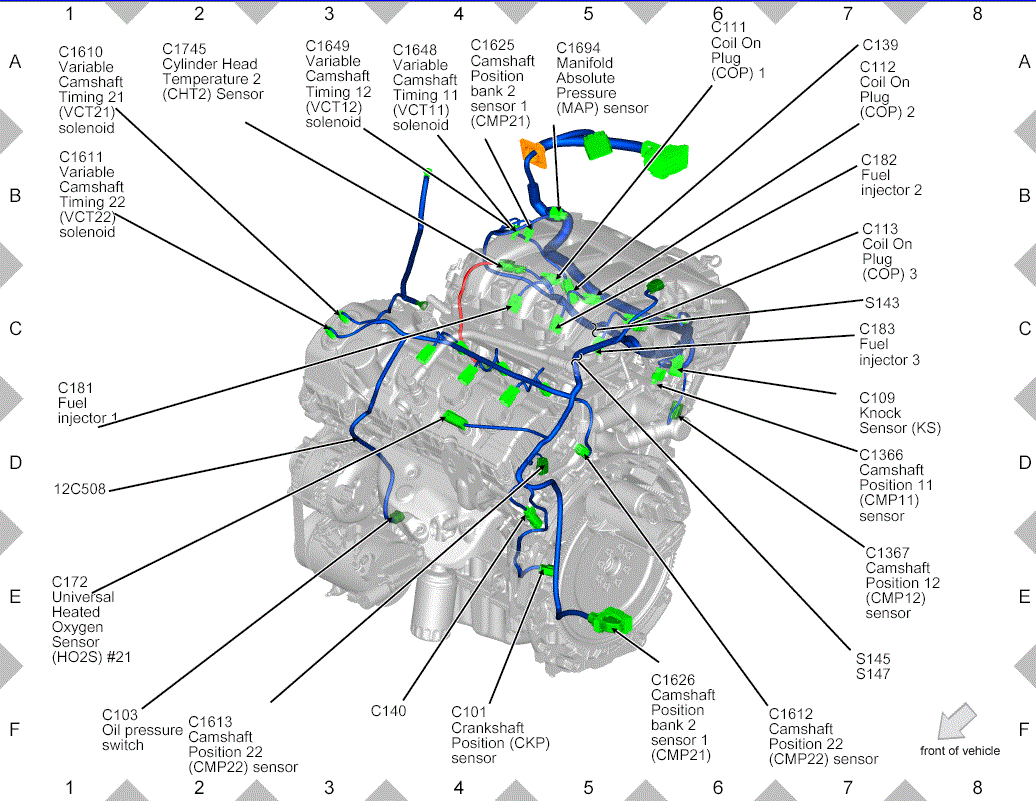

G00566231Courtesy of FORD MOTOR CO.

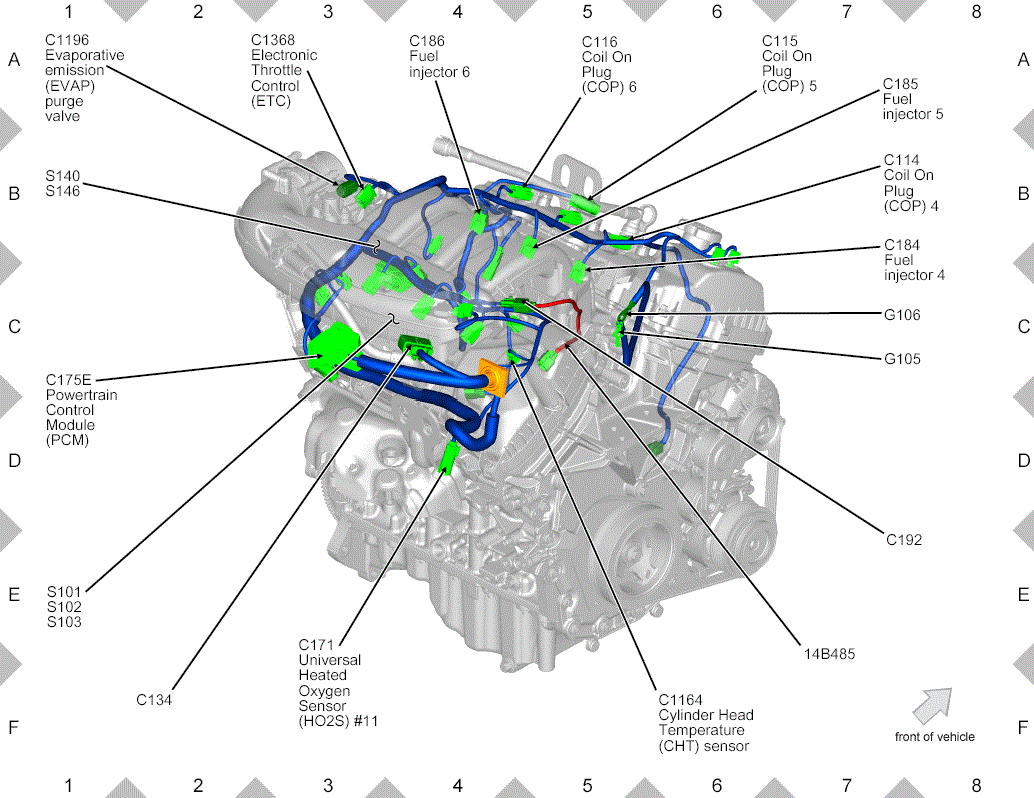

G00566232Courtesy of FORD MOTOR CO.

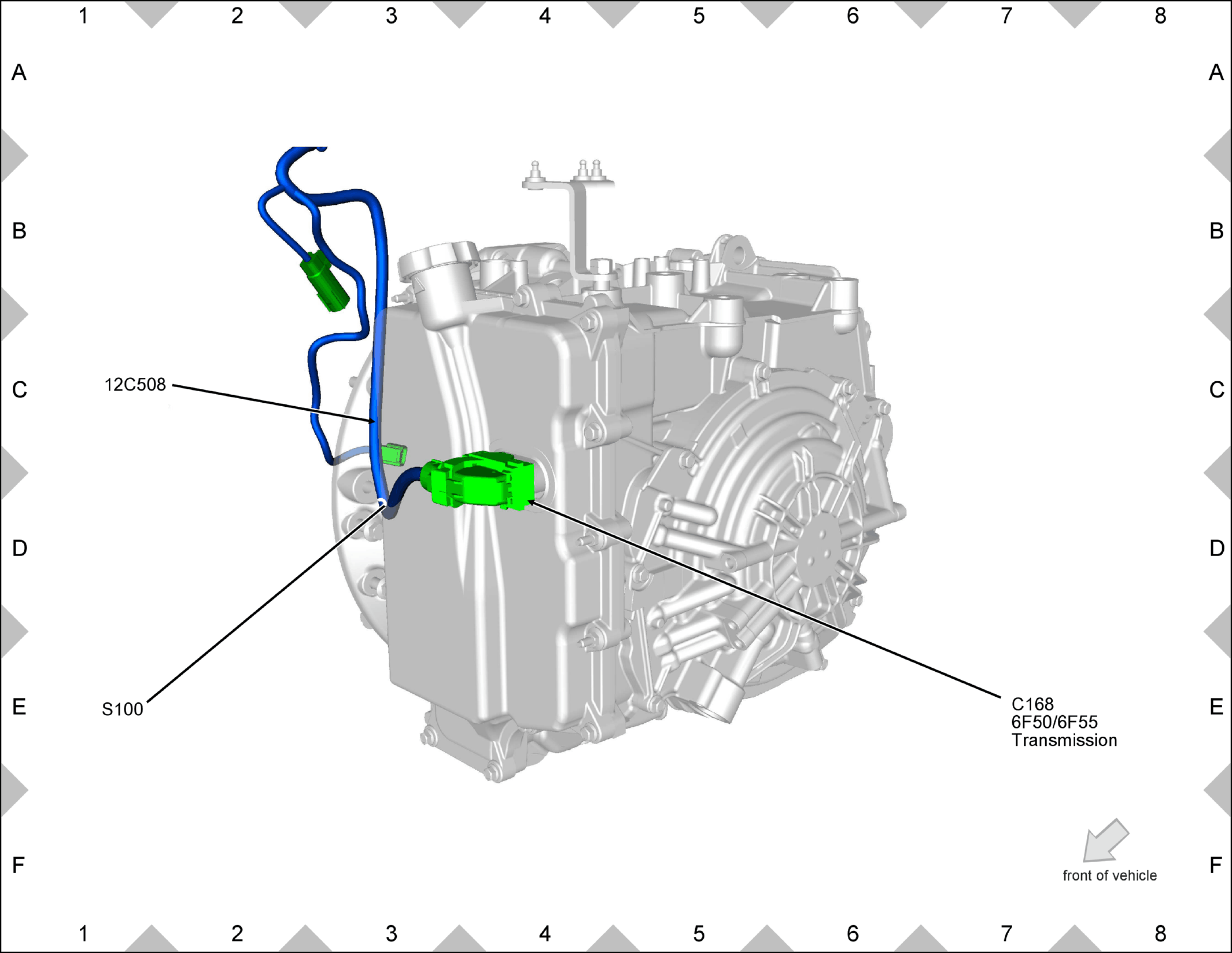

GFDW35060Courtesy of FORD MOTOR COMPANY
