OEM Electrical Wiring Diagram Introduction: Introduction

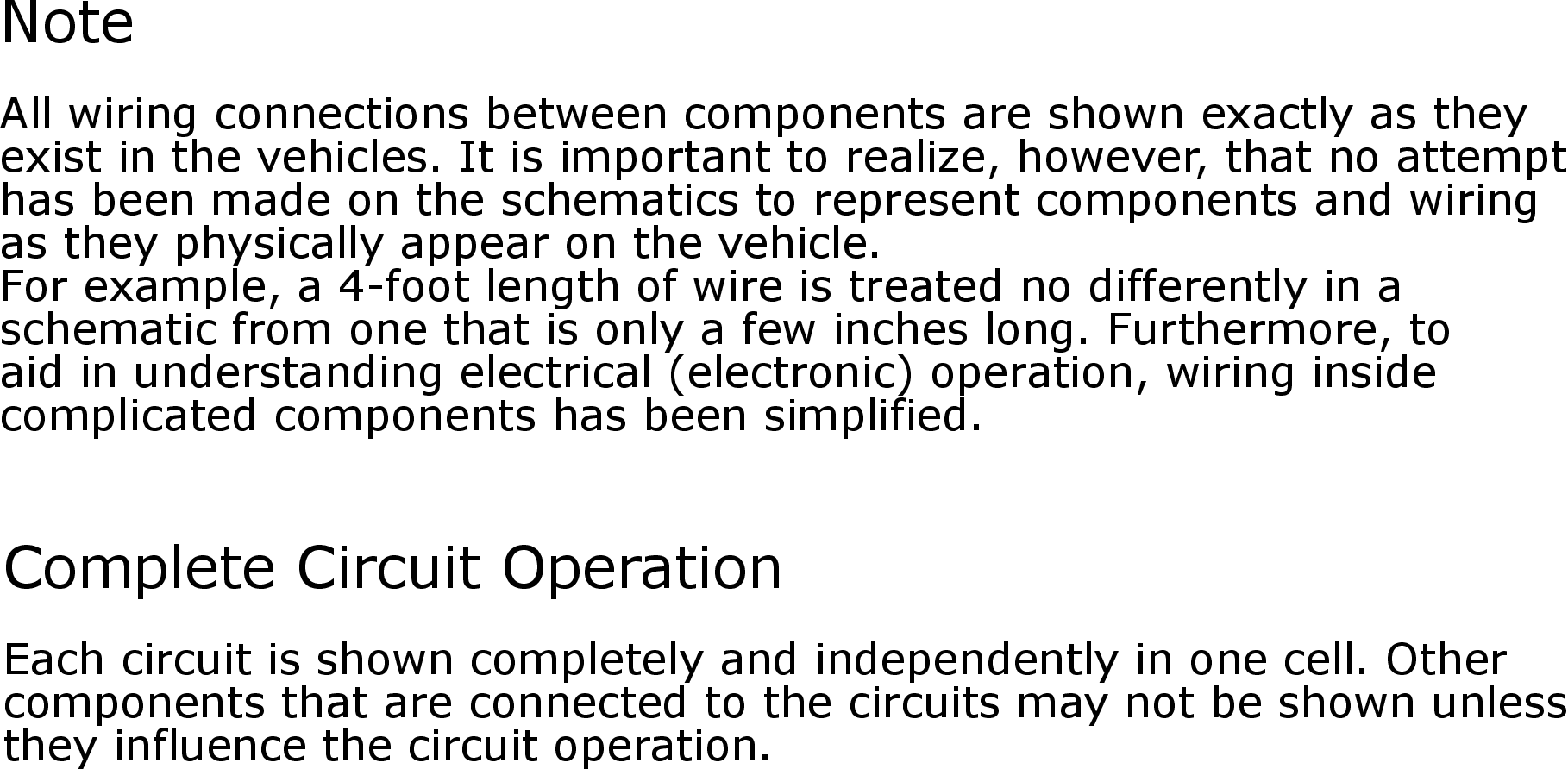

GFDW9471Courtesy of FORD MOTOR COMPANY

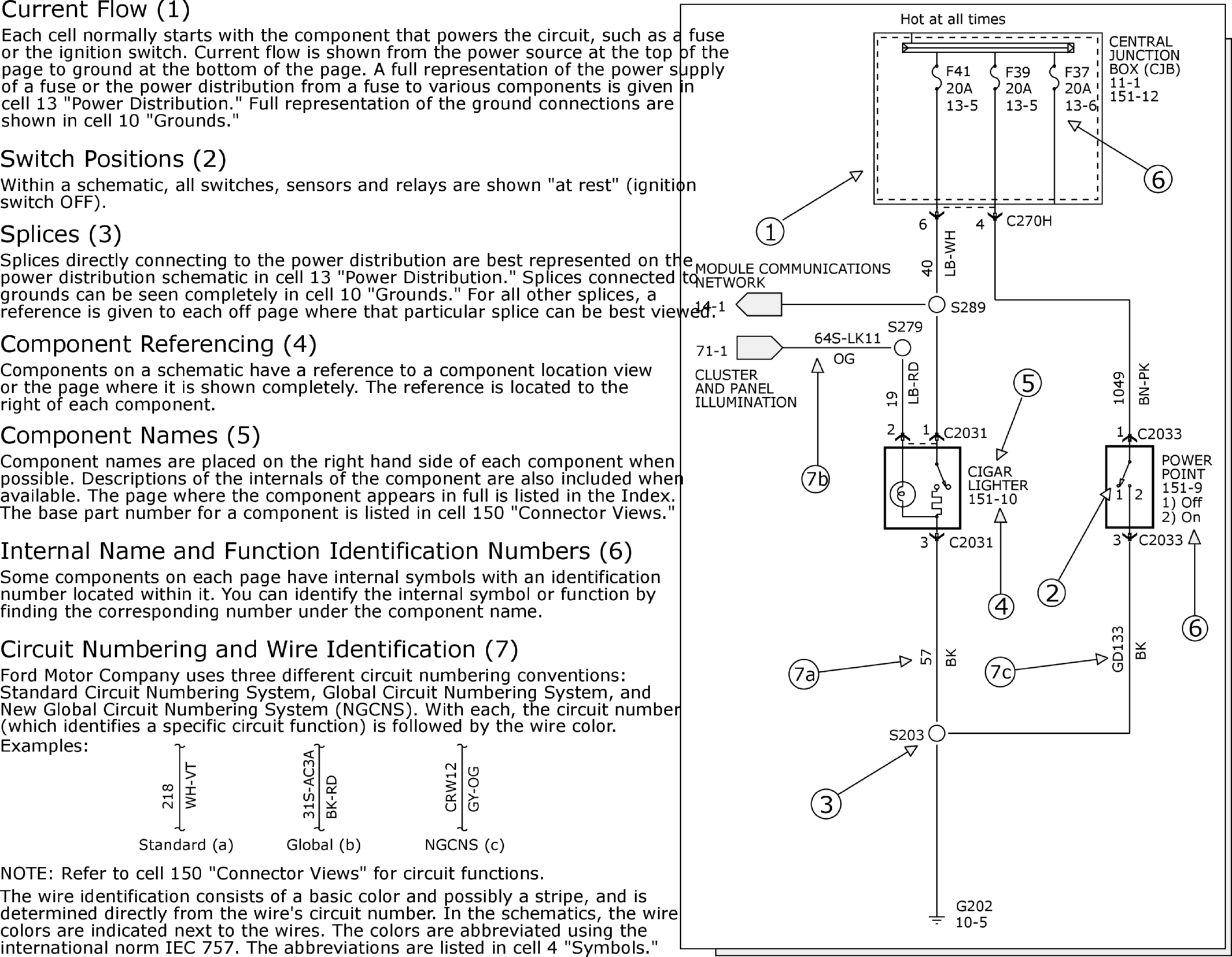

GFDW9472Courtesy of FORD MOTOR COMPANY

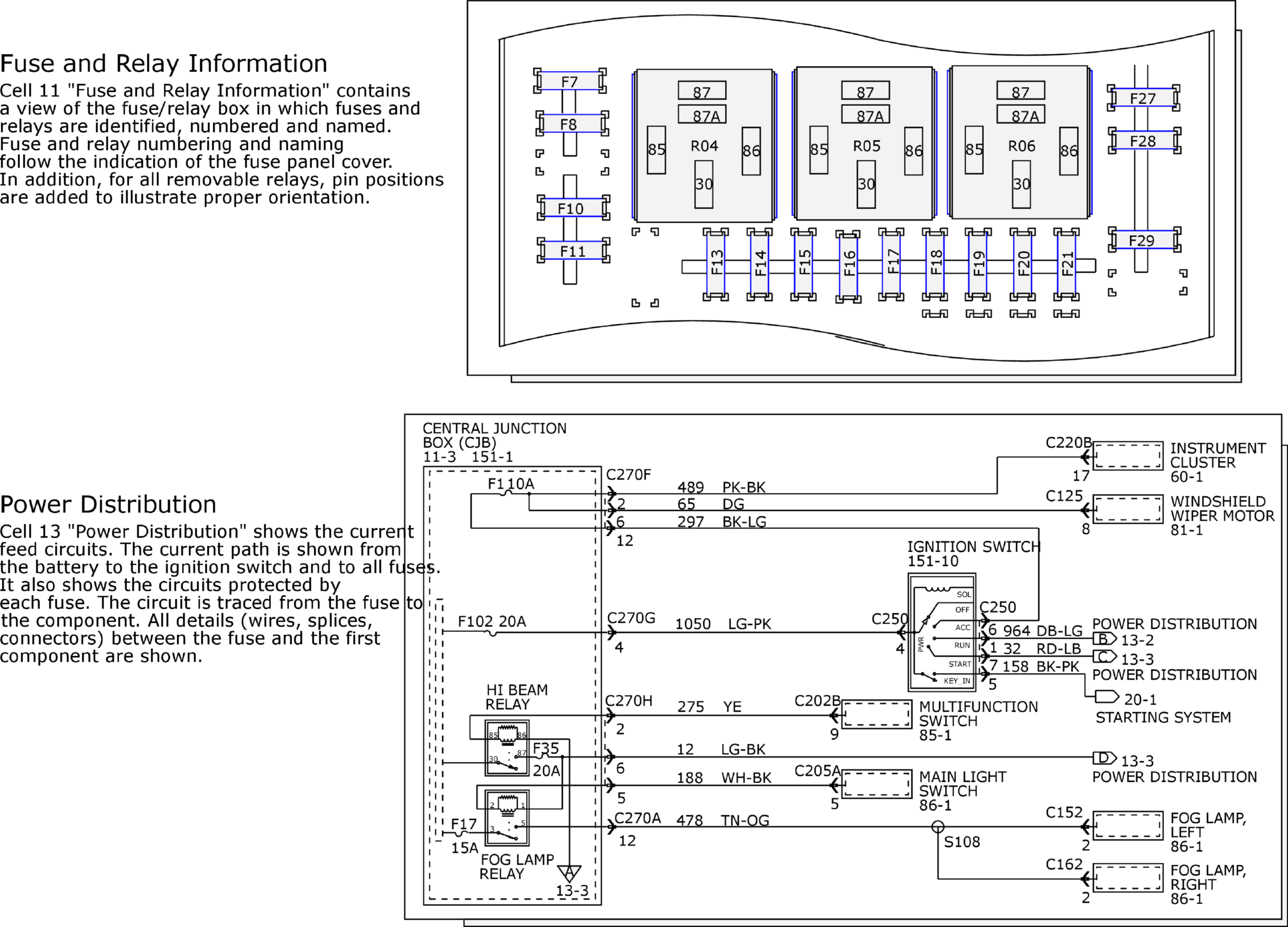

GFDW9473Courtesy of FORD MOTOR COMPANY

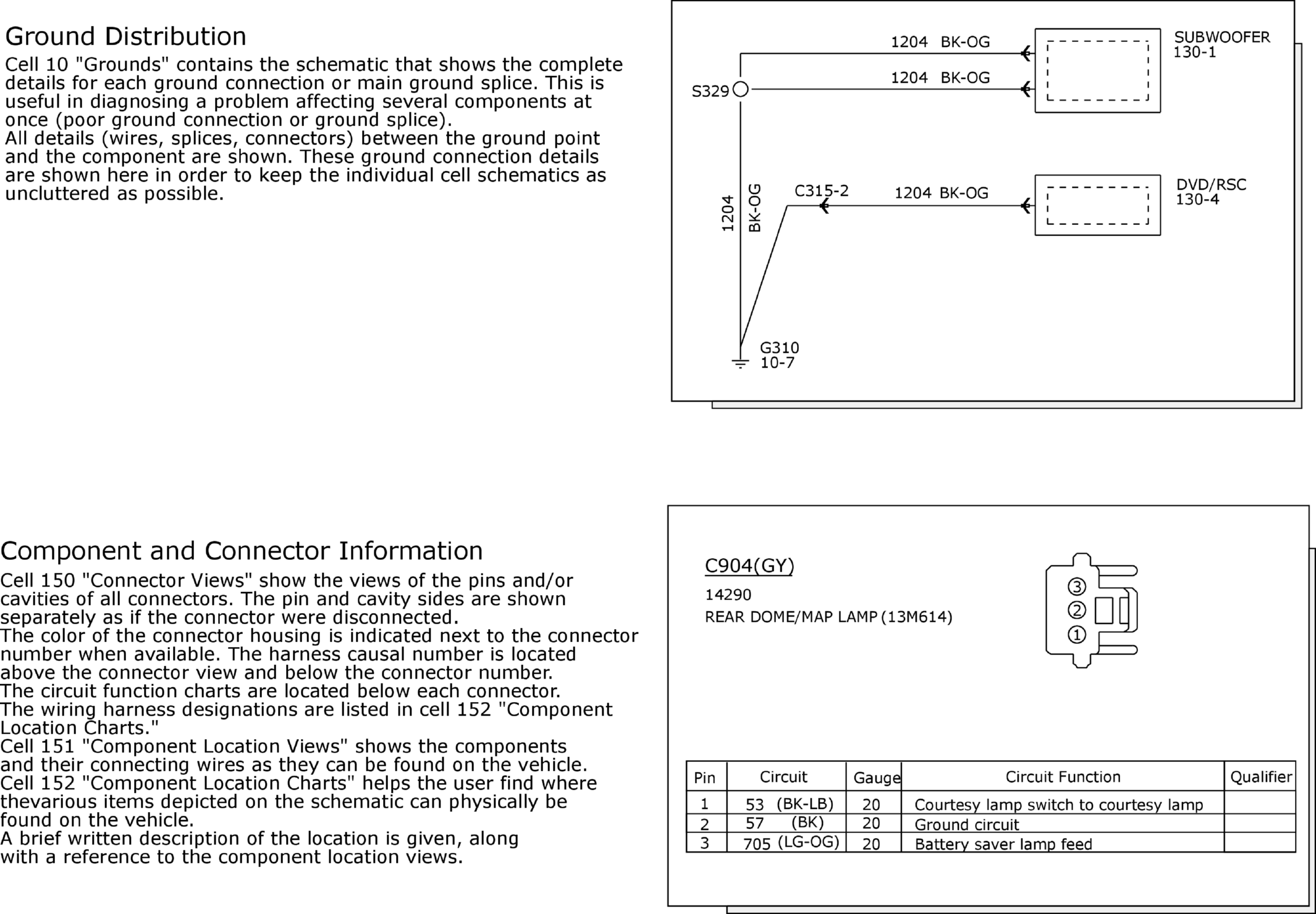

GFDW9474Courtesy of FORD MOTOR COMPANY

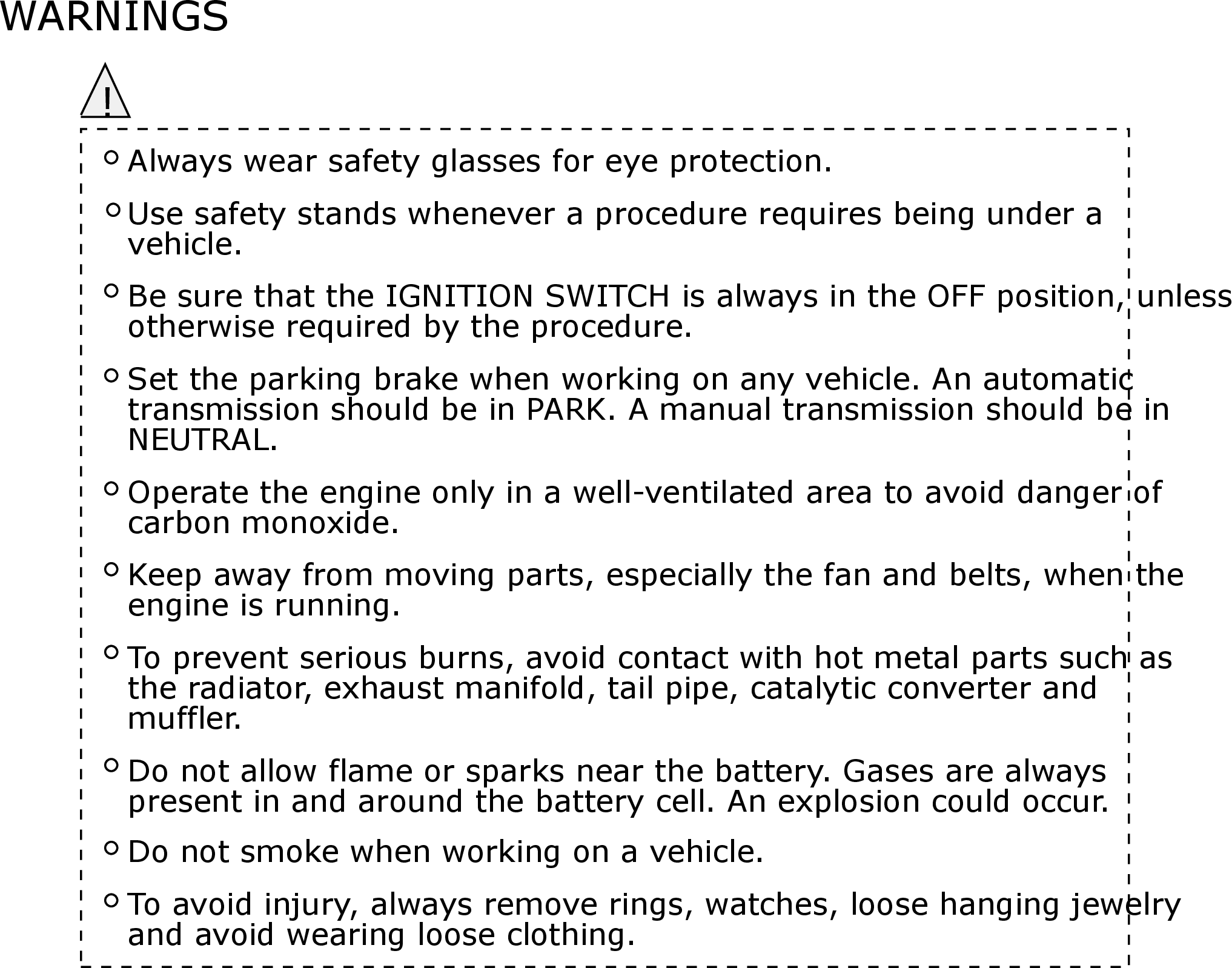

GFDW9475Courtesy of FORD MOTOR COMPANY
