Tie Rod End

• 1.

  Remove the wheel and tire. Refer to Wheels and Tires .

NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.
NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

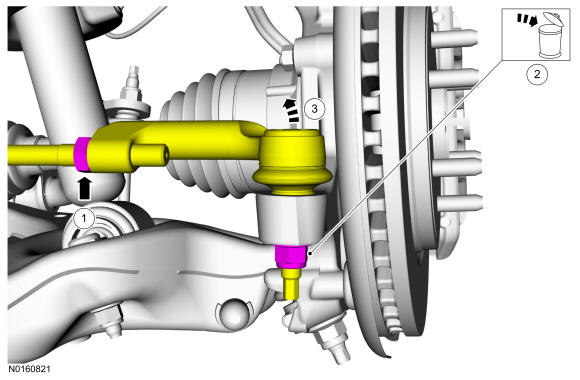

• 2.
  Separate the tie rod end from the wheel knuckle.

  • 1.

    Loosen the tie rod end jamb nut.
    • To install, tighten to 103 Nm (76 lb-ft).

  • 2.

    Remove and discard the tie rod end nut.
    • To install, tighten to 115 Nm (85 lb-ft).

  • 3.

    Using the tie rod separator, Separate the tie rod end from the wheel knuckle.

Courtesy of FORD MOTOR COMPANY

NOTE: Count and record the number of turns required to remove the outer tie-rod end for reference during installation.
• 3.
  Remove the tie rod end.

Courtesy of FORD MOTOR COMPANY

Installation

• 1.

  To install, reverse the removal procedure.

• 2.

  Check and if necessary, adjust front toe. Refer to Suspension System - General Information .
