Fuel Pump Control Module: Installation

• 1.

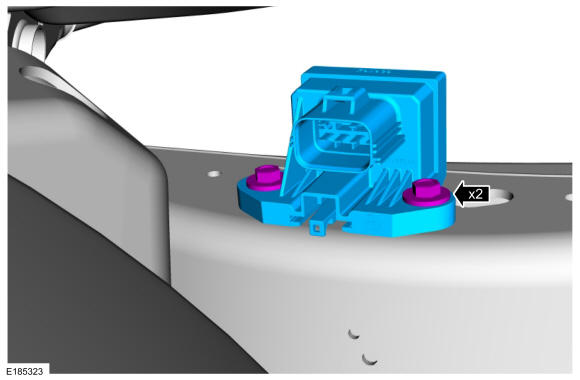

  Install the FPCM, then install the FPCM bolts and tighten to 9 Nm (80 lb-in).

Courtesy of FORD MOTOR COMPANY

• 2.

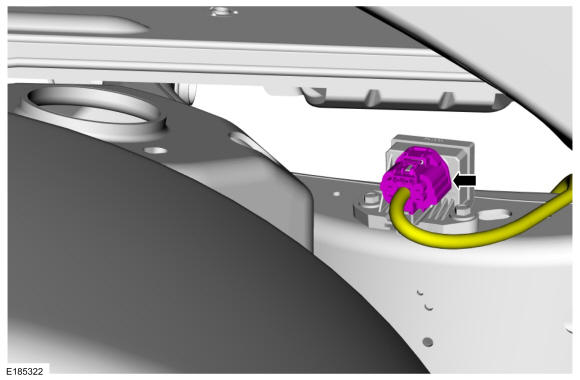

  Connect the FPCM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 3.

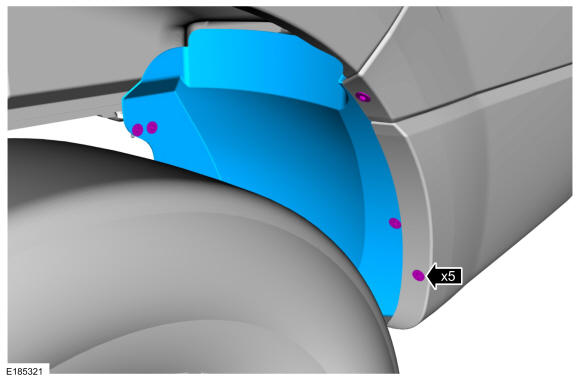

  Install the LR splash shield, then install the LR splash shield retainers and tighten to 3.0 Nm (27 lb-in).

Courtesy of FORD MOTOR COMPANY
