OEM Ground Distribution: Grounds

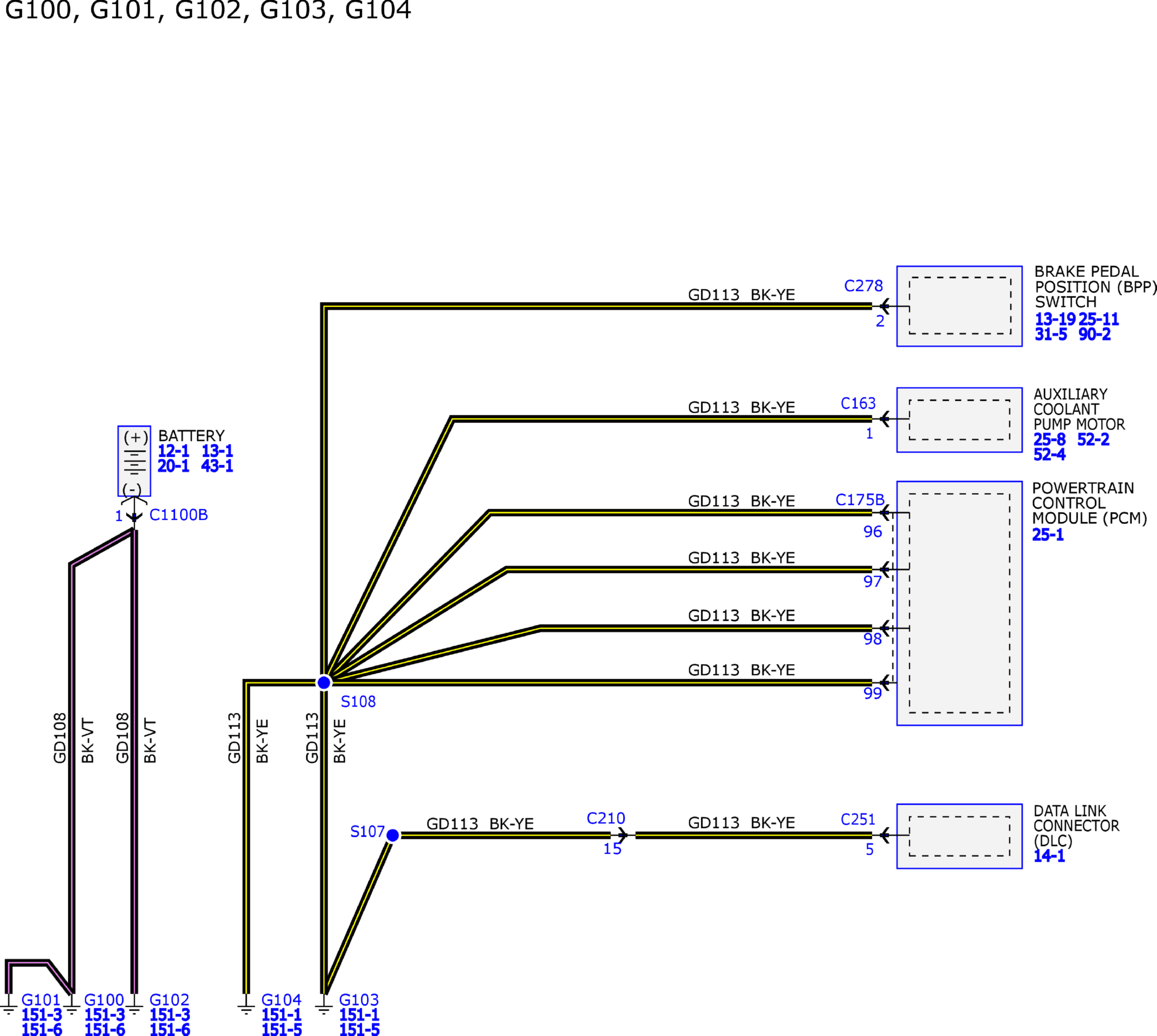

GFDW9482Courtesy of FORD MOTOR COMPANY

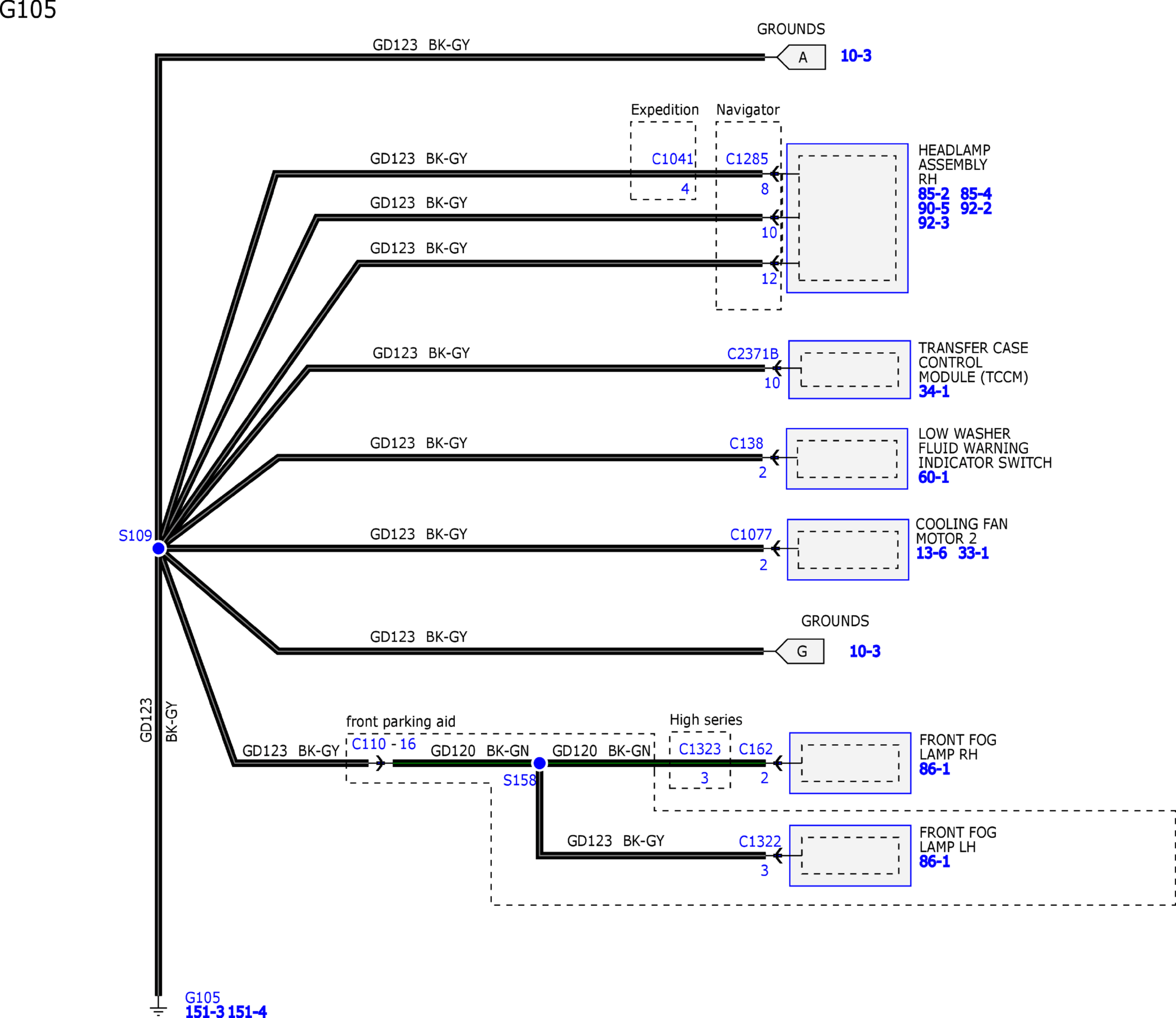

GFDW9483Courtesy of FORD MOTOR COMPANY

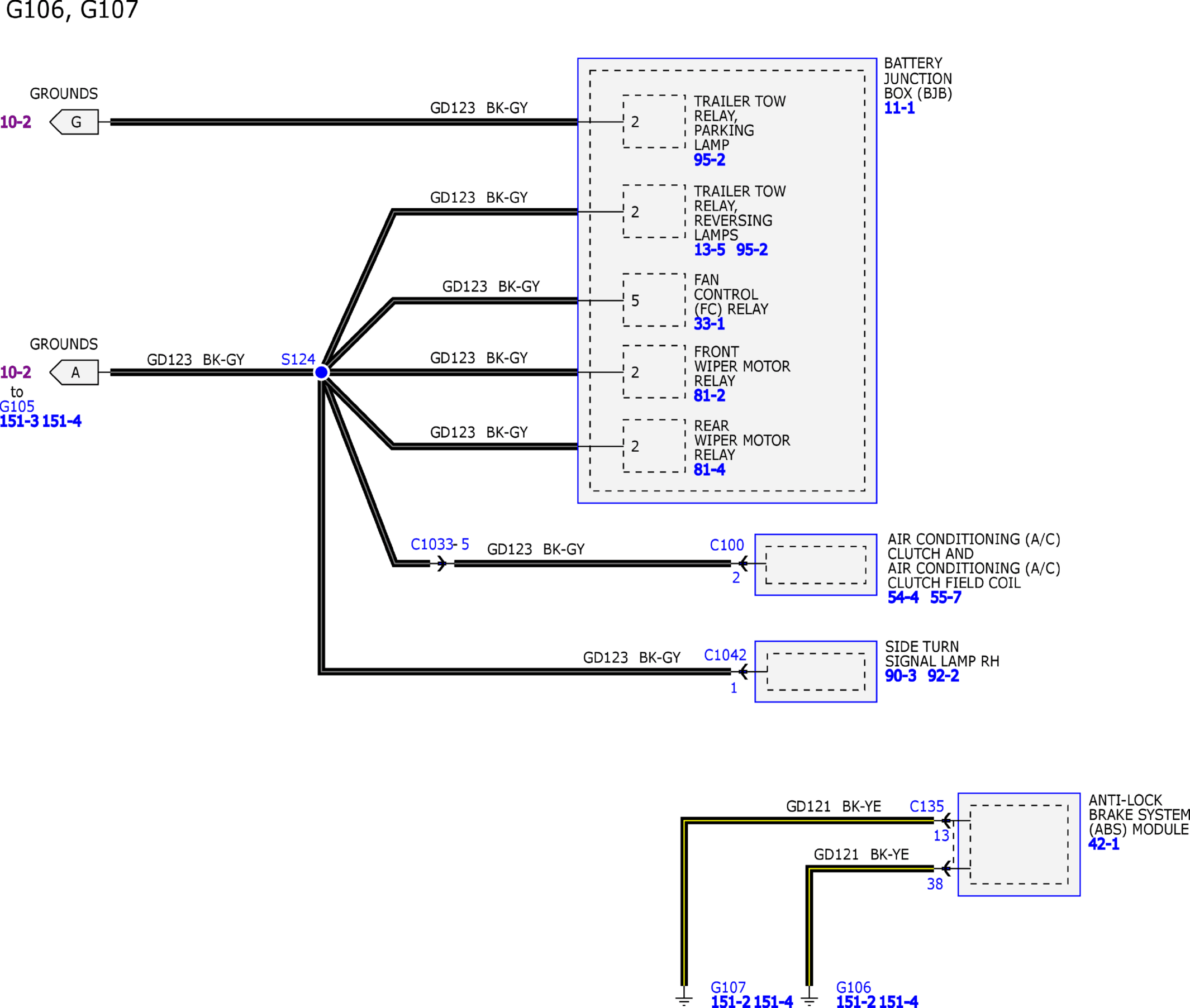

GFDW9491Courtesy of FORD MOTOR COMPANY

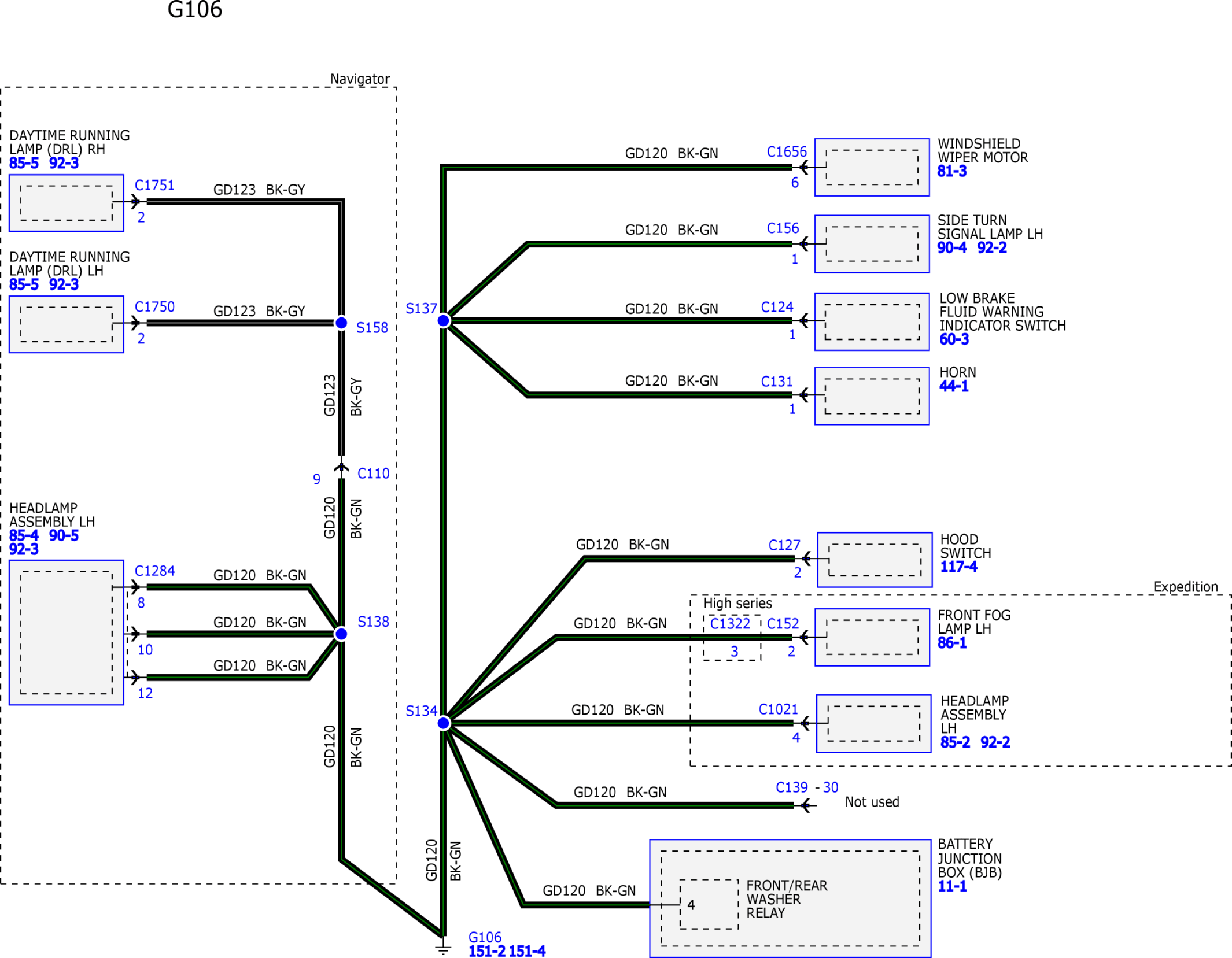

GFDW9492Courtesy of FORD MOTOR COMPANY

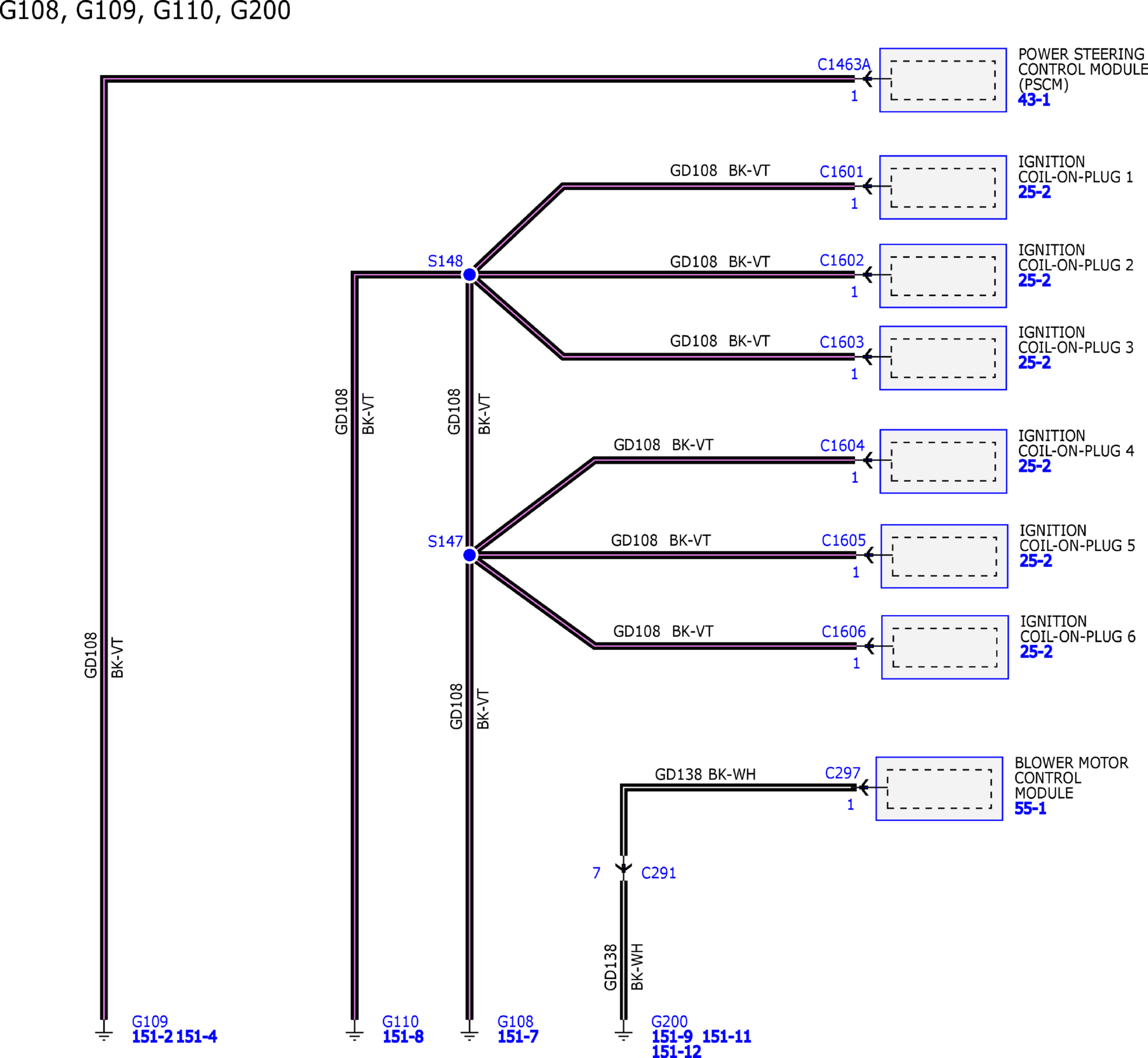

GFDW9493Courtesy of FORD MOTOR COMPANY

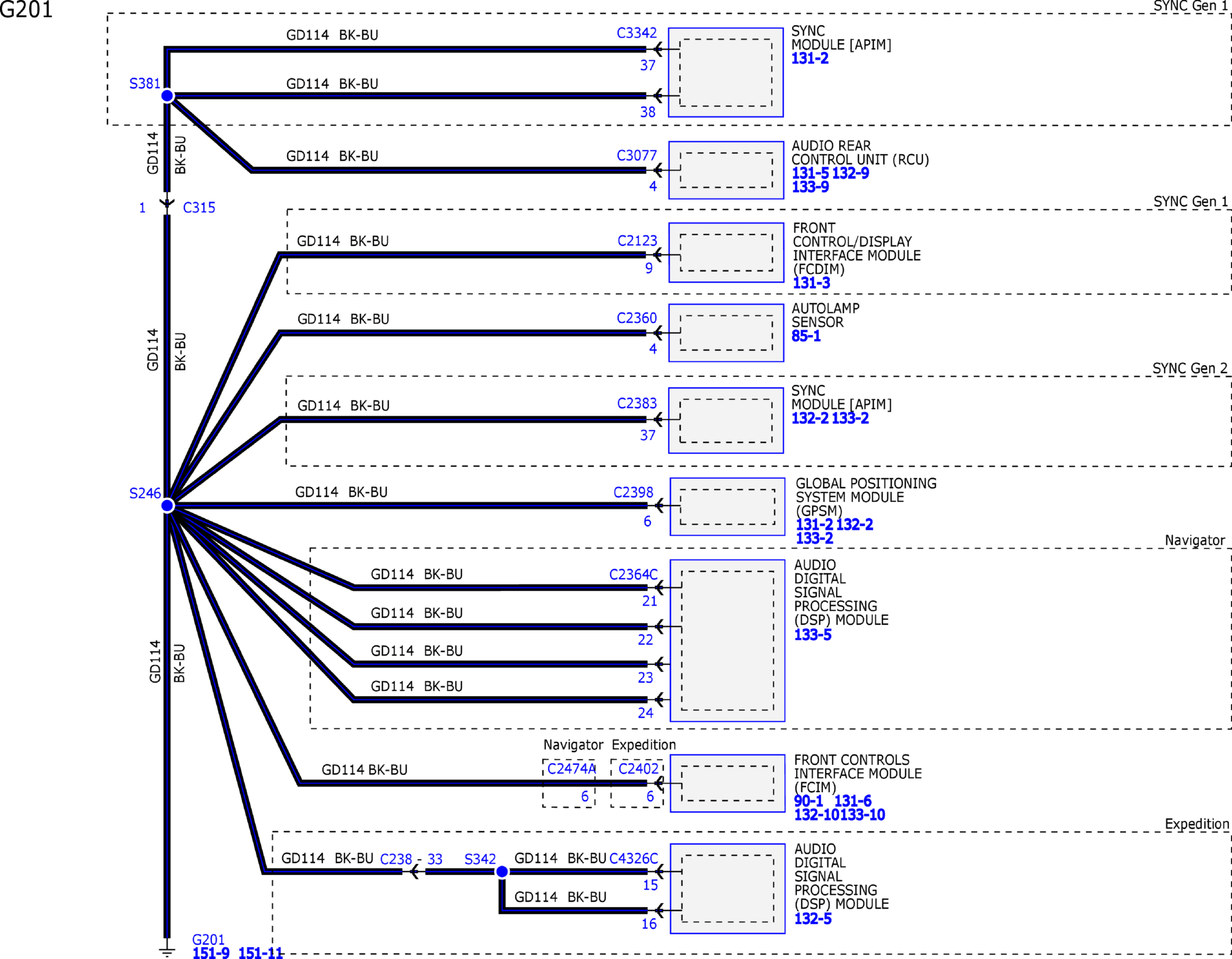

GFDW9494Courtesy of FORD MOTOR COMPANY

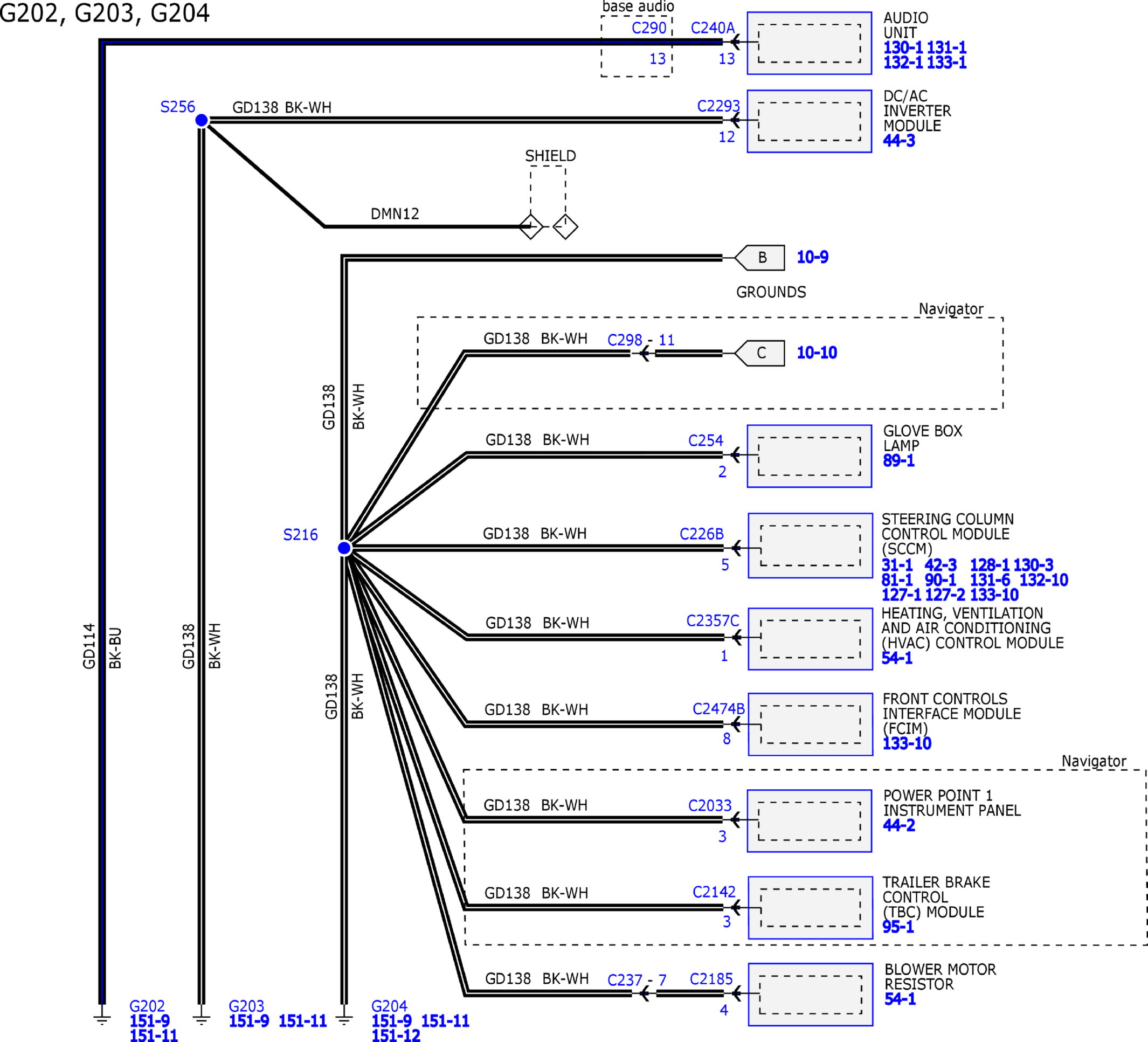

GFDW9495Courtesy of FORD MOTOR COMPANY

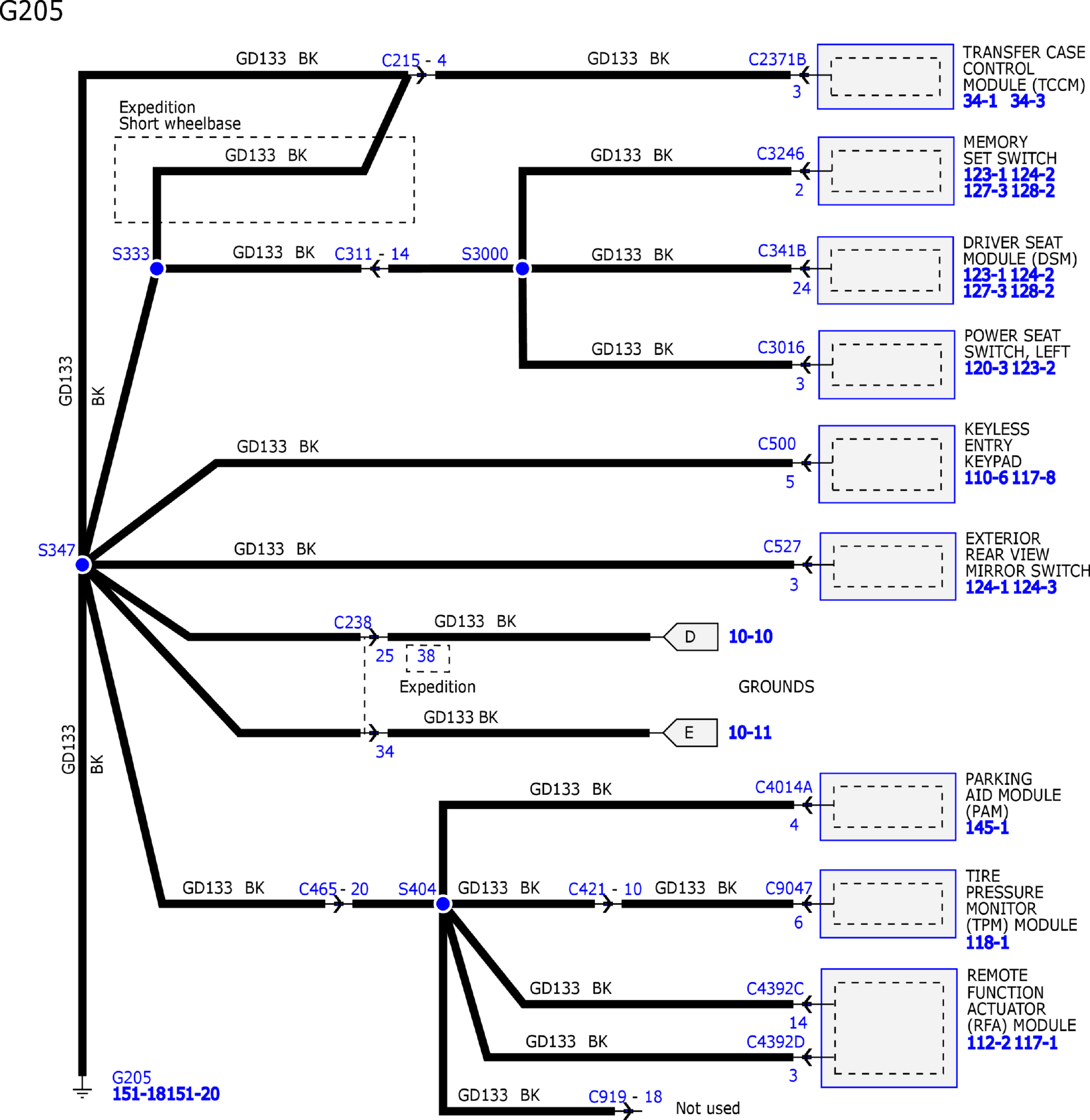

GFDW9496Courtesy of FORD MOTOR COMPANY

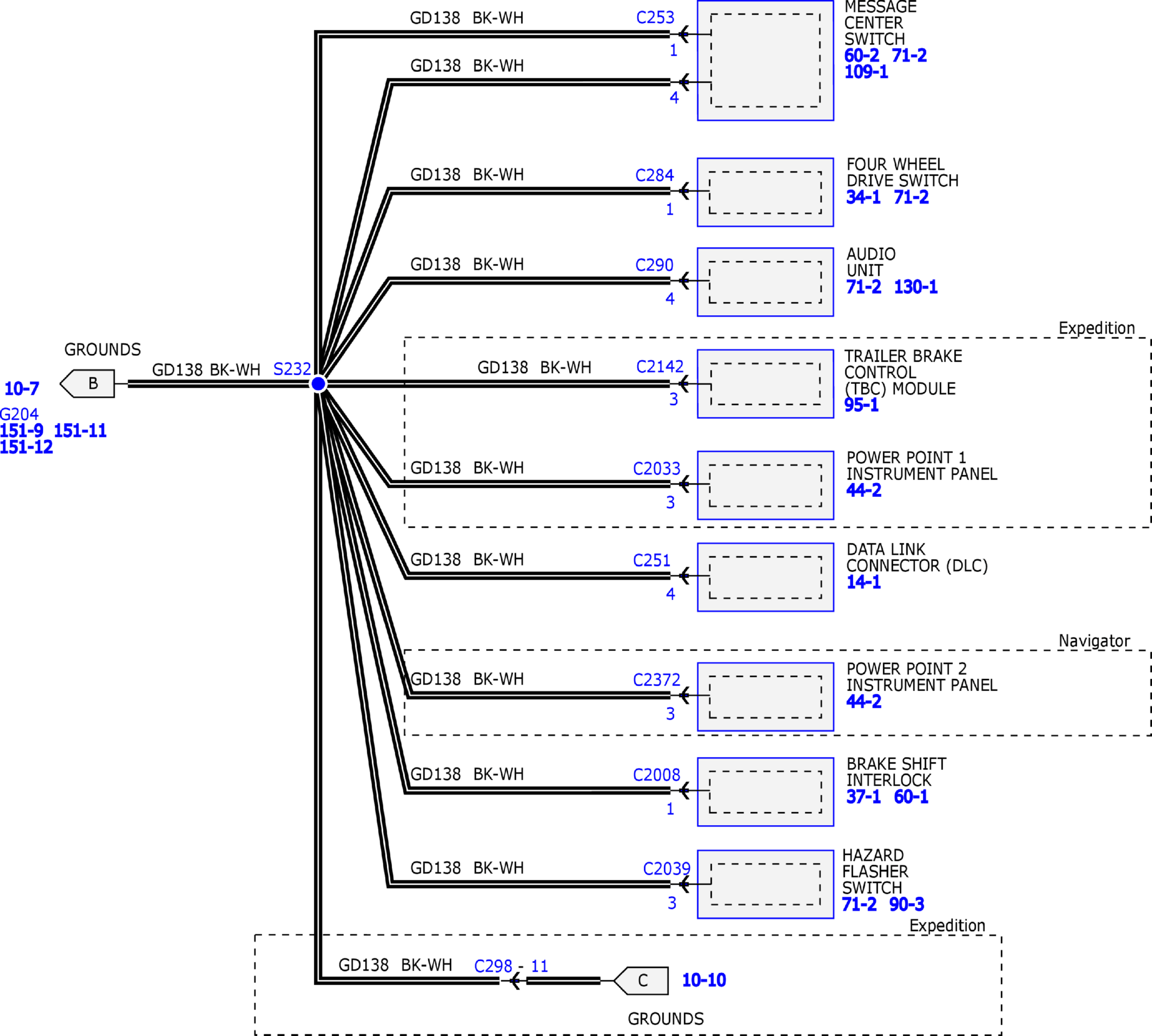

GFDW9497Courtesy of FORD MOTOR COMPANY

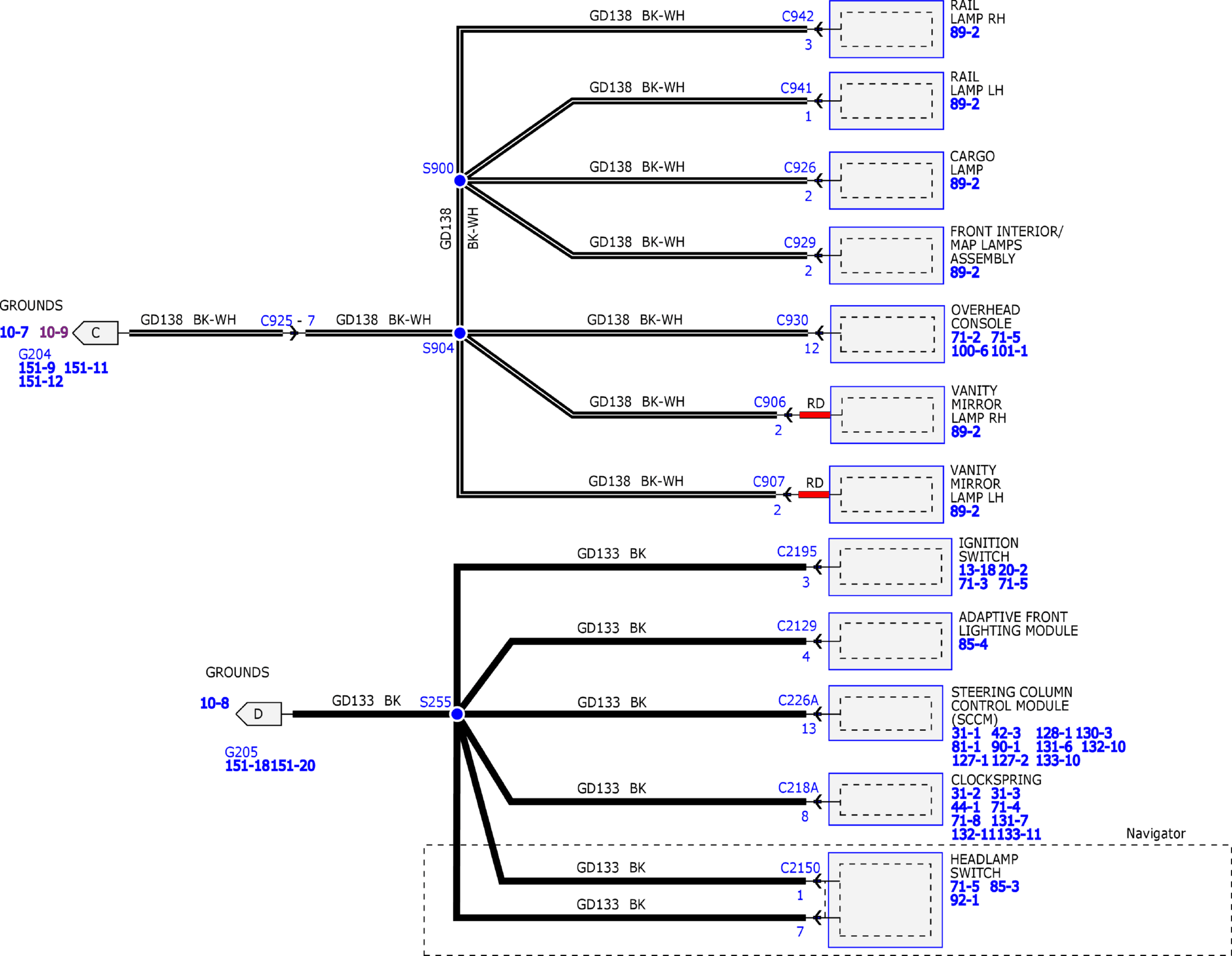

GFDW9498Courtesy of FORD MOTOR COMPANY

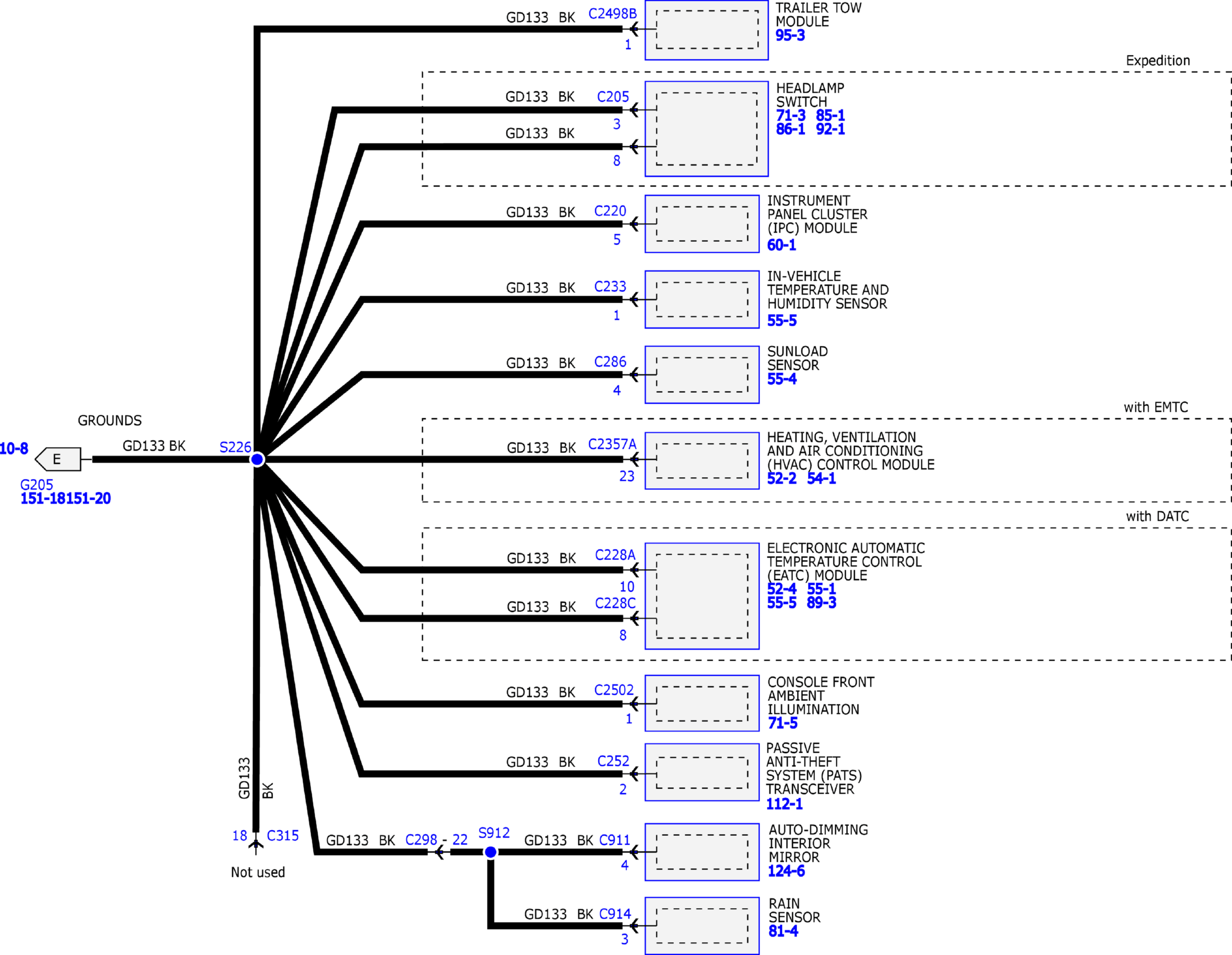

GFDW9484Courtesy of FORD MOTOR COMPANY

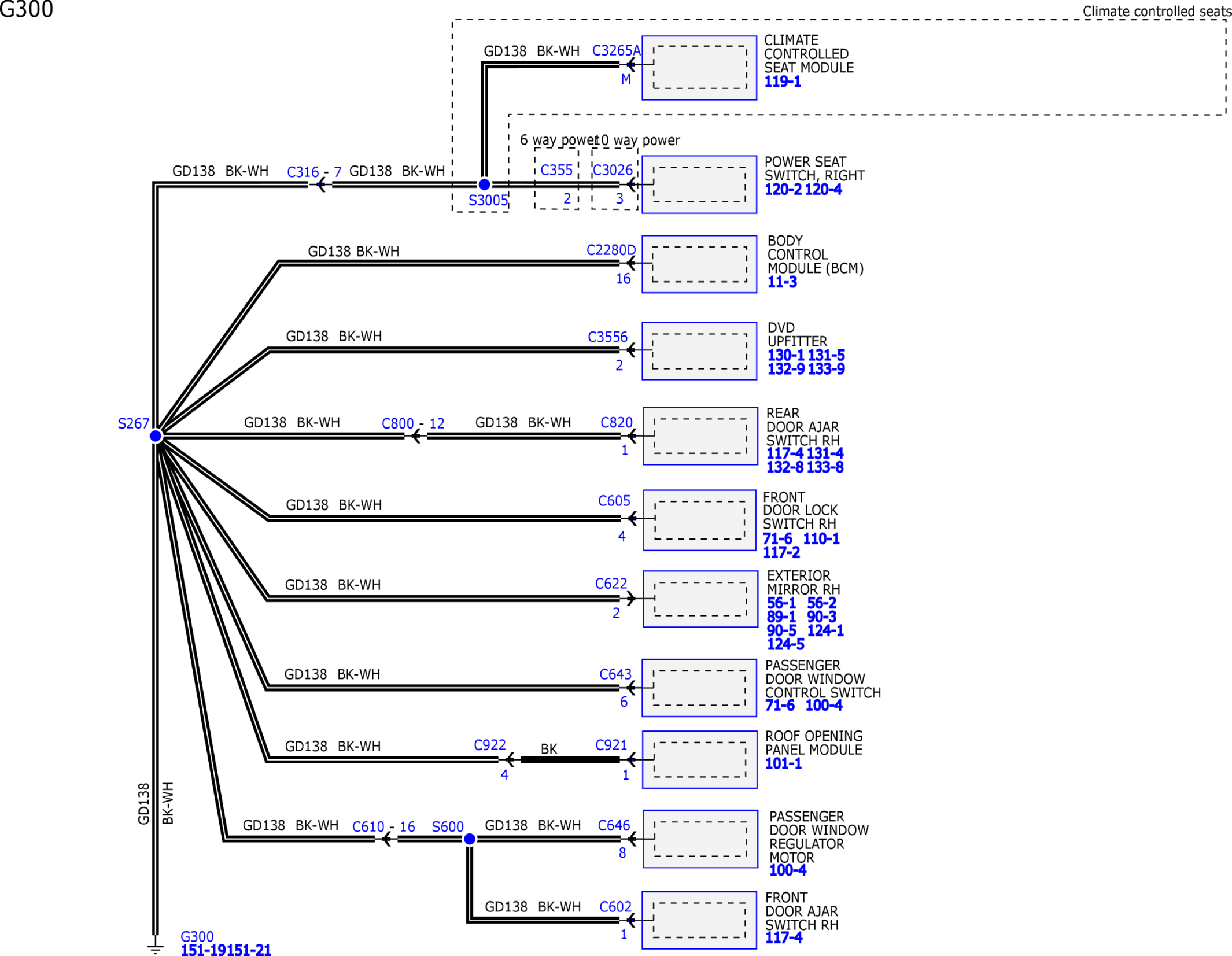

GFDW9485Courtesy of FORD MOTOR COMPANY

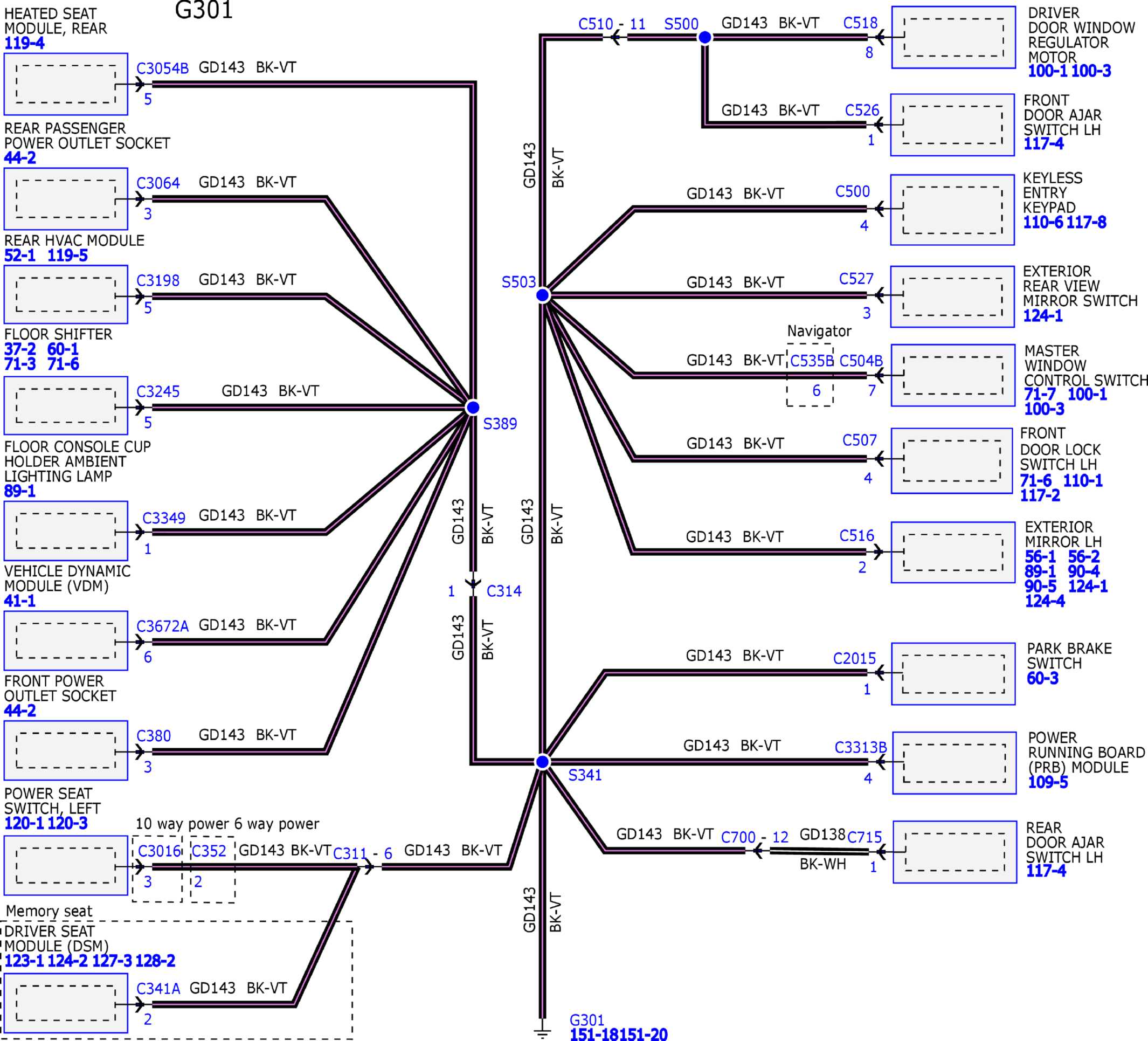

GFDW9486Courtesy of FORD MOTOR COMPANY

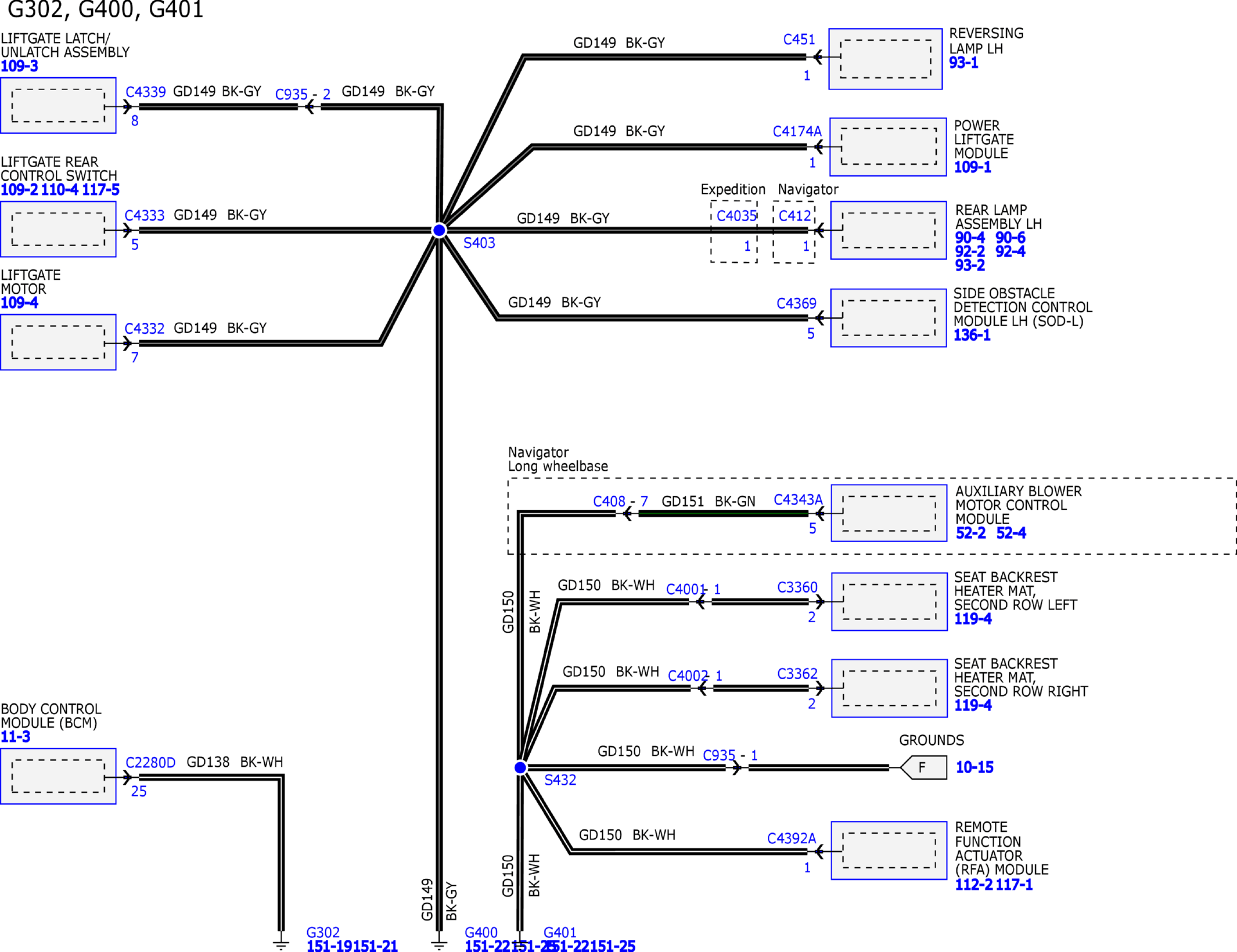

GFDW9487Courtesy of FORD MOTOR COMPANY

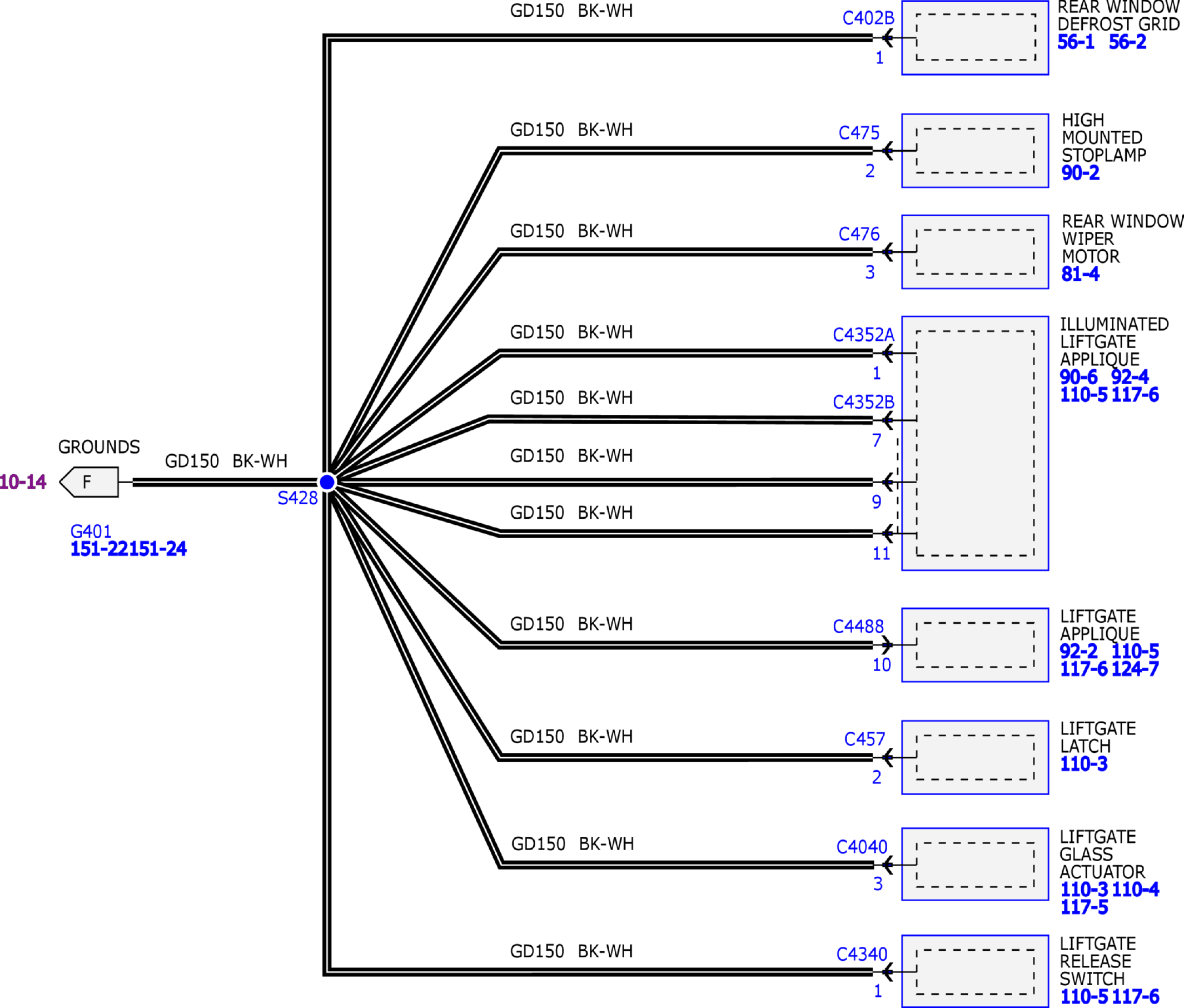

GFDW9488Courtesy of FORD MOTOR COMPANY

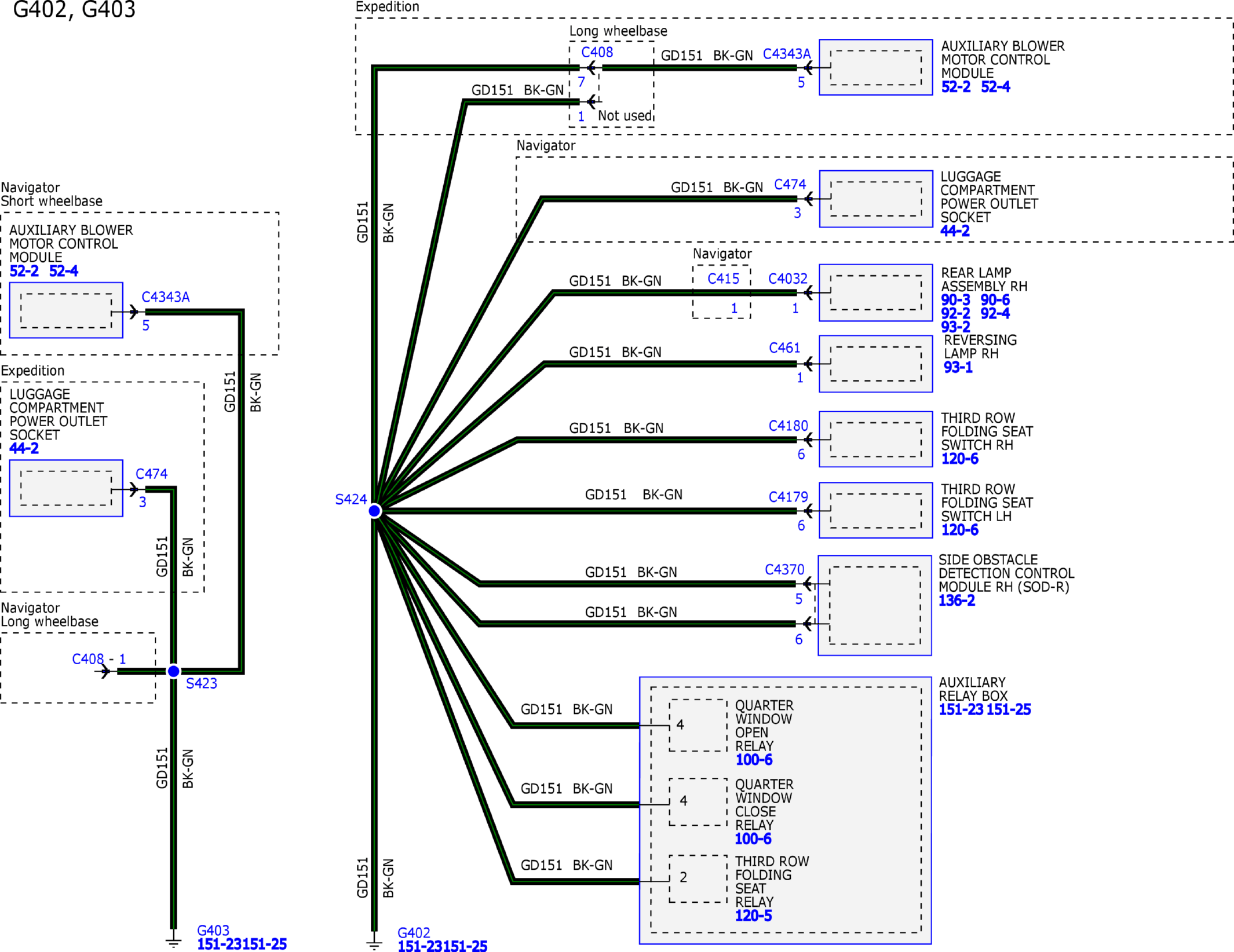

GFDW9489Courtesy of FORD MOTOR COMPANY

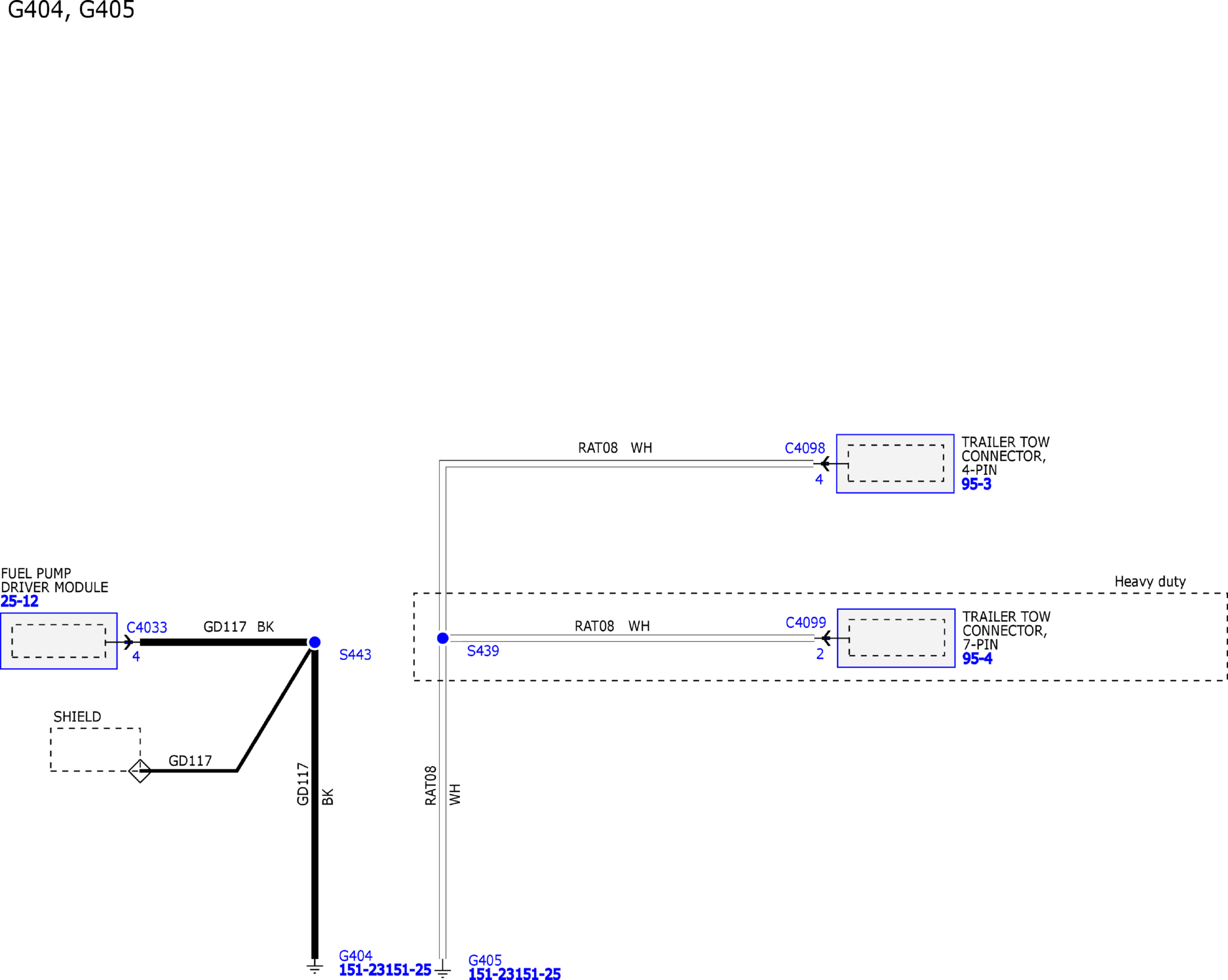

GFDW9490Courtesy of FORD MOTOR COMPANY
