Instrument Panel Dimmer Switch

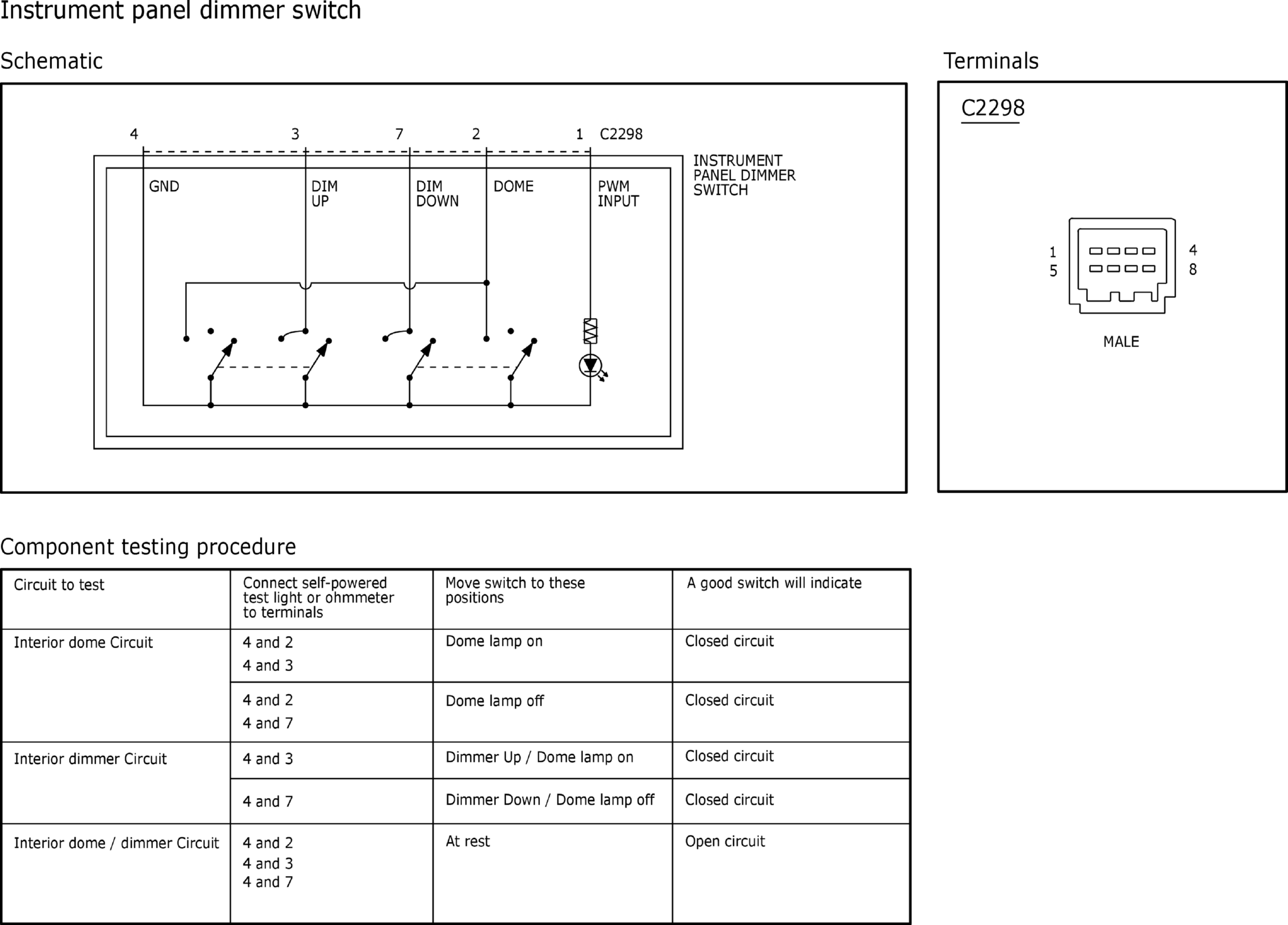

Fig 1: Instrument Panel Dimmer Switch
GFDW9761Courtesy of FORD MOTOR COMPANY
