Master Window Adjust Switch (Navigator)
Master Window Adjust Switch (Navigator)

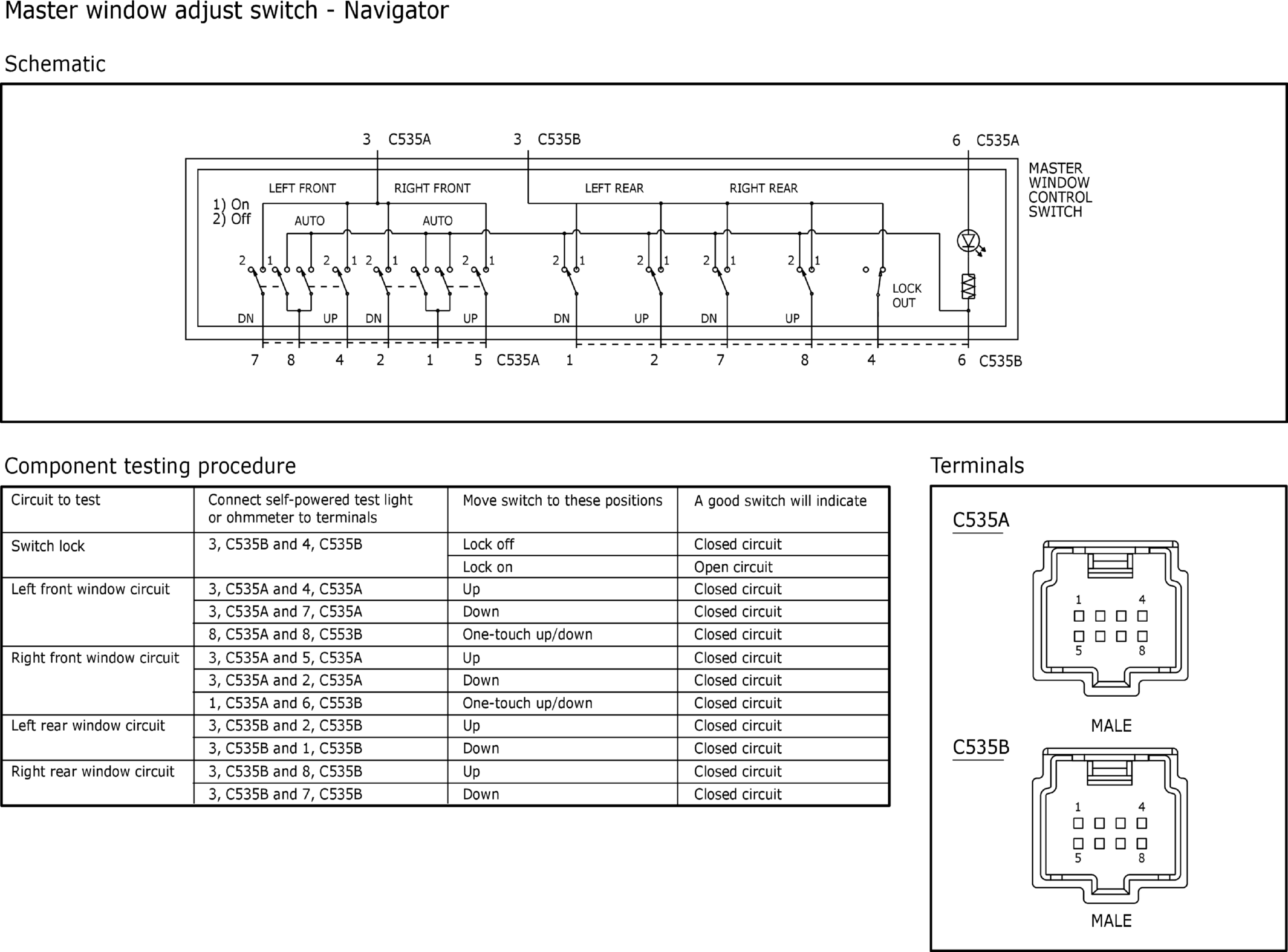

Fig 1: Master Window Adjust Switch (Navigator)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
