Component Testing: Relays

Fig 1: Relay - Mini ISO
GFDW9762Courtesy of FORD MOTOR COMPANY

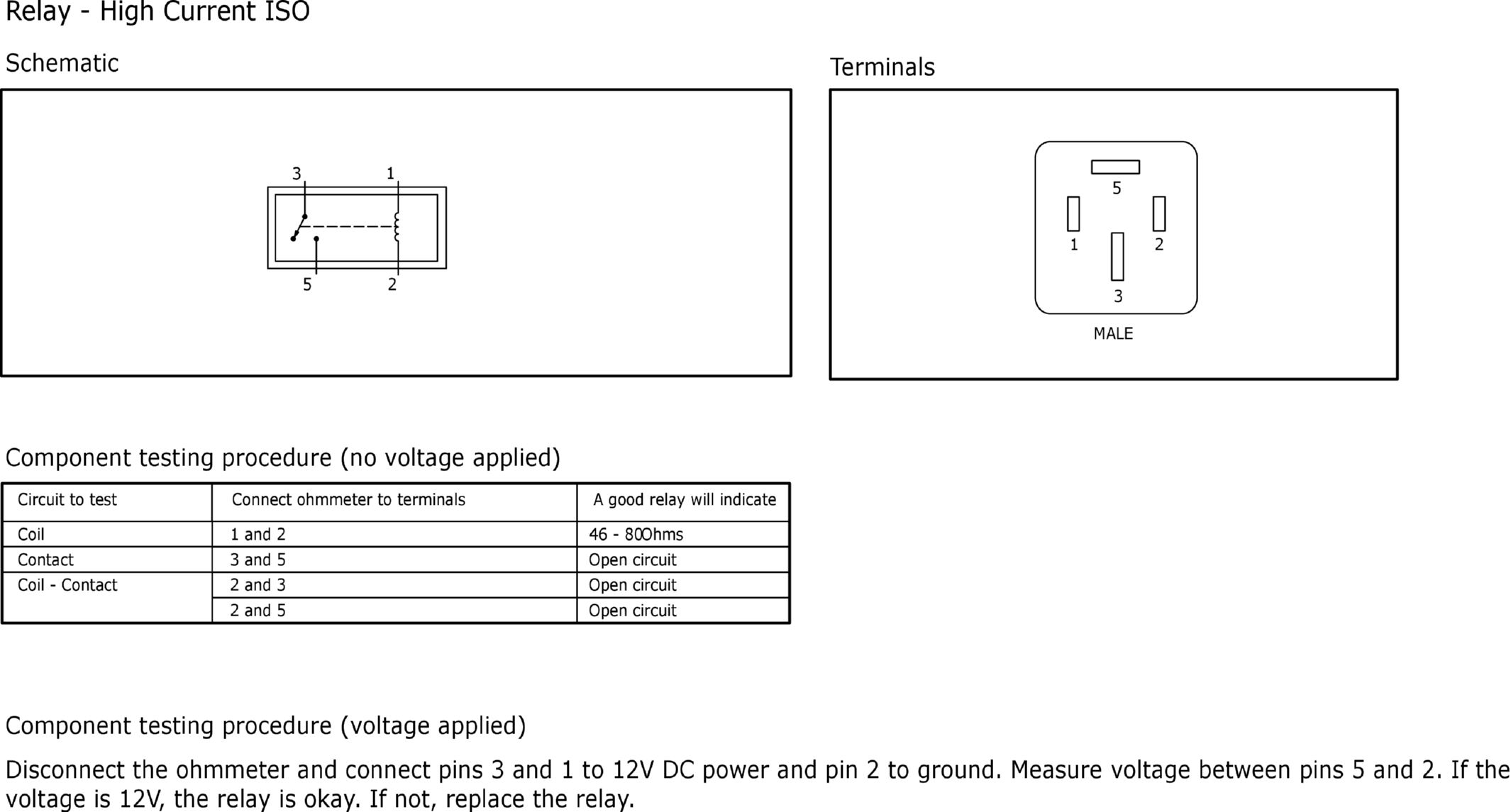

Fig 2: Relay - High Current ISO
GFDW9763Courtesy of FORD MOTOR COMPANY
Fig 3: Relay - Micro ISO
GFDW9764Courtesy of FORD MOTOR COMPANY

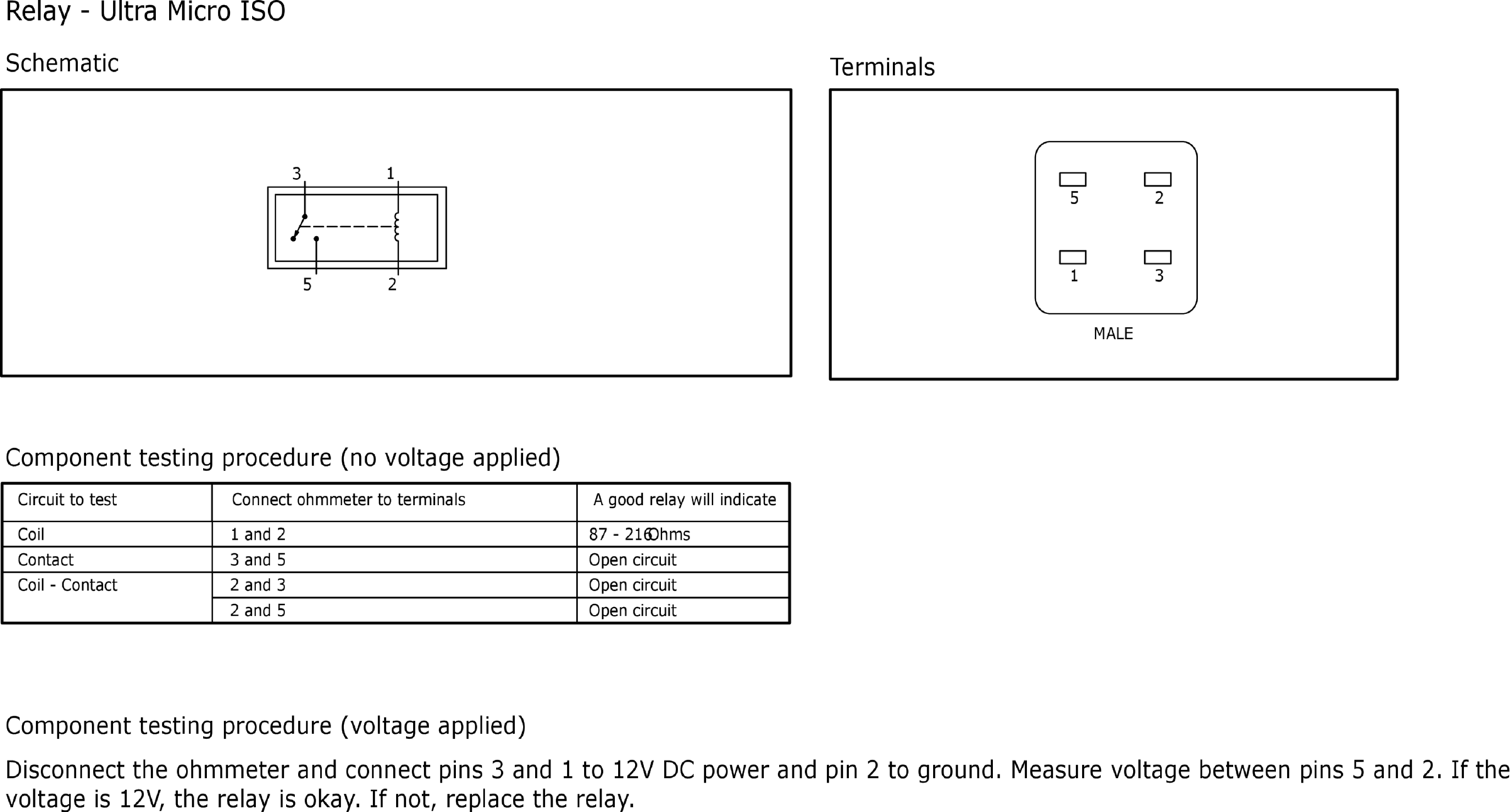

Fig 4: Relay - Ultra Micro ISO
GFDW9765Courtesy of FORD MOTOR COMPANY

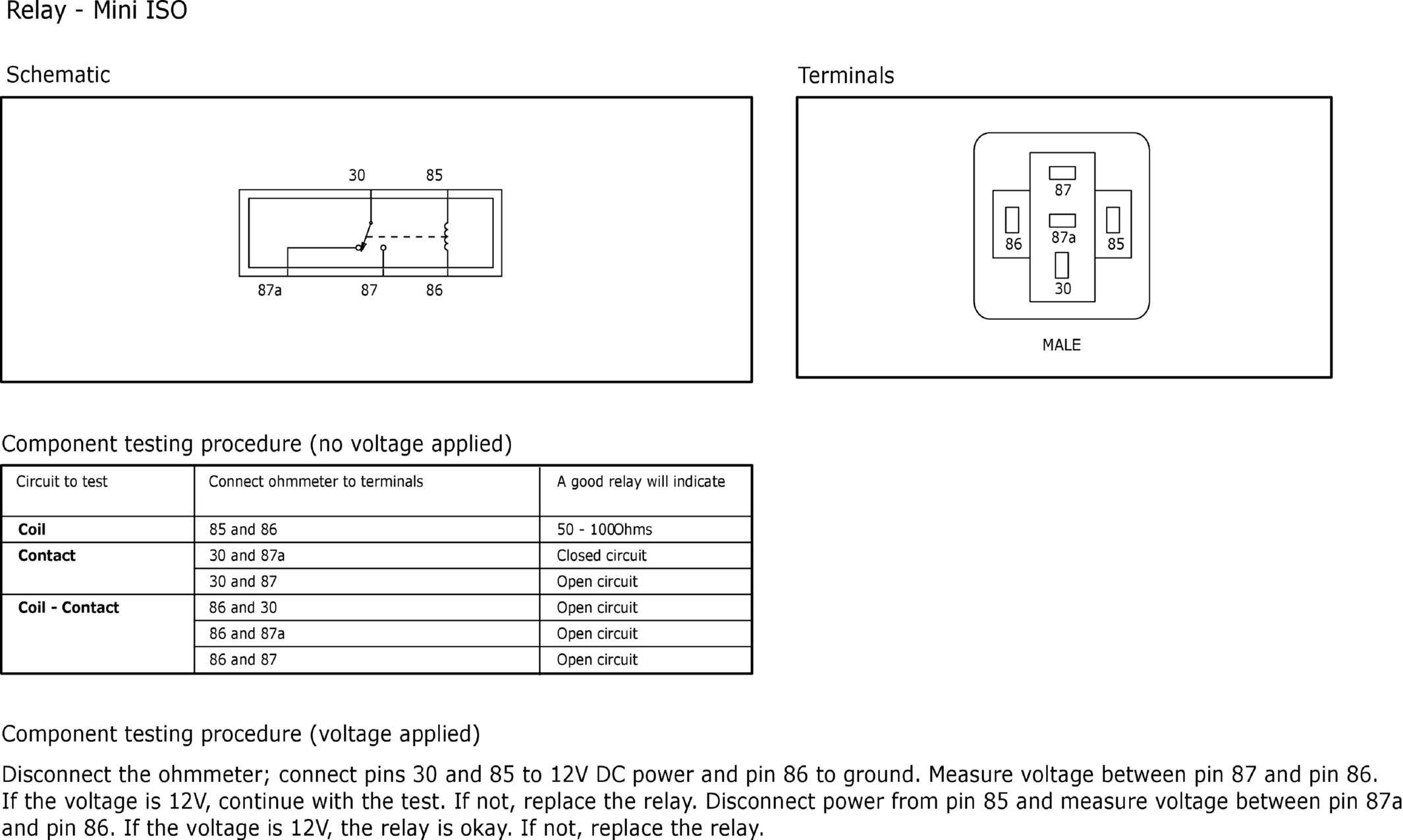

Fig 5: Relay - Mini ISO
GFDW9766Courtesy of FORD MOTOR COMPANY
Fig 6: Relay - High Current ISO
GFDW9767Courtesy of FORD MOTOR COMPANY

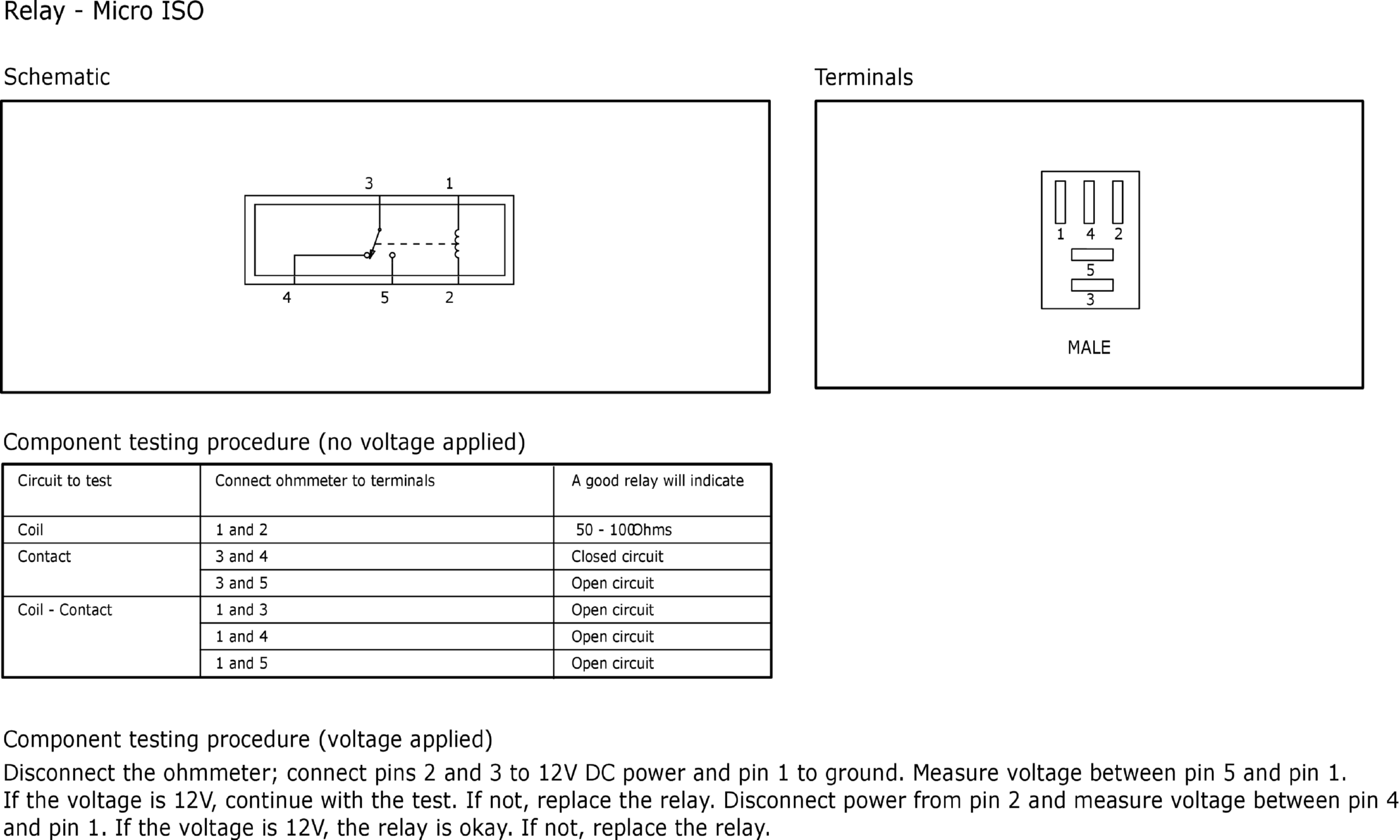

Fig 7: Relay - Micro ISO
GFDW9768Courtesy of FORD MOTOR COMPANY
Fig 8: Relay - Ultra Micro ISO
GFDW9769Courtesy of FORD MOTOR COMPANY
