Fuel Pump Driver Module (FPDM): Installation

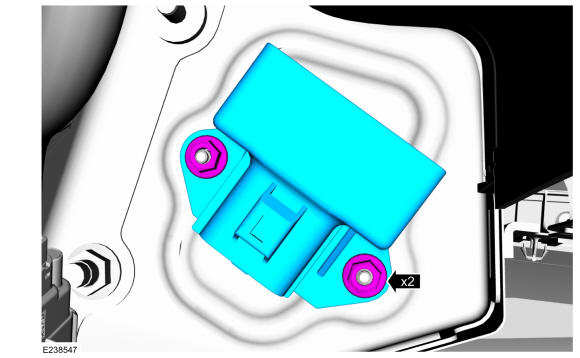

Install the FPDM, then install and tighten the FPDM retaining nuts.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

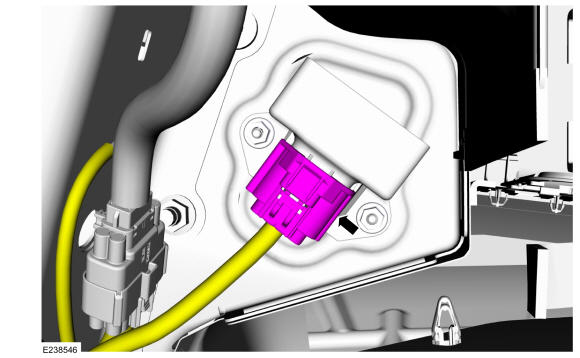

Connect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

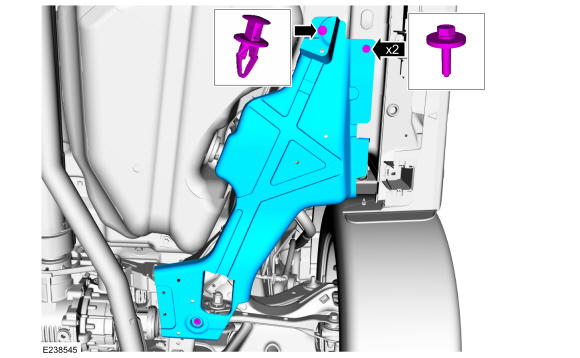

Install the right rear air deflector, install the pushpin, then install and tighten the right rear air deflector retainers.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
