Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Wheel and Tire .

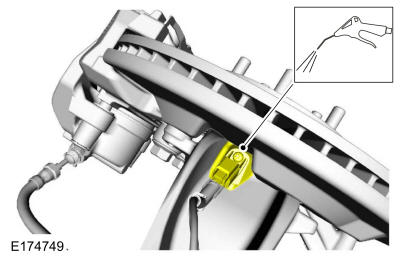

2. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

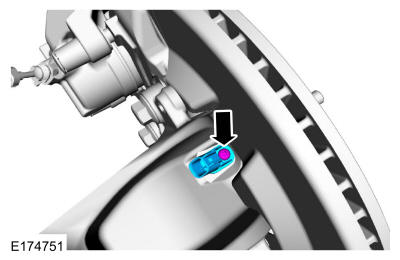

   Courtesy of FORD MOTOR COMPANY

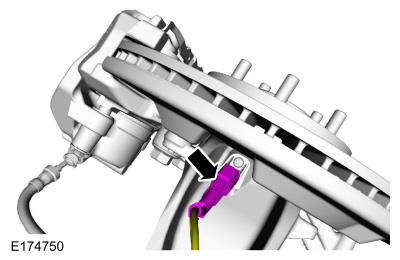

3. Courtesy of FORD MOTOR COMPANY

4. Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
