Electronic Engine Controls - Component Location

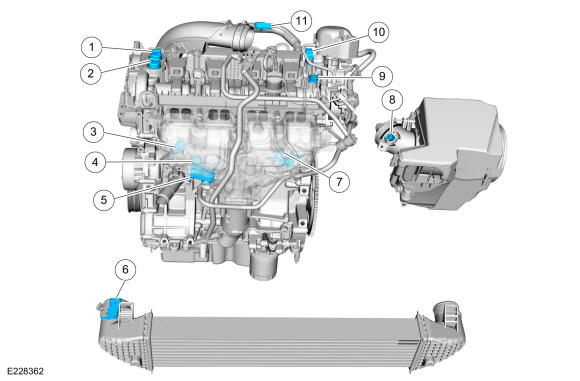

Electronic Engine Controls- LH
| Item | Description |
|---|---|
| 1 | Exhaust VCT oil control solenoid |
| 2 | Intake VCT oil control solenoid |
| 3 | FRP sensor |
| 4 | Front KS |
| 5 | MAPT sensor |
| 6 | Turbocharger boost pressure sensor |
| 7 | Rear KS |
| 8 | IAT sensor |
| 9 | Intake CMP sensor |
| 10 | Exhaust CMP sensor |
| 11 | Crankcase pressure sensor |

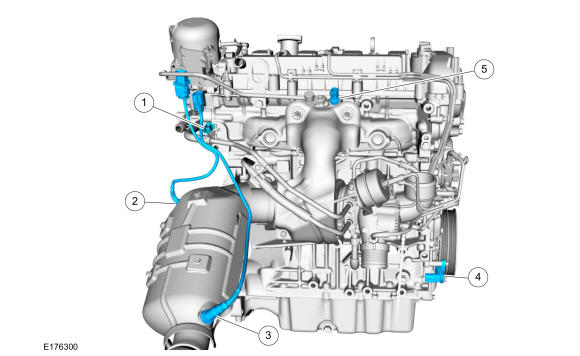

Electronic Engine Controls - RH
| Item | Description |
|---|---|
| 1 | ECT sensor |
| 2 | HO2S |
| 3 | Catalyst monitor sensor |
| 4 | CKP sensor |
| 5 | CHT sensor |

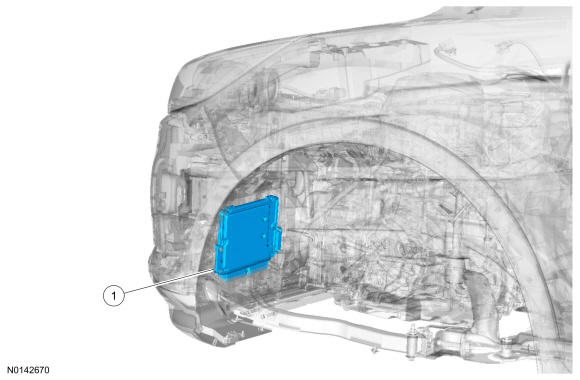

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |

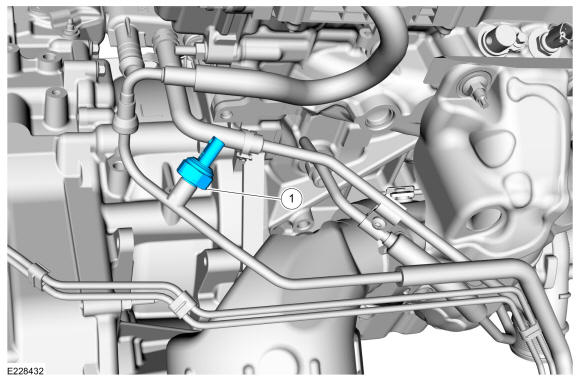

Fuel Pressure Sensor
| Item | Description |
|---|---|
| 1 | Fuel pressure sensor |
