Turbocharger Boost Pressure Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .

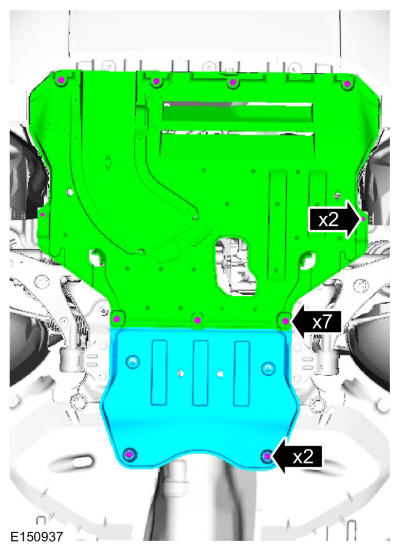

  2. GFD228111Courtesy of FORD MOTOR COMPANY

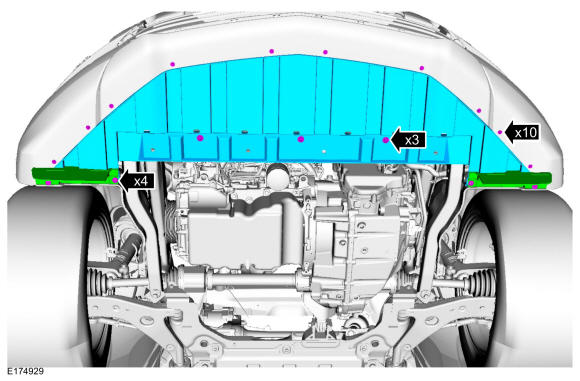

  3. GFD228699Courtesy of FORD MOTOR COMPANY

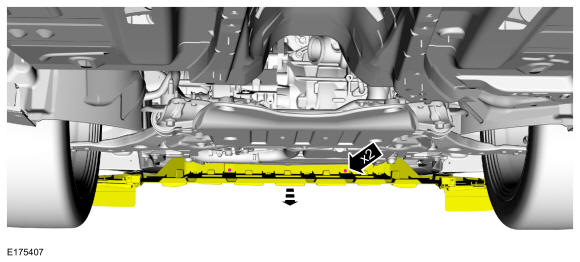

  4. GFD228374Courtesy of FORD MOTOR COMPANY

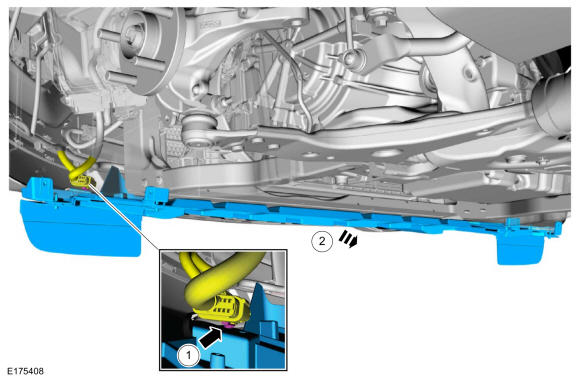

  5. GFD228375Courtesy of FORD MOTOR COMPANY
  6. Torque: 27 lb.in (3 Nm)

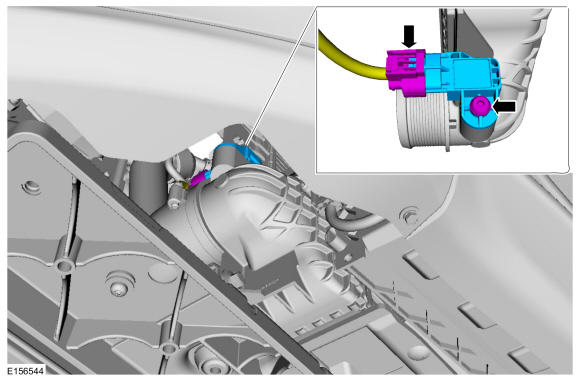

    GFD228700Courtesy of FORD MOTOR COMPANY
