Component Testing

Fig 1: Introduction

Courtesy of FORD MOTOR COMPANY

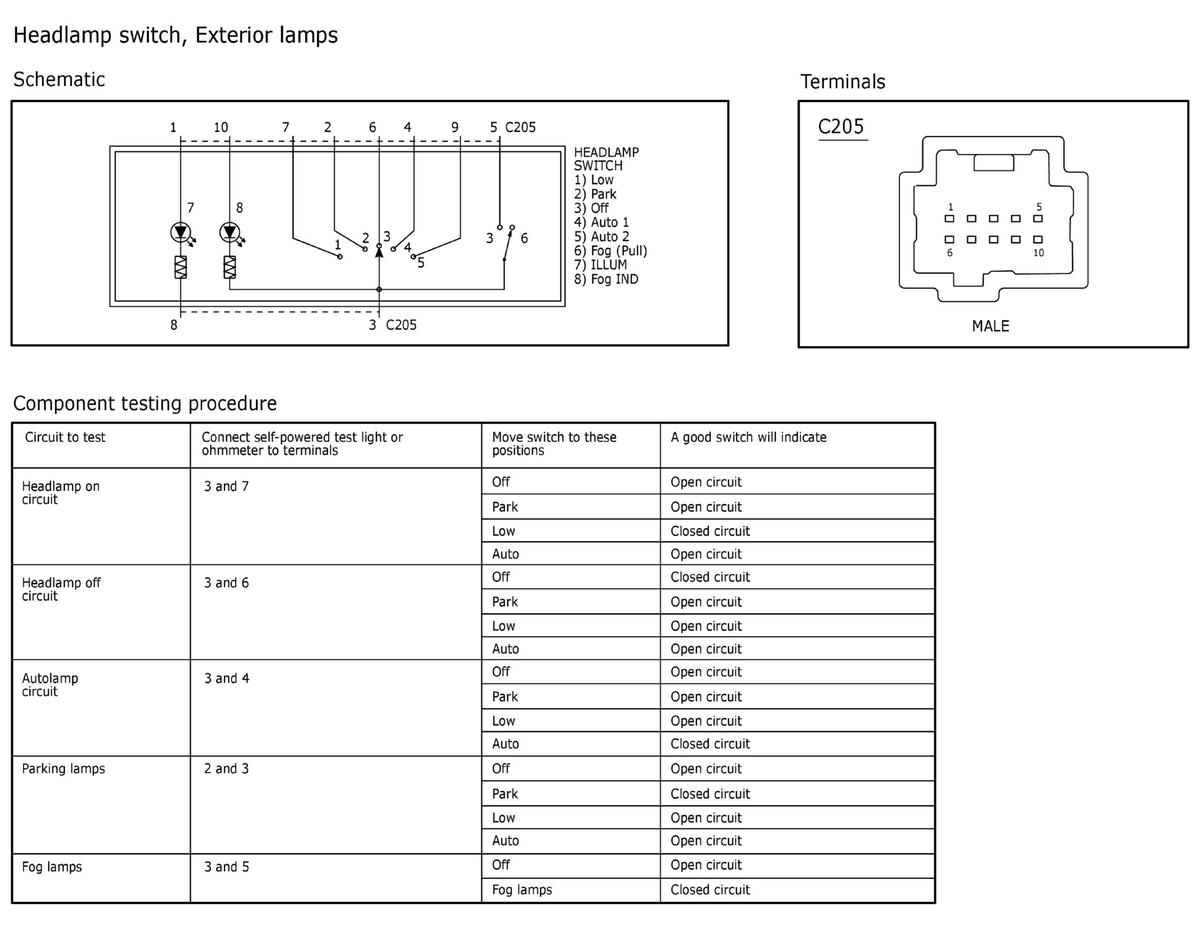

Fig 2: Headlamp Switch, Exterior Lamps

Courtesy of FORD MOTOR COMPANY

Fig 3: Start/Stop Switch

Courtesy of FORD MOTOR COMPANY

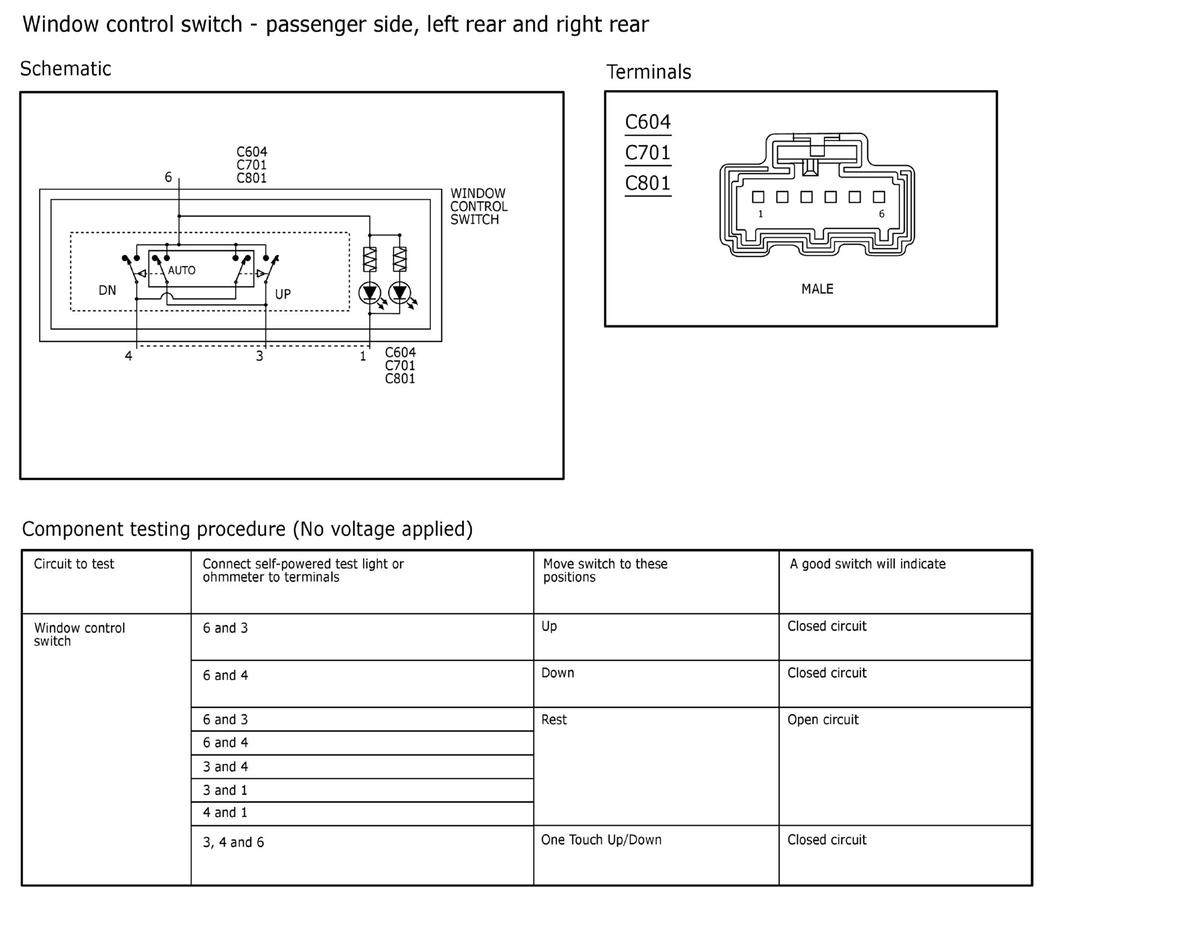

Fig 4: Window Control Switch - Passenger Side, Left Rear and Right Rear

Courtesy of FORD MOTOR COMPANY

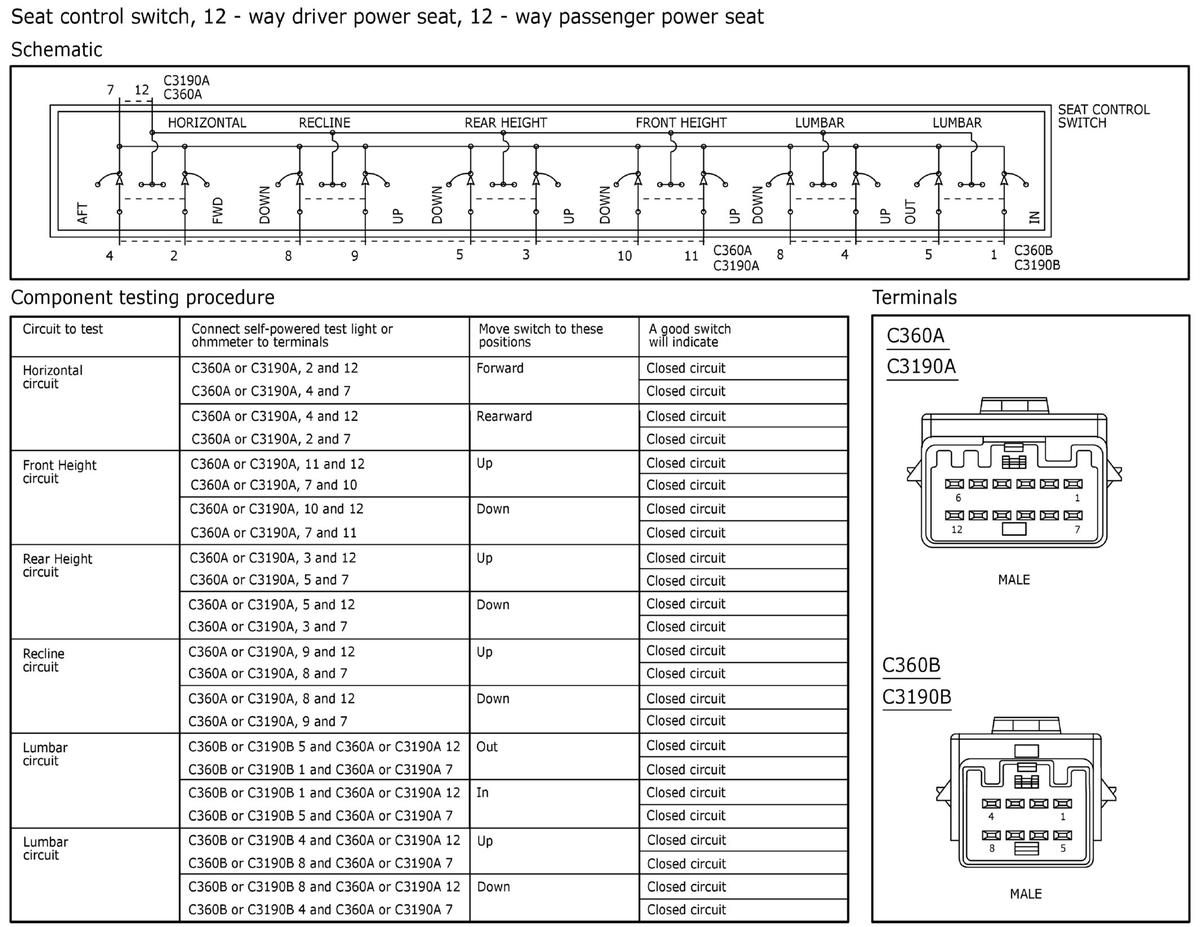

Fig 5: Seat Control Switch, 12-Way Driver Power Seat, 12-Way Passenger Power Seat

Courtesy of FORD MOTOR COMPANY

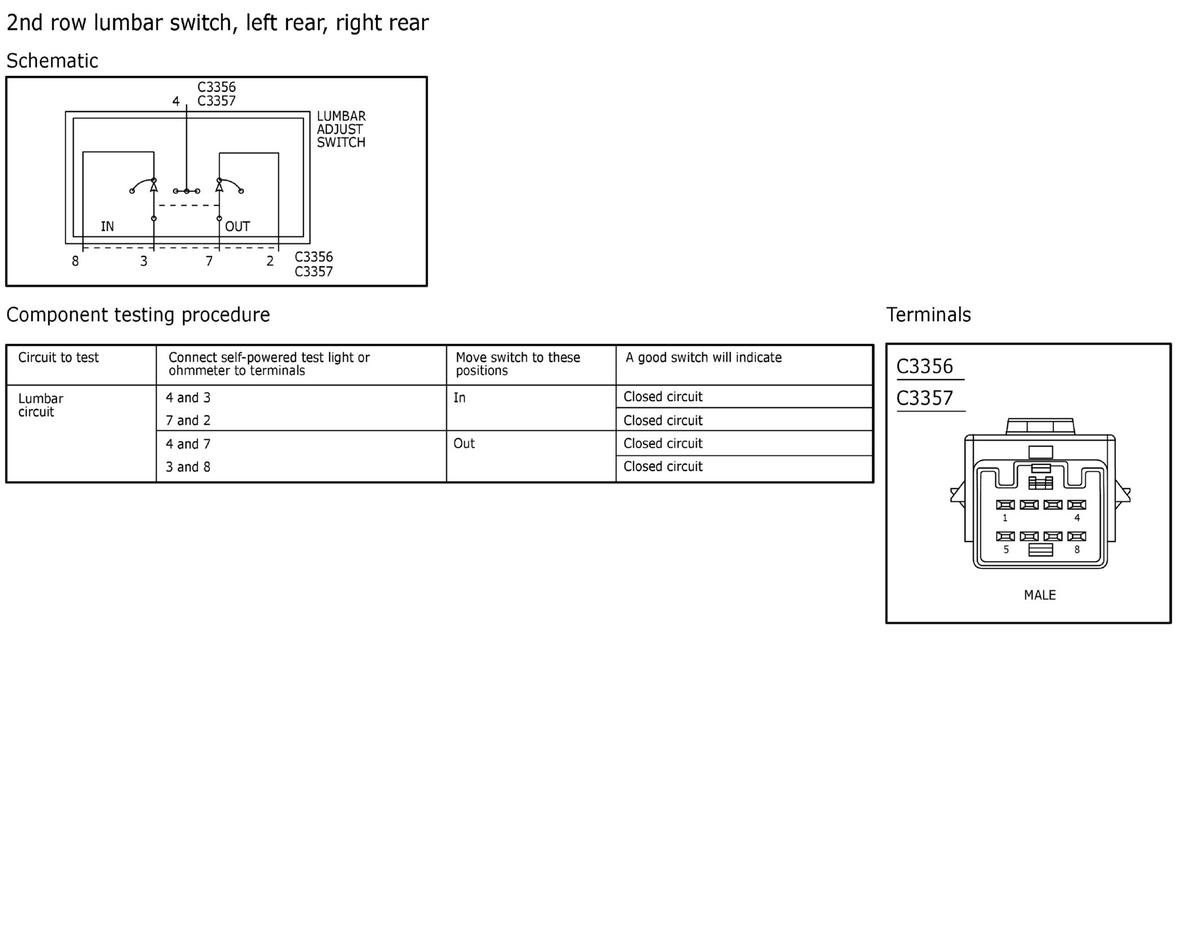

Fig 6: 2nd Row Lumbar Switch, Left Rear, Right Rear

Courtesy of FORD MOTOR COMPANY

Fig 7: Seat Control Switch, Second Row

Courtesy of FORD MOTOR COMPANY

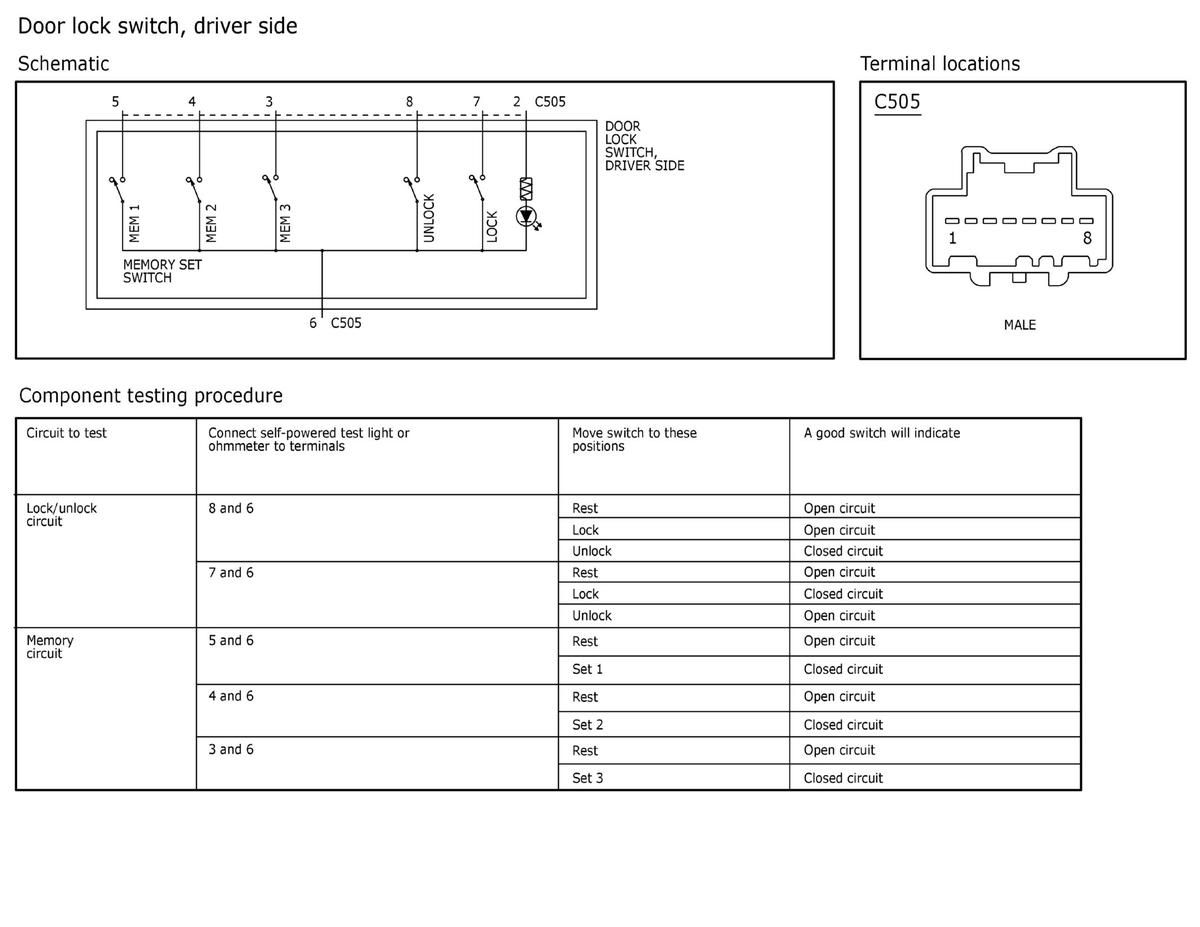

Fig 8: Door Lock Switch, Driver Side

Courtesy of FORD MOTOR COMPANY

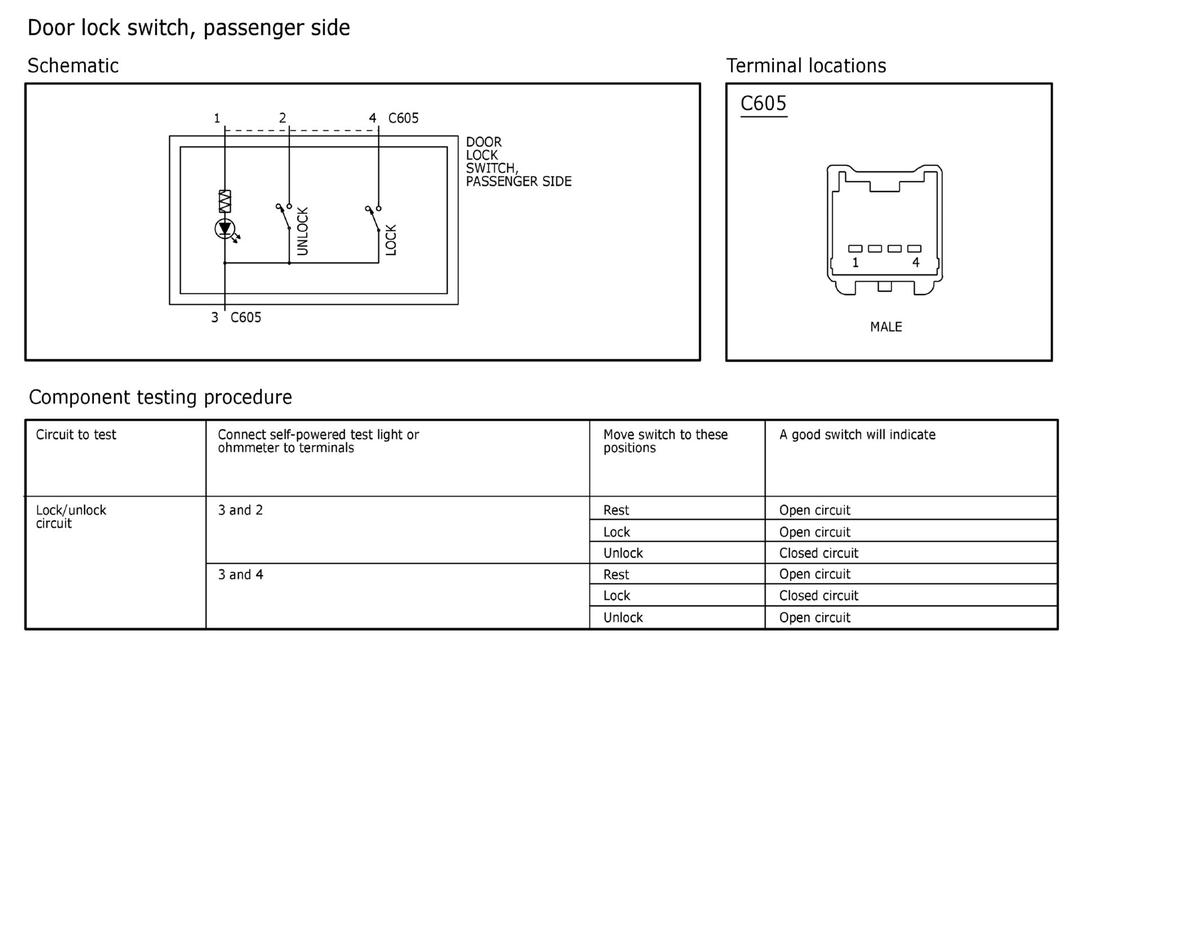

Fig 9: Door Lock Switch, Passenger Side

Courtesy of FORD MOTOR COMPANY

Fig 10: Instrument Panel Dimmer Switch

Courtesy of FORD MOTOR COMPANY

Fig 11: Roof Opening Panel Control Switch

Courtesy of FORD MOTOR COMPANY

Fig 12: Sunshade Switch

Courtesy of FORD MOTOR COMPANY

Fig 13: Relay - Micro ISO

Courtesy of FORD MOTOR COMPANY

Fig 14: Relay - Mini ISO

Courtesy of FORD MOTOR COMPANY

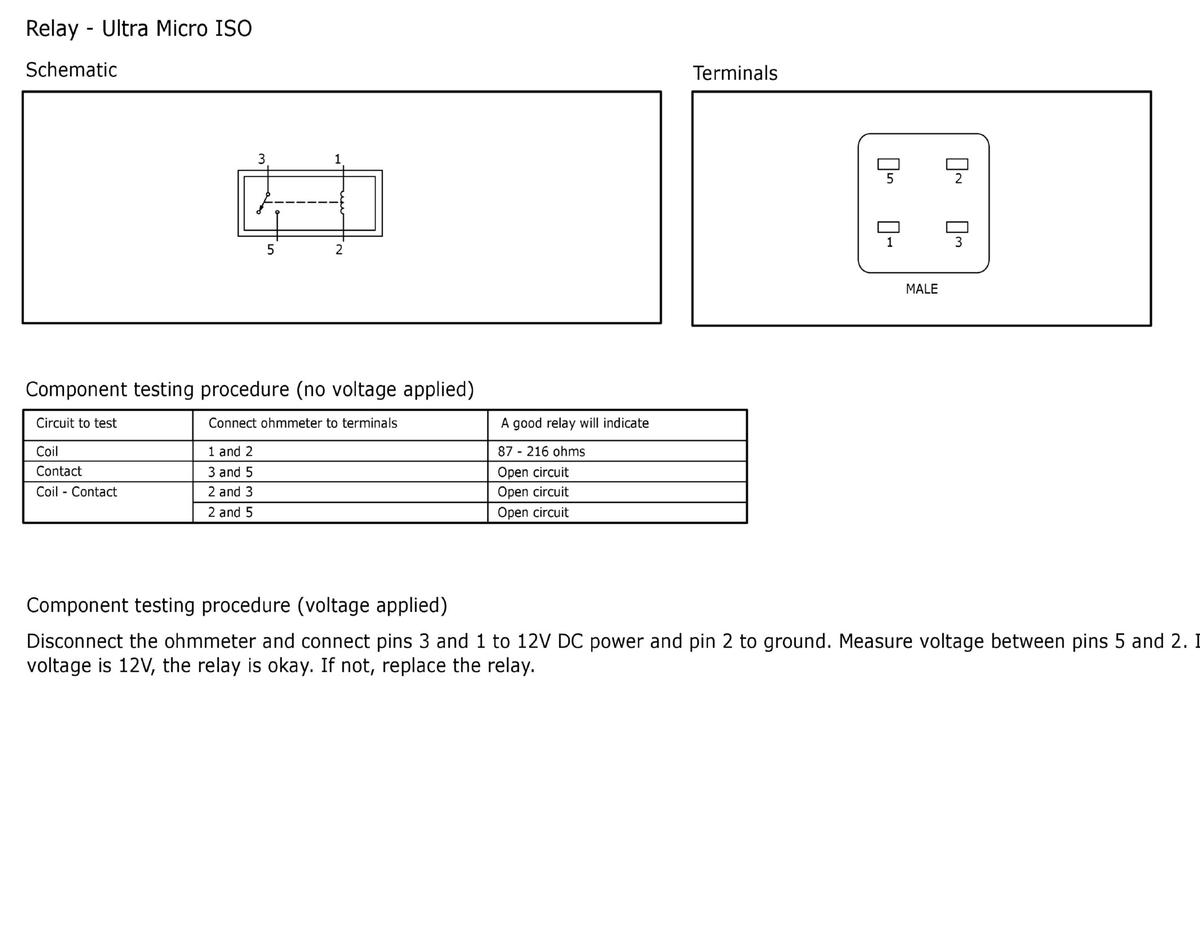

Fig 15: Relay - Ultra Micro ISO

Courtesy of FORD MOTOR COMPANY
