Install Idler Shaft Bearing Repair Kit

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	Slide Hammer 100-001
Courtesy of FORD MOTOR COMPANY	Holding Fixture, Drive Pinion Flange 205-126
Courtesy of FORD MOTOR COMPANY	Handle 205-153
Courtesy of FORD MOTOR COMPANY	Remover, halfshaft 205-241
Courtesy of FORD MOTOR COMPANY	Installer, Front Axle Bushing 205-346
Courtesy of FORD MOTOR COMPANY	Installer 205-241
Courtesy of FORD MOTOR COMPANY	Installer, Parking Brake Bearing 206-040
Courtesy of FORD MOTOR COMPANY	Holding Fixture, Transmission 307-003
Courtesy of FORD MOTOR COMPANY	Shim Selection Gauge 307-072
Courtesy of FORD MOTOR COMPANY	Remover, Output Flange 307-523
Courtesy of FORD MOTOR COMPANY	Remover, Transfer Case Bearing 308-125
Courtesy of FORD MOTOR COMPANY	Installer, Shaft Bearing Cup 308-221
Courtesy of FORD MOTOR COMPANY	Installer, PTO Drive Gear Outer Oil Seal 308-430
Courtesy of FORD MOTOR COMPANY	Installer, Halfshaft Oil Seal 308-431
Courtesy of FORD MOTOR COMPANY	Remover and Installer, PTU Input Shaft Seal 308-777
Courtesy of FORD MOTOR COMPANY	Installer, PTO Drive Gear Outer Oil Seal 308-430

General Equipment

Depth Gauge

Flat-Bladed Screwdriver

Flat File

Grinder

Slide Hammer

Slide Hammer Dent Puller

Spatula

Material

Item	Specification
Motorcraft ® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A	ESE-M1C171-A
Motorcraft ® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL (US); CXY-75W140-1L (Canada)	WSL-M2C192-A and GL-5
Ultra Silicone SealantTA-29	-

All Vehicles

Remove the PTU (Power Transfer Unit).
Using the special tool, secure the PTU (Power Transfer Unit) to the bench.Special Tool: 307-003 Holding Fixture, Transmission

Courtesy of FORD MOTOR COMPANY
Inspect the case exterior for cracks.

Courtesy of FORD MOTOR COMPANY
Remove the temperature sensor clip bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: The following instruction will prevent the 308-125 (T87P-7120-D) from opening too far which would make removing the intermediate shaft seal deflector difficult.

Place a 16mm (5/8 in) washer on the special tool as shown.Special Tool: 308-125 Remover, Transfer Case Bearing

Courtesy of FORD MOTOR COMPANY
NOTE: The intermediate shaft seal deflector may break when removed. Remove all foreign materials from the PTU before continuing with the repair.

Using the special tools, remove and discard the halfshaft deflector.Special Tool: 205-241 Remover, HalfshaftSpecial Tool: 308-125 Remover, Transfer Case BearingEquipment: Slide Hammer

Courtesy of FORD MOTOR COMPANY
Using the special tool, remove and discard the halfshaft intermediate shaft seal and alignment washer.Special Tool: 205-241 Remover, HalfshaftSpecial Tool: 308-125 Remover, Transfer Case BearingEquipment: Slide Hammer

Courtesy of FORD MOTOR COMPANY
Using the special tools, remove and discard the RH cover seal.Special Tool: 205-241 Remover, HalfshaftEquipment: Slide Hammer

Courtesy of FORD MOTOR COMPANY
Remove and discard the compression seal.Special Tool: 205-241 Remover, HalfshaftEquipment: Slide Hammer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not press the seals lower than specified. Excessive force will damage the bearing below the seals.

NOTE: Both seals will need to be pressed lower into the transfer case input shaft opening to break the seals outer sealant loose from the transfer case.

NOTE: There is approximately a 5 mm (0.196 in) air gap between both seals and approximately 1 mm (0.039 in) air gap between the inner seal and the bearing race.

Using the special tool, press the outer seal downward until the lower seal contacts the bearing race.Special Tool: 206-040 Installer, Parking Brake Bearing

Courtesy of FORD MOTOR COMPANY
Position the special tool above the PTU input shaft opening.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY
Insert the special tool into one of the screw guide holes. Press the special tool downward until the shoulder of the punch touches the screw guide.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY
NOTE: Do not overtighten the screws. Turn the 308-777 /3 until they are seated into the screw guide holes.

Install the special tool into the screw guide hole.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY
Insert the special tool into the opposing screw guide hole. Press the special tool downward until the shoulder of the punch touches the screw guide.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY
Install the special tool into the screw guide hole.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY
Using the special tools, remove and discard the 2 input shaft seals.Special Tool: 308-777 Remover and Installer, PTU Input Shaft SealSpecial Tool: 100-001 Slide Hammer

Courtesy of FORD MOTOR COMPANY

Vehicles without PTU cooler
Remove the PTU temperature sensor heat shield bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the PTU temperature sensor and the temperature sensor wiring retainer clip.

Courtesy of FORD MOTOR COMPANY
Remove the drain plug.

Courtesy of FORD MOTOR COMPANY
Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

Vehicles with PTU cooler
Remove the PTU temperature sensor heat shield bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY
If equipped with PTU cooling, remove the PTU temperature sensor.

Courtesy of FORD MOTOR COMPANY
If equipped with PTU cooling, remove the PTU cooler housing bolts and PTU cooler housing.

Courtesy of FORD MOTOR COMPANY
If equipped with PTU cooling, remove the PTU cooler housing gasket and discard.

Courtesy of FORD MOTOR COMPANY

All Vehicles
Remove the PTU cover bolts.

Courtesy of FORD MOTOR COMPANY

WARNING: When removing the PTU cover, the fluid may emit a sulfur odor. Perform the repair in a well ventilated area to reduce exposure. Avoid getting the fluid on clothes and skin. Wear protective gloves such as Nitrile.
Remove the PTU cover.Equipment: Flat-Bladed Screwdriver

Courtesy of FORD MOTOR COMPANY
Remove the ring gear assembly.

Courtesy of FORD MOTOR COMPANY
Remove and discard the idler gear shaft and the idler gear assembly

Courtesy of FORD MOTOR COMPANY

NOTE: The position of the idler gear thrust washer
Remove and discard the washer.

Courtesy of FORD MOTOR COMPANY
Remove the input gear assembly.

Courtesy of FORD MOTOR COMPANY
Index mark the output pinion flange to the pinion shaft.

Courtesy of FORD MOTOR COMPANY
Using the special tool, hold the output pinion flange. Remove and discard the pinion nut.Special Tool: 205-126 Holding Fixture, Drive Pinion Flange

Courtesy of FORD MOTOR COMPANY
Using the special tool, remove the output pinion flange.Special Tool: 307-523 Remover, Output Flange

Courtesy of FORD MOTOR COMPANY
Remove and discard the output shaft seal.

Courtesy of FORD MOTOR COMPANY
Remove the oil slinger.

Courtesy of FORD MOTOR COMPANY
Remove the outer pinion bearing.

Courtesy of FORD MOTOR COMPANY
Remove and discard the collapsible spacer.

Courtesy of FORD MOTOR COMPANY
Remove the pinion gear.

Courtesy of FORD MOTOR COMPANY
Inspect the PTU ring gears and bearing for damage. INSTALL a new PTU if damage is present.

Courtesy of FORD MOTOR COMPANY
Inspect the PTU input gear and bearings for damage. INSTALL a new PTU if damage is present.

Courtesy of FORD MOTOR COMPANY
Inspect the PTU pinion gear and bearing for damage. INSTALL a new PTU if damage is present.

Courtesy of FORD MOTOR COMPANY
Inspect the PTU bearing races and thrust surface for damage. INSTALL a new PTU if damage is present.

Courtesy of FORD MOTOR COMPANY
Inspect the PTU outer pinion bearing race for damage. INSTALL a new PTU if damage is present.

Courtesy of FORD MOTOR COMPANY
Inspect the PTU cover bearing and bearing race for damage. INSTALL a new PTU if damage is present.

Courtesy of FORD MOTOR COMPANY
Using the special tool (0.700 inches thick) and a depth micrometer, measure from the top of the case to the thrust surface. Subtract 0.700 inches (special tool thickness) from the measured distance. Measured distance cannot be more than 91.11 mm (3.587 in). Excluding the area where the idler gear has contacted the case and machined it deeper.Special Tool: 307-072 Shim Selection GaugeEquipment: Depth Gauge

Courtesy of FORD MOTOR COMPANY
Throughly clean the internal components. Use a soft bristle brush to remove contamination and deposits. Allow parts to air dry. Inspect the components for damage, replace as necessary.

Courtesy of FORD MOTOR COMPANY
Remove the contamination and deposits from the PTU housing and cover using a plastic scraper. Clean the PTU housing and cover using a soft bristle brush to remove the contamination. Clean any remaining lip seal coating that may still be present on the housing or cover bores with a wire brush. Make sure the vent fitting and housing pockets are clean and clear.

Courtesy of FORD MOTOR COMPANY
Inspect the PTU case at the idler gear thrust washer. Some PTUs may have a piloting feature for the washer ID. In this case, using a grinder, remove the raised lip pilot so it is at or slightly below the thrust washer seat. Take care not to damage the thrust washer seat. Remove any metal filings.

Courtesy of FORD MOTOR COMPANY
Some PTUs may have had the idler gear bearing machine itself into the PTU case. The PTU with this condition can be rebuilt. Remove any loose or sharp edges remaining. Make sure there is no raised metal above the thrust washer seat surface.Equipment: Flat File

Courtesy of FORD MOTOR COMPANY
Clean the PTU case and cover flange sealing surfaces. Engine System General Information

Courtesy of FORD MOTOR COMPANY
To begin assembly, lightly coat the output shaft bearings in clean axle lubricant. Install the PTU output shaft into the PTU case.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A

Courtesy of FORD MOTOR COMPANY
Install the new collapsible spacer.

Courtesy of FORD MOTOR COMPANY
Lightly coat with clean axle lubricant and install the outer pinion bearing.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A

Courtesy of FORD MOTOR COMPANY
Install the oil slinger.

Courtesy of FORD MOTOR COMPANY
Using the special tool, install the output shaft seal.Special Tool: 308-430 Installer, PTO Drive Gear Outer Oil Seal

Courtesy of FORD MOTOR COMPANY
NOTE: Install a new output pinion flange and deflector if the output shaft seal mating surface is damaged.

Inspect the output pinion flange and deflector for damage, replace as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the output pinion flange to engage the spline as previously marked.

Install the output pinion flange.

Courtesy of FORD MOTOR COMPANY
Using the special tool to hold the output pinion flange, install a new pinion flange nut.Special Tool: 205-126 Holding Fixture, Drive Pinion FlangeTorque:142 Nm

Courtesy of FORD MOTOR COMPANY
Lightly coat the input shaft bearings and gear with clean axle lubricant. Install the input shaft into the PTU case.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A

Courtesy of FORD MOTOR COMPANY
NOTE: The kit may include a subassembly of the idler gear, bearings, shaft and thrust washer retained by a plastic ring. Remove and discard the ring.

Lightly coat the idler gear, bearings, shaft and thrust washer with clean axle lubricant. Insert the 2 new idler bearings in the idler gear bore (no orientation required). Insert the new idler shaft through bearings. Coat the thrust face in the PTU case with clean axle lubricant and install the idler gear subassembly.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A

Courtesy of FORD MOTOR COMPANY
Lightly coat the ring gear shaft and bearings with clean axle lubricant. Install the ring gear shaft into the PTU case.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A

Courtesy of FORD MOTOR COMPANY
Orient the idler shaft "D" by lightly fitting the cover over it and rotating to the correct position. Remove the cover.

Courtesy of FORD MOTOR COMPANY
Make sure that the mating faces are clean and free of foreign material. Engine System General Information

Courtesy of FORD MOTOR COMPANY
NOTE: If the PTU cover is not installed within 10 minutes of application of the silicone, new sealant must be applied.

Apply a continuous 3-4mm bead of sealant to the inside of the cover flange surface. Make sure there are no gaps in the sealer. Allow to set for 5-10 minutes before installing the cover.Material: Silicone Sealant -

Courtesy of FORD MOTOR COMPANY
Noting the two dowels and the idler gear shaft orientation, carefully install cover and hand start the bolts. Tighten the bolts in 2 stages per sequence shown.Torque:Stage 1: 37 NmStage 2: 47 Nm

Courtesy of FORD MOTOR COMPANY

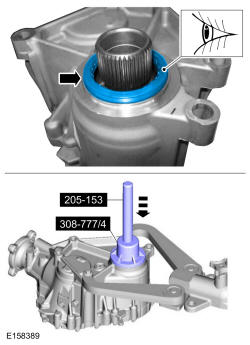

NOTE: Position the inner seal above the PTU input shaft opening with the spring facing toward the PTU.

Using the special tools, install the seal.Special Tool: 205-153 HandleSpecial Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY

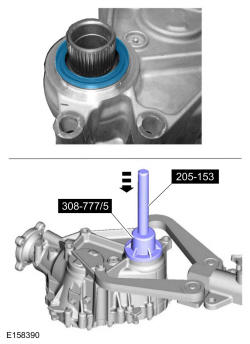

NOTE: Position the outer seal above the PTU input shaft opening with the spring facing away from the PTU.

Using the special tools, install the seal.Special Tool: 205-153 HandleSpecial Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY
Install the new compression seal.Special Tool: 205-153 HandleSpecial Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

Courtesy of FORD MOTOR COMPANY
Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal cover seal.Special Tool: 308-221 Installer, Shaft Bearing CupSpecial Tool: 308-431 Installer, Halfshaft Oil SealSpecial Tool: 205-153 Handle

Courtesy of FORD MOTOR COMPANY
Place the intermediate shaft seal on the special tools with the spring side facing away from the tool.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the intermediate shaft seal.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal

Courtesy of FORD MOTOR COMPANY
Place the alignment washer on the special tool.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use force when installing the alignment washer or damage to the washer can occur.

Using the special tool, install the alignment washer by hand, pushing it in until it bottoms against the seal.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal

Courtesy of FORD MOTOR COMPANY
NOTE: Do not overheat (melt) the seal deflector. Monitor the temperature of the deflector with a suitable temperature measuring device, such as a digital temperature laser or infrared thermometer, while heating. Do not allow the temperature to exceed 100 ° C (212 ° F). Overheating will damage the deflector. If the deflector is damaged, a new deflector must be used.

NOTE: As an alternative method to heating the seal deflector, place the deflector in boiling water for 3 to 5 minutes. Dry off the deflector and install.

Position the deflector on the special tool using silicone brake caliper grease and dielectric compound to retain it to the installer. Using a suitable heat gun, heat the back of the tool to a minimum of 71 ° C (160 ° F) and a maximum of 93 ° C (200 ° F) by concentrating the heat across the back of the installer while rotating the tool. Once the optimum temperature is achieved on the tool, move the heat gun to the front of the tool and heat the inside of the deflector where it snaps onto the PTU shaft until the temperature of the deflector is a minimum of 93 ° C (200 ° F) to a maximum of 100 ° C (212 ° F).Special Tool: 205-346 Installer, Front Axle BushingSpecial Tool: 205-153 HandleMaterial: Grease - Silicone ESE-M1C171-A

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the intermediate shaft deflector.Special Tool: 205-346 Installer, Front Axle BushingSpecial Tool: 205-153 Handle

Courtesy of FORD MOTOR COMPANY
Make sure the deflector is completely seated all the way around and there are no cracks on the face. The deflector is correctly installed when the face of the deflector is recessed 3-5 mm (0.12-0.20 in) into the pocket all the way around.

Courtesy of FORD MOTOR COMPANY
Install the PTU drain plug.Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY

Vehicles with PTU cooler
Install the PTU cooler housing gasket.

Courtesy of FORD MOTOR COMPANY
Clean the PTU cooler housing.

Courtesy of FORD MOTOR COMPANY
Install the PTU cooler housing and the PTU cooler housing bolts. The PTU temperature sensor, heat shield and bolts will be installed after the fluid fill.Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY

Vehicles without PTU cooler
NOTE: Install a new O-ring before installing the PTU temperature sensor.

Using a new O-ring, install the PTU temperature sensor and the temperature sensor wiring retainer clip.Torque: 14 Nm

Courtesy of FORD MOTOR COMPANY
Install the PTU temperature sensor heat shield and the bolts.Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY

All Vehicles
Install the temperature sensor clip bracket.Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
Install the PTU.
