Input Shaft Seal: Installation

  1. Clean the specified component with the special material. Visual check.
    GFD94264Courtesy of FORD MOTOR COMPANY
  2. Visual check.Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/4, Handle 205-153 (T80T-4000-W).
    GFD94265Courtesy of FORD MOTOR COMPANY

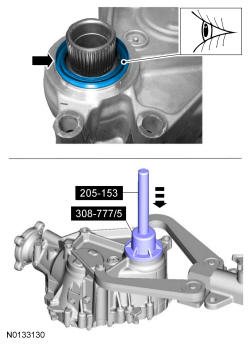

  3. Visual check.Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/5, Handle 205-153 (T80T-4000-W).
    GFD94266Courtesy of FORD MOTOR COMPANY
  4. New compression seal.
    GFD94267Courtesy of FORD MOTOR COMPANY
  5. Install the PTU. Refer to Power Transfer Unit (PTU) - 3.7L  or Power Transfer Unit (PTU) - 3.5L GTDI .
  6. Fill the PTU as necessary. Refer to Power Transfer Unit (PTU) Draining and Filling .
