Axle Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Rear Drive Unit(RDU) with stamped steel differential cover shown, RDU with aluminum cover similar.

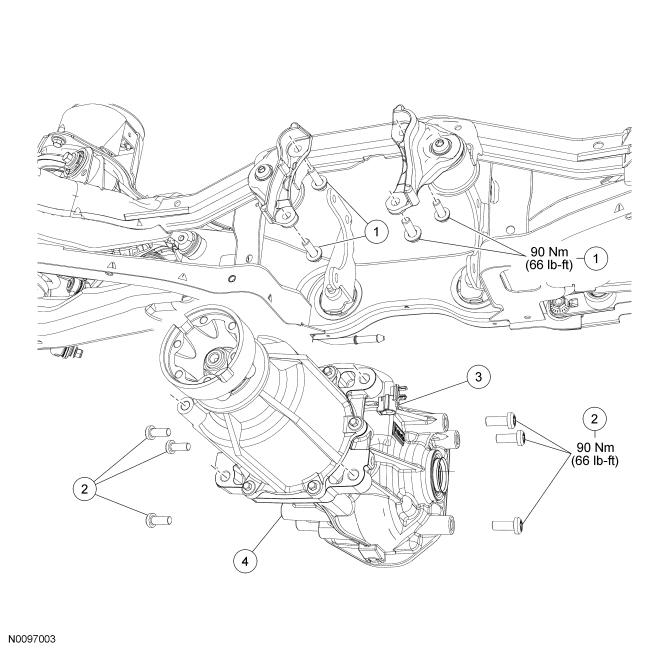

Fig 1: Exploded View Of Rear Axle Assembly With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W713482	Differential housing-to-front insulator bracket bolts (4 required)
2	W709862	Side insulator bracket-to-rear axle differential bolts (6 required) (aluminum rear cover)
2	W716158	Side insulator bracket-to-rear axle differential bolts (6 required) (stamped steel rear cover)
3	-	Active Torque Coupling(ATC) electrical connector (part of 4000)
4	4000	Rear axle assembly
