Selector Lever Cable Adjustment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

1. Remove the air cleaner. Refer to: Air Cleaner 2.7L EcoBoost (238kW/324PS) , Removal and Installation). Refer to: Air Cleaner 3.7L Duratec (227kW/301PS) .

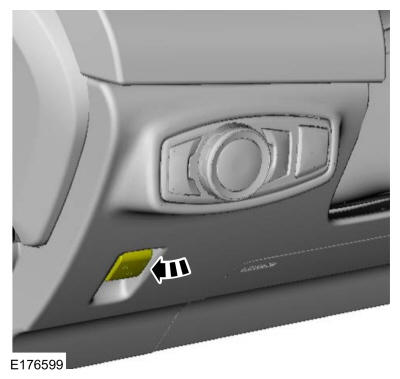

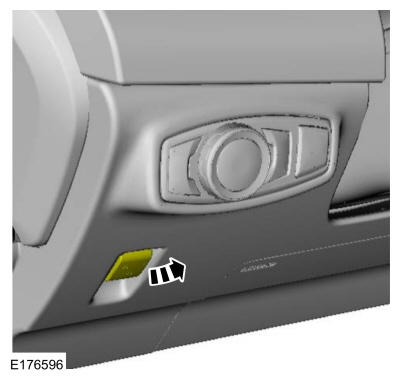

2. Apply the parking brake.

   Courtesy of FORD MOTOR COMPANY

3. Using the diagnostic scan tool select the cable adjustment mode.
4. NOTE: The GSM will alternate flashing D or N and S simultaneously.

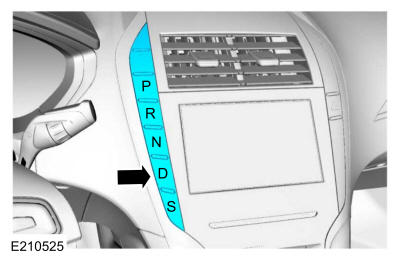

   Press D on the GSM.

   Courtesy of FORD MOTOR COMPANY

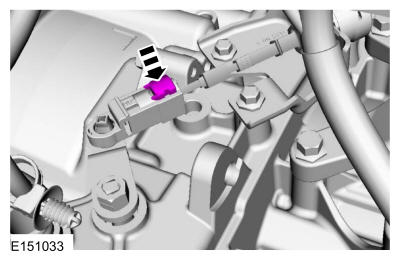

5. Disconnect the selector lever cable end from the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Verify D is illuminated on the IPC.

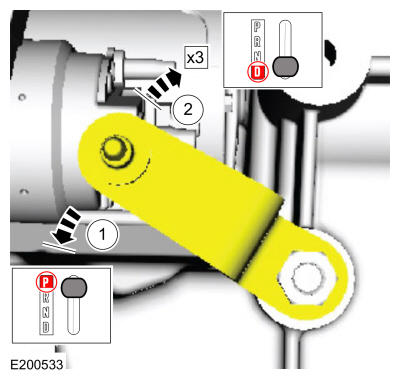

   1. Rotate the manual control lever counterclockwise until it stops.
   2. Rotate the manual control lever clockwise 3 detents into D.

   Courtesy of FORD MOTOR COMPANY

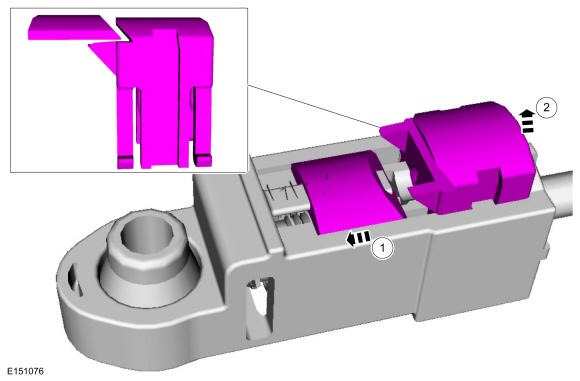

7. Unlock the adjuster.
   1. Move the slide to the left.
   2. While holding the slide, position the adjuster lock upward.

   Courtesy of FORD MOTOR COMPANY

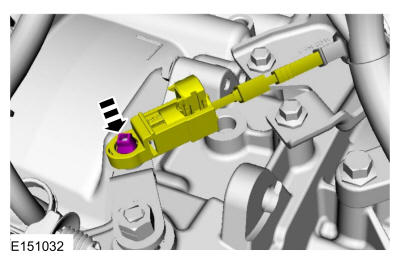

8. Connect the selector lever cable end to the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

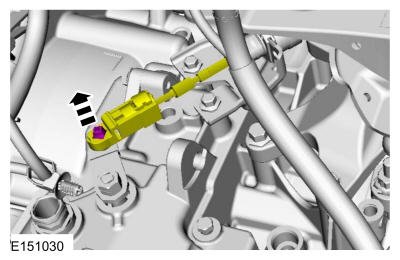

9. Snap the adjuster lock into place.

   Courtesy of FORD MOTOR COMPANY

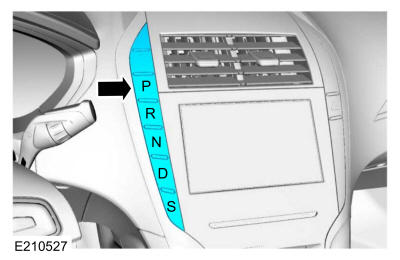

10. Press P on the GSM.

    Courtesy of FORD MOTOR COMPANY

11. Install the air cleaner. Refer to: Air Cleaner 2.7L EcoBoost (238kW/324PS) . Refer to: Air Cleaner 3.7L Duratec (227kW/301PS) .
12. Clear any DTC.
13. Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.
14. Check for DTC.
15. Disconnect the scan tool.
16. Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R.
17. Release the parking brake.
