Removal And Installation

  1. 1.

    Remove the driver air bag module. Refer to Supplemental Restraint System .

  1. 2.

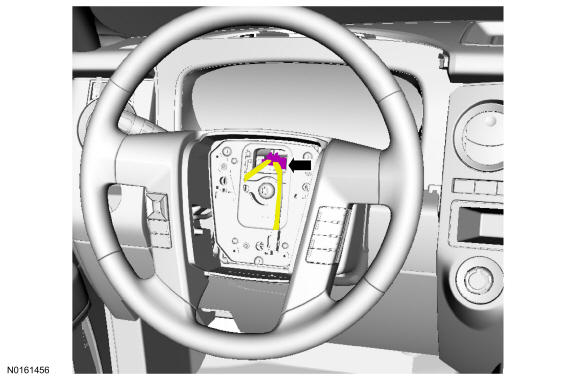

    Disconnect the steering wheel switch electrical connectors.
GFD134952Courtesy of FORD MOTOR COMPANY

  1. 3.

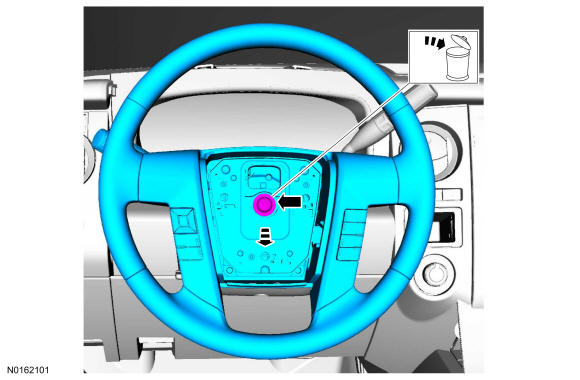

    Remove the bolt and the steering wheel.
    • To install, tighten the new bolt to 48 Nm (35 lb-ft).
GFD134953Courtesy of FORD MOTOR COMPANY

  1. 4.

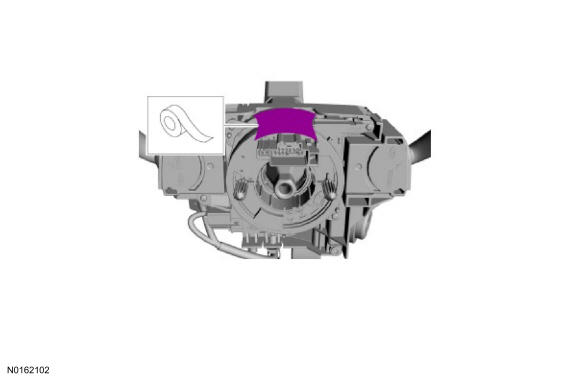

    Tape the clockspring rotor to the outer housing to keep it from rotating.
GFD134954Courtesy of FORD MOTOR COMPANY

  1. 5.

    To install, reverse the removal procedure.
