Head Restraint Guide Sleeve: Removal

NOTE: Typical head restraint guide sleeve shown, others similar.

1.

Depress the locking tabs and remove the head restraint.

GFD137547

Courtesy of FORD MOTOR COMPANY

2.

NOTE: When a head restraint guide sleeve has been removed from a seat, a new head restraint guide sleeve must be installed.

NOTE: Follow the unique instructions or graphic for this step in the installation

Remove the head restraint guide sleeve in the following sequence:
1. 1.

  Using the screwdriver, press the head restraint guide sleeve retaining tab inward approximately 5 mm (0.2 in).
1. 2.

  While pressing the head restraint guide sleeve retaining tab inward, pull upward on the head restraint guide sleeve and remove it from the backrest frame crossmember.

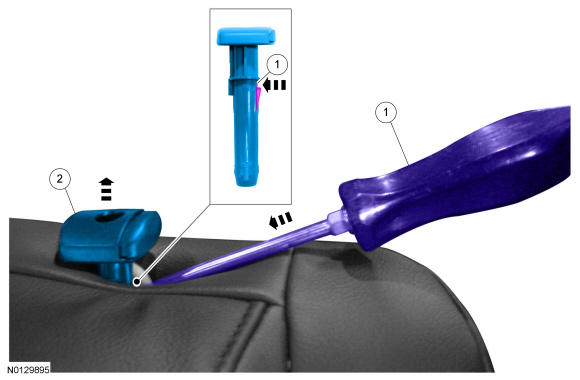

GFD137548
