OEM Ground Distribution: Grounds

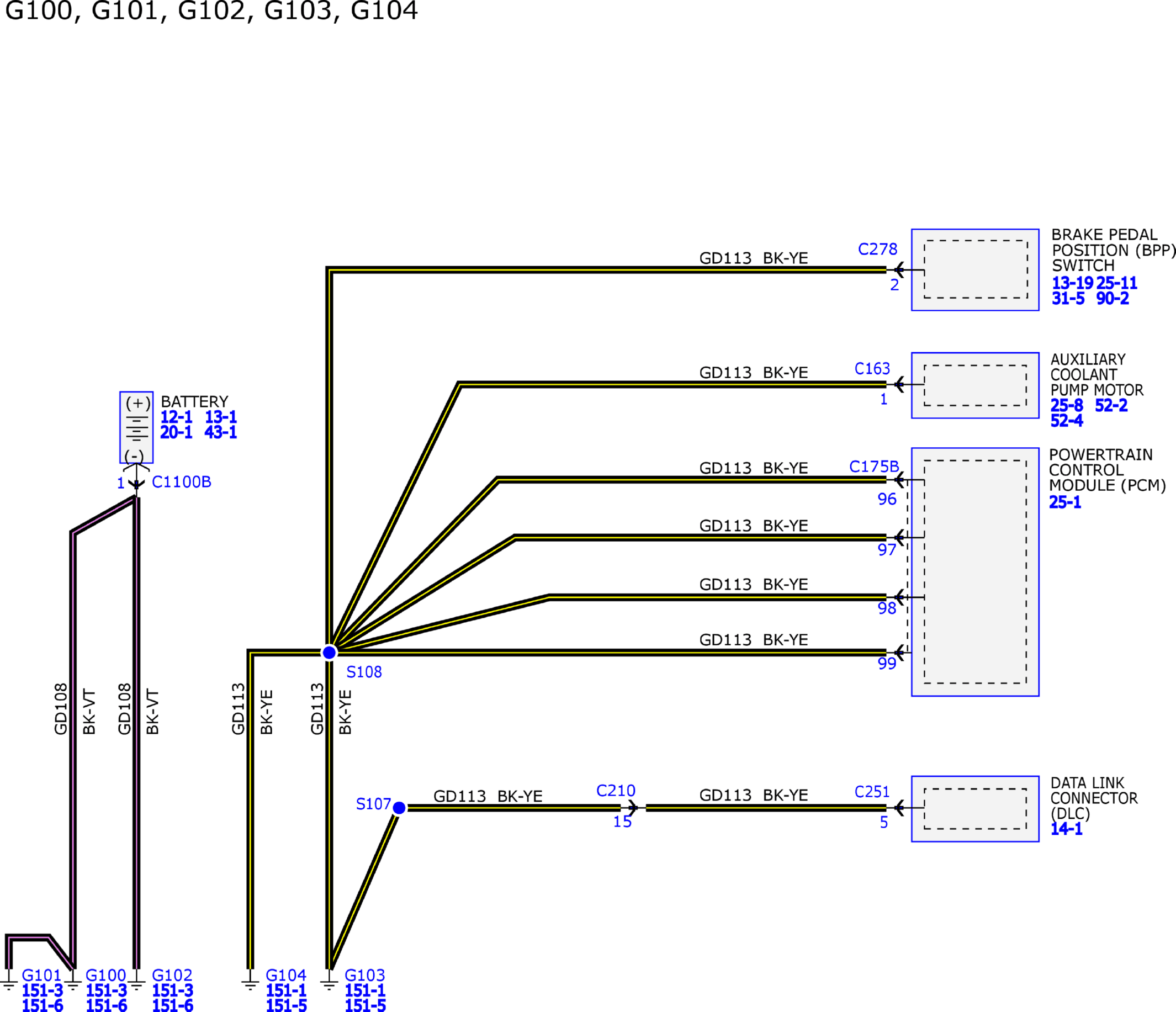

GFDW59938Courtesy of FORD MOTOR COMPANY

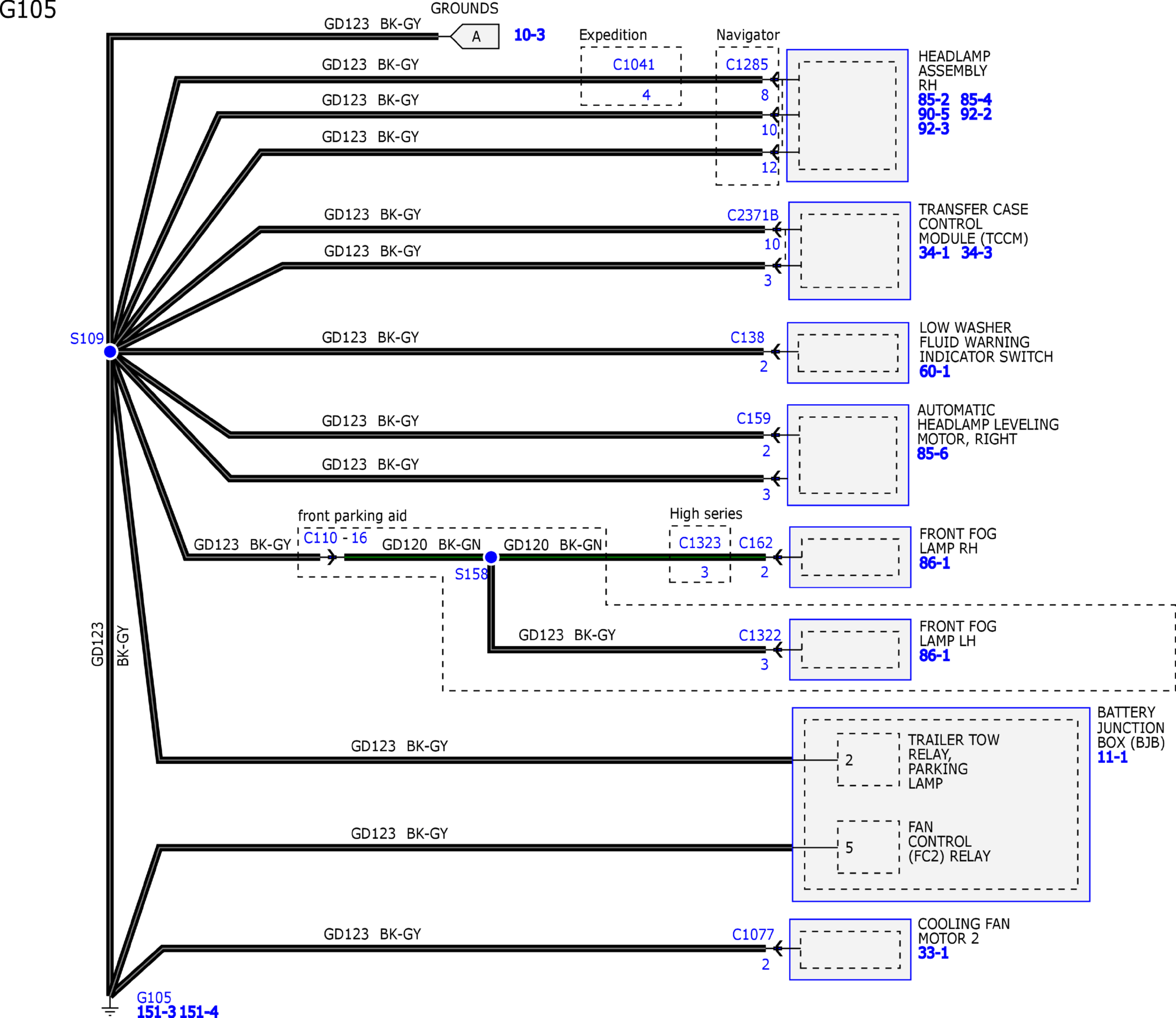

GFDW59939Courtesy of FORD MOTOR COMPANY

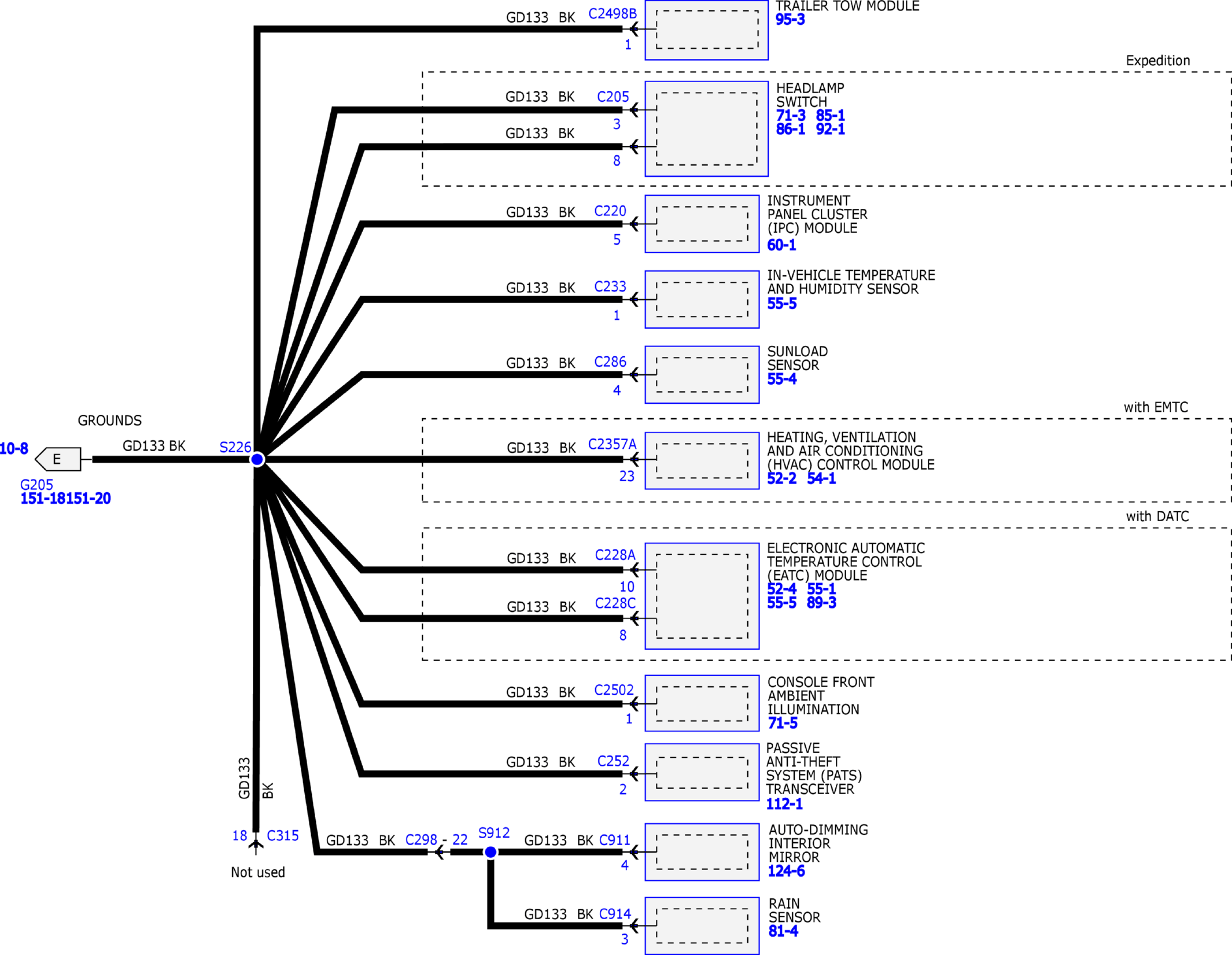

GFDW59940Courtesy of FORD MOTOR COMPANY

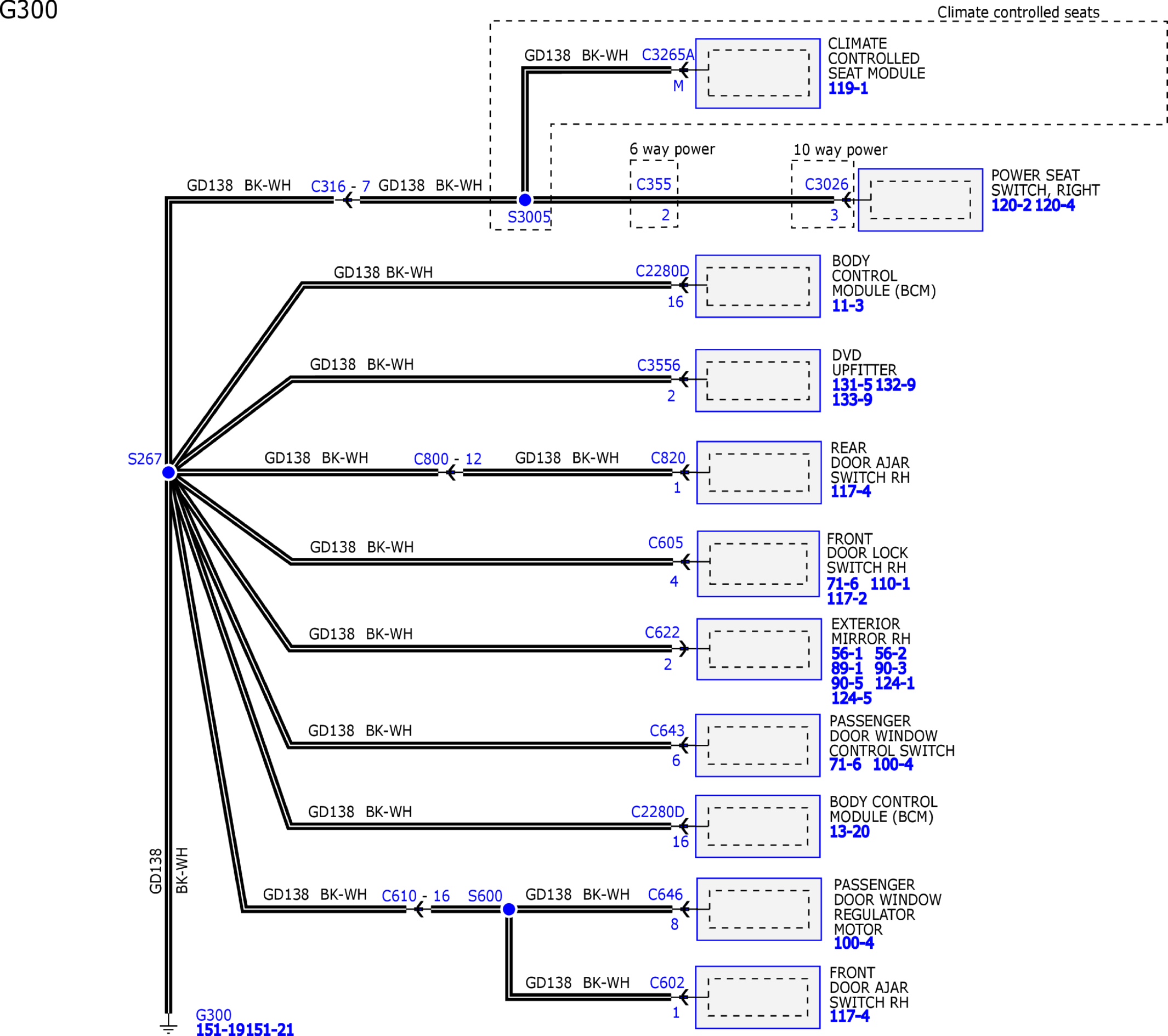

GFDW59941Courtesy of FORD MOTOR COMPANY

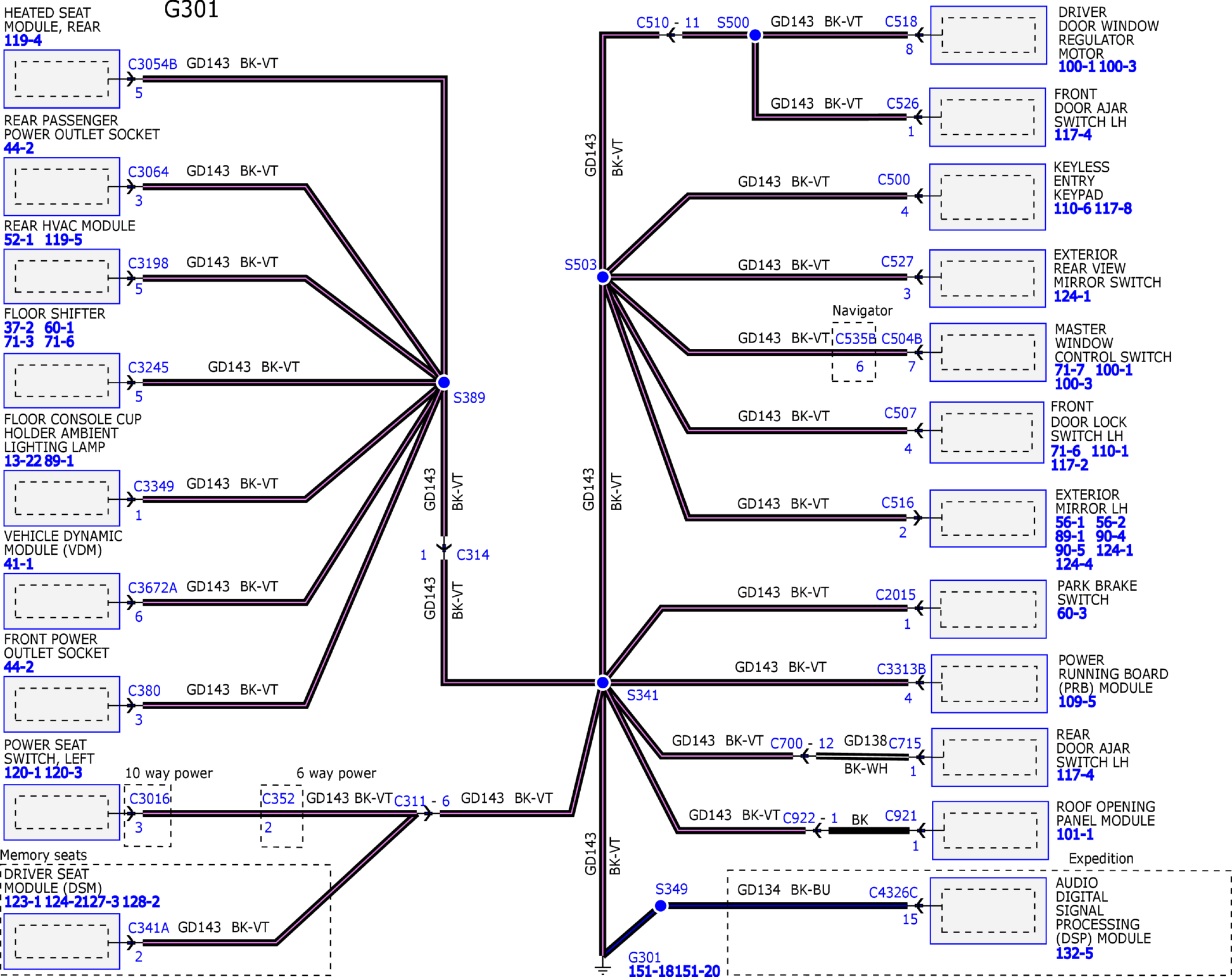

GFDW59942Courtesy of FORD MOTOR COMPANY

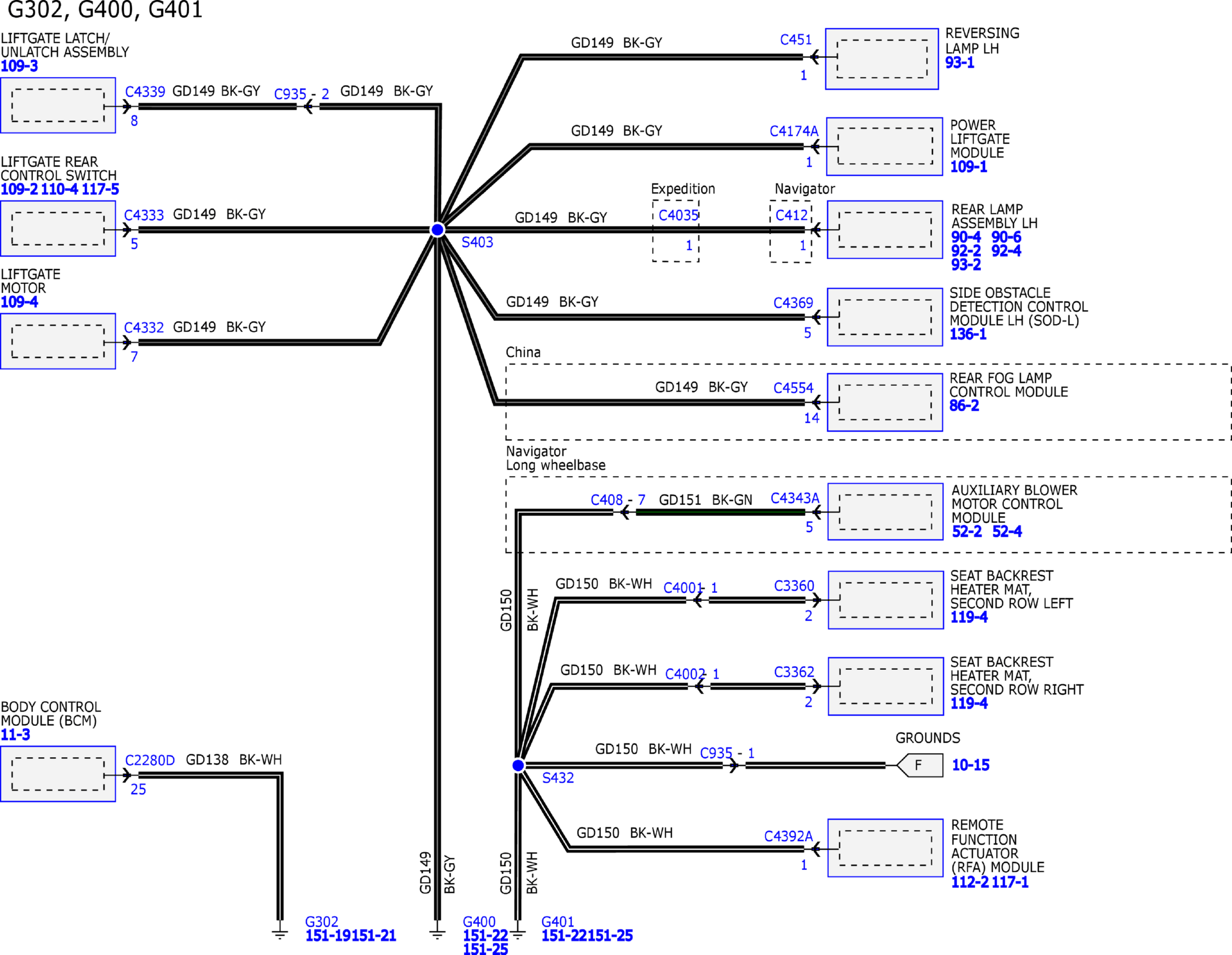

GFDW59943Courtesy of FORD MOTOR COMPANY

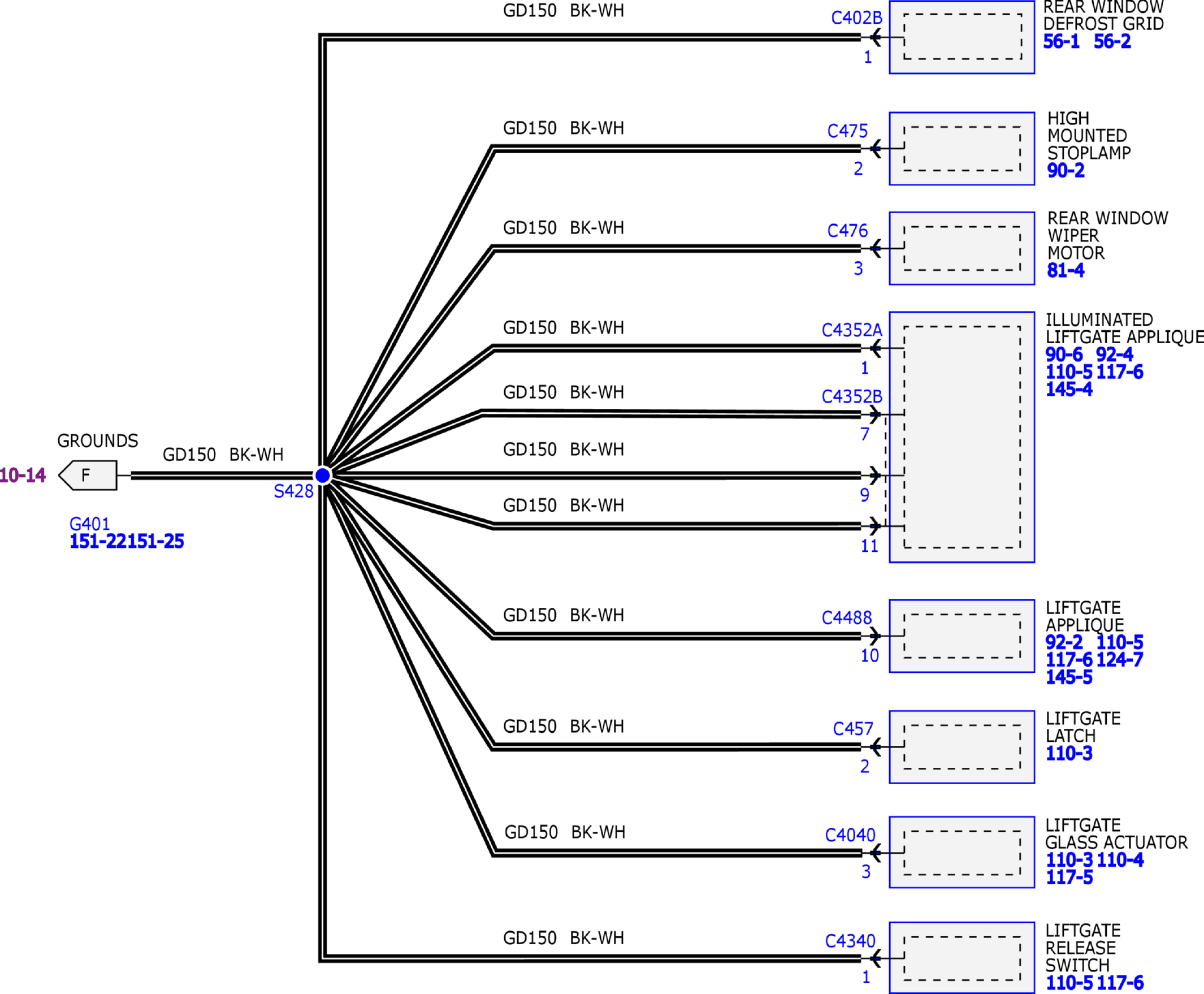

GFDW59944Courtesy of FORD MOTOR COMPANY

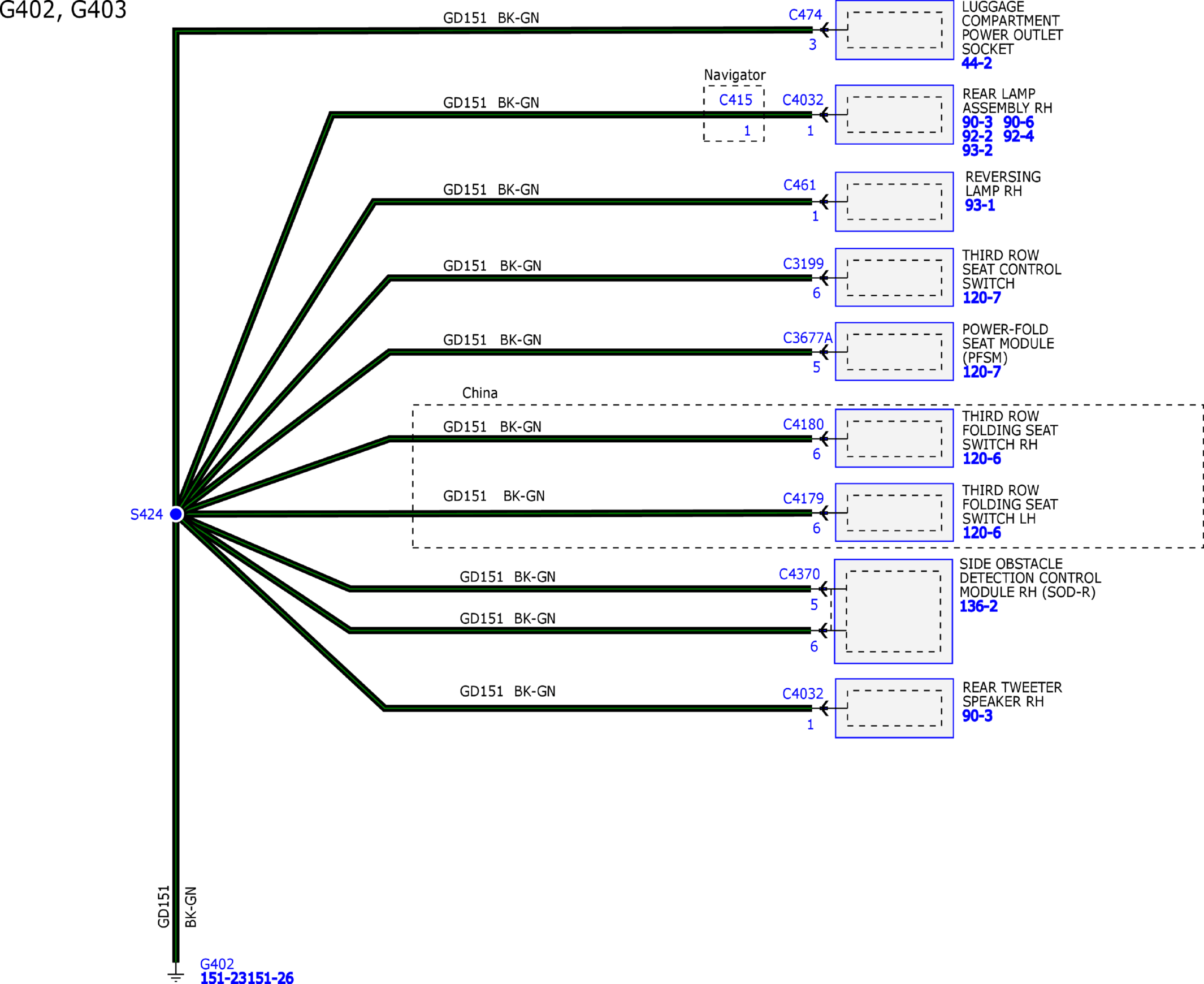

GFDW59945Courtesy of FORD MOTOR COMPANY

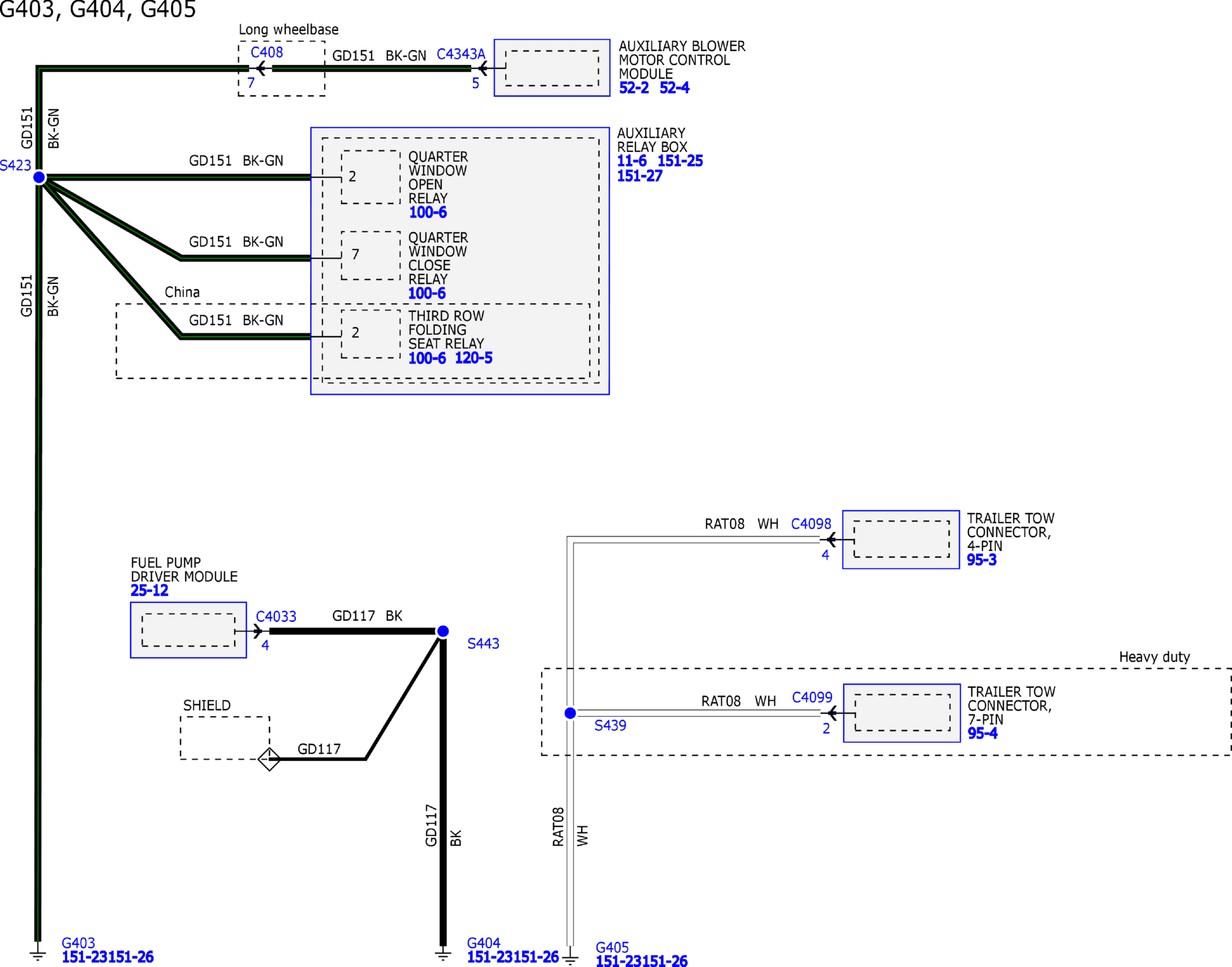

GFDW59946Courtesy of FORD MOTOR COMPANY

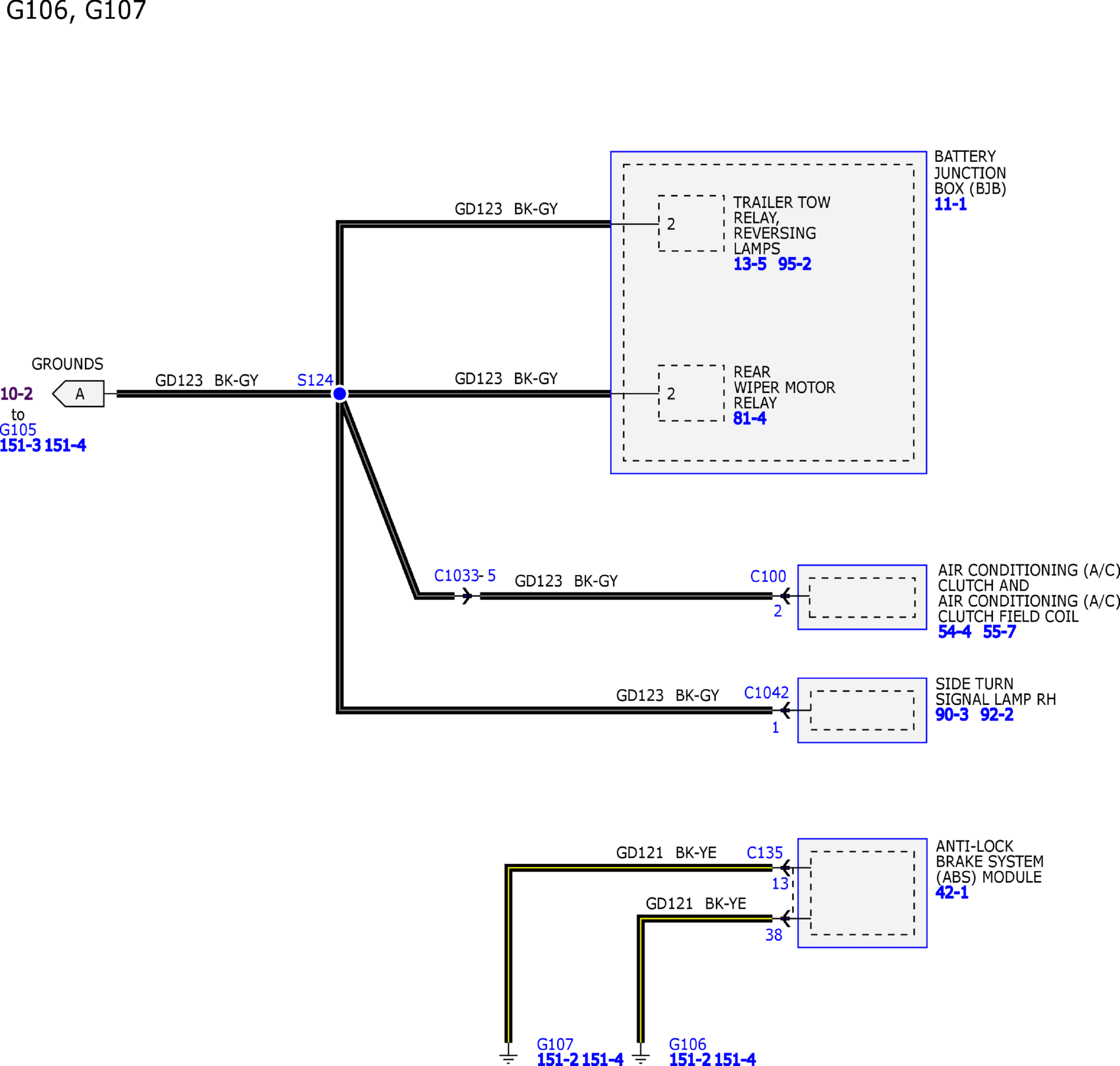

GFDW59947Courtesy of FORD MOTOR COMPANY

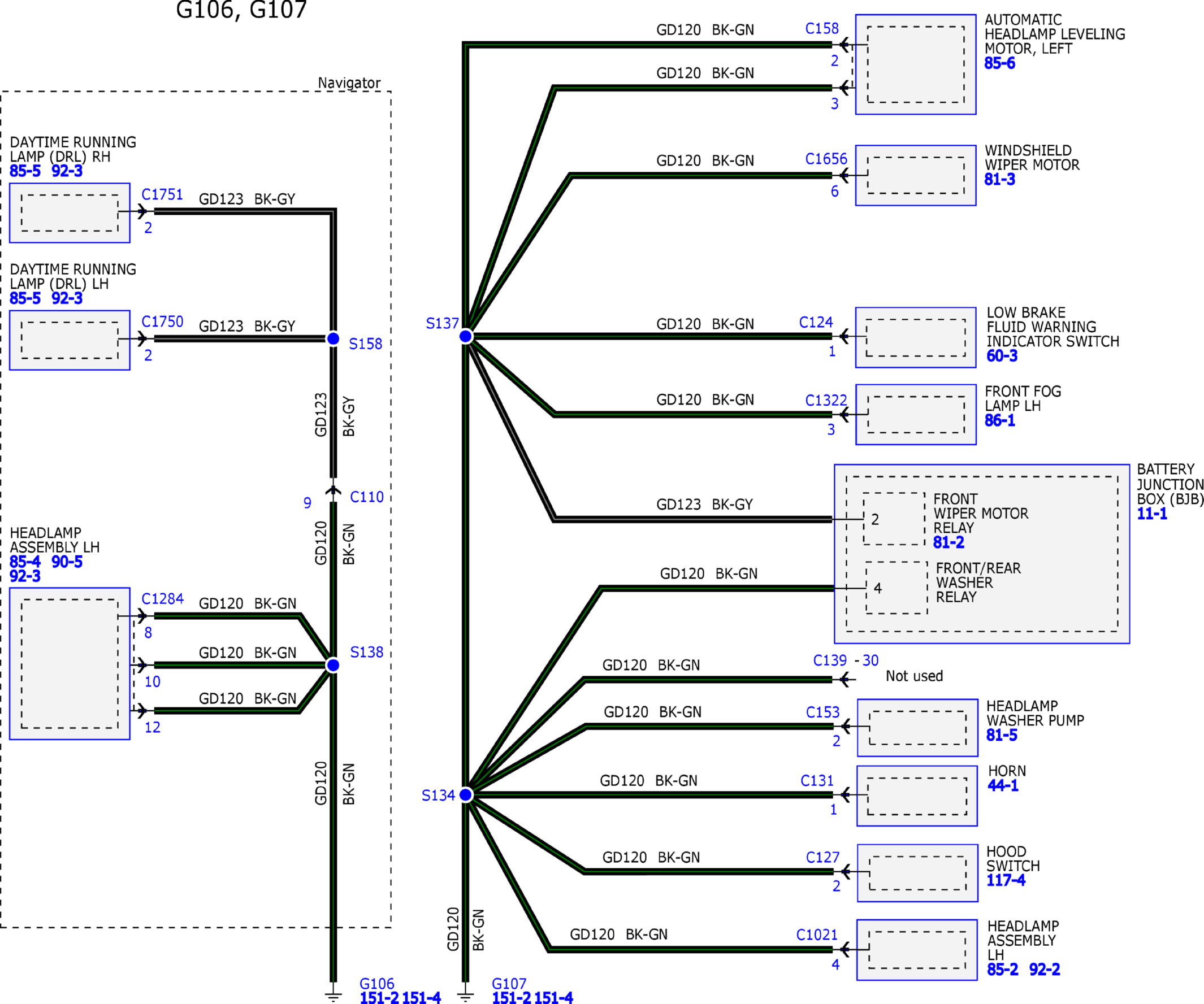

GFDW59948Courtesy of FORD MOTOR COMPANY

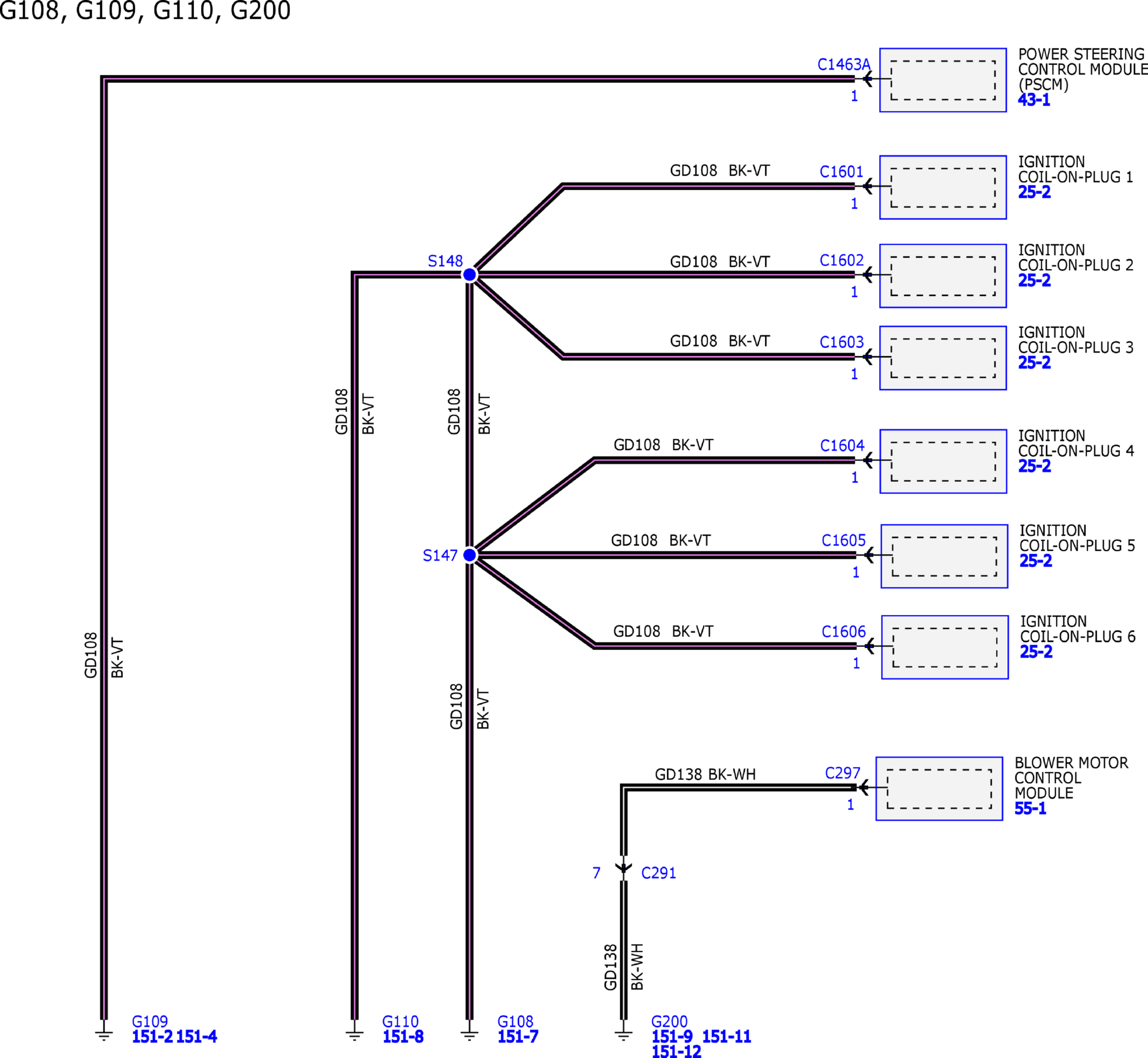

GFDW59949Courtesy of FORD MOTOR COMPANY

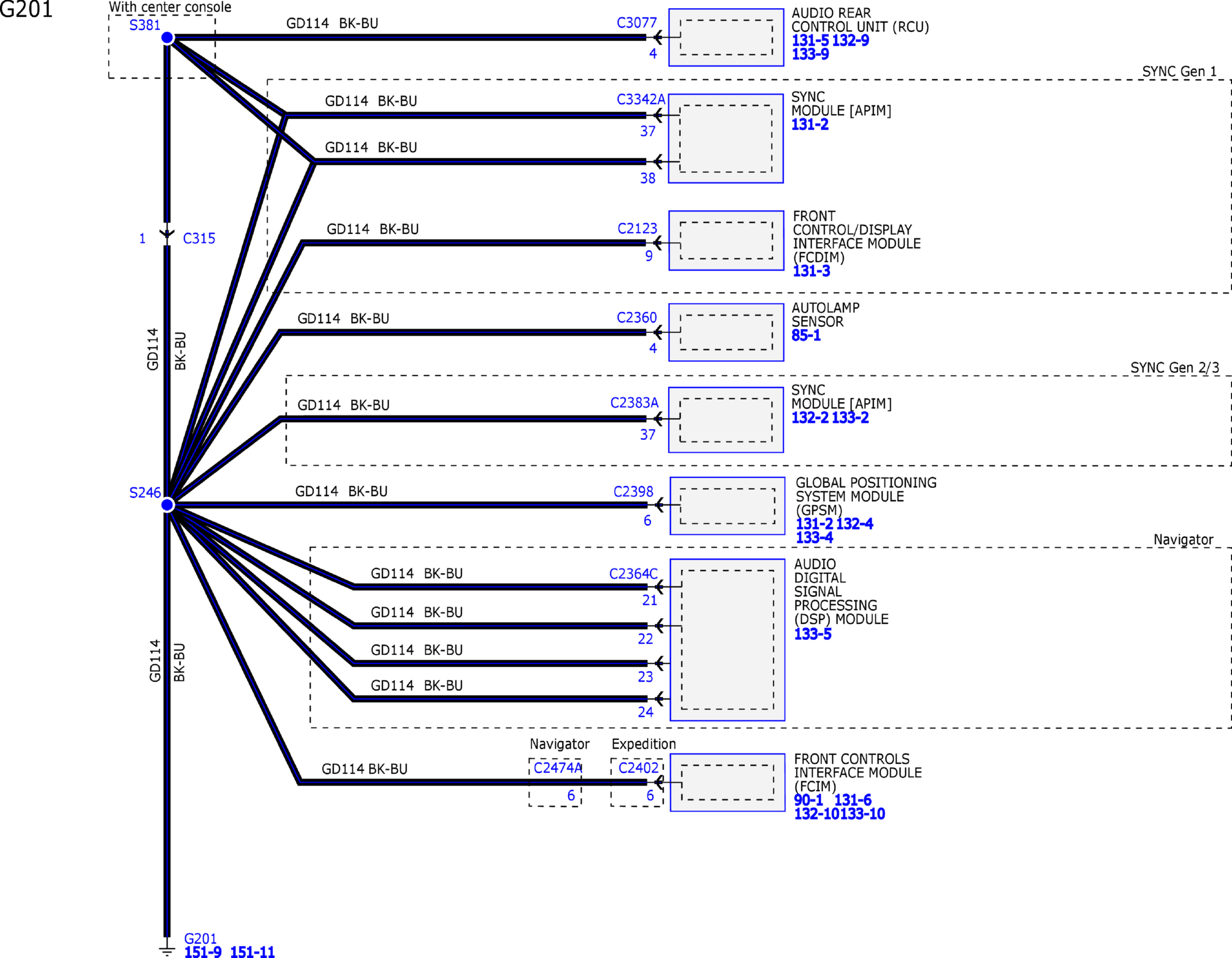

GFDW59950Courtesy of FORD MOTOR COMPANY

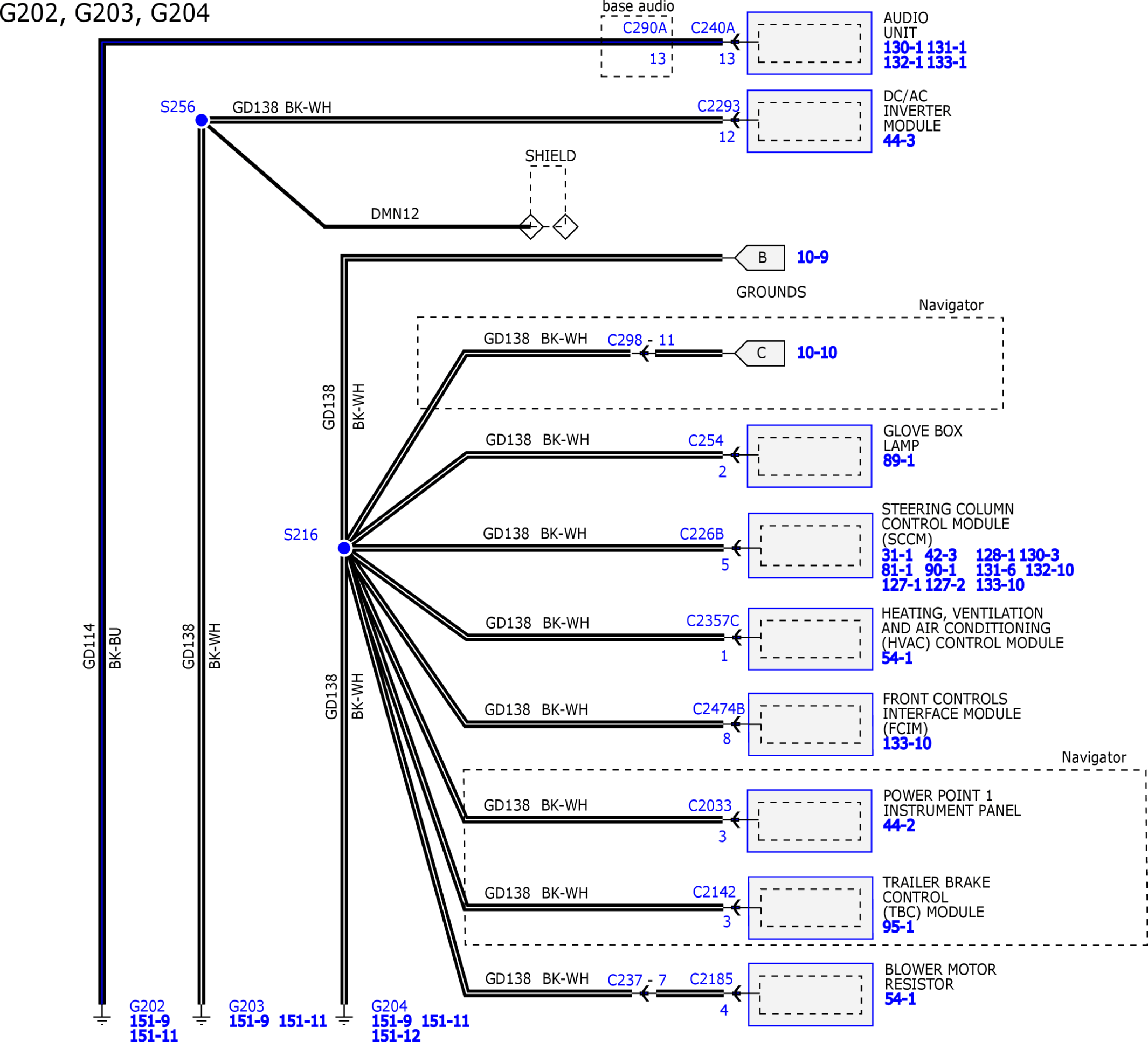

GFDW59951Courtesy of FORD MOTOR COMPANY

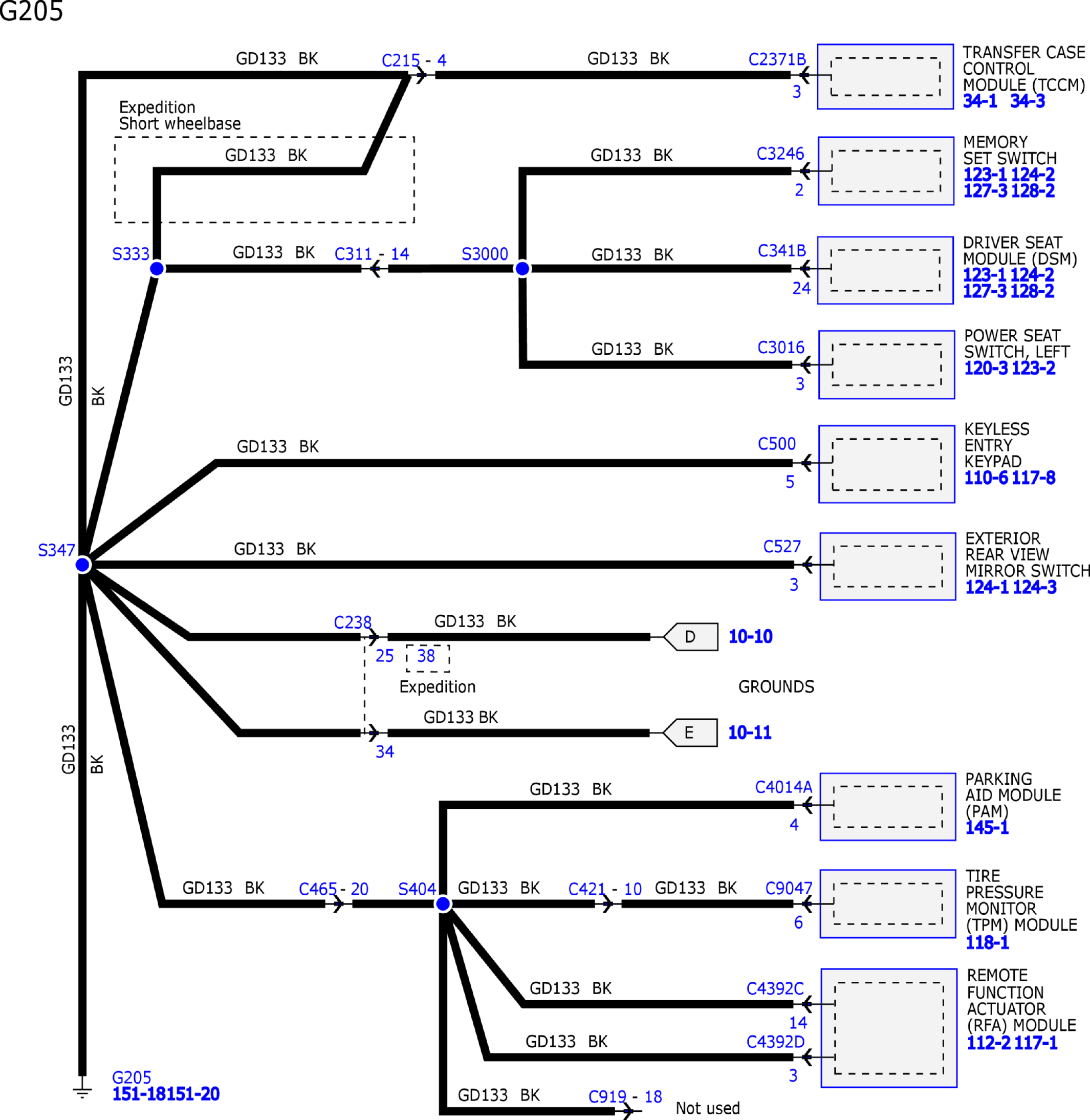

GFDW59952Courtesy of FORD MOTOR COMPANY

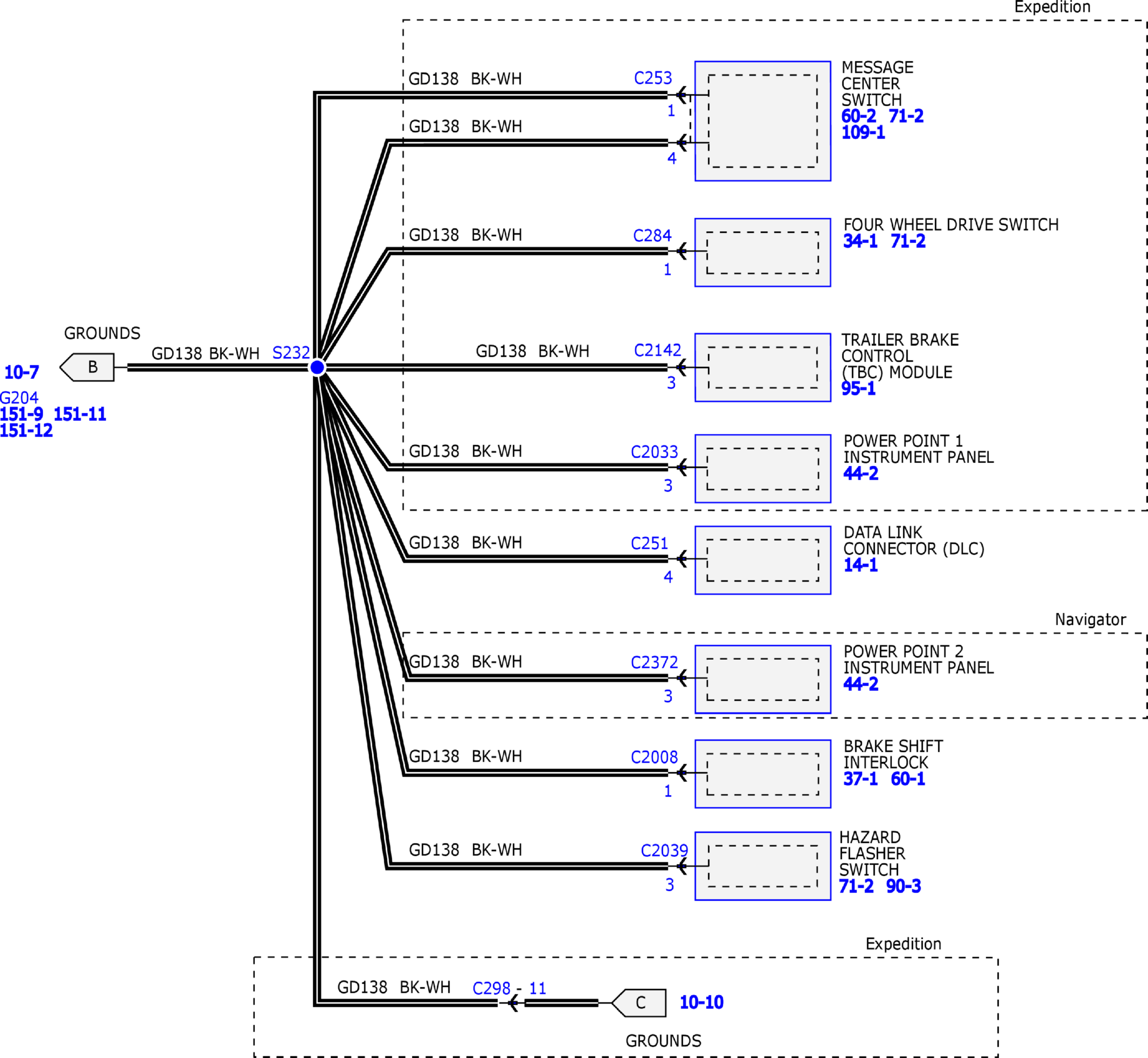

GFDW59953Courtesy of FORD MOTOR COMPANY

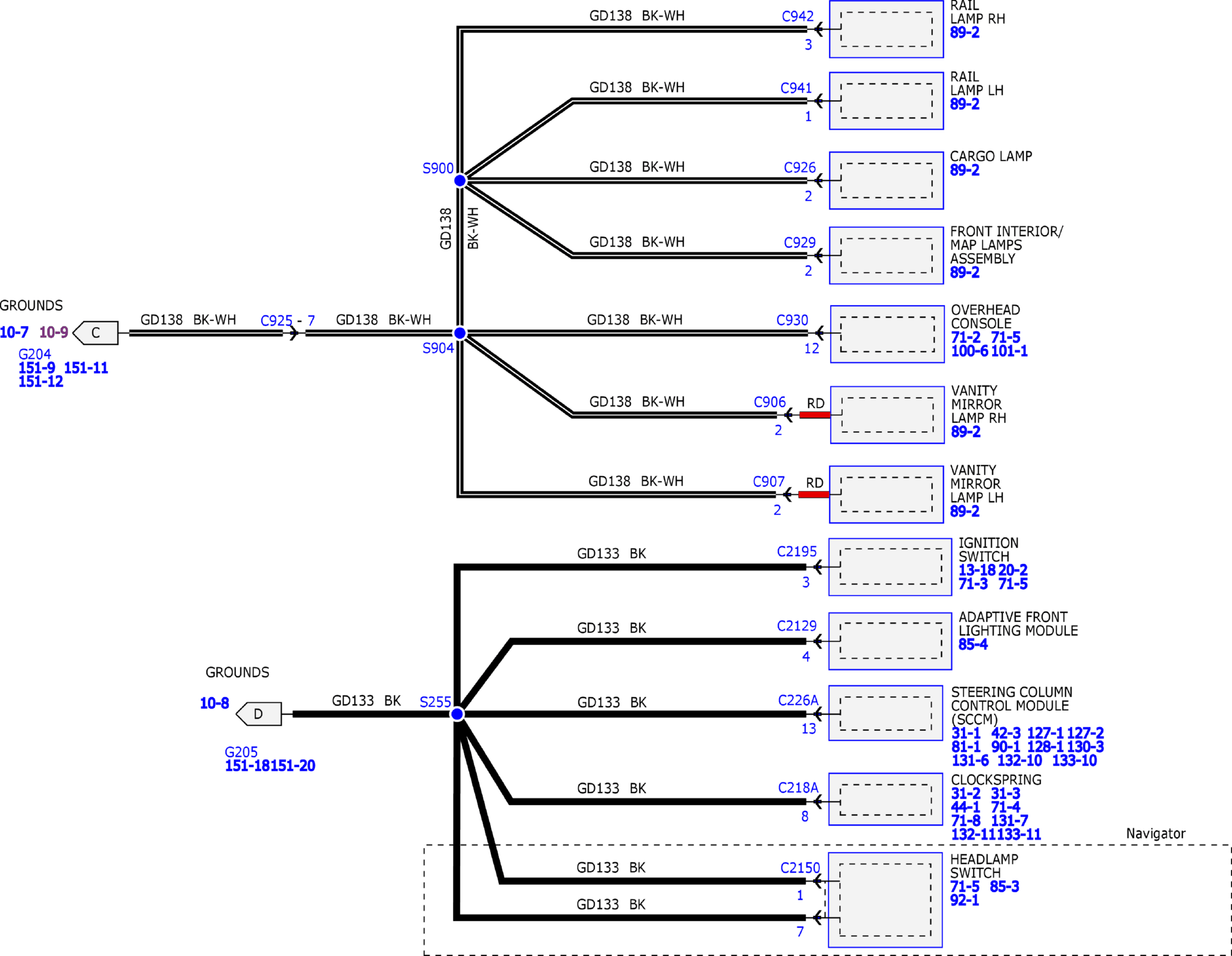

GFDW59954Courtesy of FORD MOTOR COMPANY
