Low/Reverse Clutch Assembly: Assembly

Low/reverse piston

  1. 1.

    Install new low/reverse outer piston O-ring seal.
GFD136269Courtesy of FORD MOTOR COMPANY

  1. 2.

    Install new low/reverse drum O-ring seal.
GFD136270Courtesy of FORD MOTOR COMPANY

  1. 3.

    Lubricate the O-ring seal with clean transmission fluid. Align the alignment tab on the piston with the groove in the center support and install the low/reverse piston.
GFD136271Courtesy of FORD MOTOR COMPANY

  1. 4.

    Install the low/reverse clutch return spring.
GFD136267Courtesy of FORD MOTOR COMPANY

  1. 5.

    Install a new low/reverse clutch return spring retainer. Align the alignment tab on the retainer with the groove in the center support and install the low/reverse piston return spring retainer.
GFD136272Courtesy of FORD MOTOR COMPANY

  1. 6.

    Using the Clutch Spring Compressor, compress the low/reverse clutch return spring and install the retaining ring.
GFD136265Courtesy of FORD MOTOR COMPANY

Low/reverse clutch stackup

  1. 7.

    NOTE: All low/reverse clutch plates, friction and steel are of a wave-type design.

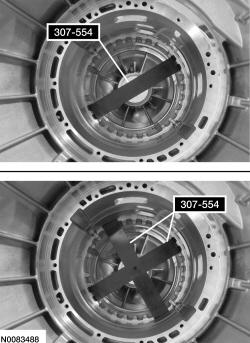

    Install the D-Clutch Measurement Gauge into the case.

GFD136273Courtesy of FORD MOTOR COMPANY

  1. 8.

    With the D-Clutch Measurement Gauge positioned in the case, use the Depth Micrometer to measure the case stop depth.
    Description Reading
    Measure the distance from the top of the upper gauge bar to the top of the lower gauge bar. Record this reading as the case measurement. Record as reading A.
GFD136274Courtesy of FORD MOTOR COMPANY

  1. 9.

    Measure the clutch pack height.
    Description Reading
    A. Place the low/reverse clutch pack on the Clutch End Play Gauge with the wave spring down and the pressure plate on top. Using the Dial Indicator Gauge with Holding Fixture, place the plunger on the pressure plate. Slide the clutch to the side so the plunger of the Dial Indicator is touching the gauge plate of the Clutch End Play Gauge. Zero out the Dial Indicator Gauge.
    B. Carefully lift the plunger enough to slide the clutch pack under the plunger to take a reading. Record this reading. Rotate the clutch pack 180 degrees and take a second reading. Add the first and second readings together and divide the total by 2. Record this reading as B.
GFD136275Courtesy of FORD MOTOR COMPANY

  1. 10.

    Using the Depth Micrometer, measure the piston to center support shoulder height.
    Description Reading
    Measure the piston to center support shoulder height. Record this measurement. Rotate the center support 180 degrees and record this measurement. Add the first and the second measurements, then divide by 2. Record this as reading C.
GFD136276Courtesy of FORD MOTOR COMPANY

  1. 11.

    Calculate the end clearance.
    Description Reading
    Subtract B and C from A to determine end clearance
    Total C measurement
    End clearance specification 1.0-1.6 mm (0.039-0.062 in)

    Compare the end clearance to the specification. If the end clearance is out of specification, select the next thinner or thicker plate as required and repeat Steps 10, 11 and 12.
