Seat Control Switch, 6-Way - Left

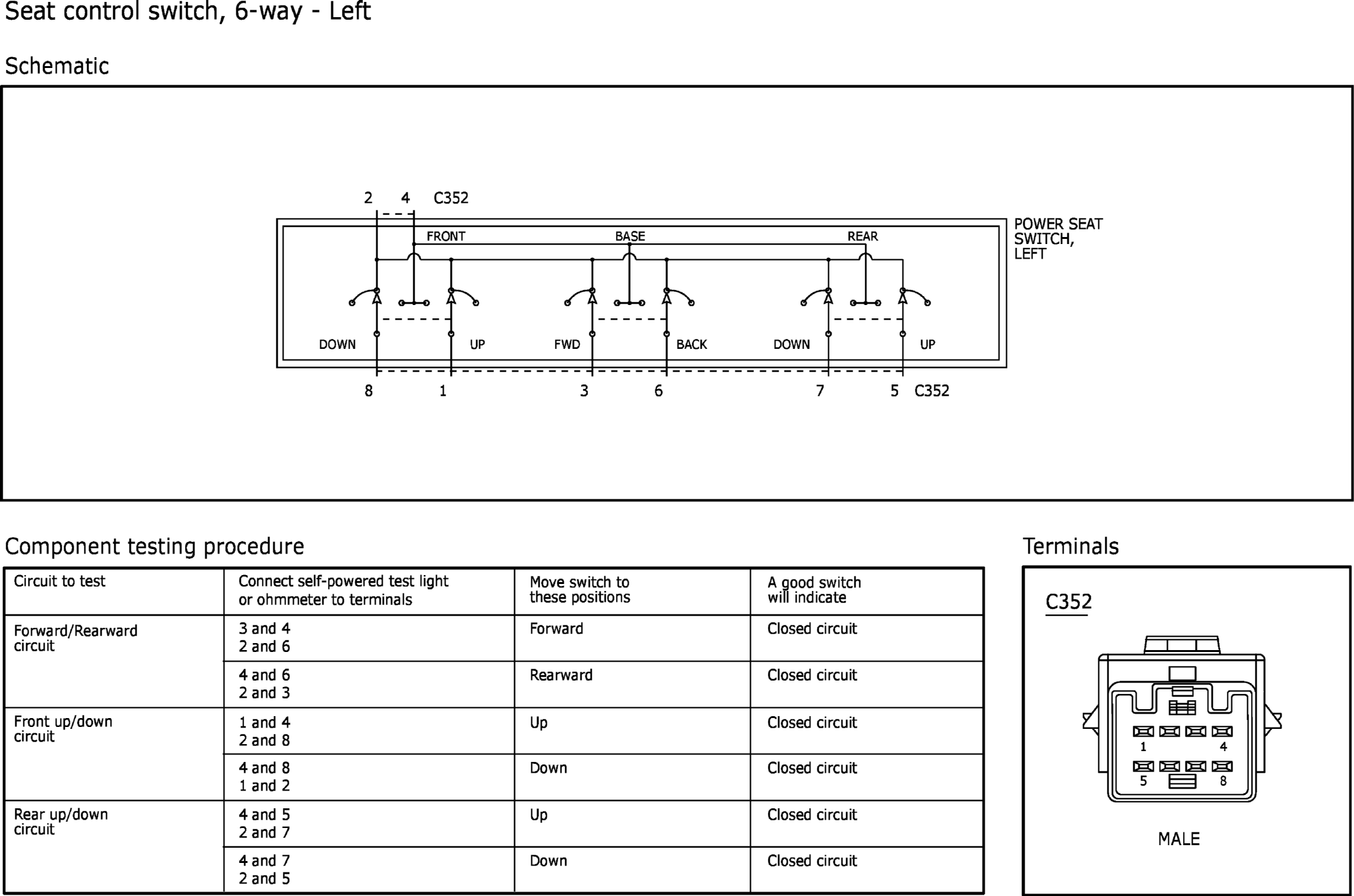

Fig 1: Seat Control Switch, 6-Way - Left
GFDW60245Courtesy of FORD MOTOR COMPANY
