Third Row Power-Fold Seat Switch, Left

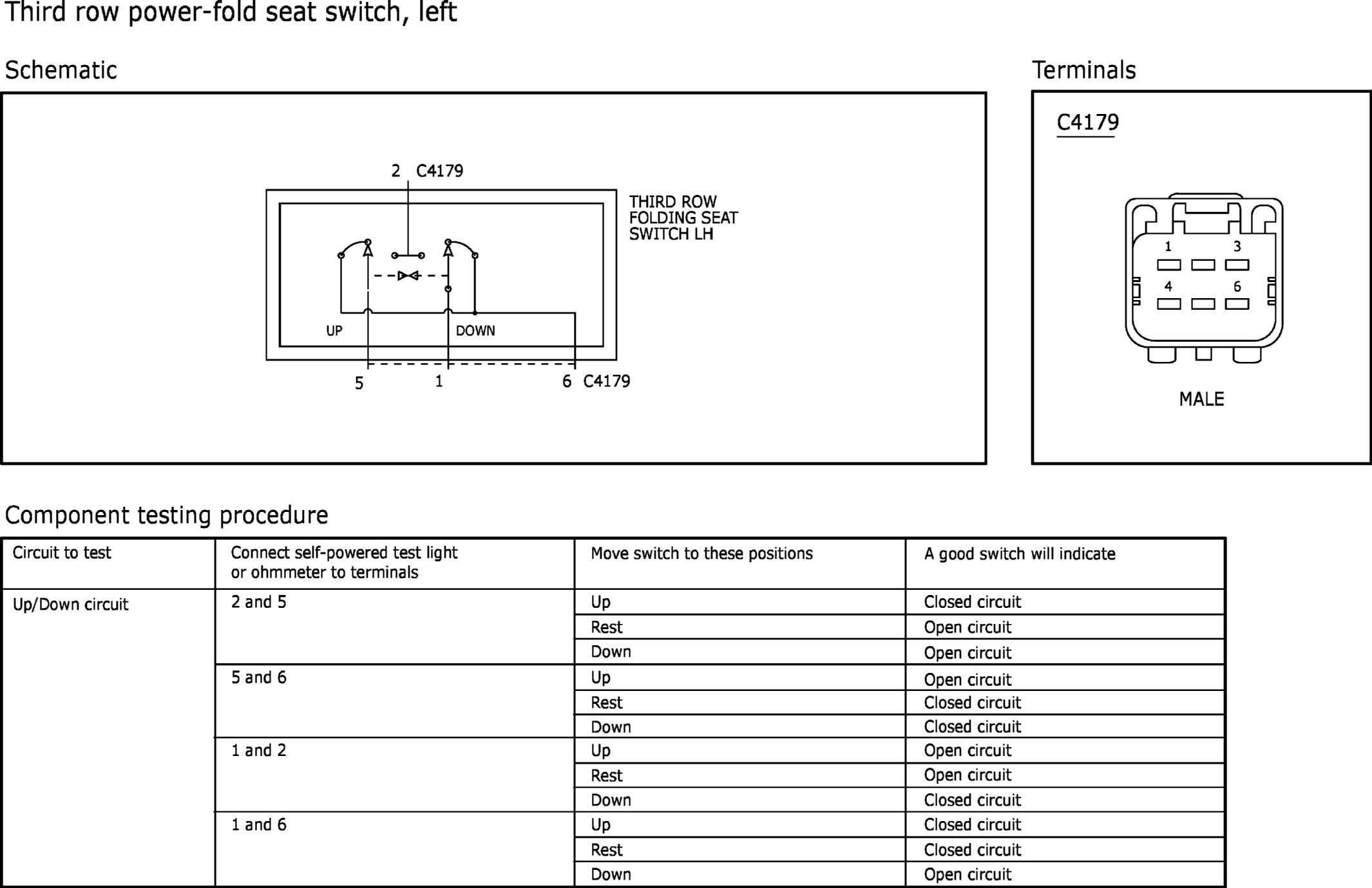

Fig 1: Third Row Power-Fold Seat Switch, Left
GFDW60230Courtesy of FORD MOTOR COMPANY
