Main Control Assembly
The hydraulic system of this transmission includes the fluid pump, a main control assembly and fluid passages in the transmission case and center support to apply the clutches.
The main control assembly has an upper valve body assembly, a separator plate and a lower valve body assembly. The lower valve body assembly has 7 solenoids to control the valves in the main control.
The TSS, OSS, TR and TFT sensors are all part of the main control assembly leadframe.

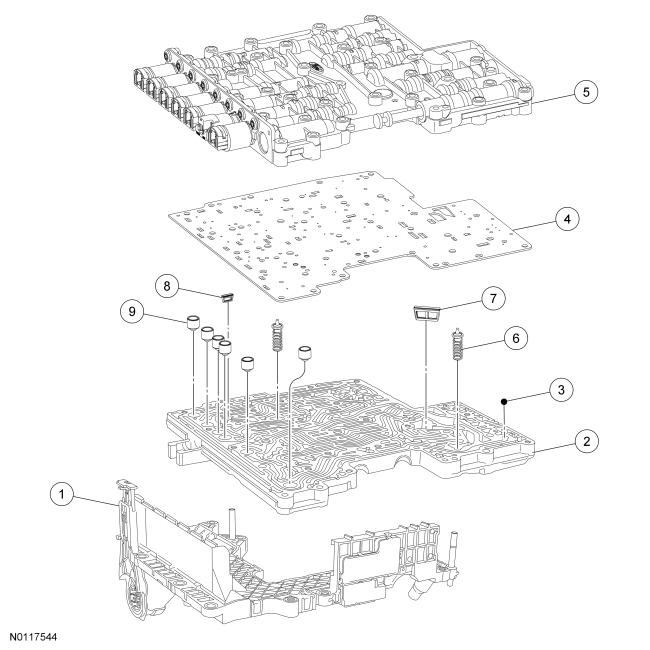

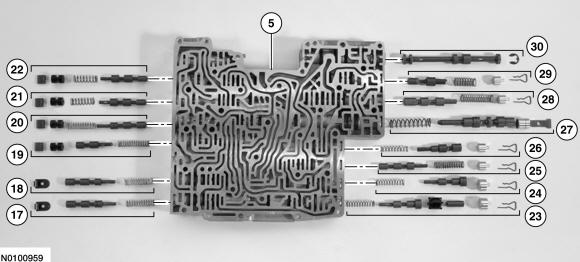

Main Control Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A100 7A100 | Main control |
| 1 | 7G276 7G276 | Molded leadframe |
| 2 | - | Transmission control valve body (upper) |
| 3 | 7E195 7E195 | Transmission control valve check ball (8 required) |
| 4 | 7Z490 7Z490 | Transmission control valve body separator plate |
| 5 | - | Transmission control valve body (lower) |
| 6 | - | Transmission control valve assembly |
| 7 | 7H187 7H187 | Transmission control filter assembly |
| 8 | 7B155 7B155 | Transmission fluid filter |
| 9 | - | Transmission solenoid damper valve assembly |

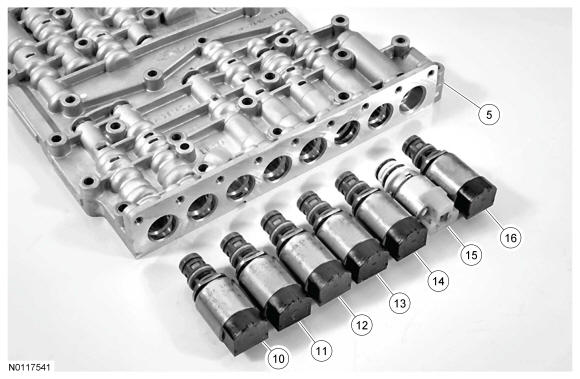

| 10 | 7G383 7G383 | SSA |
| 11 | 7G383 7G383 | SSB |
| 12 | 7G383 7G383 | SSC |
| 13 | 7G383 7G383 | LPC solenoid |
| 14 | 7G383 7G383 | SSD |
| 15 | 7G484 7G484 | SSE |
| 16 | 7G383 7G383 | TCC solenoid |
| 17 | - | Forward (A) clutch latch valve assembly |
| 18 | - | Direct (B) clutch latch valve assembly |
| 19 | - | Solenoid regulator valve |
| 20 | - | Low/reverse (D1) clutch latch valve assembly |
| 21 | - | Drive enable valve |
| 22 | - | Solenoid multiplex valve |
| 23 | - | Forward (A) clutch regulator valve assembly |
| 24 | - | Overdrive (E) clutch regulator valve assembly |
| 25 | - | Overdrive (E) clutch latch valve assembly |
| 26 | - | Bypass clutch control regulator valve assembly |
| 27 | - | Main regulator valve assembly |
| 28 | - | Converter release regulator valve assembly |
| 29 | - | Lubrication control valve assembly |
| 30 | - | Manual valve assembly |

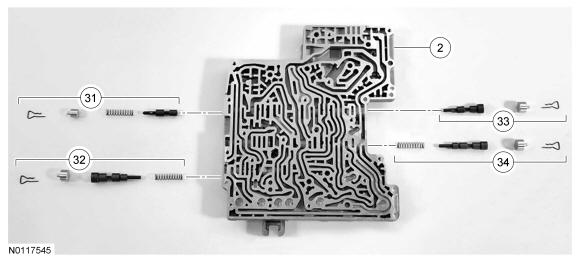

| 31 | - | Low/reverse (D2) clutch latch valve assembly |
| 32 | - | Direct (B) clutch regulator valve assembly |
| 33 | - | Low/reverse (D1) clutch regulator valve assembly |
| 34 | - | Intermediate (C) clutch regulator valve |
