Overdrive Clutch Assembly: Disassembly

1. 1.

   Position the O/D clutch assembly in the Clutch End Play Gauge and remove the T3 thrust bearing.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Remove the O/D clutch pack snap ring.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the O/D clutch pack.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Using the Spring Washer Compressor and a press, remove and discard the O/D clutch balance piston retaining ring.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the O/D clutch balance piston.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the O/D clutch return spring.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Remove the O/D clutch apply piston.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Remove and discard the outer O-ring seal on the O/D clutch balance piston.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove and discard both the inner (one large and one small) O-ring seals on the O/D clutch apply piston.

Courtesy of FORD MOTOR COMPANY

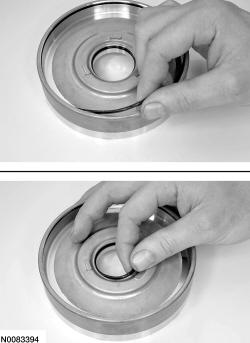

1. 10.

   Remove and discard the Teflon ® seals.

Courtesy of FORD MOTOR COMPANY
