Input Shaft
›

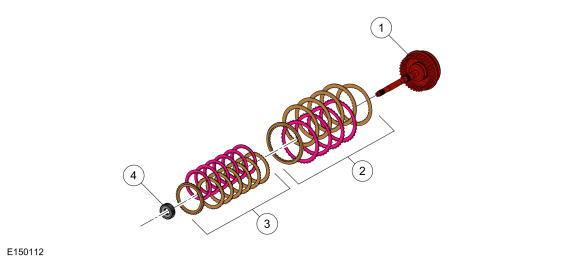

Input Shaft Exploded View
Input Shaft Exploded View
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Input shaft (part of direct/overdrive clutch assembly)
2
Direct clutch
3
Overdrive clutch
4
Center planetary sun gear
