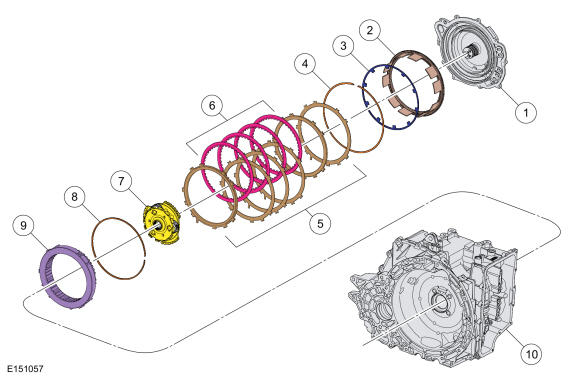

Low-Reverse Clutch Exploded View
| Item | Description |
|---|---|
| 1 | Cover assembly |
| 2 | Low/reverse clutch piston |
| 3 | Low/reverse clutch piston return spring |
| 4 | Low/reverse clutch return spring snap ring |
| 5 | Low/reverse clutch steel plates |
| 6 | Low/reverse clutch friction plates |
| 7 | Rear planetary carrier |
| 8 | Low One-Way Clutch (OWC) snap ring |
| 9 | Low One-Way Clutch (OWC) |
| 10 | Transmission case |
