Main Control Valve Body: Notes

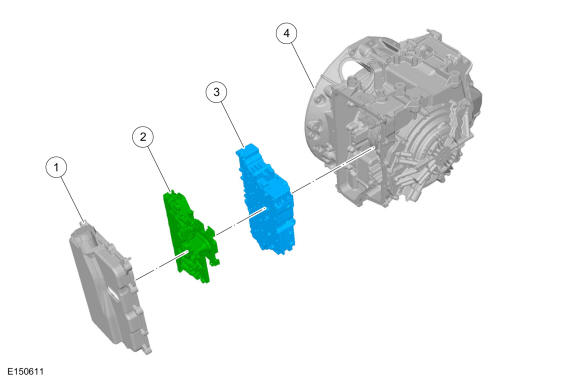

GFD236868Courtesy of FORD MOTOR COMPANY
Item  Description
1 Main control cover assembly
2 Solenoid body
3 Main control valve body
4 Transmission case

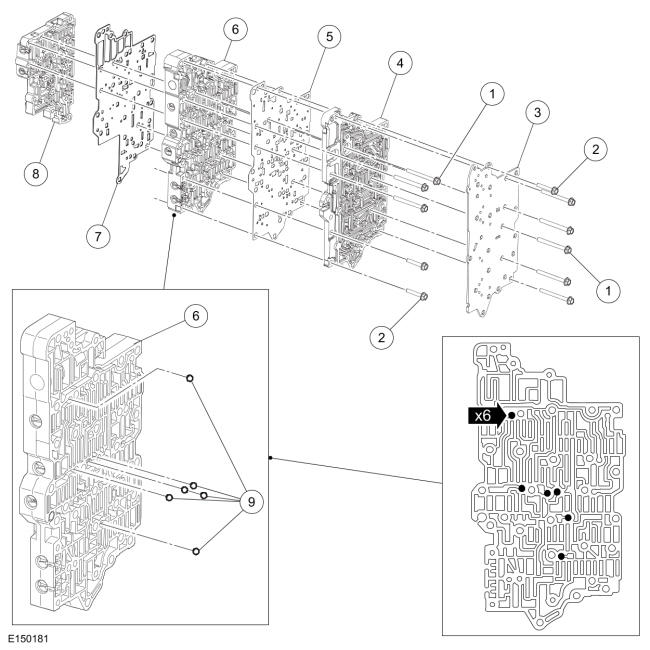

GFD236869Courtesy of FORD MOTOR COMPANY
