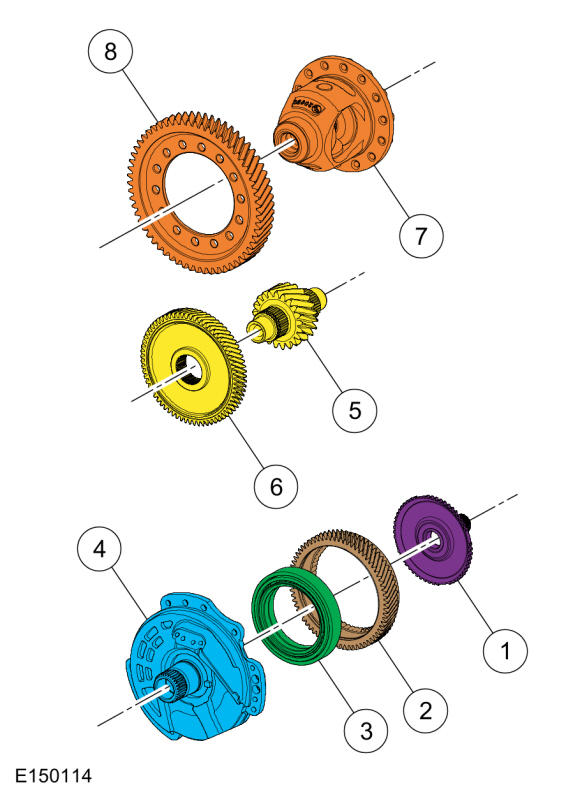

Final Drive Gearset Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Front planetary carrier hub
2	Transfer shaft drive gear
3	Transfer shaft drive gear bearing
4	Stator support assembly
5	Transfer shaft
6	Transfer gear
7	Differential assembly
8	Differential ring gear
