Fuel Pump Driver Module (FPDM): Removal

NOTE: The FPDM is located beneath the 2nd row right rear seat cushion, under the carpet.
  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

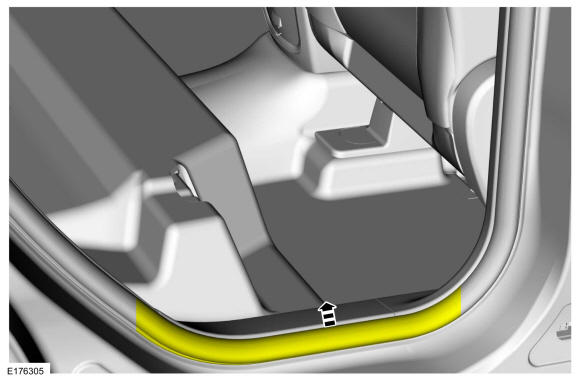

  2. GFD228451Courtesy of FORD MOTOR COMPANY

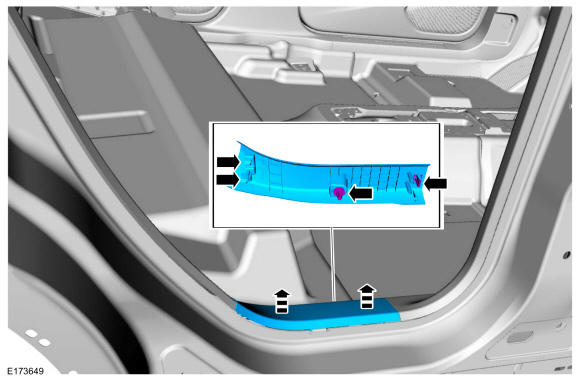

  3. GFD228452Courtesy of FORD MOTOR COMPANY

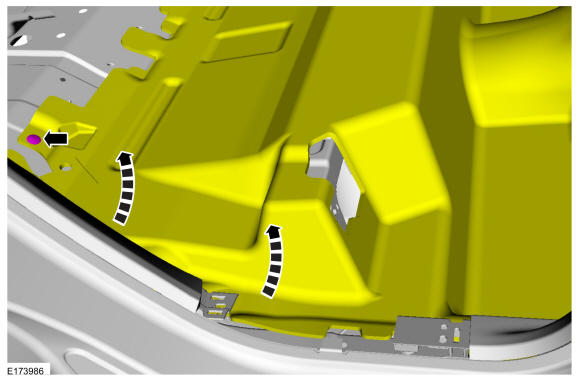

  4. GFD228453Courtesy of FORD MOTOR COMPANY

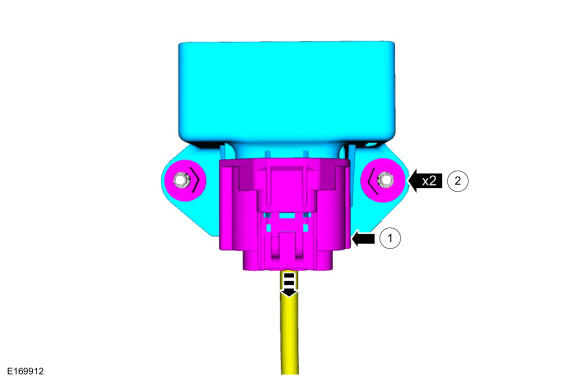

  5. GFD228454Courtesy of FORD MOTOR COMPANY
