Main Control Cover: Installation

1. NOTE: The main control cover gasket can be can be reused if not damaged.

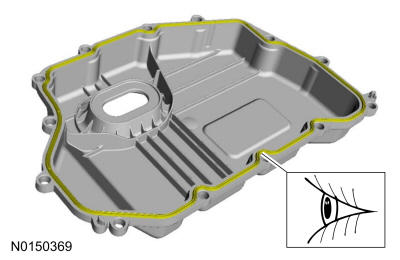

   Clean and inspect the main control cover seal for damage.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Install the studbolts in the locations noted during removal.

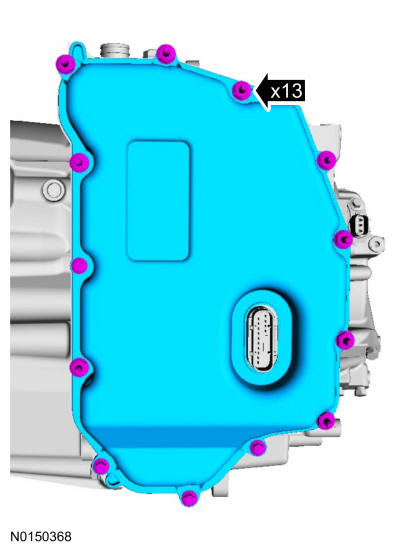

   Install the main control cover and the bolts.

   Torque: 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

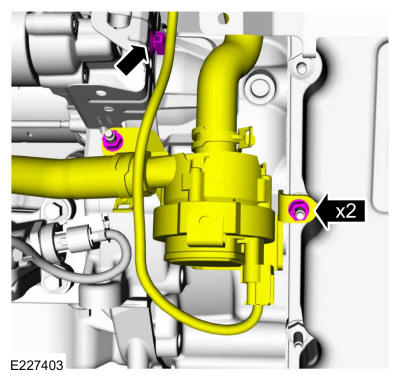

3. 1. If equipped, install the start stop cabin heater coolant pump and the nuts.

      Torque: 89 lb.in (10 Nm)

   2. Attach the wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

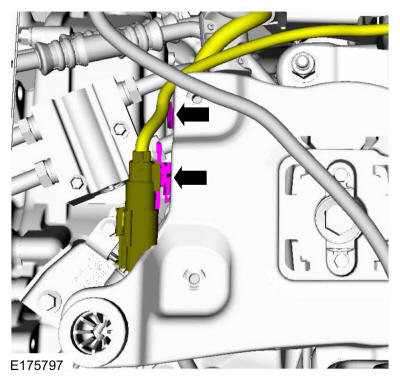

4. Connect the electrical connectors and the wiring retainers.

   Courtesy of FORD MOTOR COMPANY

5. Install the ground cable bolt and the ground cable retainer.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

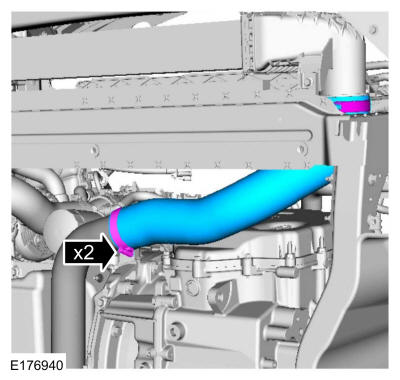

6. Install the CAC tube and tighten the clamps.

   Torque: 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

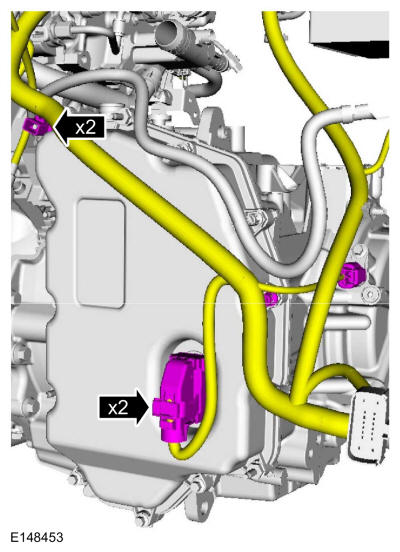

7. Attach the wiring harness connectors.

   Courtesy of FORD MOTOR COMPANY

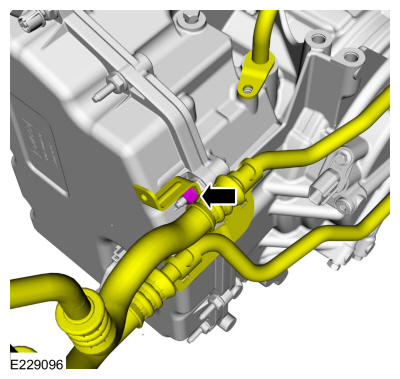

8. Install the transmission fluid cooler tubes on the front cover studbolt and install the nut.

   Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

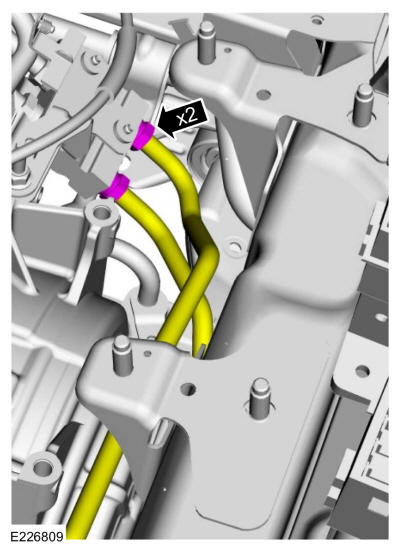

9. Install the 2 transmission fluid cooler tubes into the transmission fluid cooler bypass valve and tighten the fittings.

   Torque: 16 lb.ft (22 Nm)

   Courtesy of FORD MOTOR COMPANY

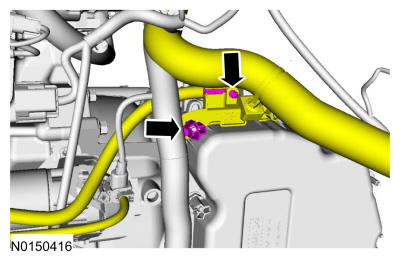

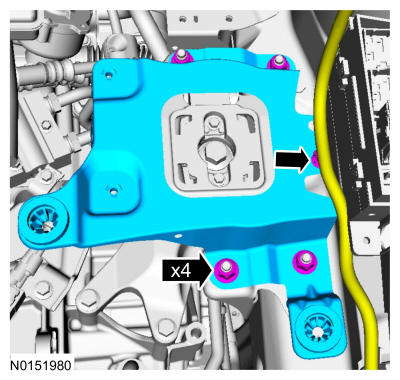

10. Install the battery tray support bracket.

    Courtesy of FORD MOTOR COMPANY

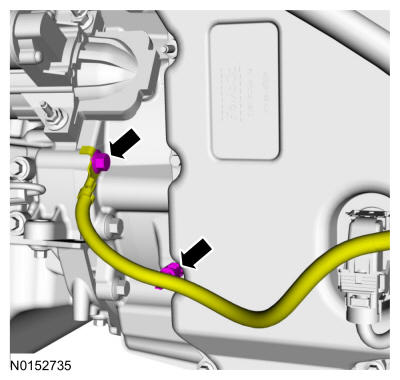

11. Attach the wiring retainer.

    Courtesy of FORD MOTOR COMPANY

12. Install the battery tray. REFER to: Battery Tray .
13. Fill the transmission with transmission fluid. REFER to: Transmission Fluid Drain and Refill .

Refer to: Engine Front Undershield .
