Fuel Rail Pressure (FRP) Sensor 3.5L GTDI: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

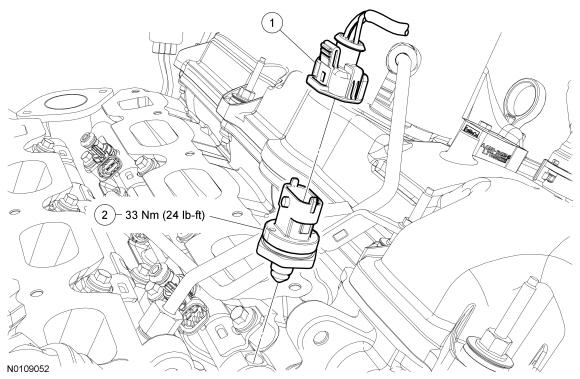

Fig 1: Fuel Rail Pressure (FRP) Sensor 3.5L GTDI With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Fuel Rail Pressure (FRP) sensor electrical connector
2	9G756	FRP sensor
