Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

Remove the front door trim panel. Refer to: Front Door Trim Panel .

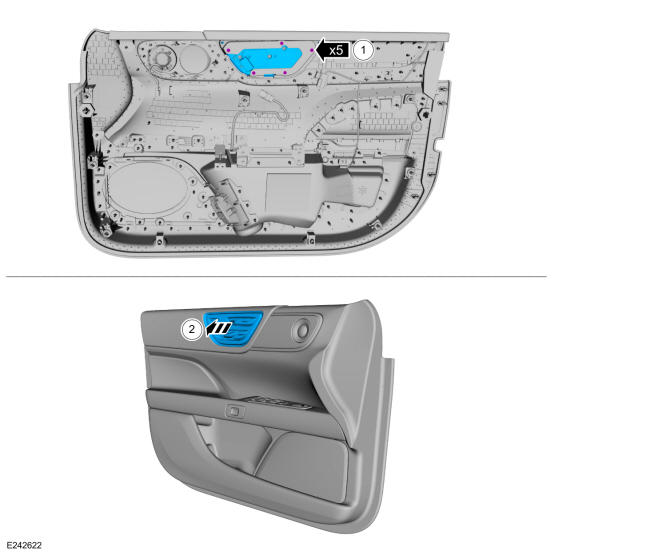

Remove the front seat control switch and bezel.
1. Remove the screws.
2. Remove the front seat control switch and bezel.
Courtesy of FORD MOTOR COMPANY

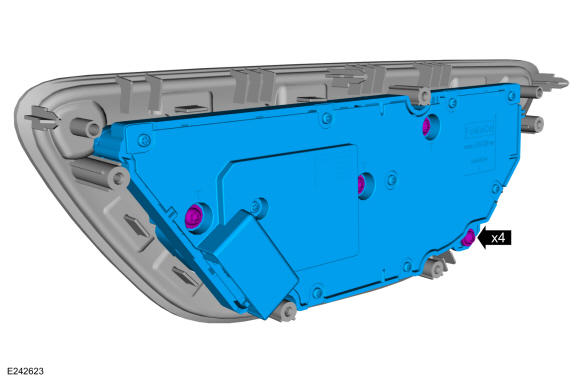

Remove the screws and the front seat control switch.

GFD238807

Courtesy of FORD MOTOR COMPANY
