Removal And Installation: Liftgate: Notes
WARNING: This page is about a different car, the 2018 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Material
| Item | Specification |
| Motorcraft ® Threadlock 262TA-26 | WSK-M2G351-A6 |

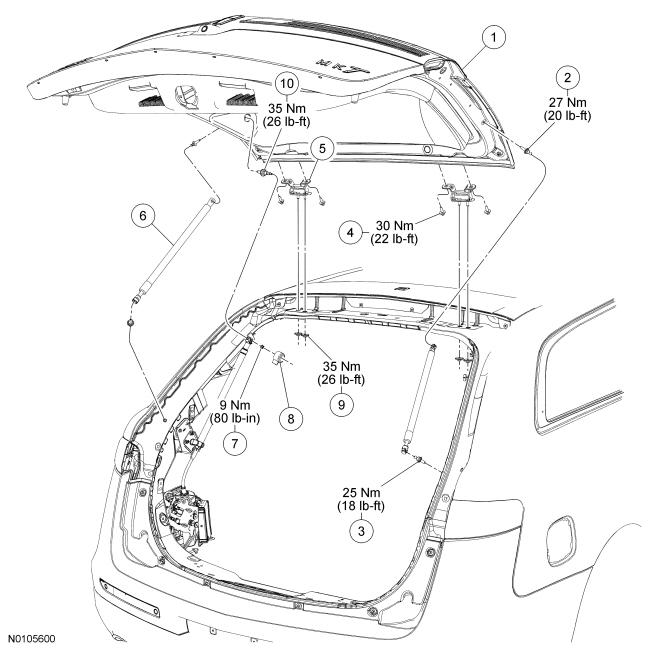

| Item | Part Number | Description |
|---|---|---|
| 1 | 7440400 | Liftgate assembly |
| 2 | W714118 | Liftgate strut-to-liftgate stud (2 required) |
| 3 | W713408 | Liftgate strut-to-body stud (2 required) |
| 4 | N806738 | Liftgate hinge-to-liftgate bolt (4 required) |
| 5 | 7442900 | Liftgate hinge (2 required) |
| 6 | 74406A10 LH/ 74406A11 RH LH/ 74406A11 RH | Liftgate strut (2 required) |
| 7 | W520201 | Power liftgate rod-to-liftgate nut |
| 8 | 7821978 | Power liftgate rod-to-liftgate nut cover |
| 9 | N801193 | Liftgate hinge-to-body nut (4 required) |
| 10 | 404E48 | Power liftgate rod stud |
