OEM Ground Distribution: Grounds

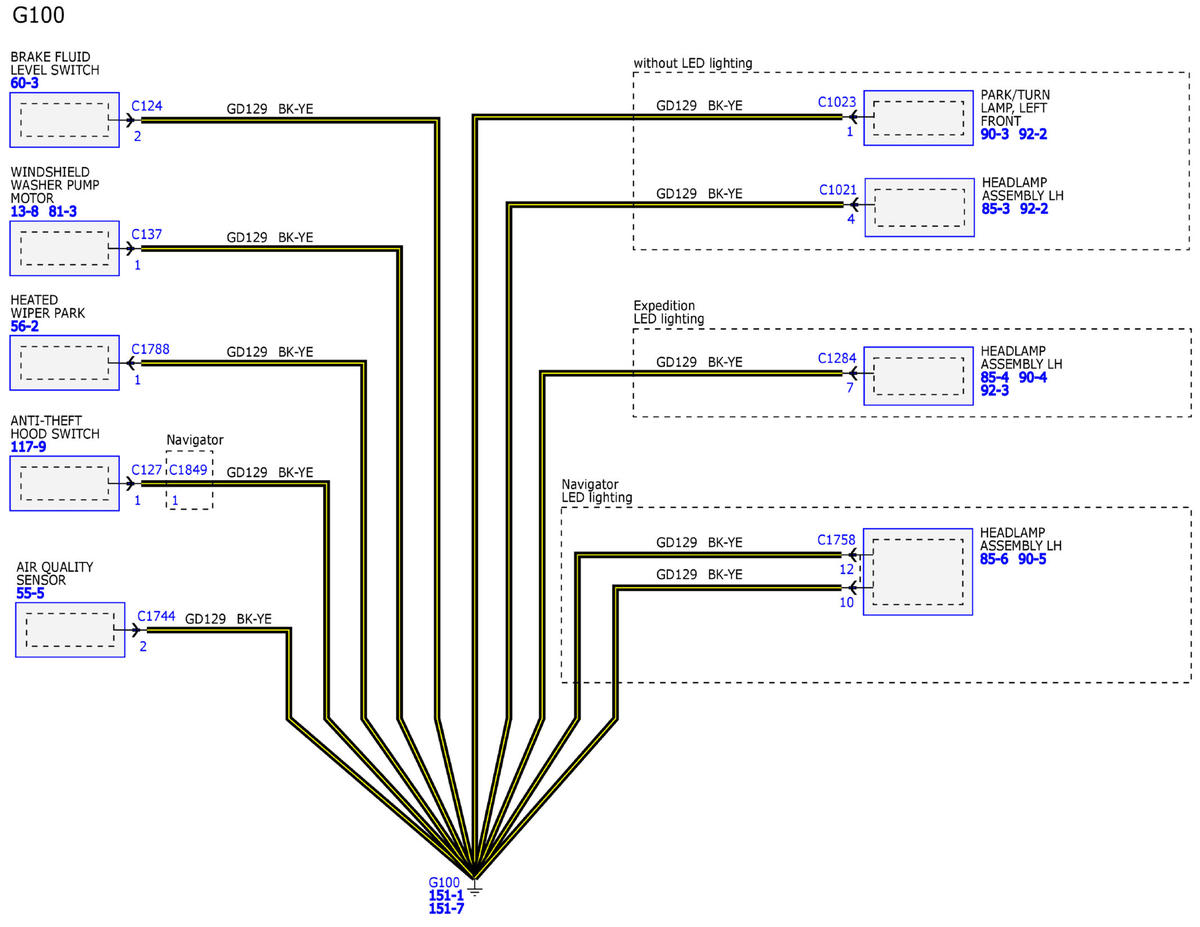

GFDW101996Courtesy of FORD MOTOR COMPANY

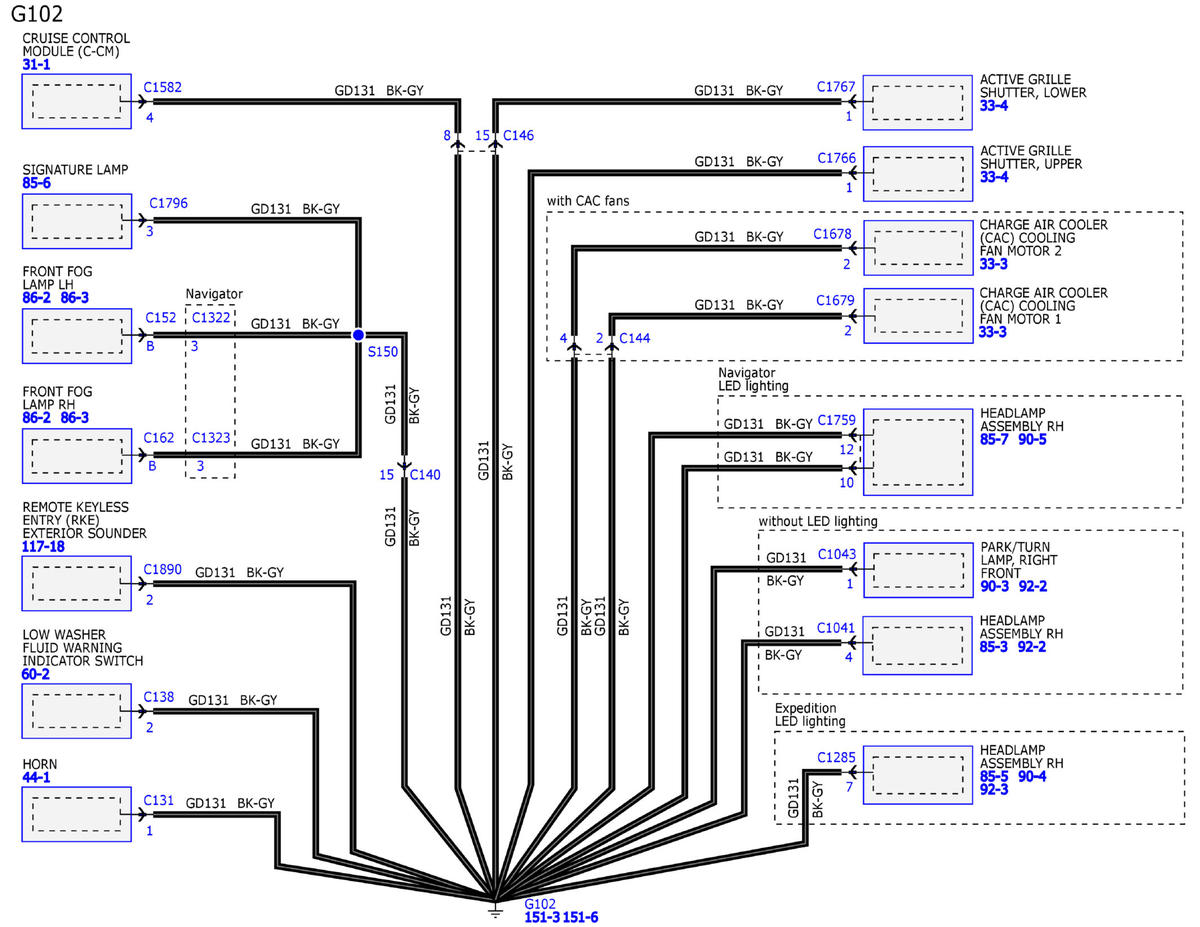

GFDW101997Courtesy of FORD MOTOR COMPANY

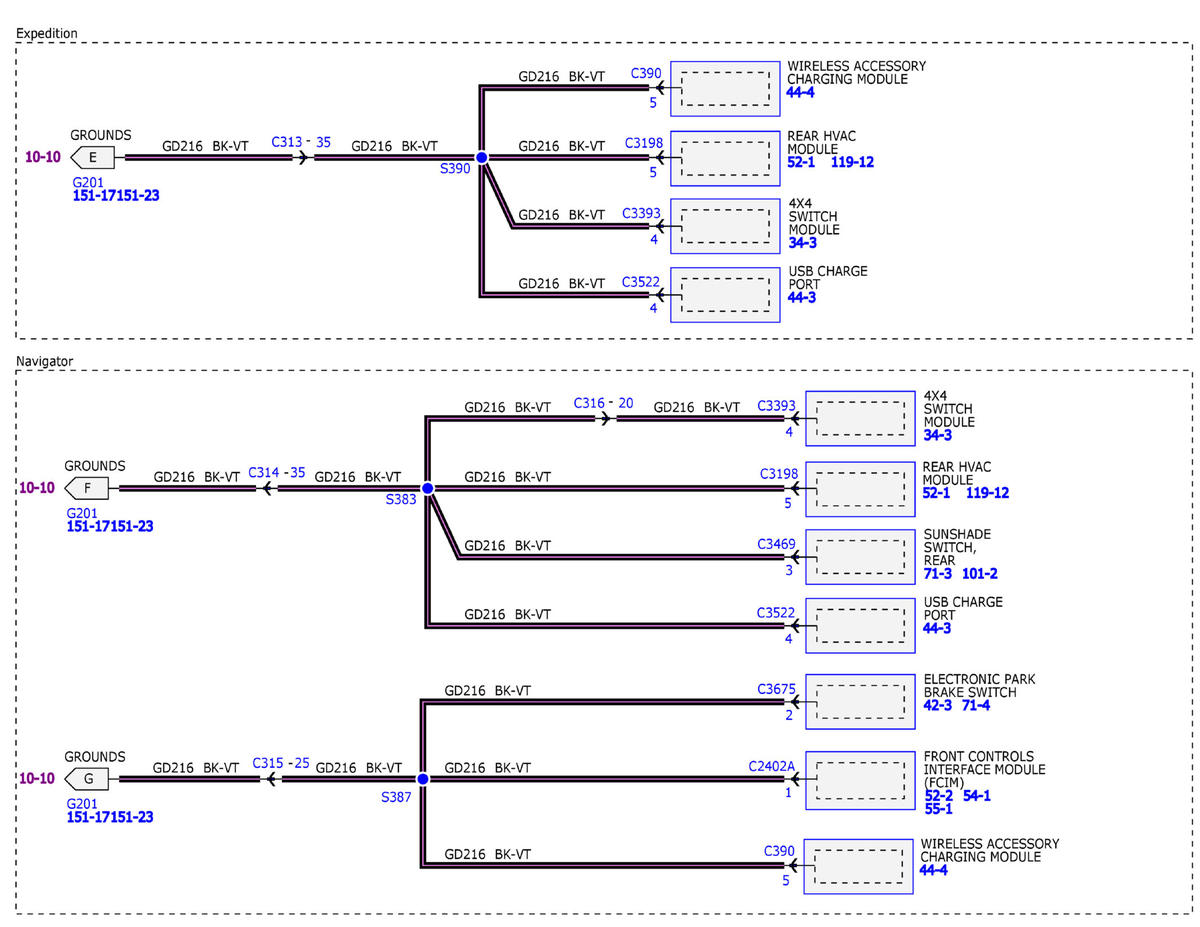

GFDW101998Courtesy of FORD MOTOR COMPANY

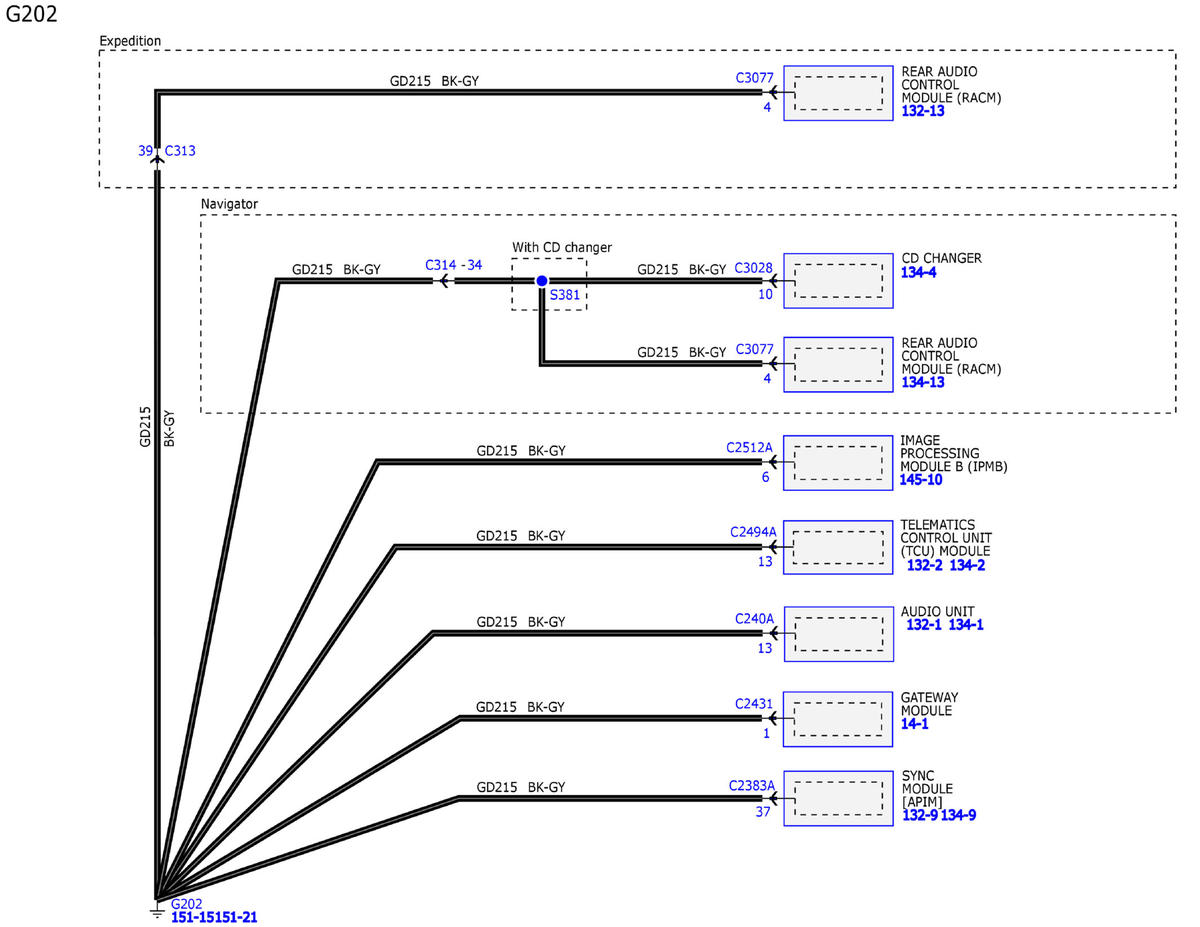

GFDW101999Courtesy of FORD MOTOR COMPANY

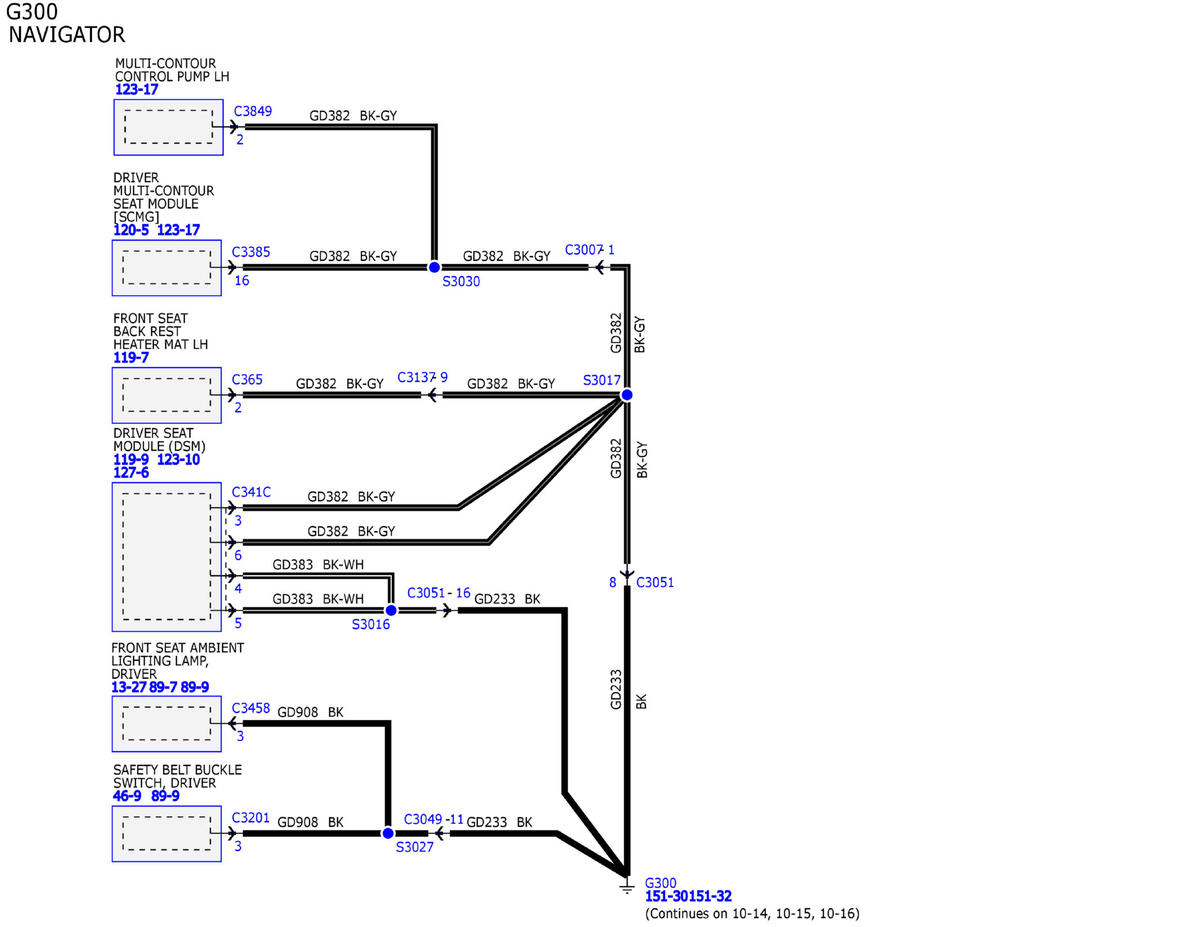

GFDW102000Courtesy of FORD MOTOR COMPANY

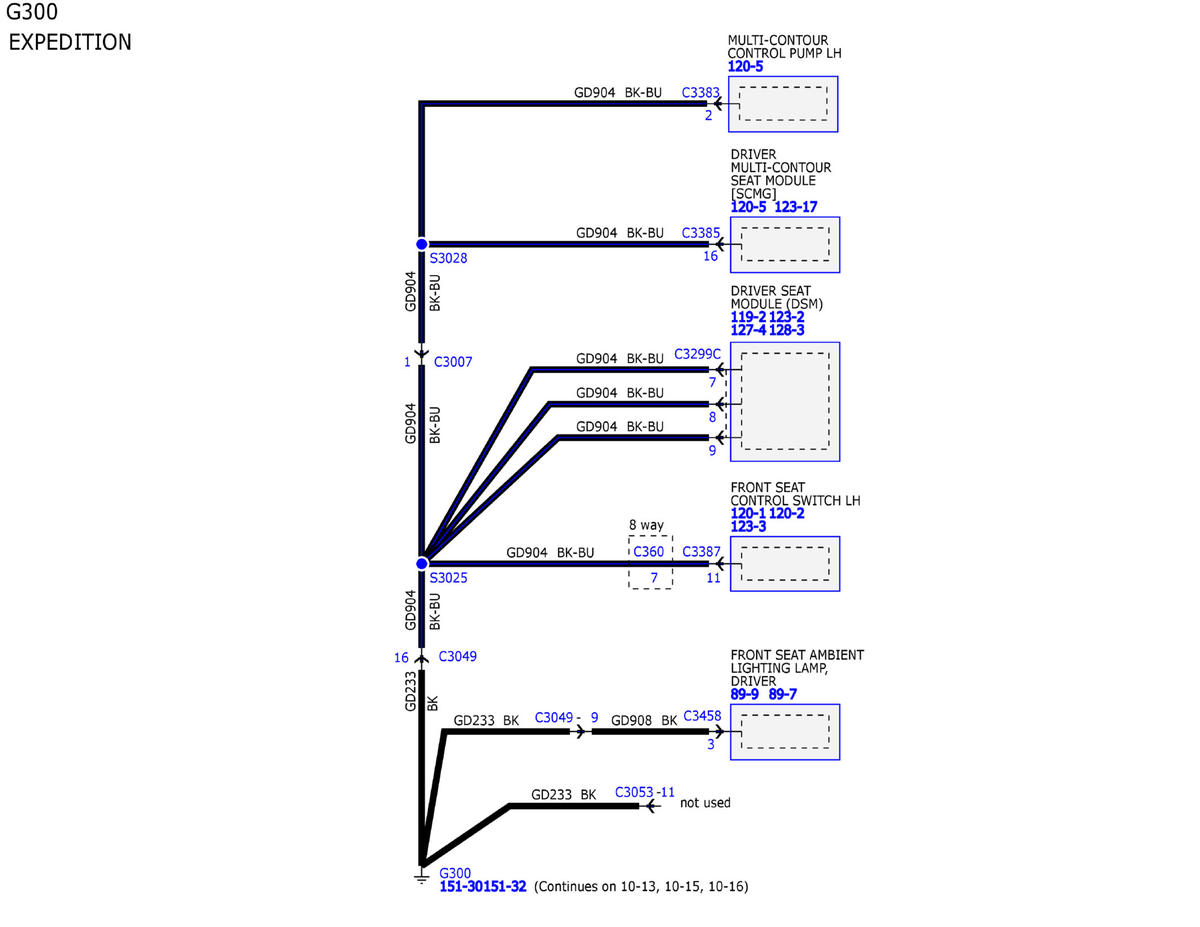

GFDW102001Courtesy of FORD MOTOR COMPANY

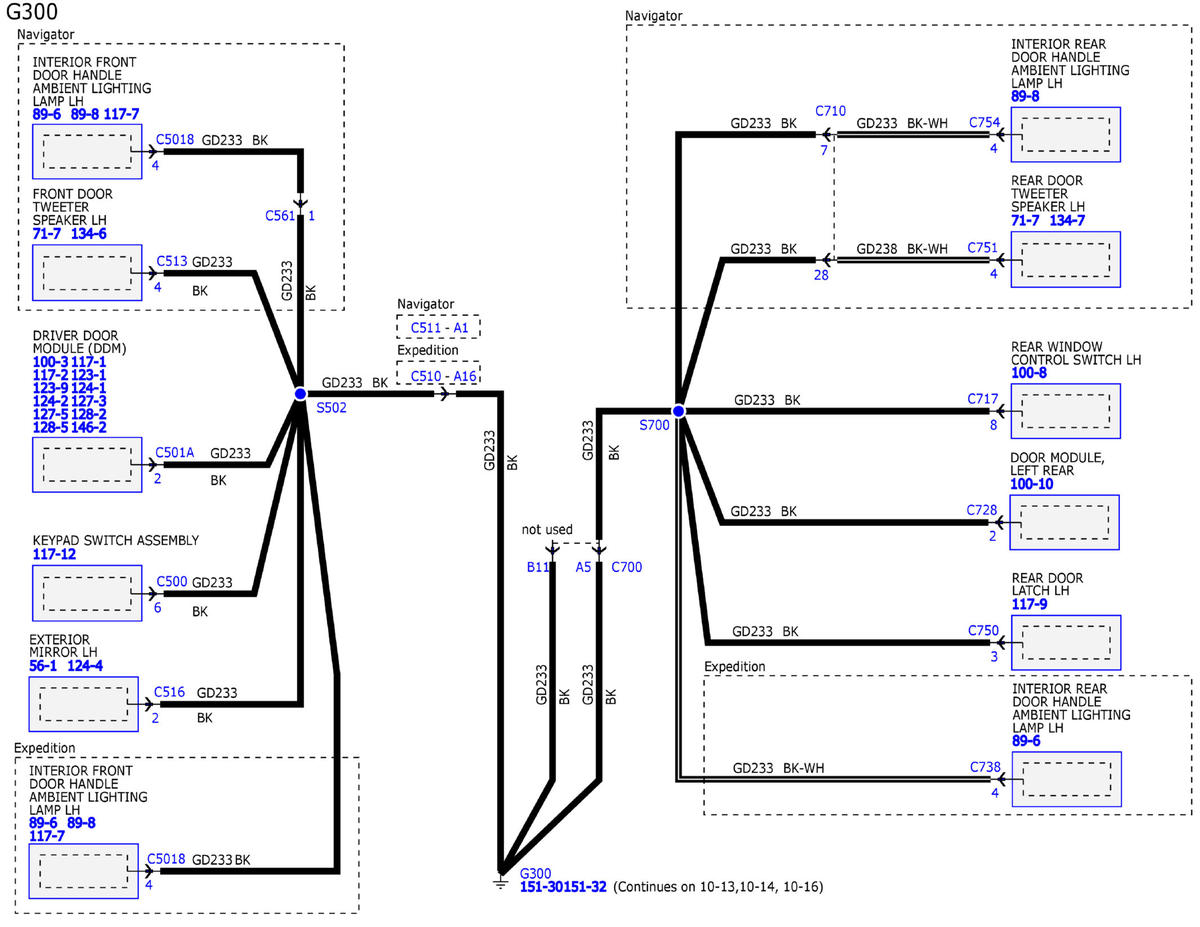

GFDW102002Courtesy of FORD MOTOR COMPANY

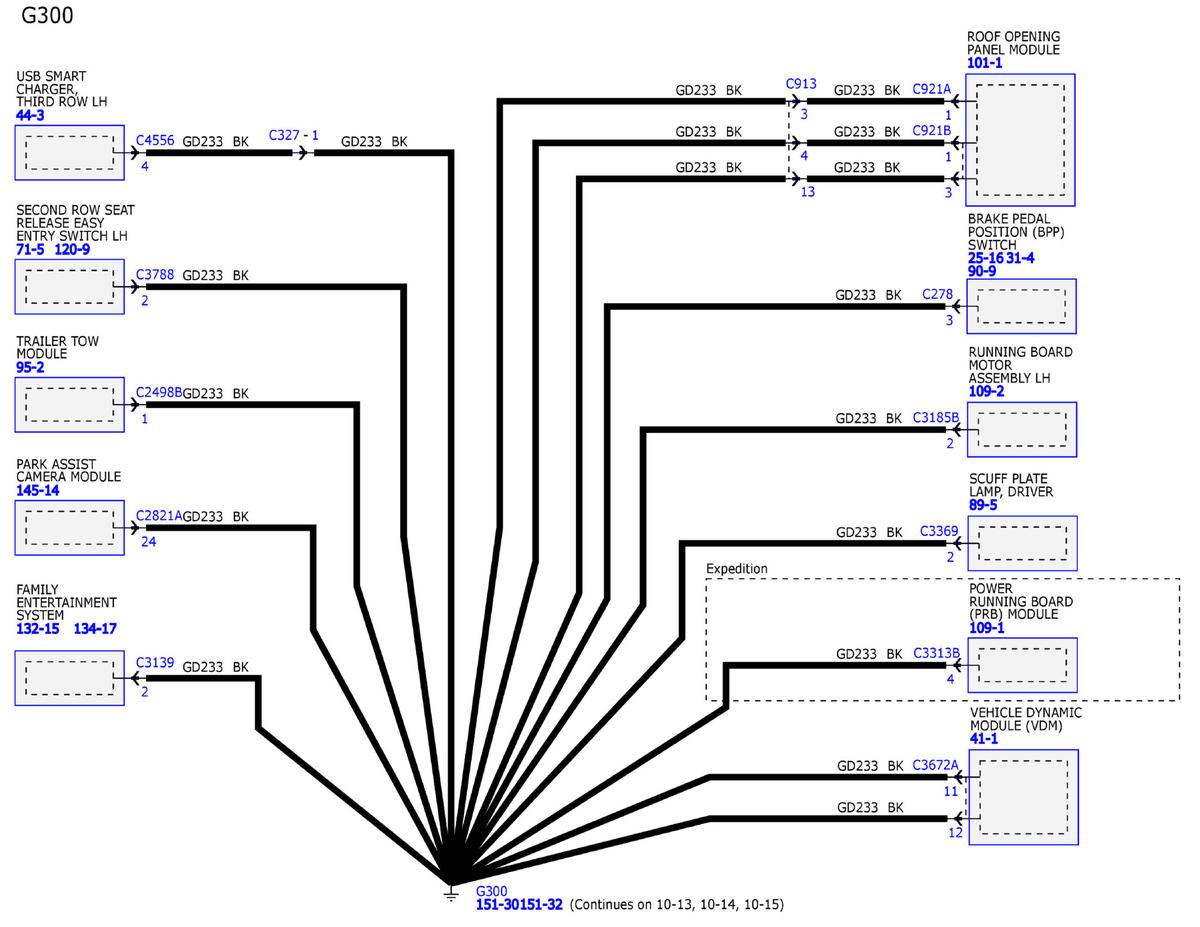

GFDW102003Courtesy of FORD MOTOR COMPANY

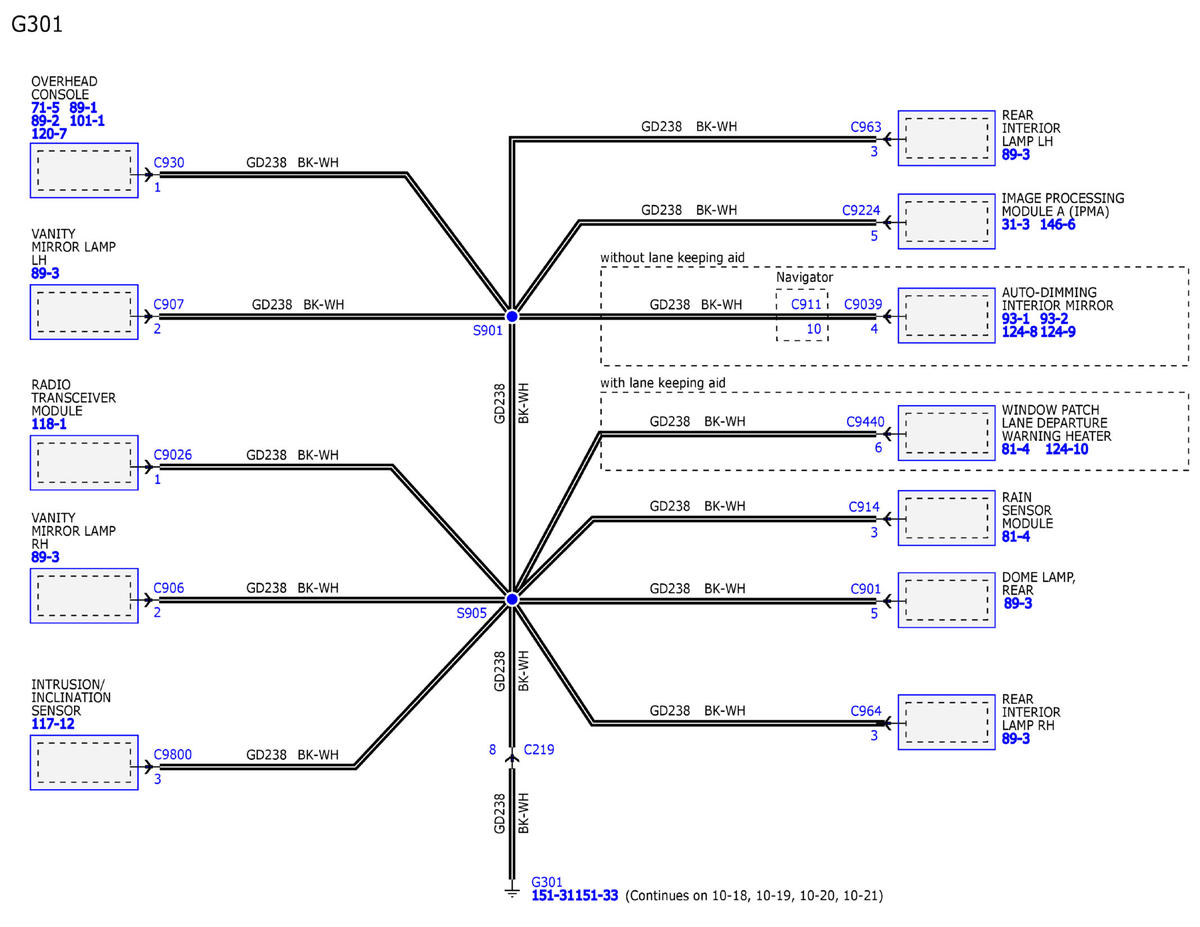

GFDW102004Courtesy of FORD MOTOR COMPANY

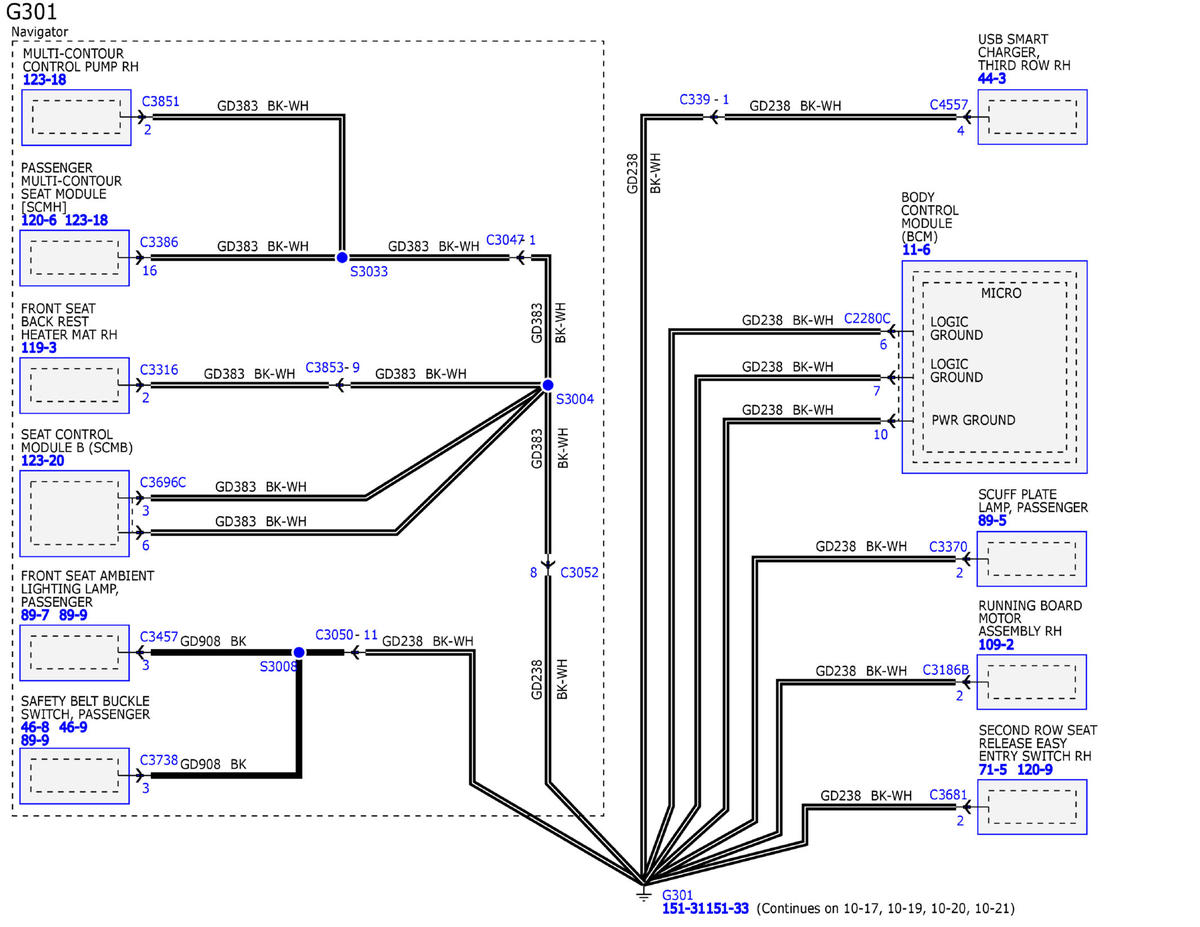

GFDW102005Courtesy of FORD MOTOR COMPANY

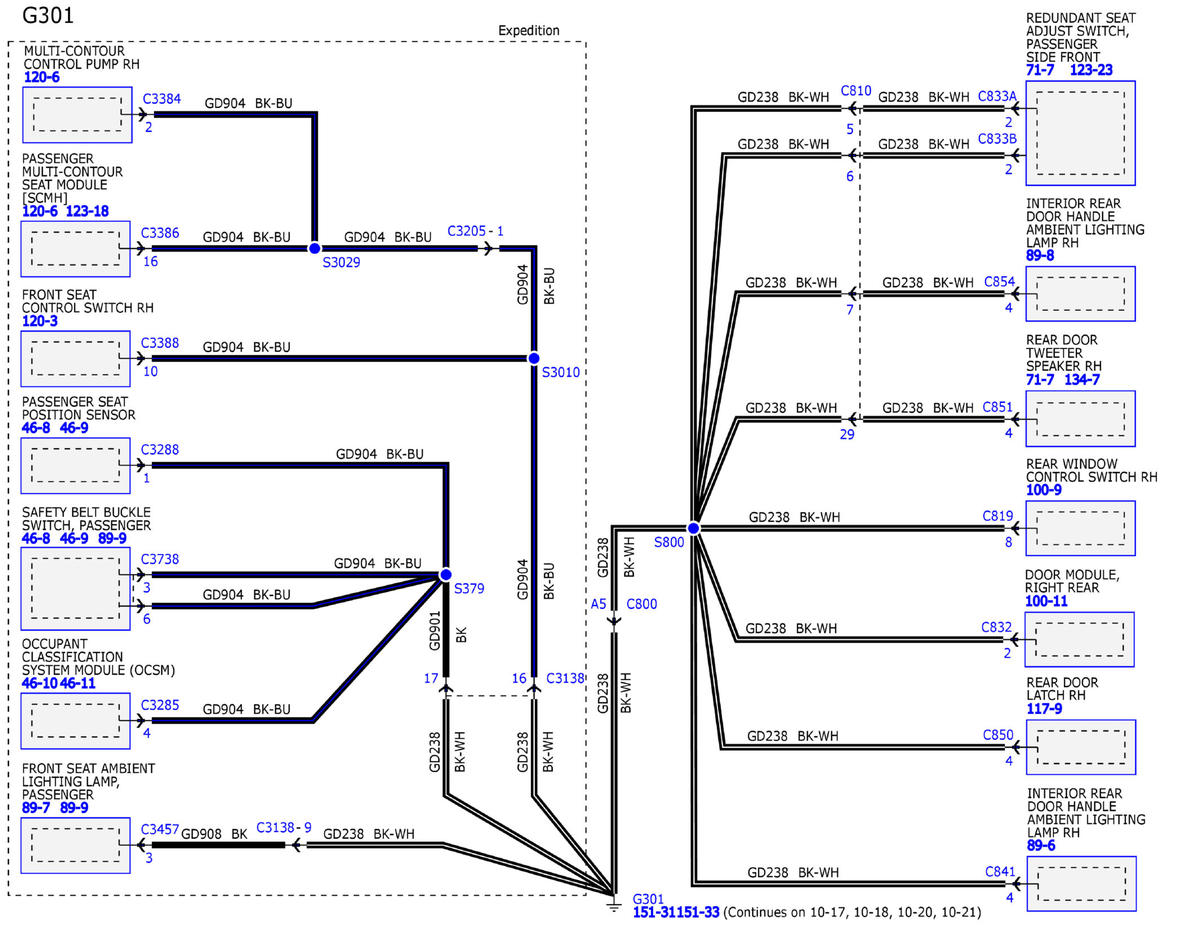

GFDW102006Courtesy of FORD MOTOR COMPANY

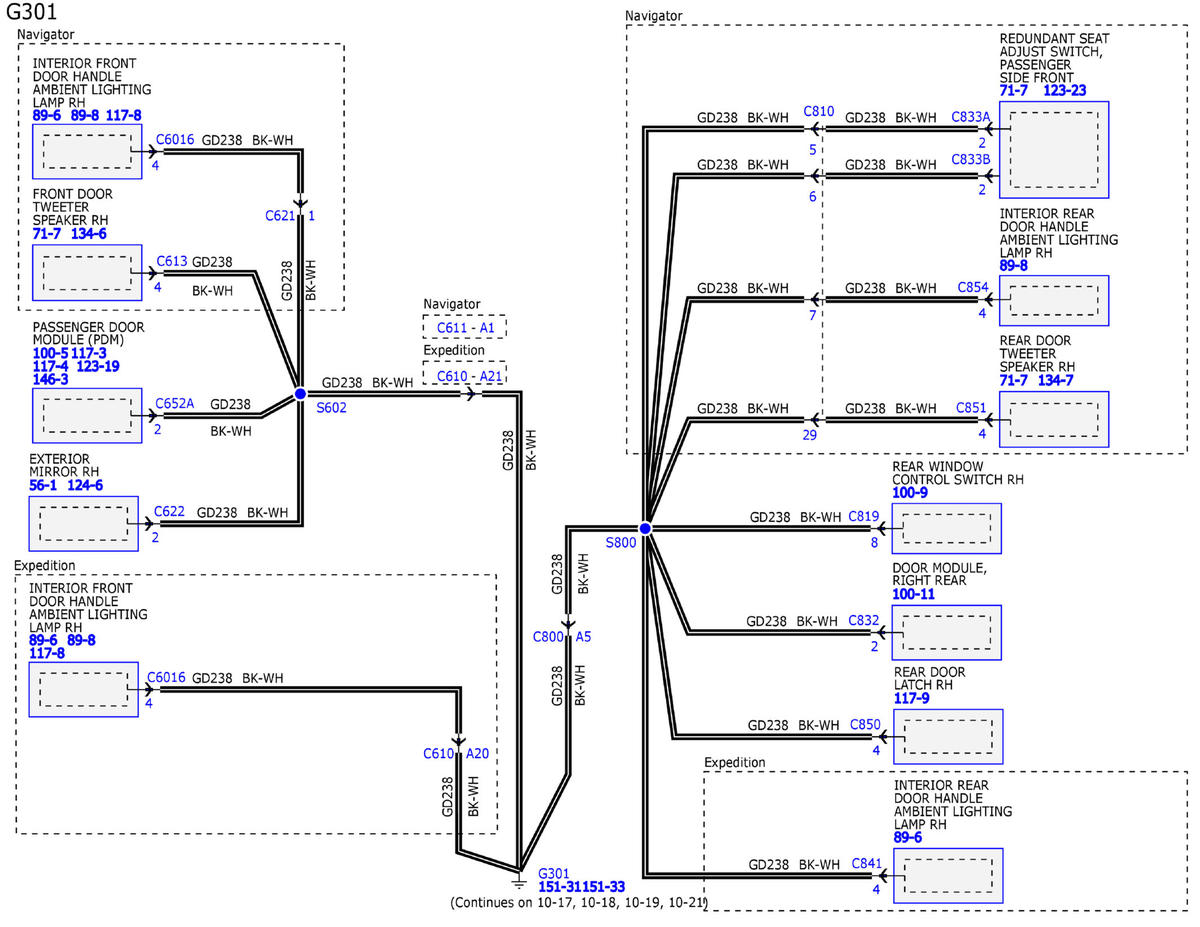

GFDW102007Courtesy of FORD MOTOR COMPANY

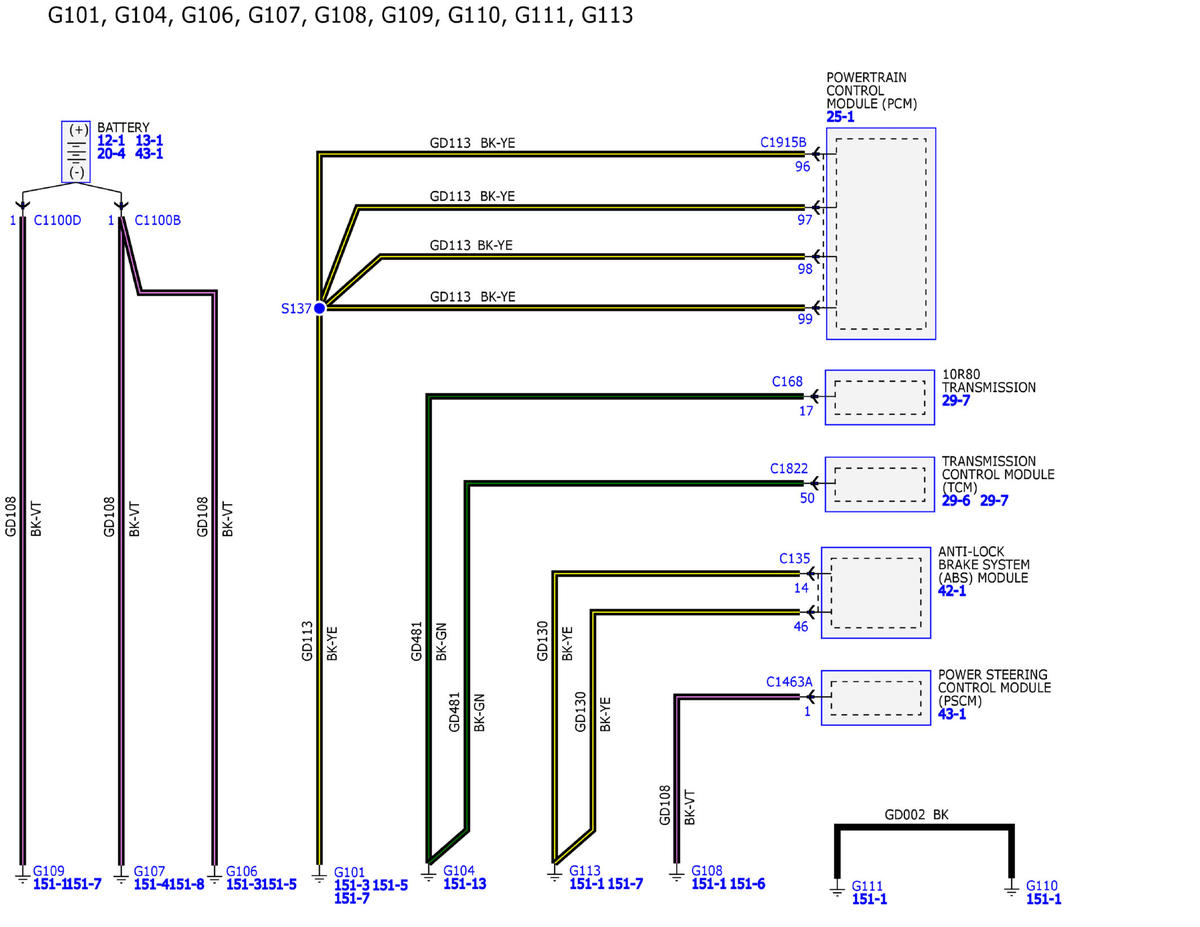

GFDW102008Courtesy of FORD MOTOR COMPANY

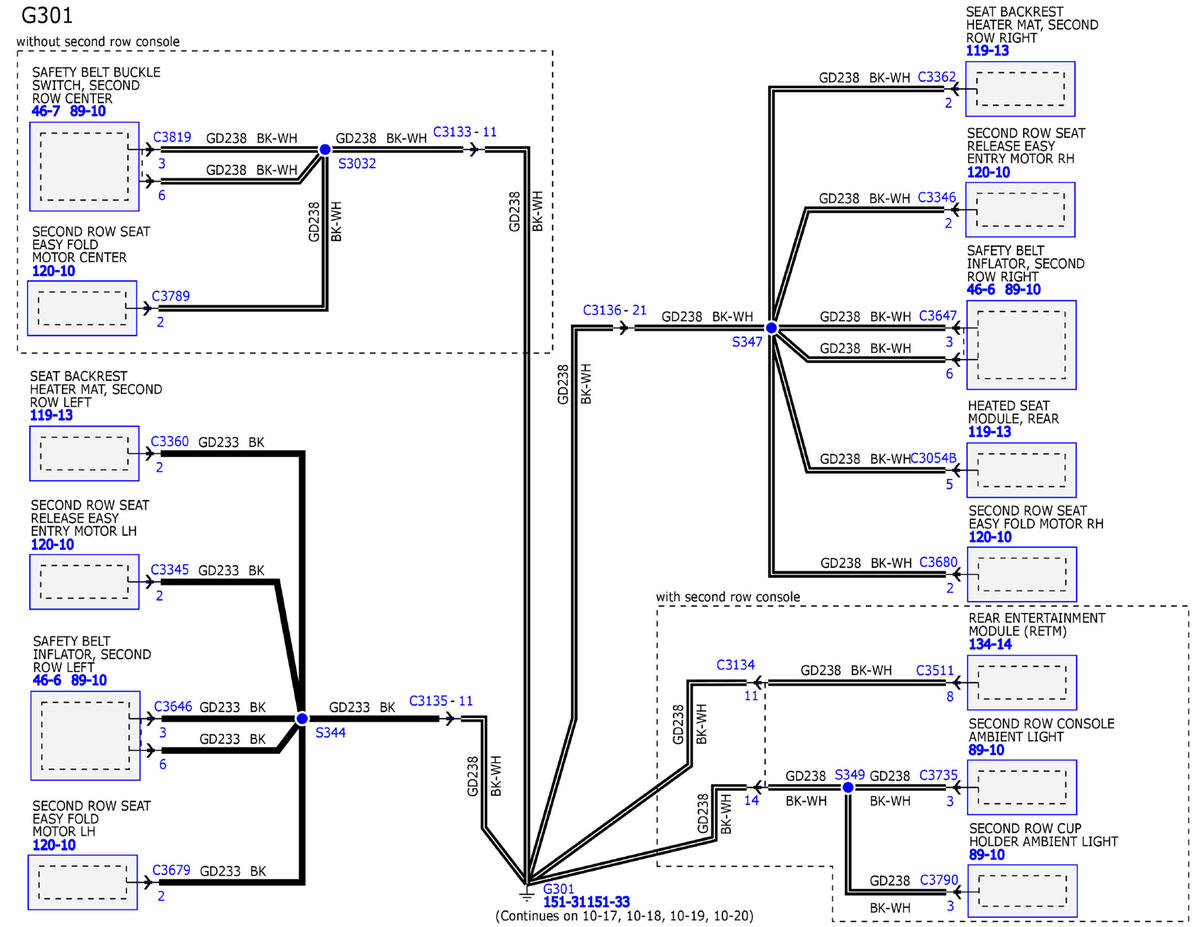

GFDW102009Courtesy of FORD MOTOR COMPANY

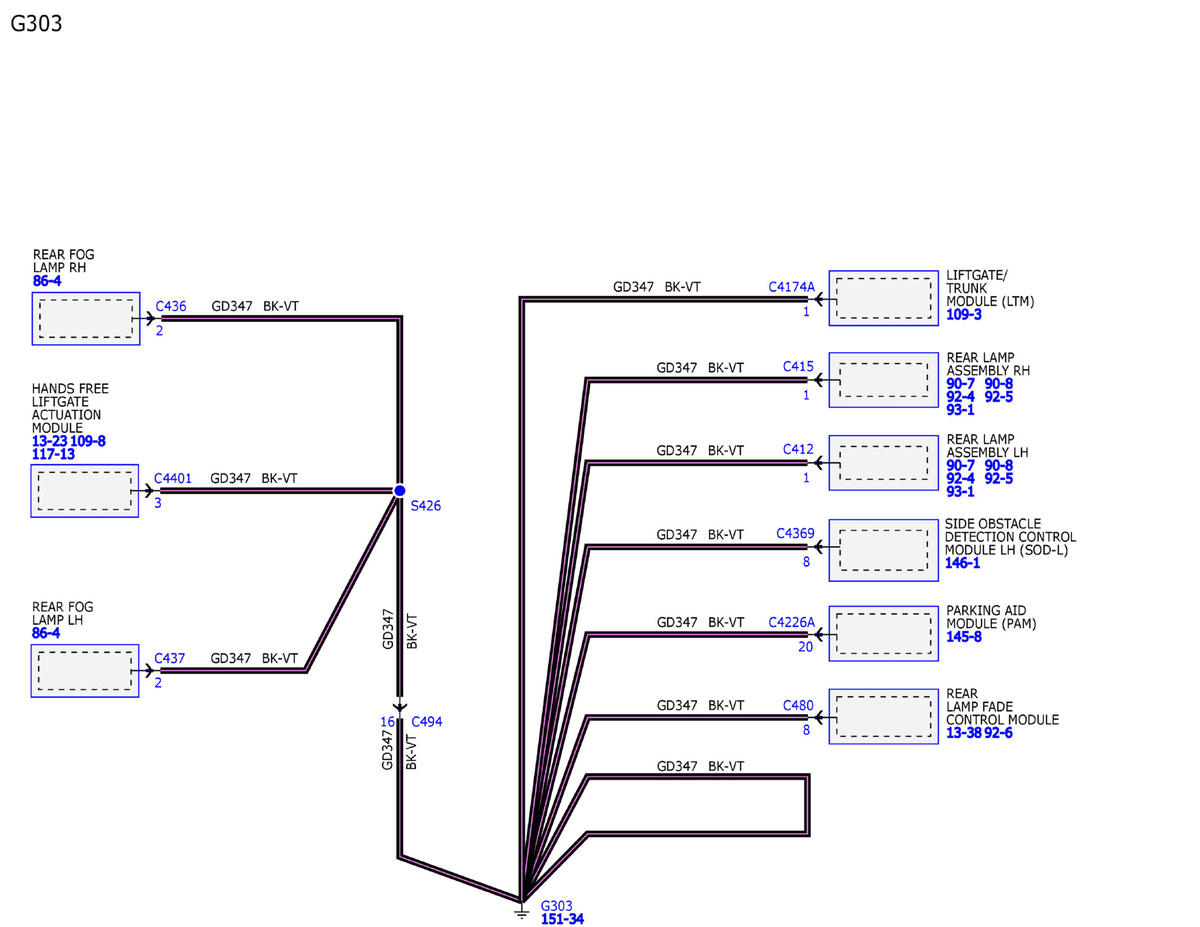

GFDW102010Courtesy of FORD MOTOR COMPANY

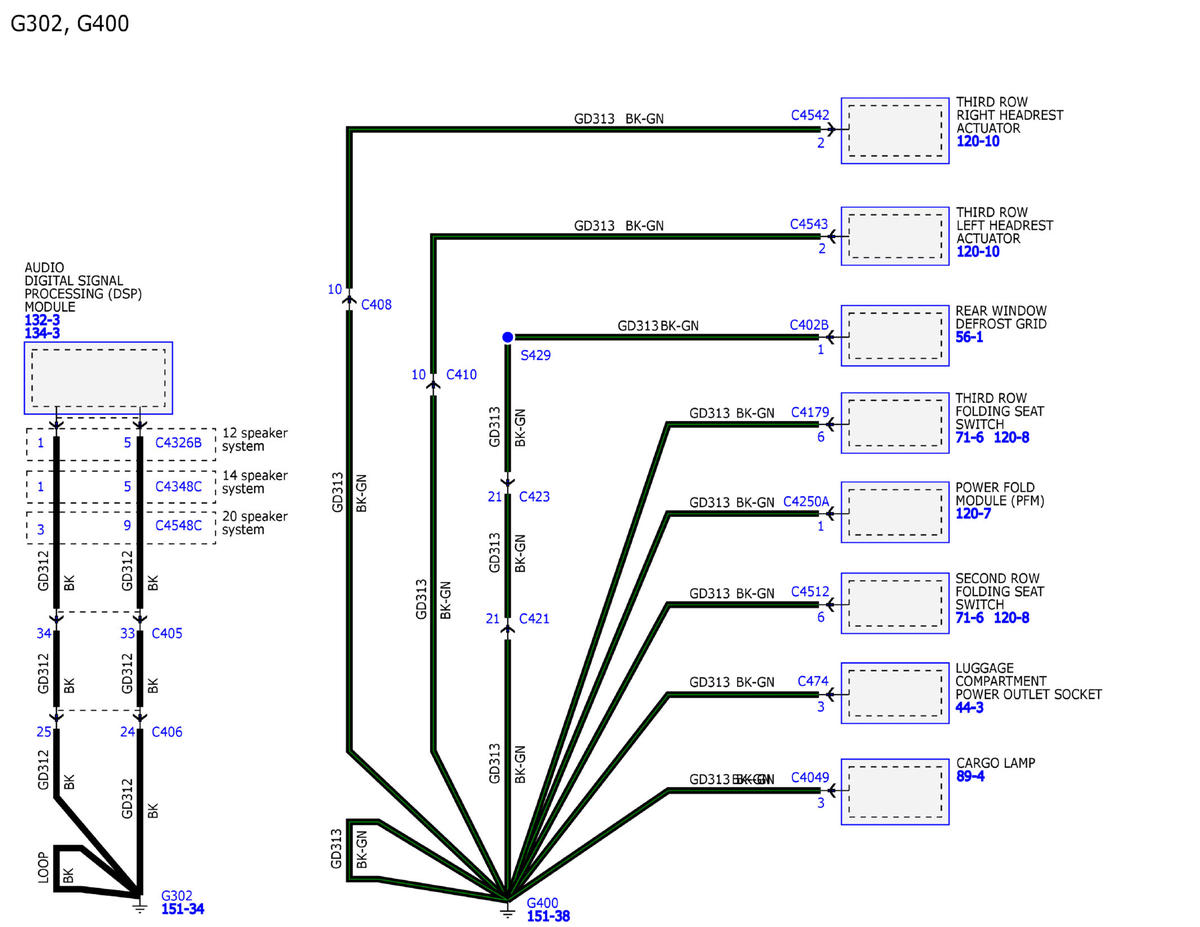

GFDW102011Courtesy of FORD MOTOR COMPANY

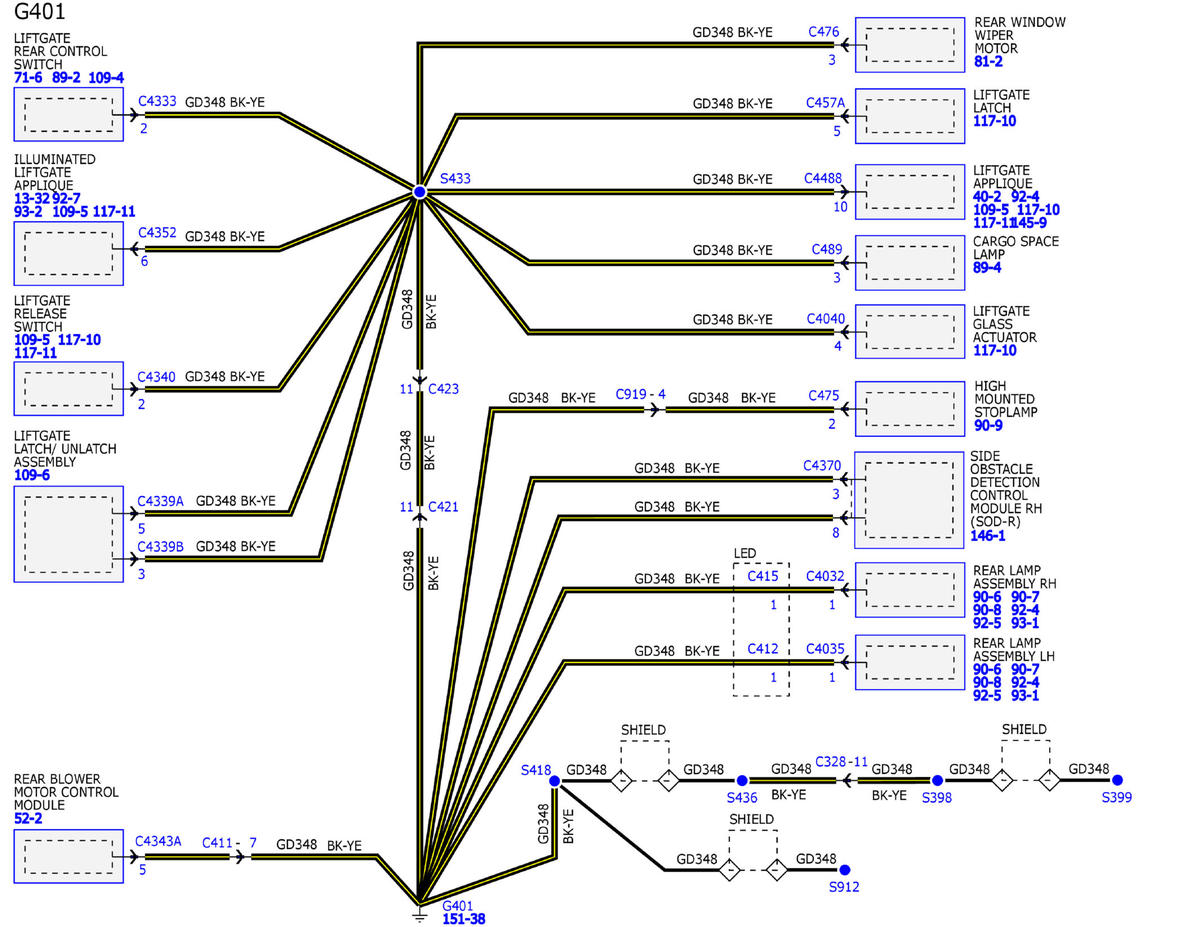

GFDW102012Courtesy of FORD MOTOR COMPANY

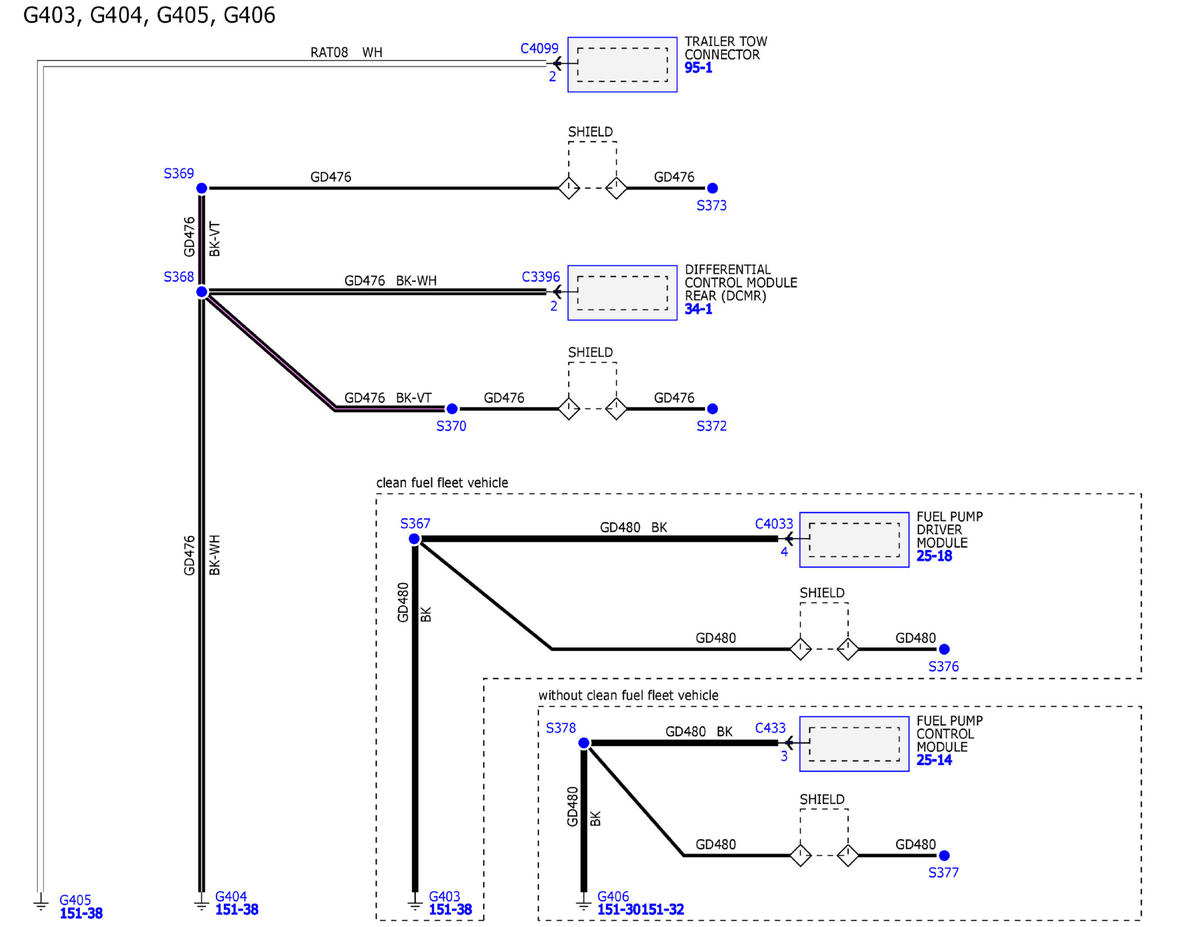

GFDW102013Courtesy of FORD MOTOR COMPANY

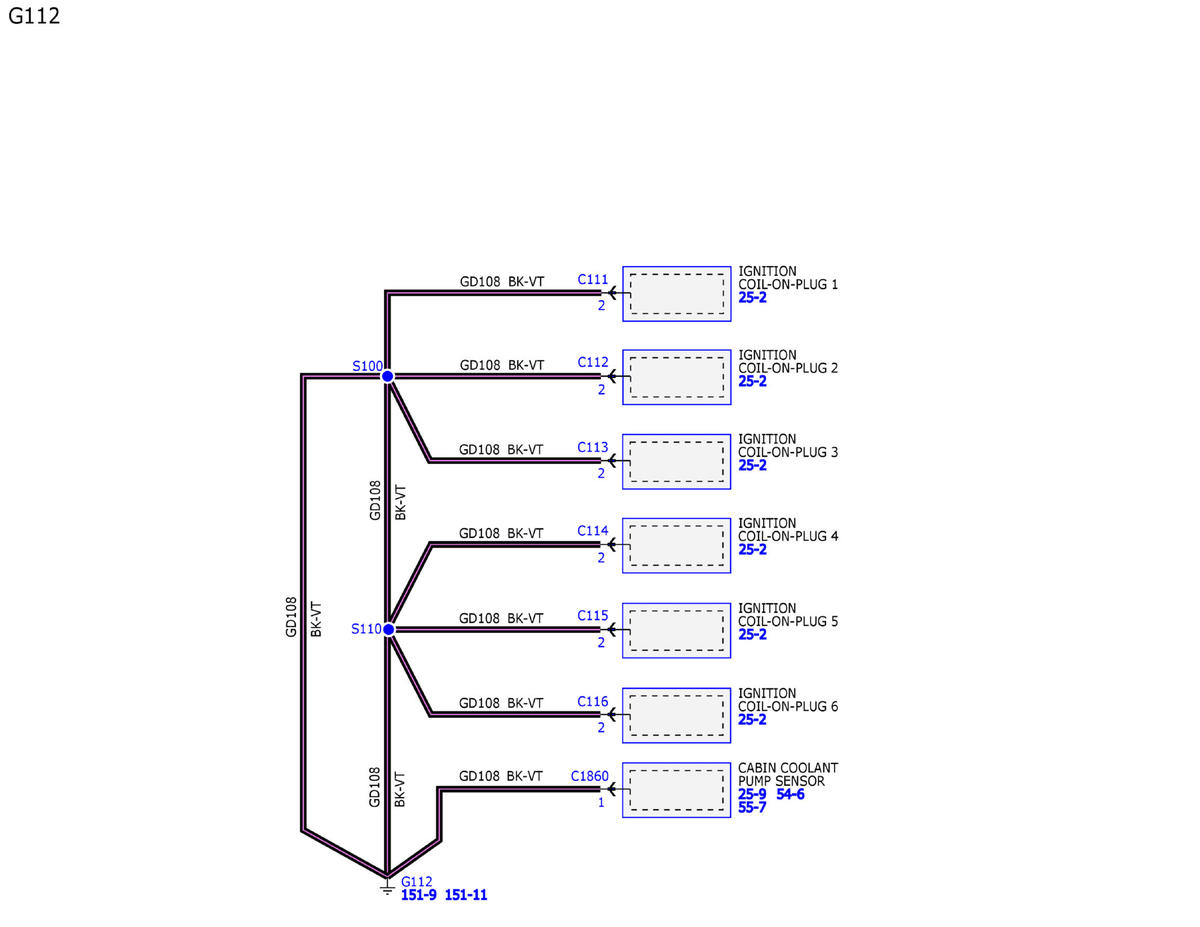

GFDW102014Courtesy of FORD MOTOR COMPANY

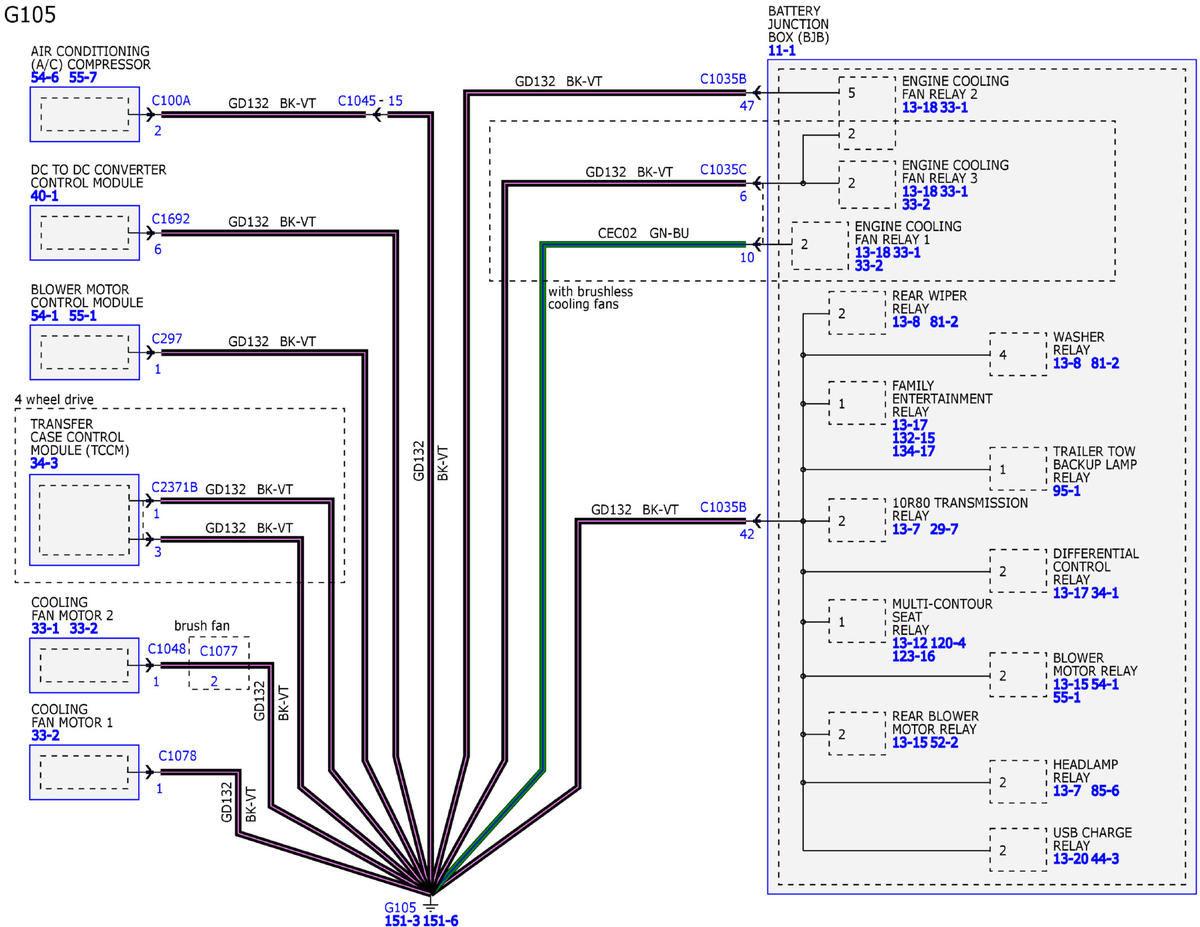

GFDW102015Courtesy of FORD MOTOR COMPANY

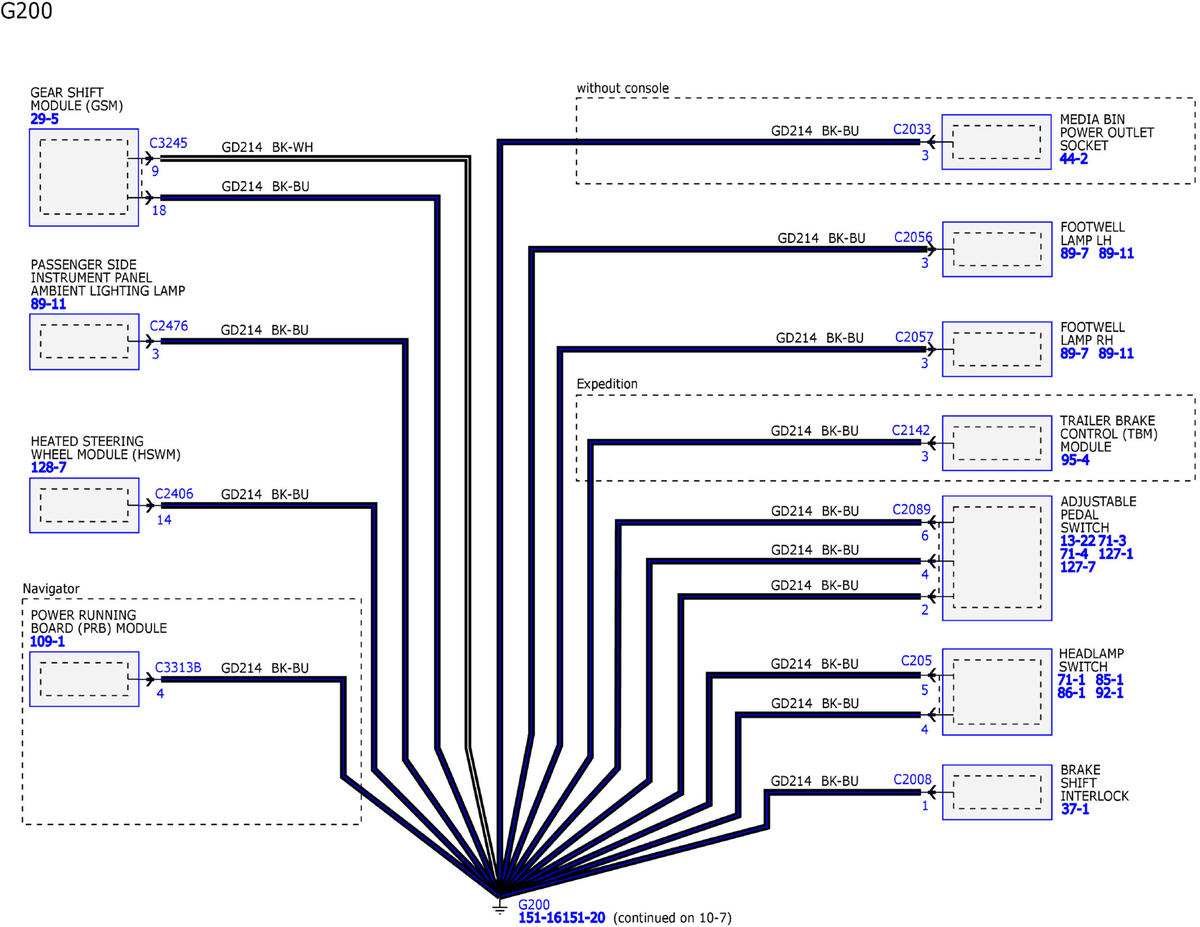

GFDW102016Courtesy of FORD MOTOR COMPANY

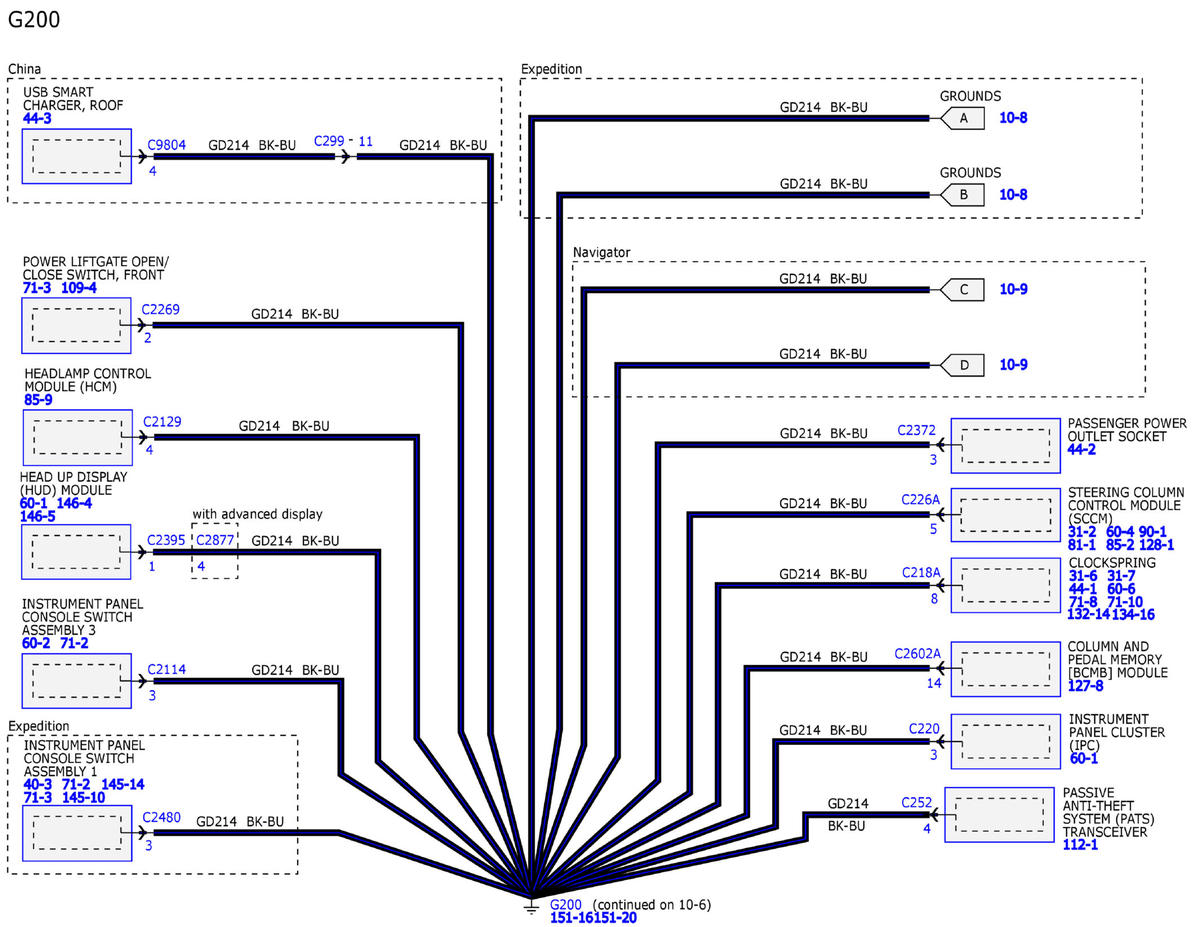

GFDW102017Courtesy of FORD MOTOR COMPANY

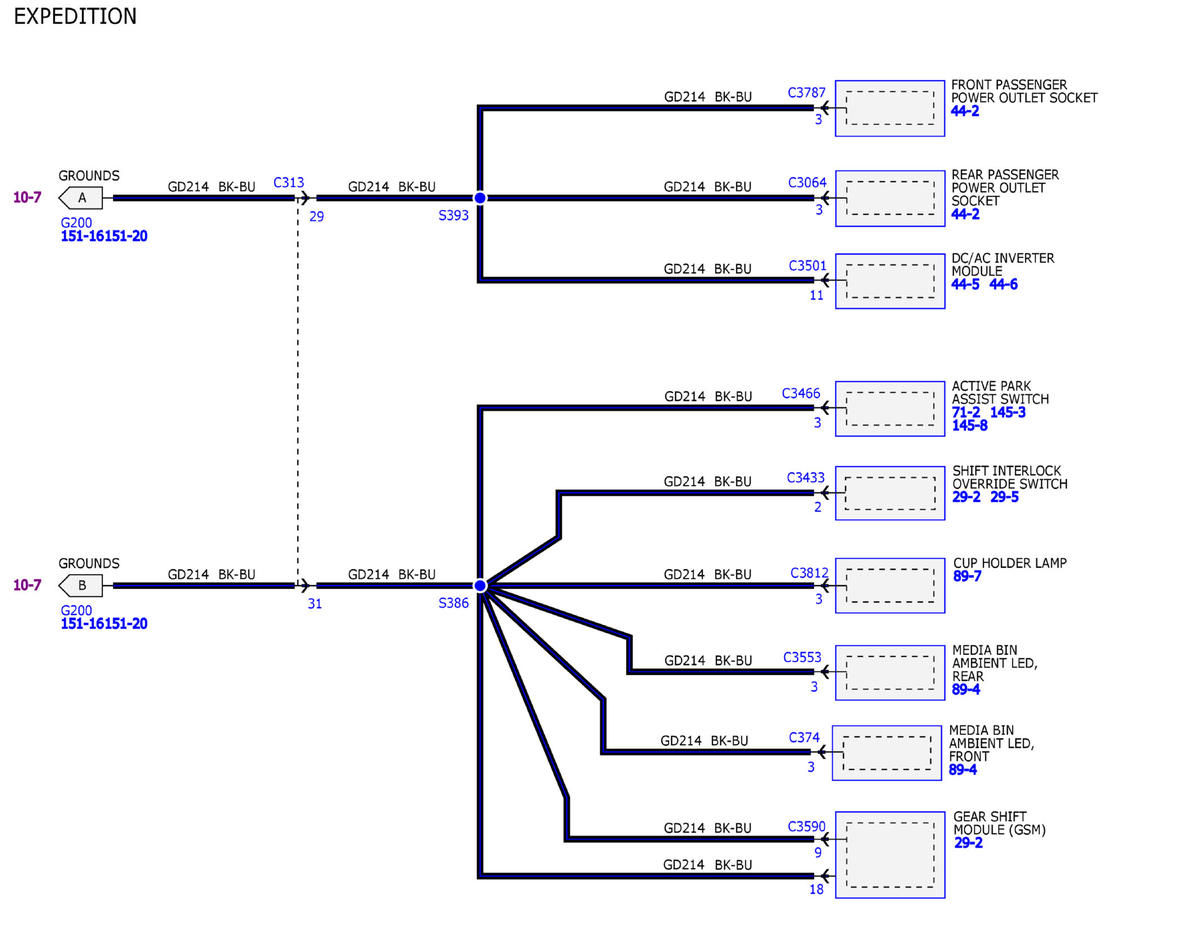

GFDW102018Courtesy of FORD MOTOR COMPANY

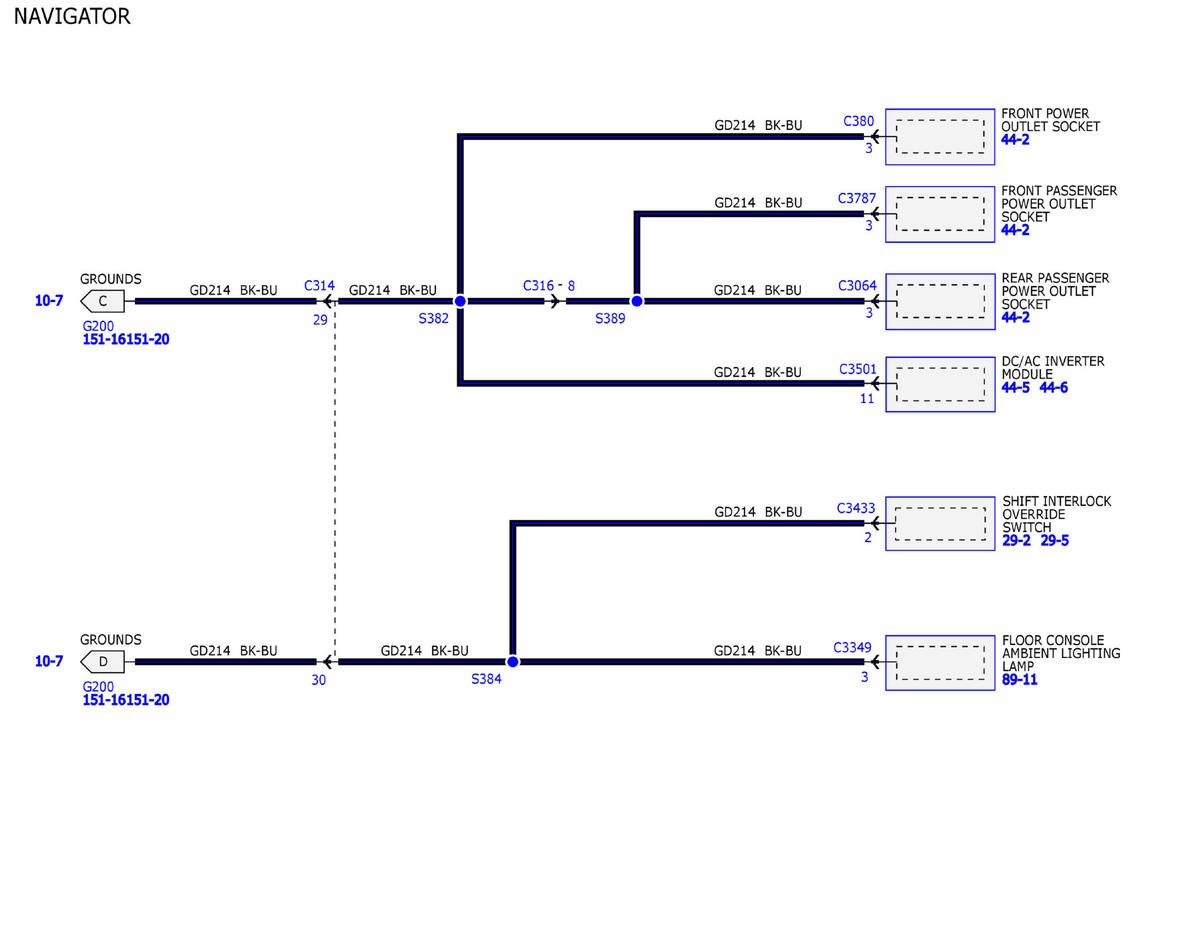

GFDW102019Courtesy of FORD MOTOR COMPANY

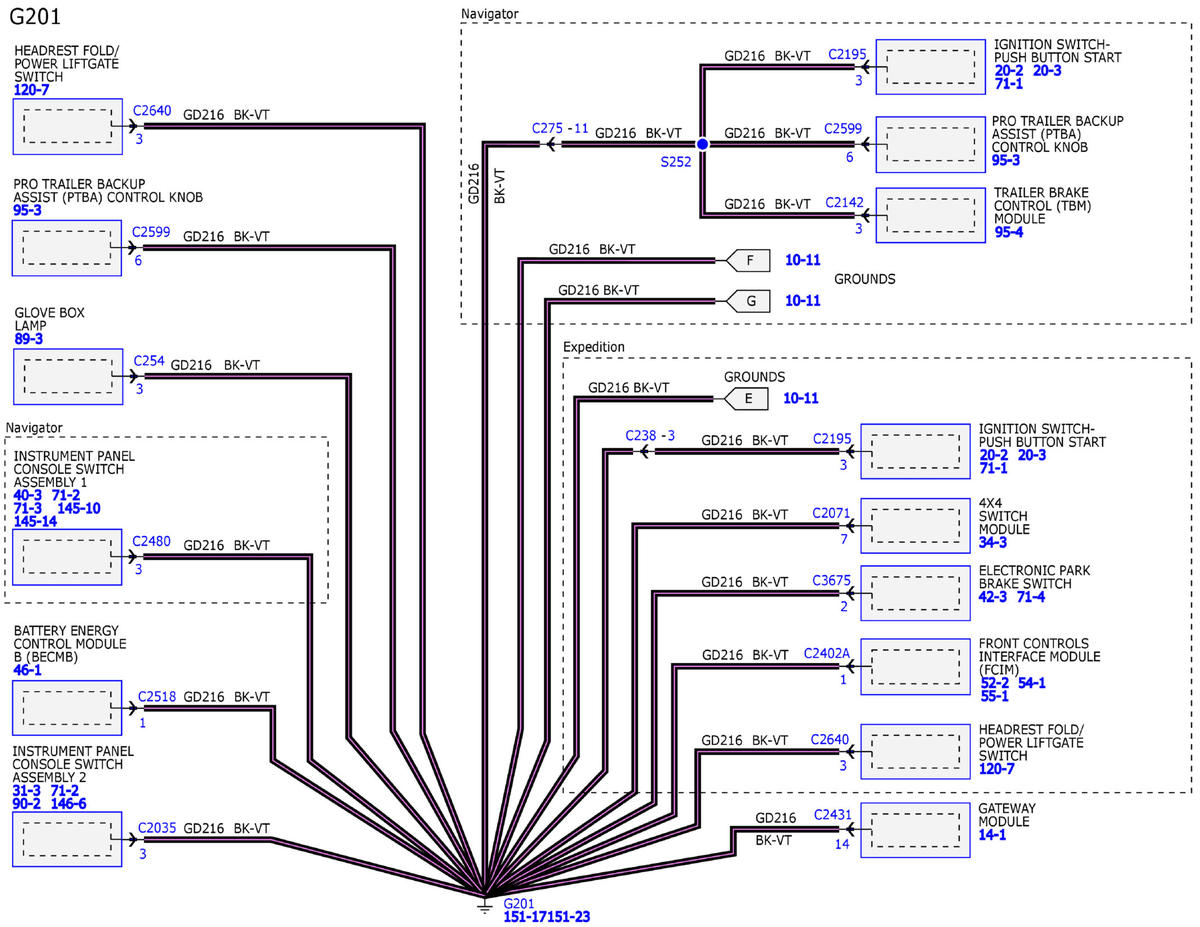

GFDW102020Courtesy of FORD MOTOR COMPANY
