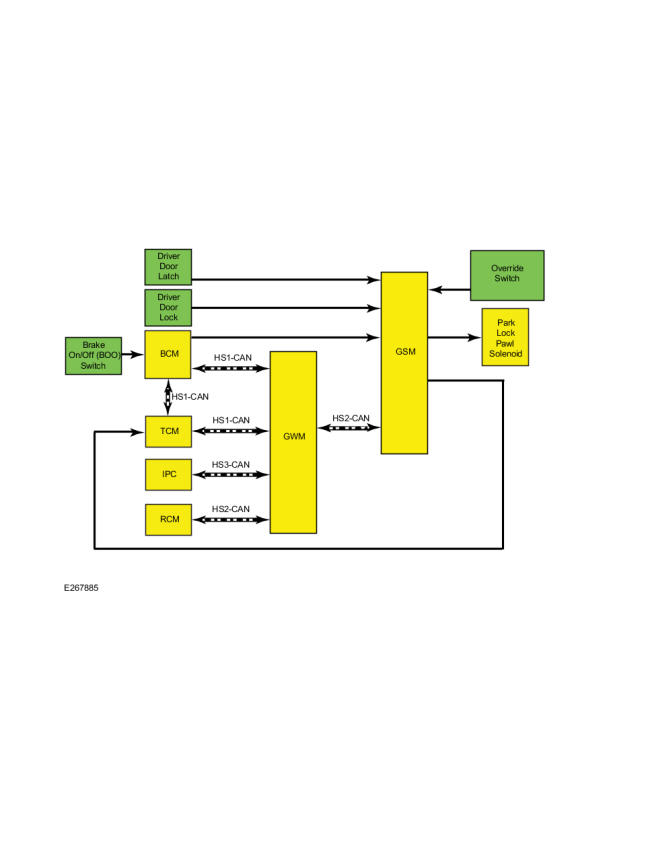

System Diagram

GFD274007Courtesy of FORD MOTOR COMPANY
Item Description
1 Override Switch
2 GSM
3 GWM
4 Park Lock Pawl Solenoid
5 RCM
6 IPC
7 TCM
8 BCM
9 Driver Door Latch
10 Driver Door Lock
11 Brake On/Off (BOO) Switch
