Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake disc shield. Refer to:BRAKE DISC SHIELD .
2. Disconnect the wheel speed sensor electrical connector and detach the retainers.

   Courtesy of FORD MOTOR COMPANY

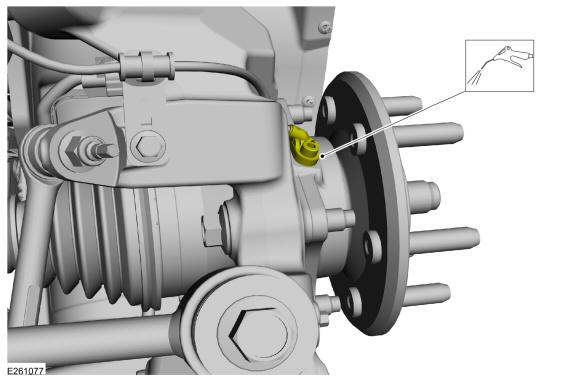

3. Using compressed air, clean the area surrounding the rear wheel speed sensor.

   Courtesy of FORD MOTOR COMPANY

4. Detach the wiring retainer, remove the bolt and the rear wheel speed sensor.

   Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
