Power Transfer Unit Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

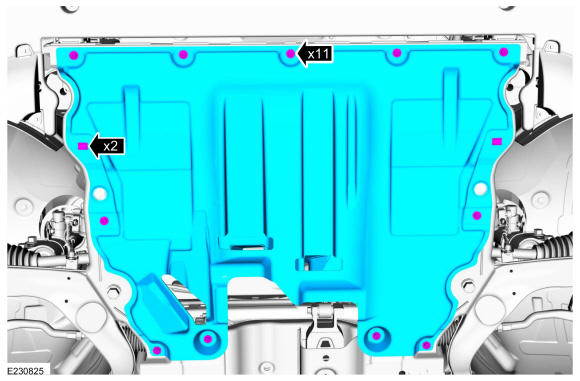

Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

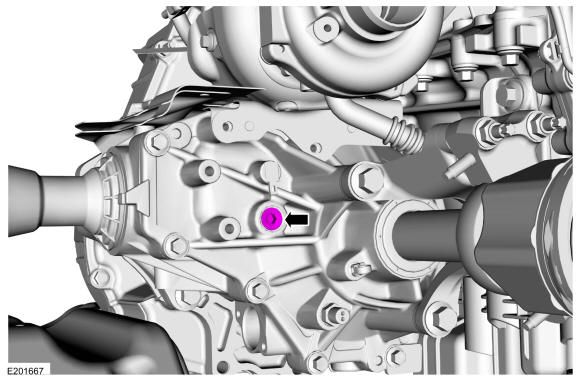

Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY
NOTE: The fill capacity of the PTU is 23 fl oz (700 ml).

Fill the PTU with clean fluid, level with the fill plug opening.

Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
