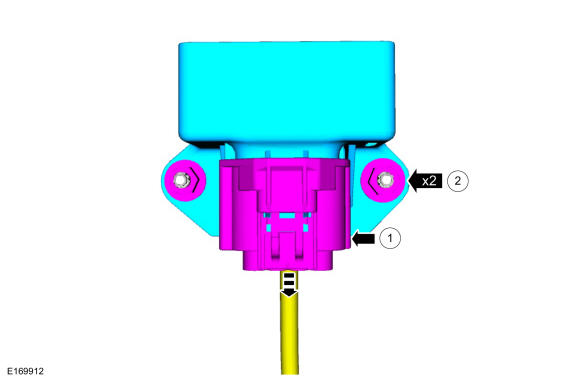

Fuel Pump Driver Module (FPDM): Removal
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
NOTE:

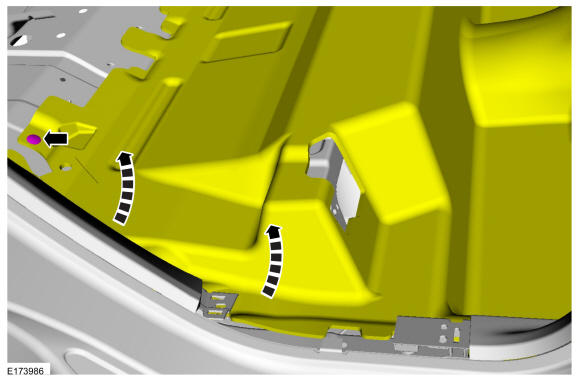

The FPDM is located beneath the 2nd row right rear seat cushion, under the carpet.
- Remove the rear seat cushion. Refer to: Rear Seat Cushion .
