Interior Rear View Mirror: Installation

Mirror type 1

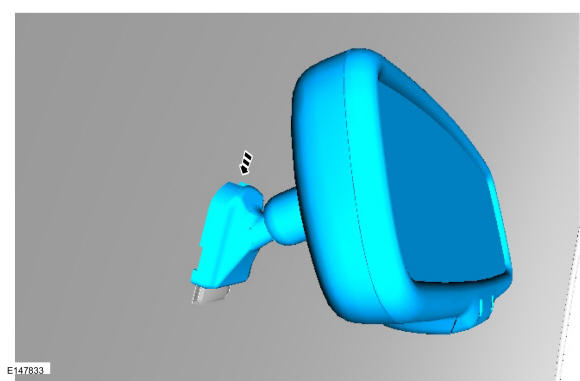

Slide the interior rear view mirror over the windshield bracket from the top.

Courtesy of FORD MOTOR COMPANY

NOTE: An audible click will be heard as the mirror fully seats.

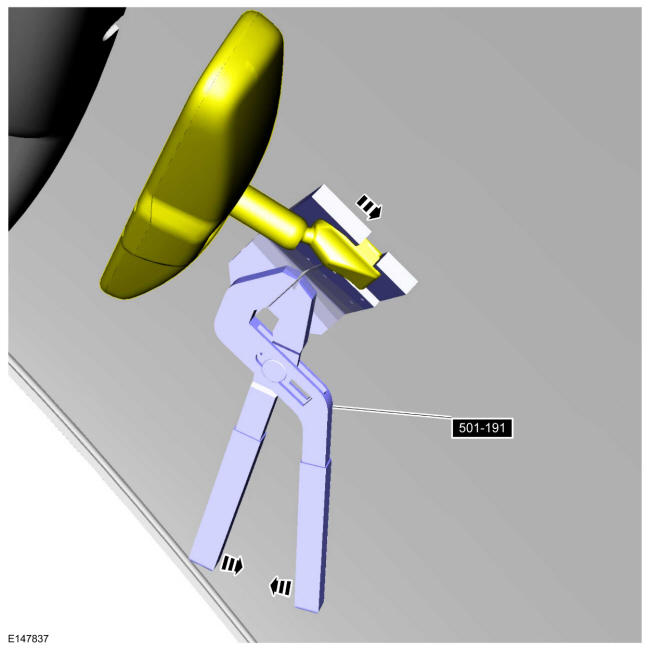

Using the interior mirror installer, fully seat the interior mirror. Use Special Service Tool: 501-191 Installer, Rear View Mirror.

Courtesy of FORD MOTOR COMPANY

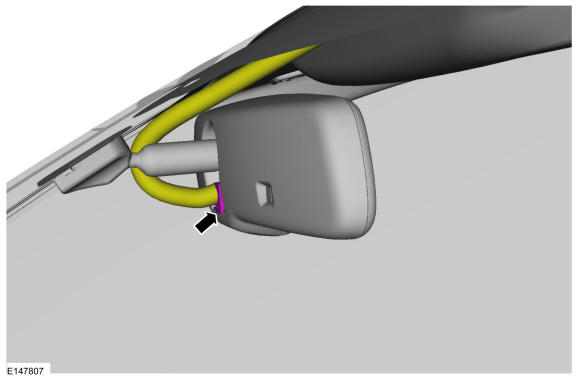

If equipped, connect the electrical connector.

Courtesy of FORD MOTOR COMPANY

If equipped with a compass module which requires calibration, check the compass zone and calibration.

Mirror type 2

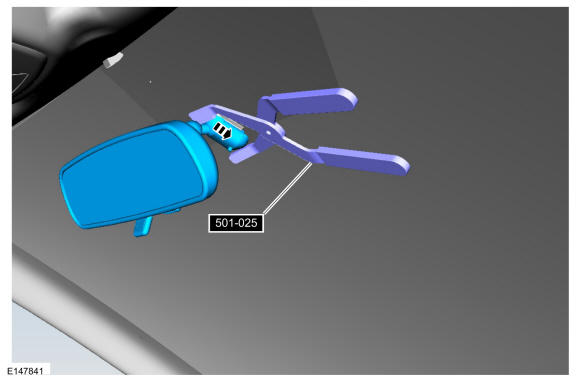

Using the interior mirror installer, fully seat the interior mirror. Use Special Service Tool: 501-025 Installer, Rear View Mirror.

Courtesy of FORD MOTOR COMPANY

If equipped with a compass module which requires calibration, check the compass zone and calibration.

Mirror type 3

To install, reverse the removal procedure.

Mirror type 4

To install, reverse the removal procedure.

If a new mirror has been installed, use diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.

If a new mirror has been installed, carry out the camera alignment using scan tool following the on-screen instructions under Toolbox>Body>Service Functions>Camera Alignment.

Mirror type 5

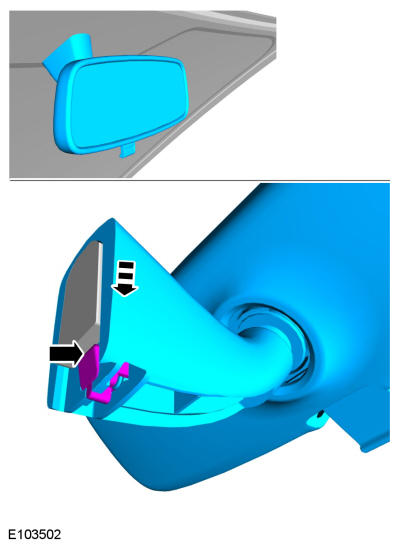

Slide the interior mirror onto the mirror mount until the locking tab is engaged.

Courtesy of FORD MOTOR COMPANY

Mirror type 6

To install, reverse the removal procedure.
