Rear Wheel Speed Sensor: Removal
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Refer to: Jacking and Lifting - Overview
.
All wheel drive (AWD) vehicles
- Refer to: Wheel and Tire .
-

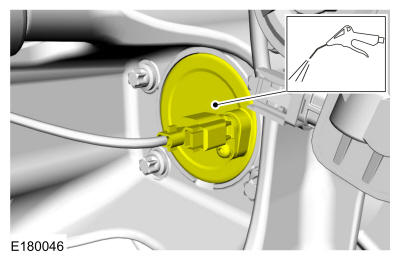

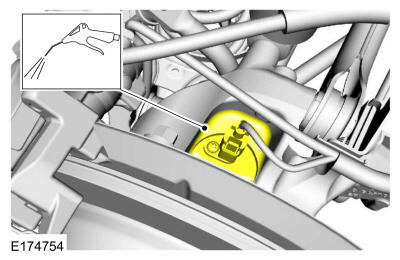

NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.
- Torque
: 42 lb.in (4.8 Nm)
Front wheel drive (FWD) vehicles
- Torque
: 48 lb.in (5.4 Nm)
