Fuel Pump Driver Module (FPDM): Installation

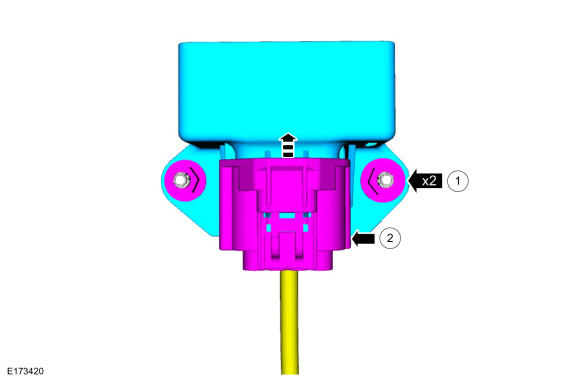

  1. GFD394212Courtesy of FORD MOTOR COMPANY

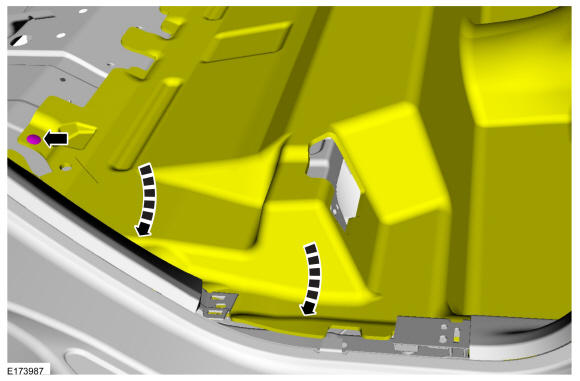

    GFD394213Courtesy of FORD MOTOR COMPANY
    1. Torque: 44 lb.in (5 Nm)

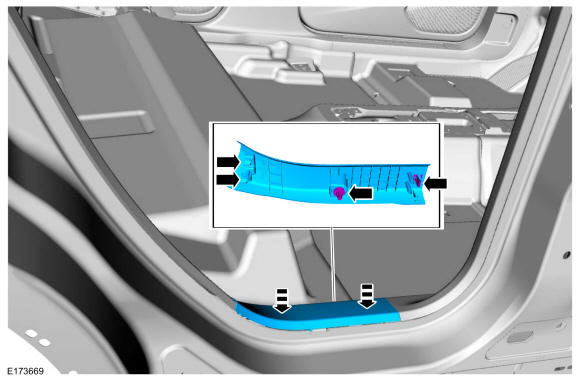

  2. GFD394214Courtesy of FORD MOTOR COMPANY

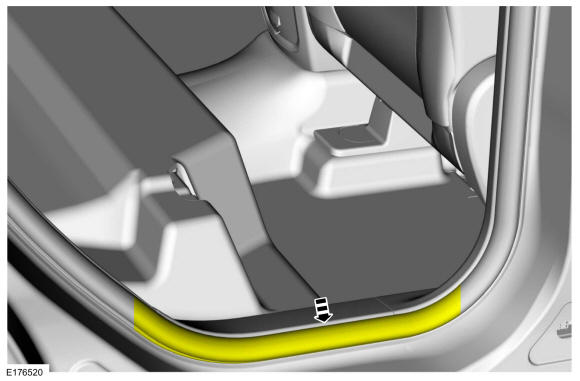

    GFD394215Courtesy of FORD MOTOR COMPANY
  3. Install the rear seat cushion. Refer to: Rear Seat Cushion .
