Hydraulic Control Unit (HCU): Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s)
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

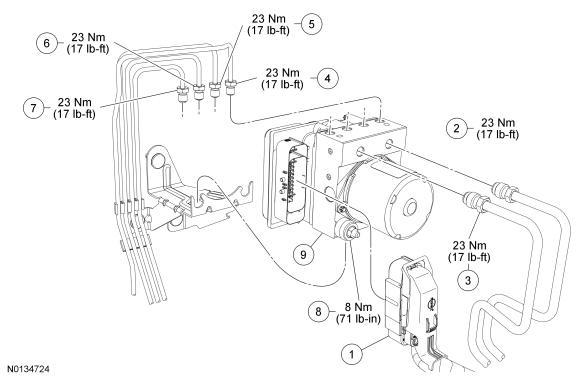

| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS electrical connector (part of 14A005) |
| 2 | - | Master cylinder secondary brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C360) |
| 3 | - | Master cylinder primary brake tube-to-HCU fitting (part of 2C360) |
| 4 | - | LH front brake tube-to-HCU fitting (part of 2C296) |
| 5 | - | RH rear brake tube-to-HCU fitting (part of 2C296) |
| 6 | - | LH rear brake tube-to-HCU fitting (part of 2C296) |
| 7 | - | RH front brake tube-to-HCU fitting (part of 2C296) |
| 8 | 3B676 | Bracket-to-HCU nut (2 required) |
| 9 | 2C405 | HCU |
